Location of oil pressure sending sensor

2004 DODGE CARAVAN
140,000 MILES • 2.4L • 4 CYL • 2WD • AUTOMATIC
Avatar
DUDE77
  • MEMBER
  • 19 POSTS
The Haynes book says "on 2.4l engines the oil pressure sending unit is located above the oil filter near the rear of the engine block."

I looked and I don't see any sensors near the oil filter. Could you please post a diagram showing the location of this sensor on the 4 cylinder engine for the van listed above?
Oct 22, 2019 at 2:51 PM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

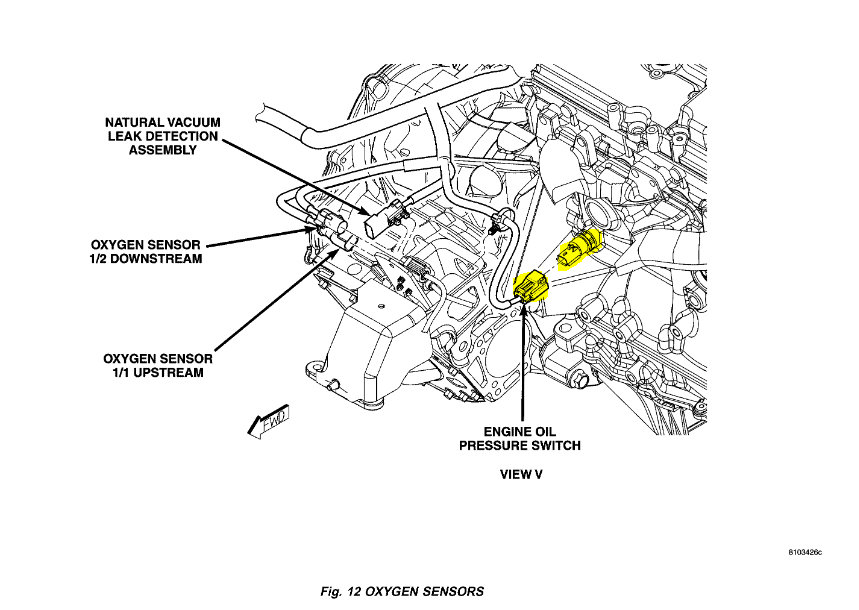

I have included a diagram of the Oil Pressure Sensor in the diagrams down below. Please get back to us with how everything turns out and I hope this helps.

Thanks,
Alex
2CarPros
Image (Click to enlarge)
Attached Media
Oct 22, 2019 at 3:00 PM
Avatar
DUDE77
  • MEMBER
  • 19 POSTS
Thanks, that's a big help!
Oct 22, 2019 at 3:38 PM
Advertisement
Avatar
DUDE77
  • MEMBER
  • 19 POSTS
On that diagram is it looking at the rear of the engine? It says "FWD" in an arrow which seems like it says it's the forward part of the engine but the only thing I can find on it that looks like the oil pressure sensor is on the rear of the engine toward the transmission.
Oct 27, 2019 at 10:18 AM
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello again,

The arrow points to the front of the vehicle, so the sensor will be on the front side of the engine.

Thanks,
Alex
2CarPros
Oct 29, 2019 at 1:05 AM
