Where is the fuel pump control module located?

2009 CHEVROLET TRAVERSE
178,000 MILES • V6 • 2WD
Avatar
WINDSR07
  • MEMBER
  • 1 POST
The car starts but when put in gear it shuts off. Can't restart. Shutters when accelerating. Is the control module inside the fuel tank or mounted on the fuel rail somewhere?
Apr 4, 2023 at 5:30 AM
Advertisement
Avatar
WINDSR07
  • MEMBER
  • 1 POST
Is the control module inside the fuel tank or mounted on the fuel rail somewhere??
Apr 4, 2023 at 5:32 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

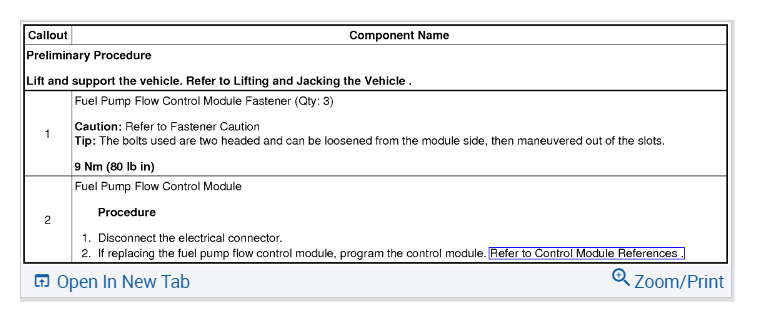

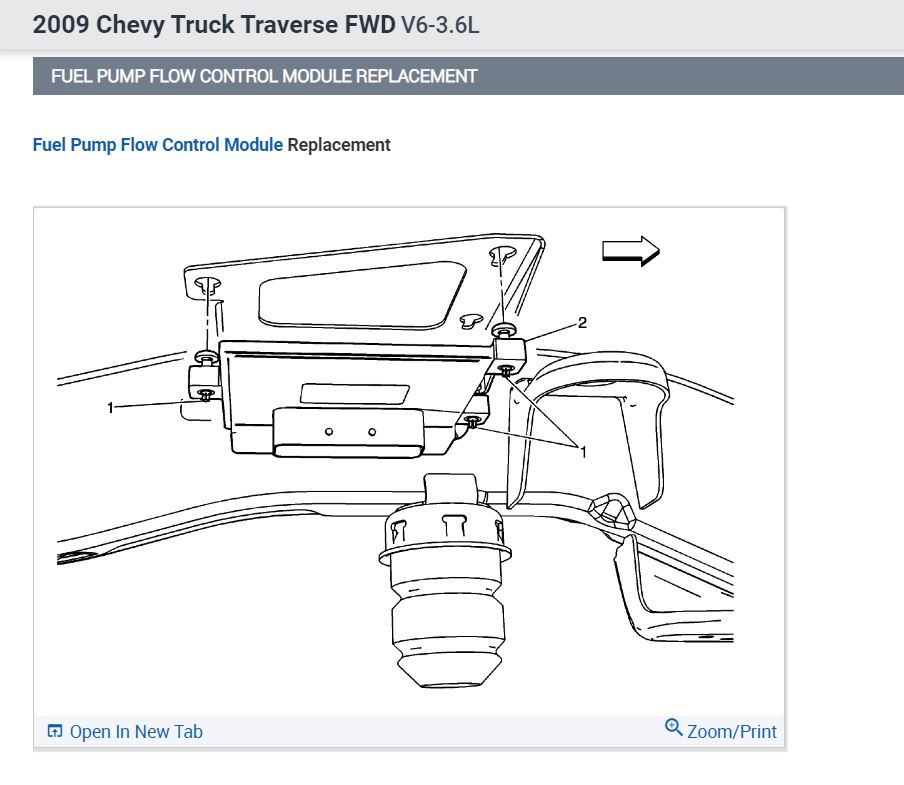

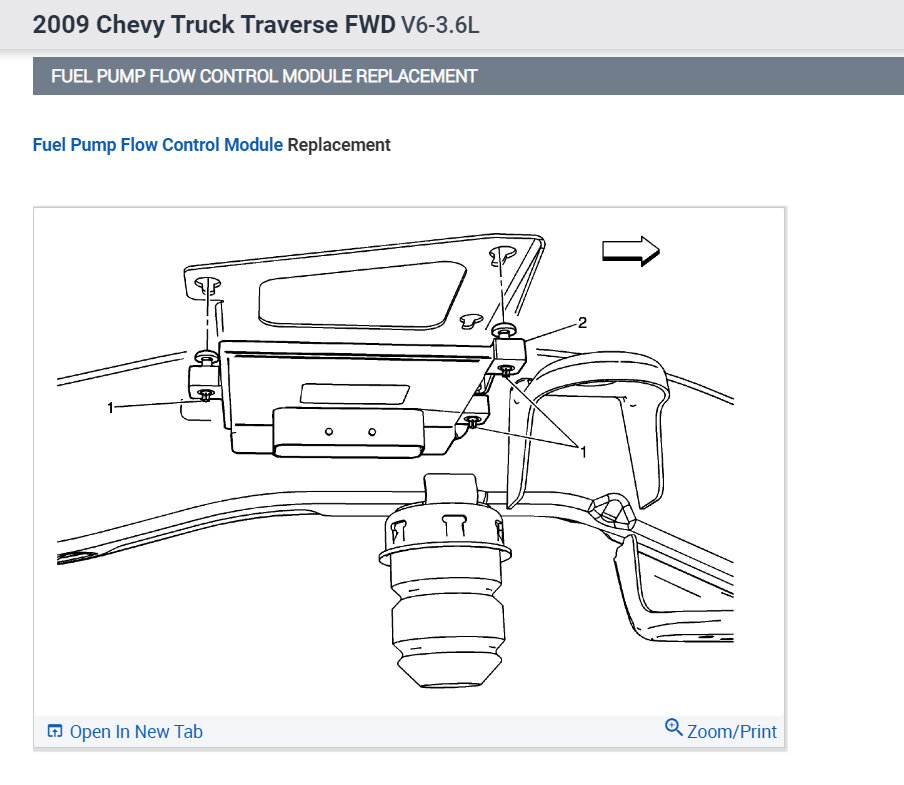

The fuel pump control module is located at the rear of the vehicle on the right side near the snubber for the rear differential. Please check the images below so you can see what I am talking about. Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Apr 4, 2023 at 10:23 AM
