Where is the body control module located?

2005 CADILLAC CTS
165,000 MILES • 3.6L • 6 CYL • 2WD • AUTOMATIC
Avatar
K1DNC
  • MEMBER
  • 1 POST
I need location of BCM and if there are any plug in fuses to check to reset.
Apr 22, 2023 at 6:57 AM
Advertisement
Avatar
AL514
  • CERTIFIED EXPERT
  • 5,464 POSTS
Hello, there looks to be two modules in this vehicle considered to be Body Control modules, what kind of issue are you having? There is a rear integration module and a dash integration module. Each control different sections of the vehicle. I'll post the diagrams for both as well as the GM serial data diagram.

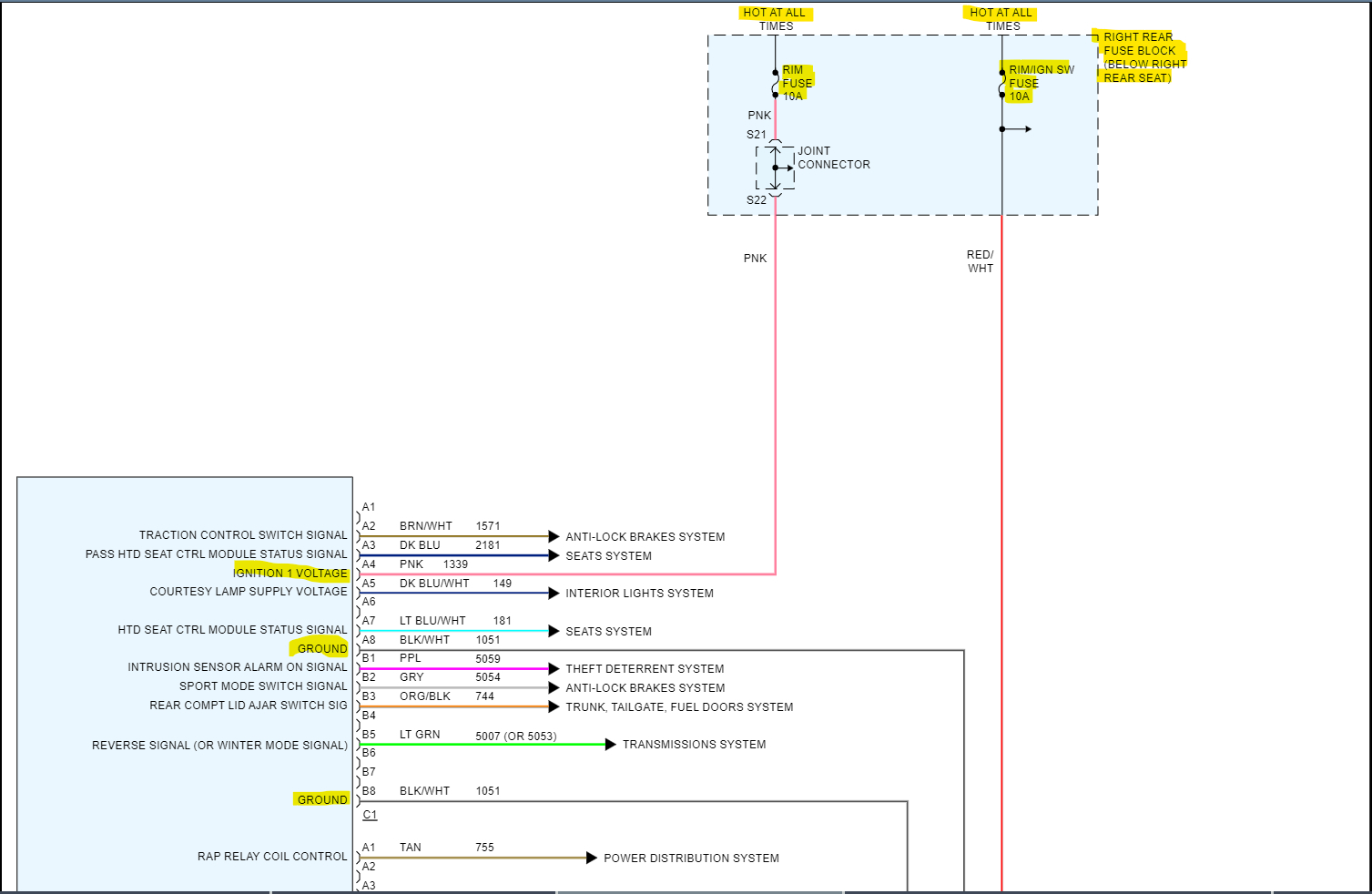

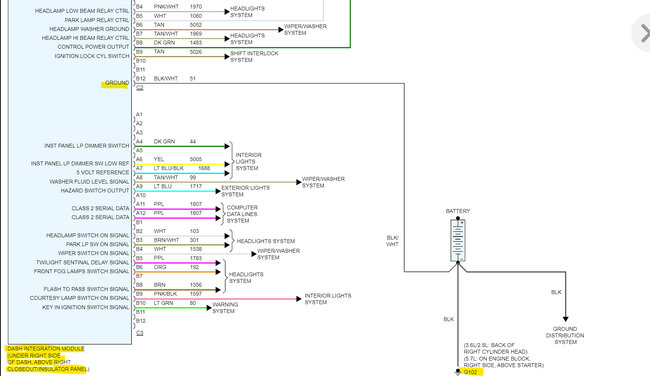

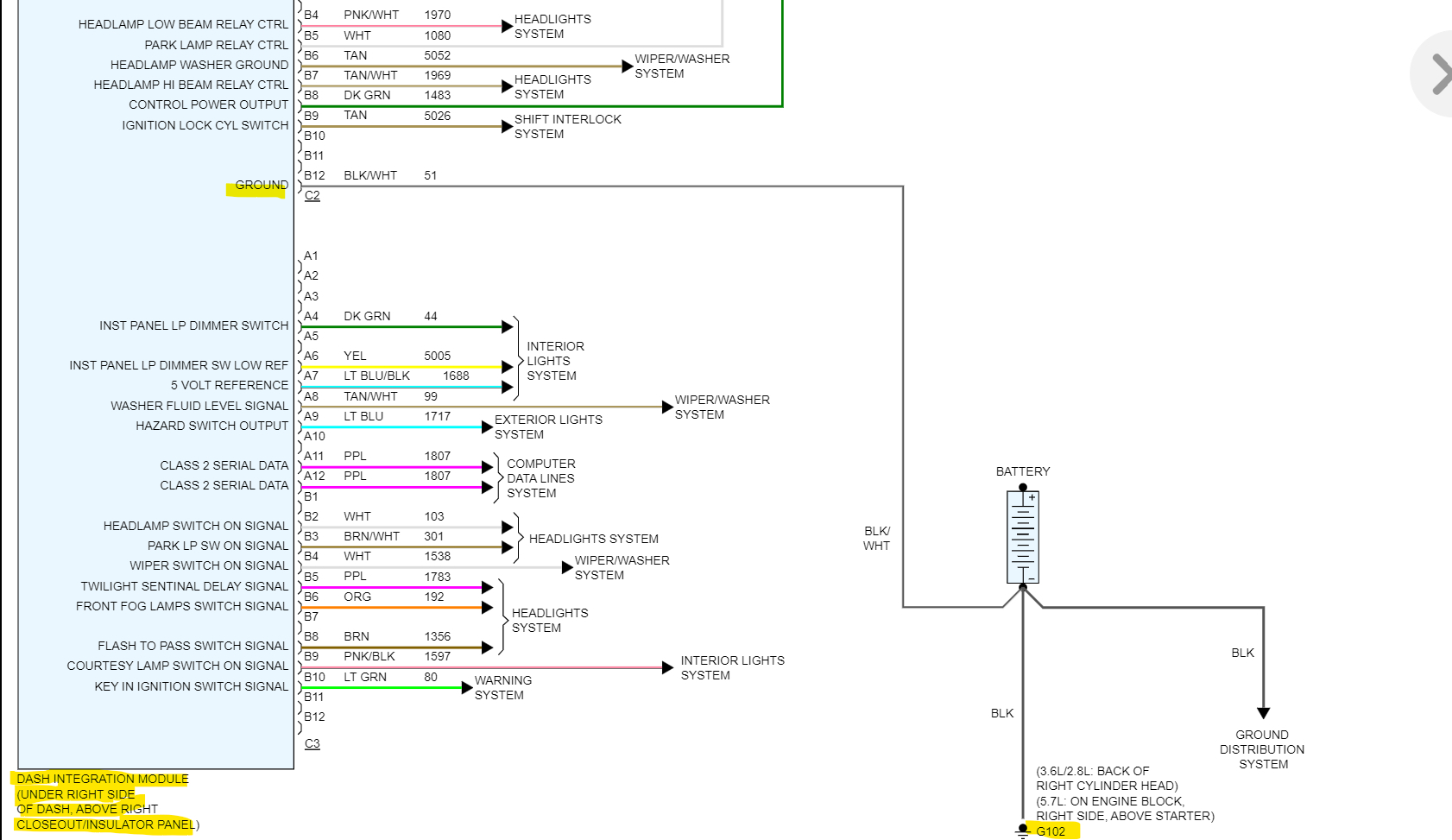

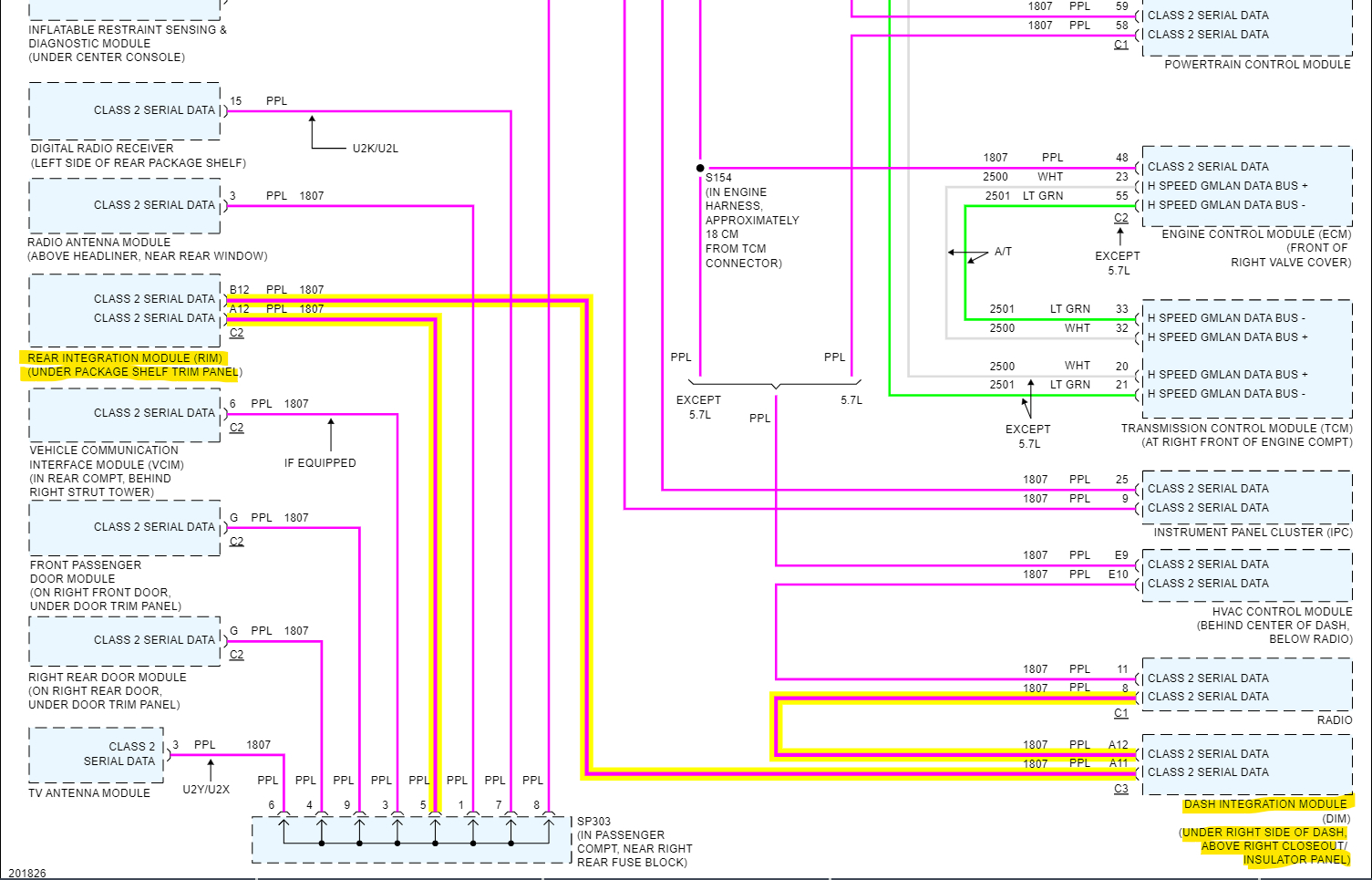

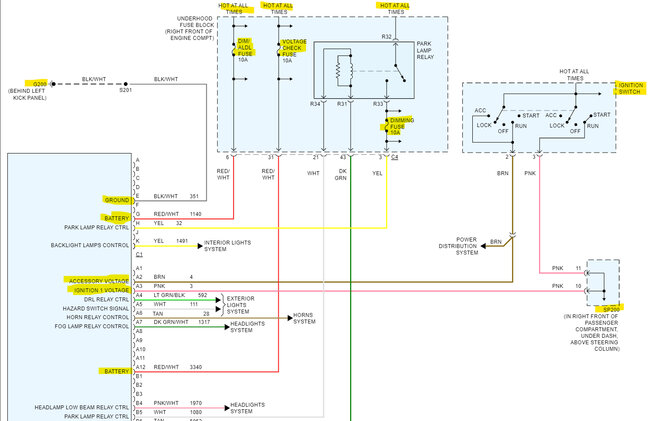

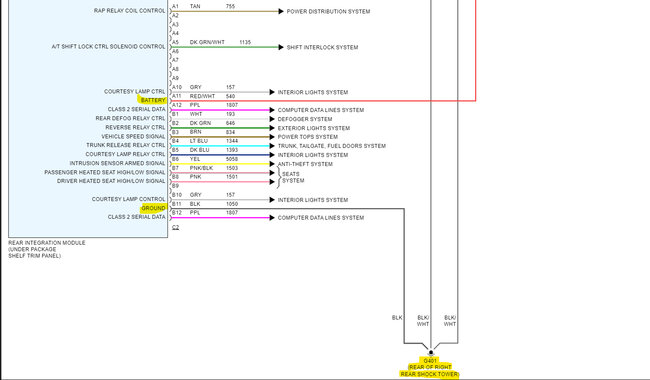

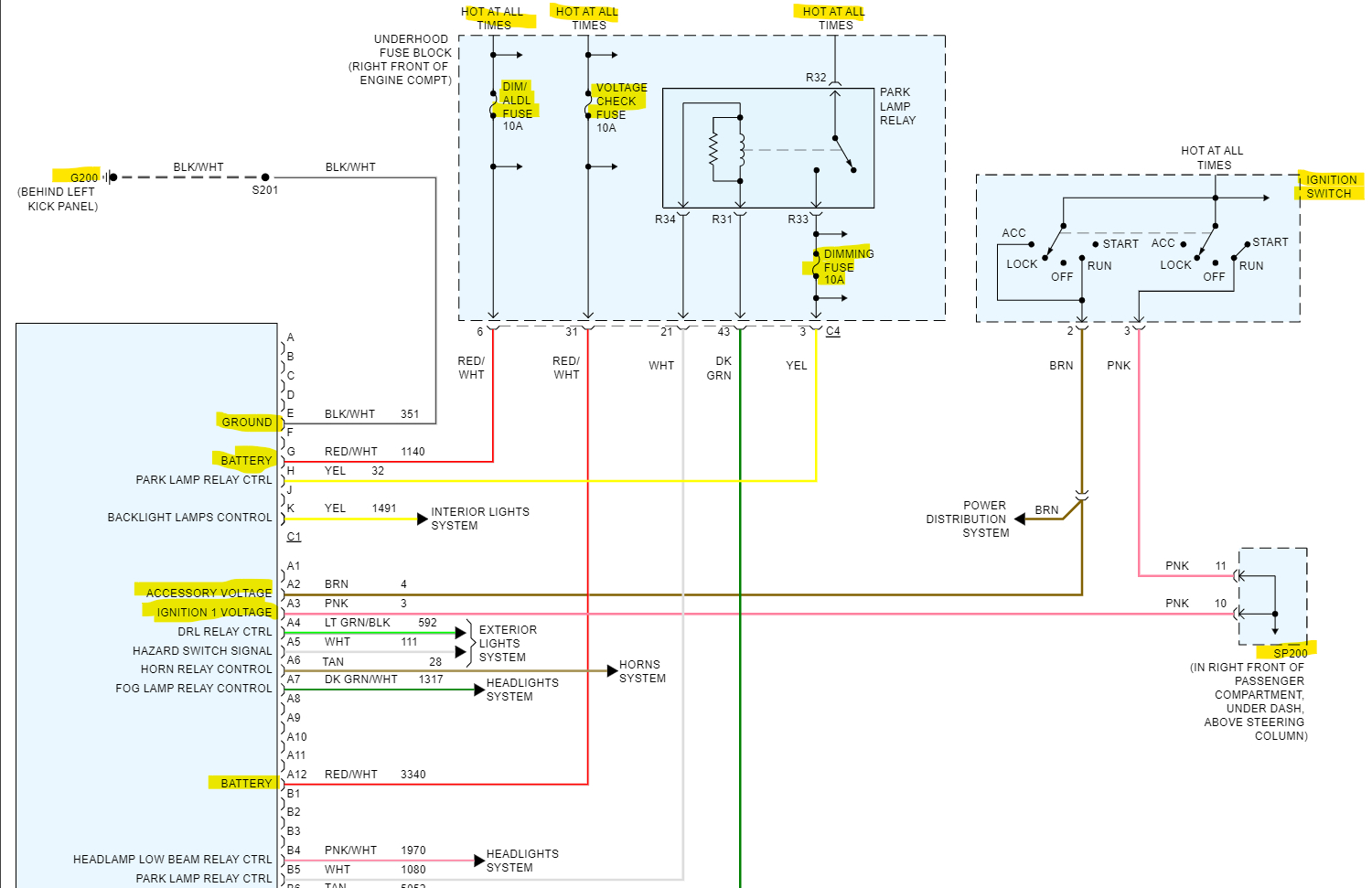

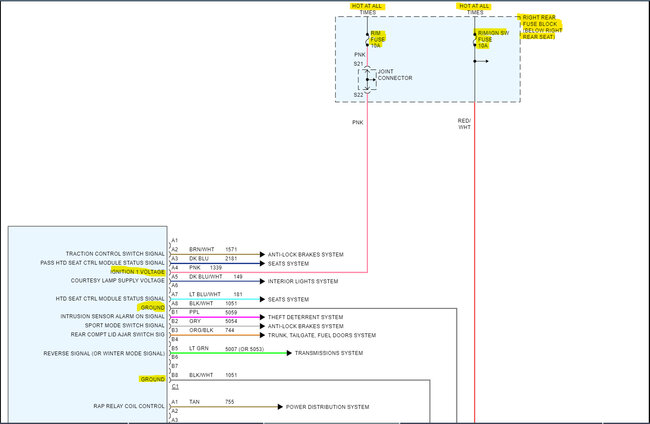

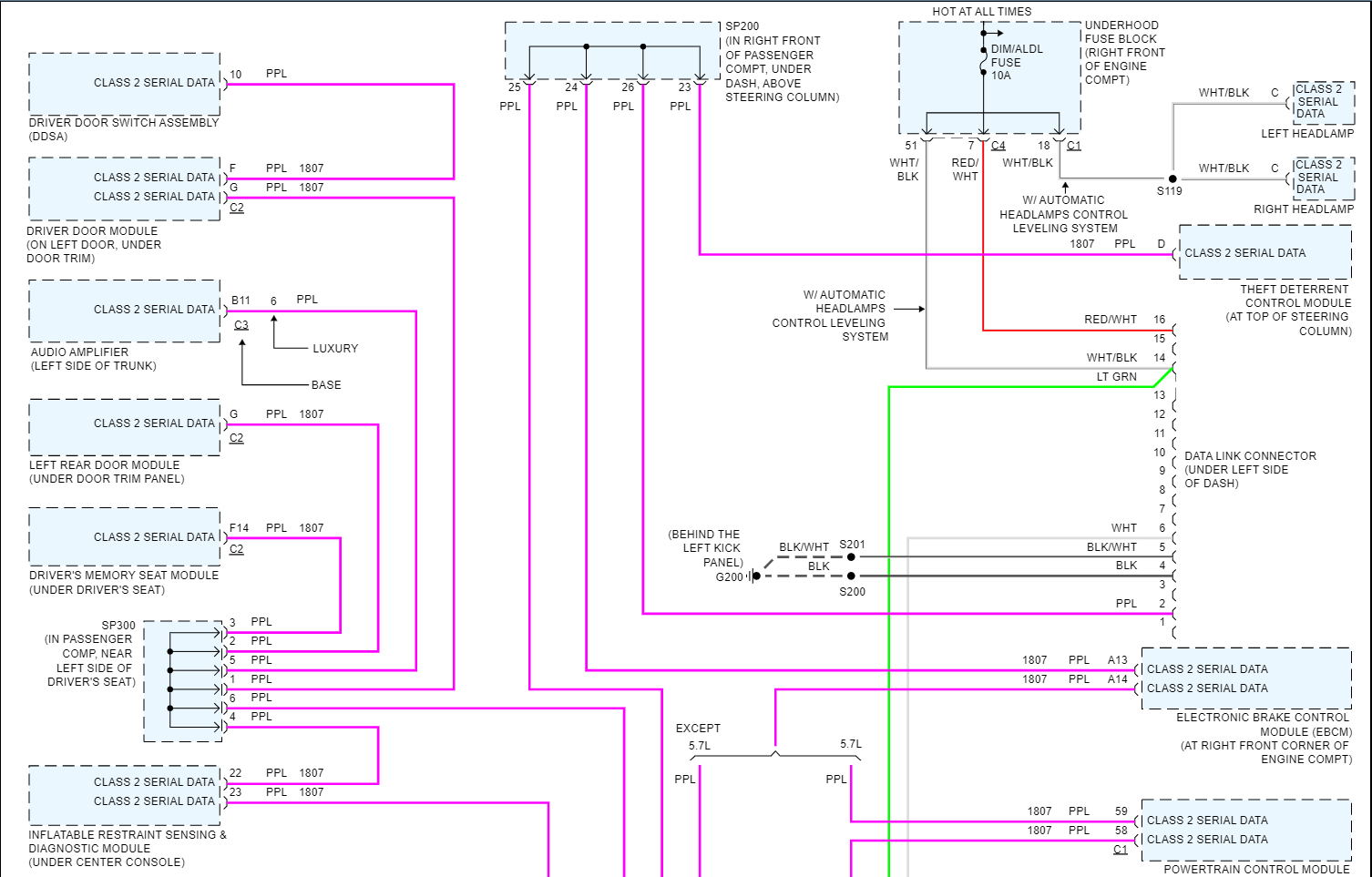

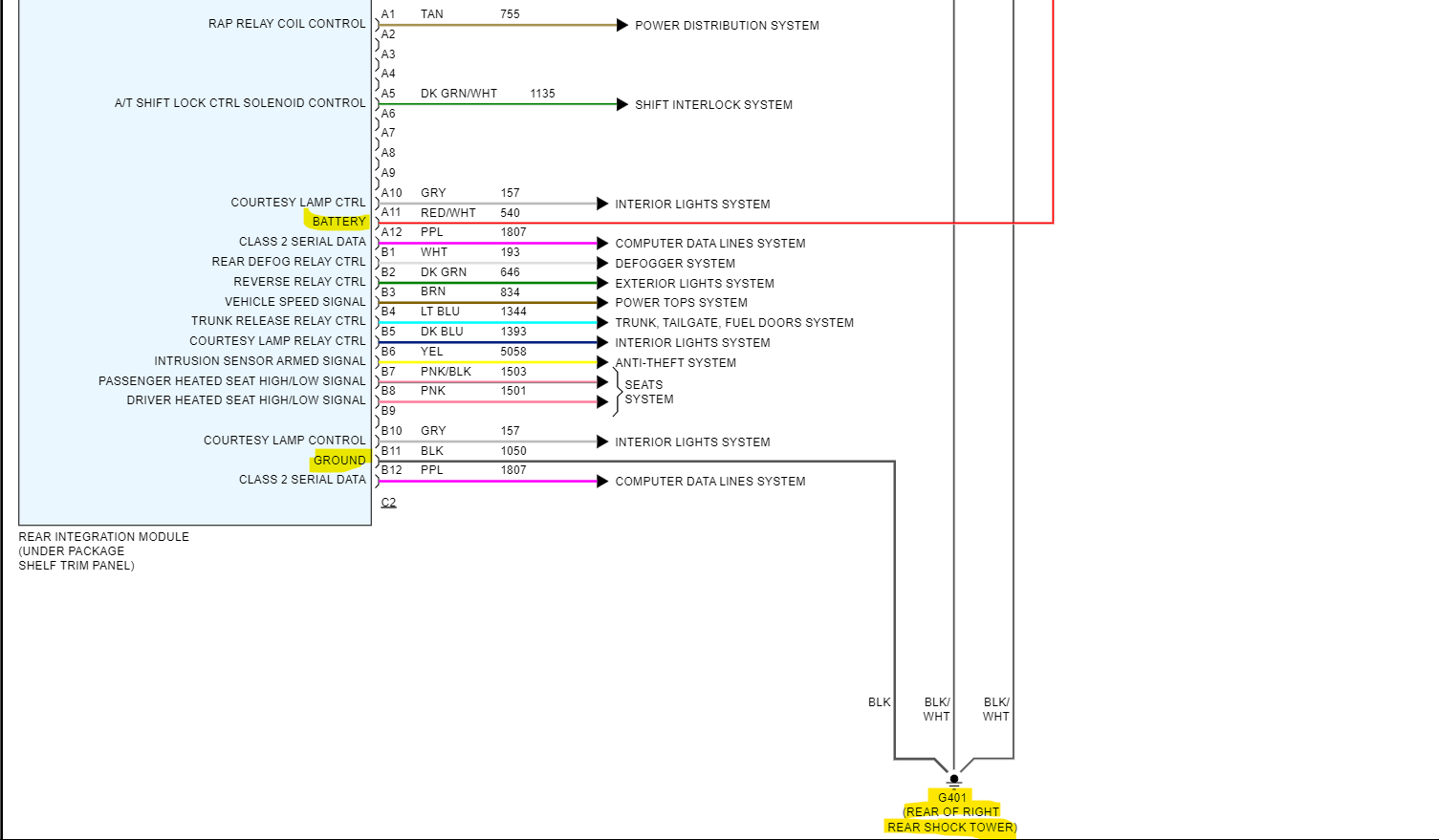

Diagrams 1 and 2(lower half) are the Dash BCM, diagrams 3 and 4 are the Rear BCM, and diagrams 5 and 6 is the GM Serial Data network which shows both BCMs in the lower diagram. If there happens to be a module failure issue, you're dealing with the Splice connectors for the network are a good place where you can disconnect each module one by one if needed.
