Ignition diagram needed

Hi,

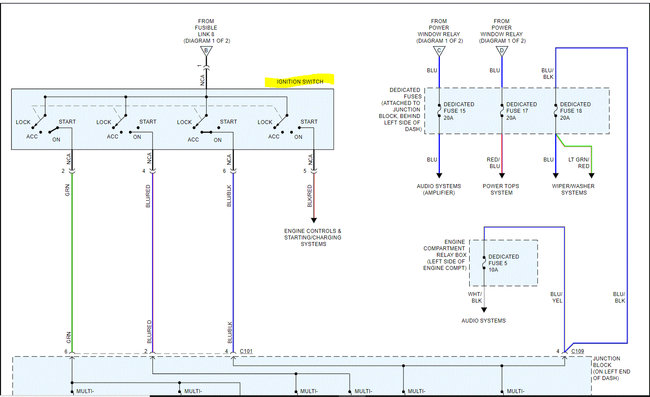

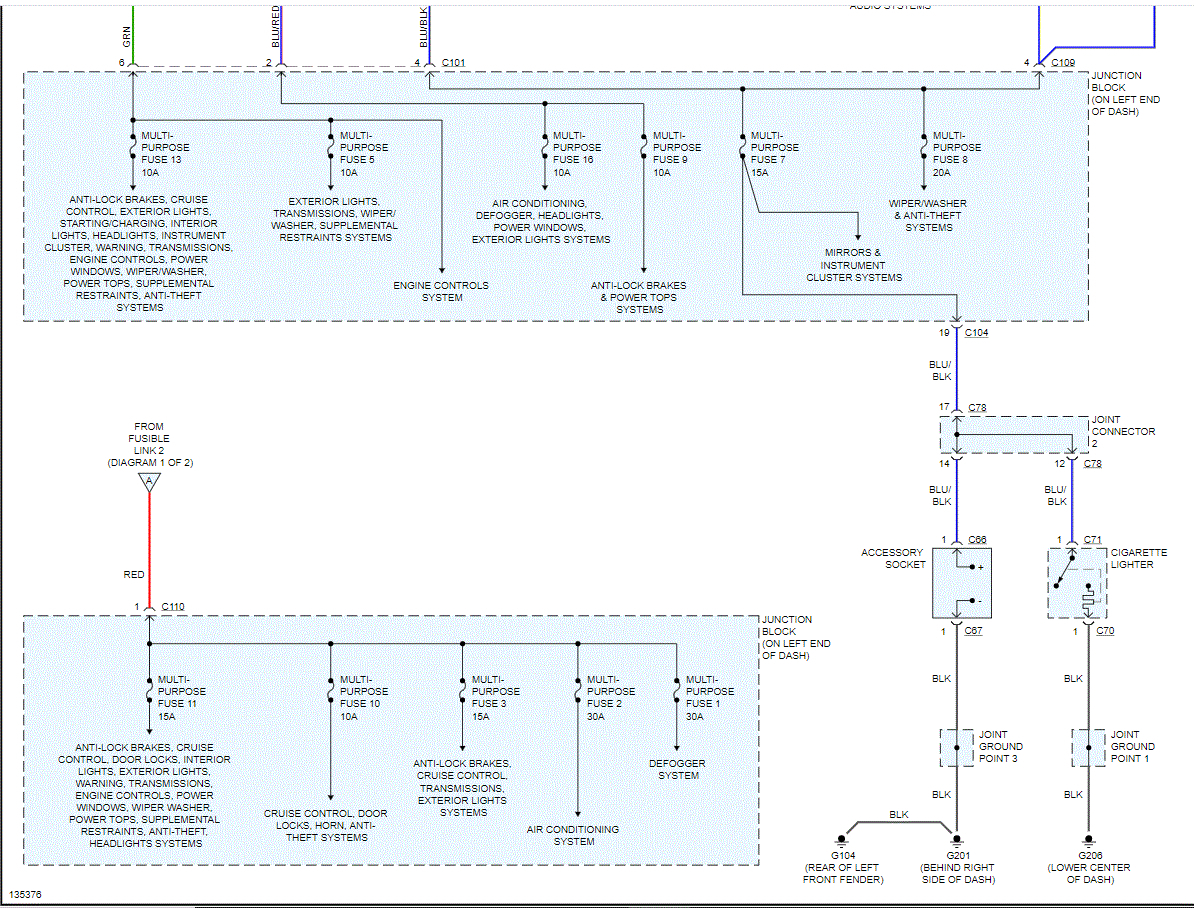

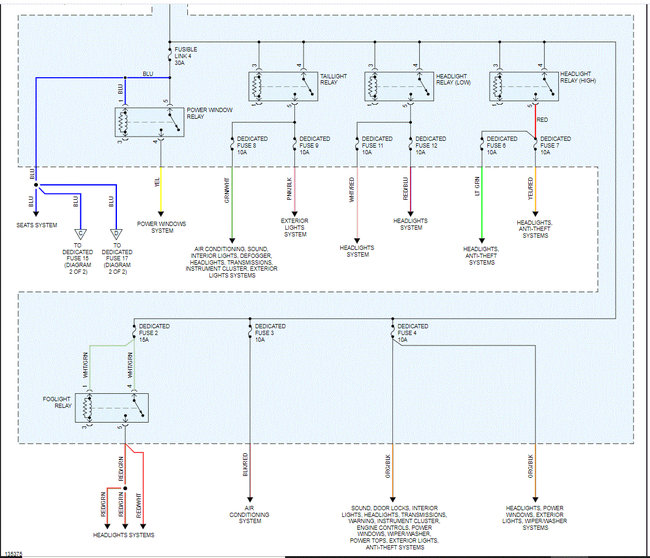

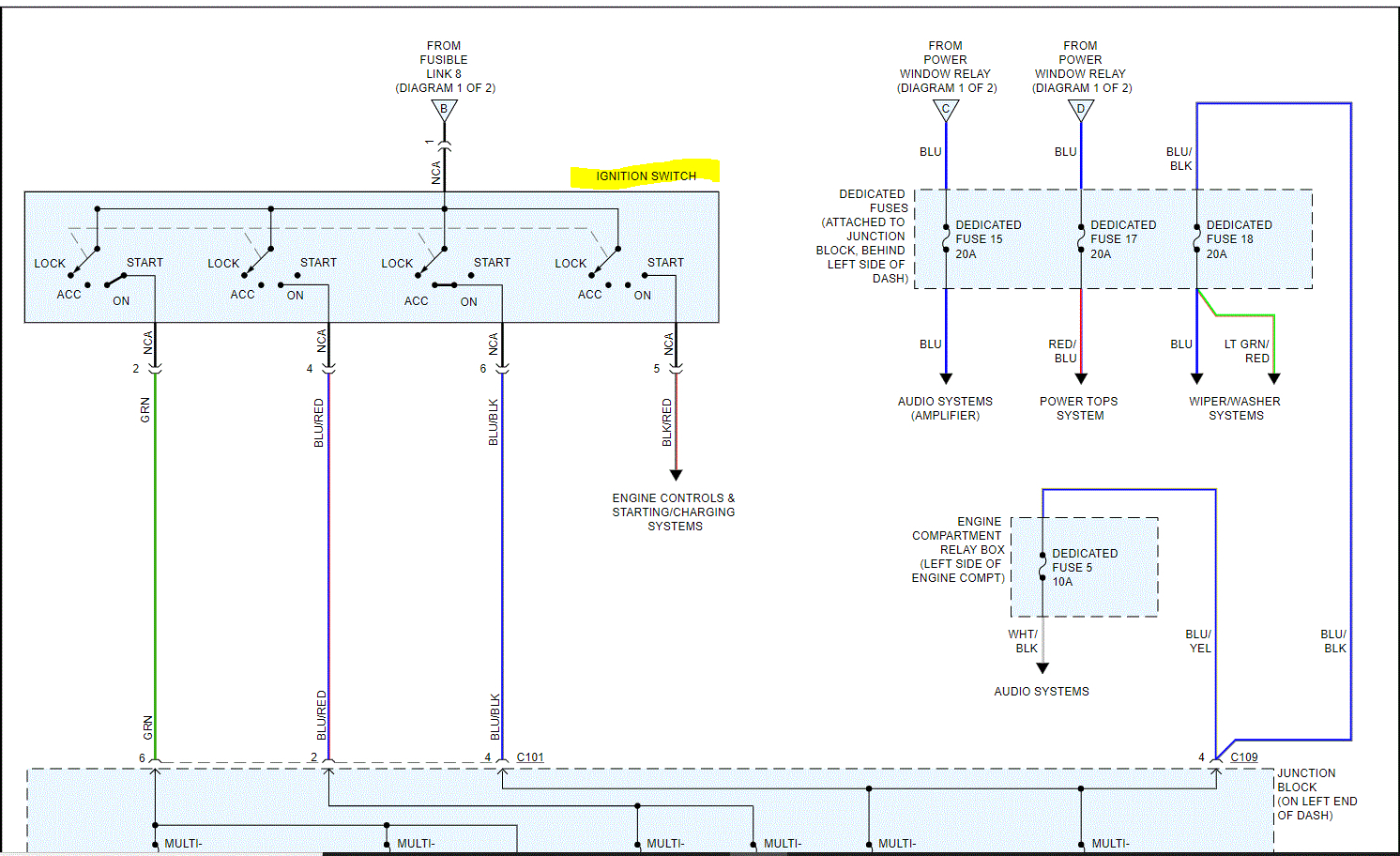

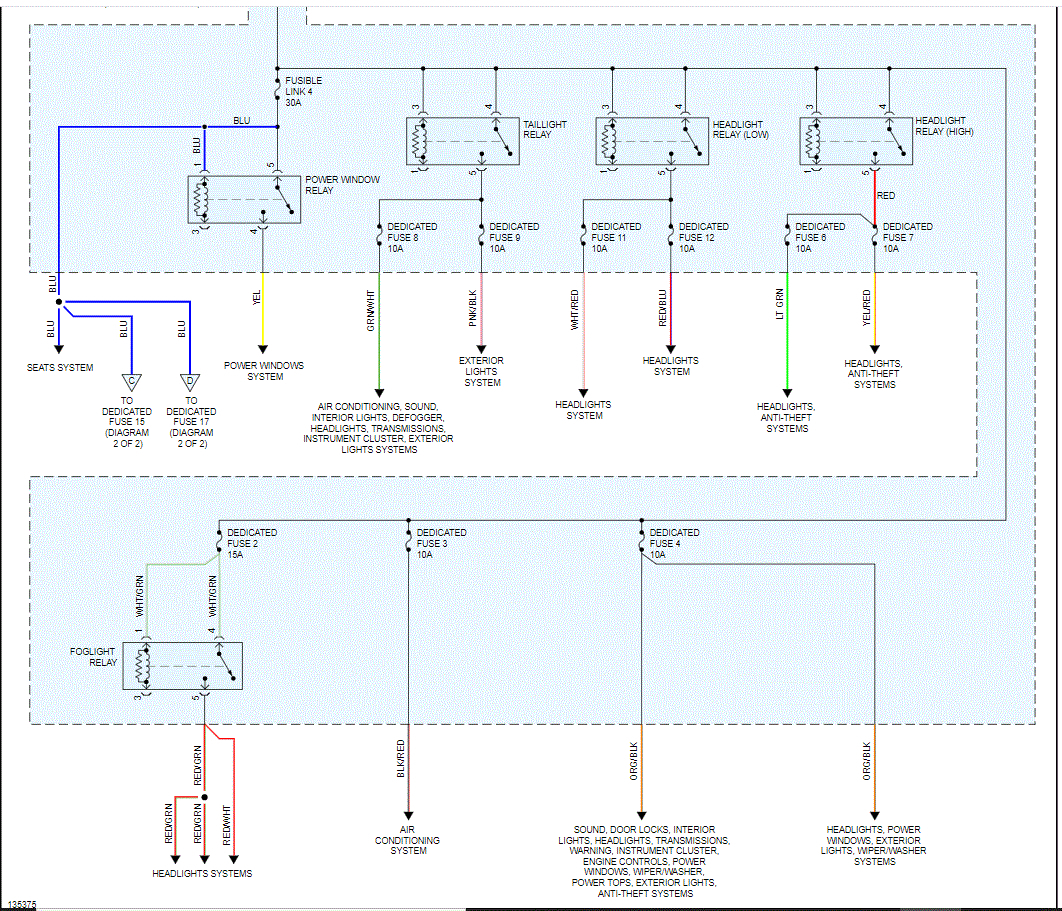

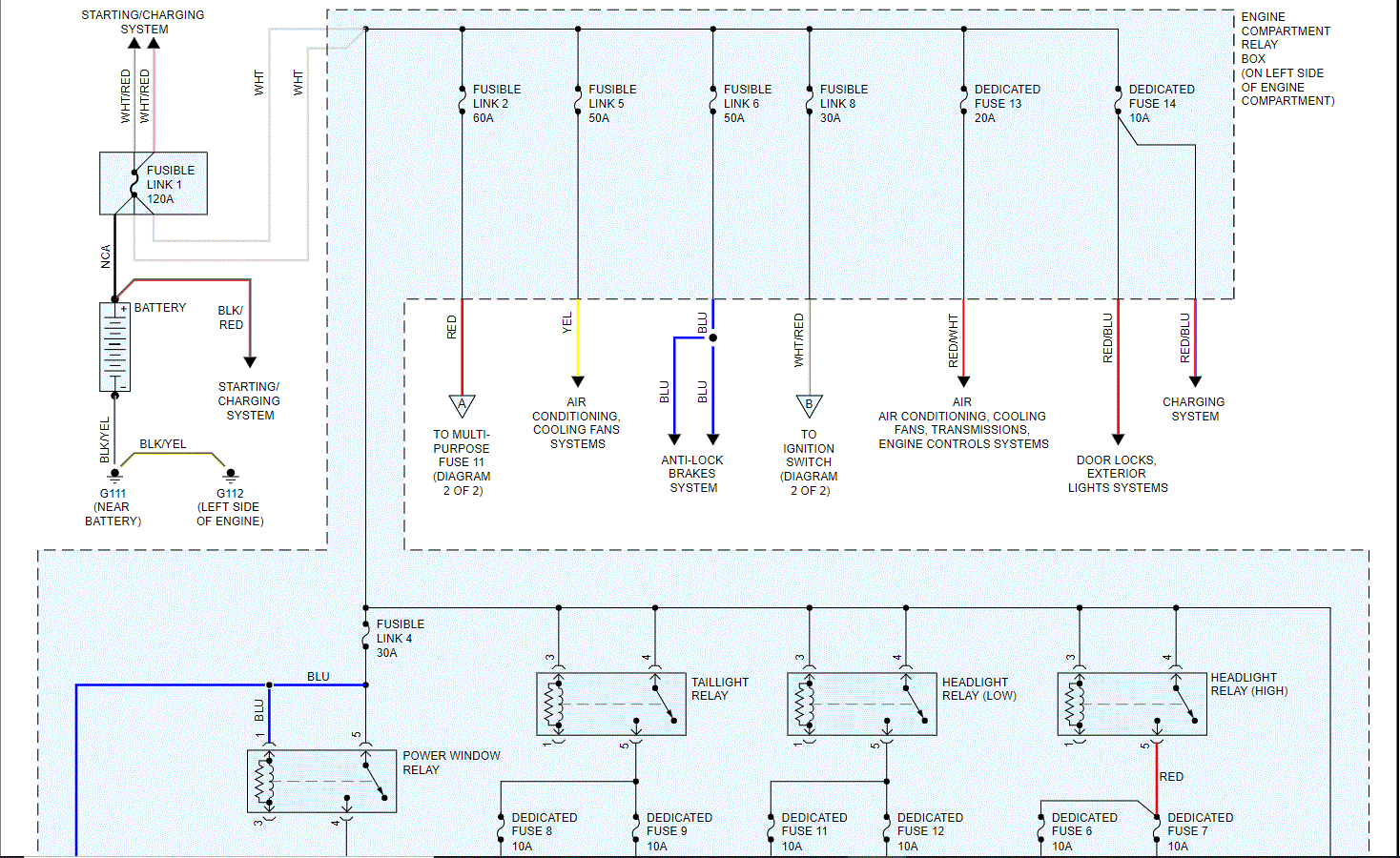

I was able to find an original OEM schematic of the switch. The colors are abbreviated.

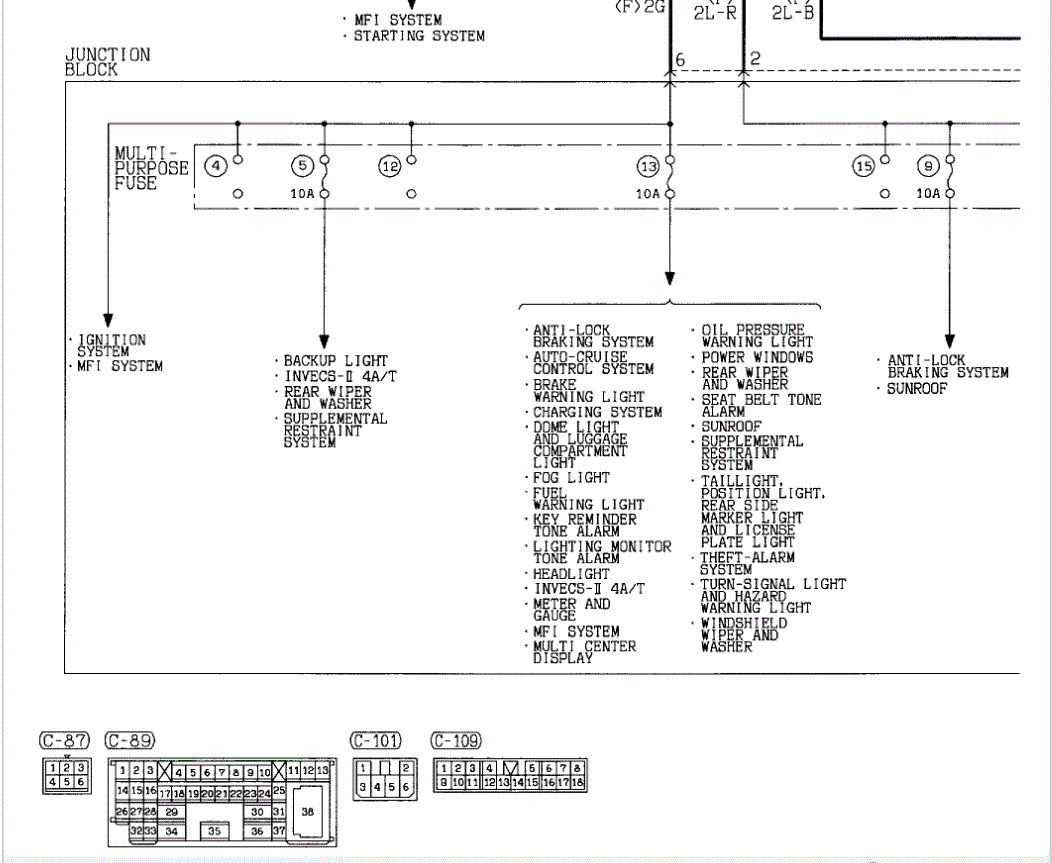

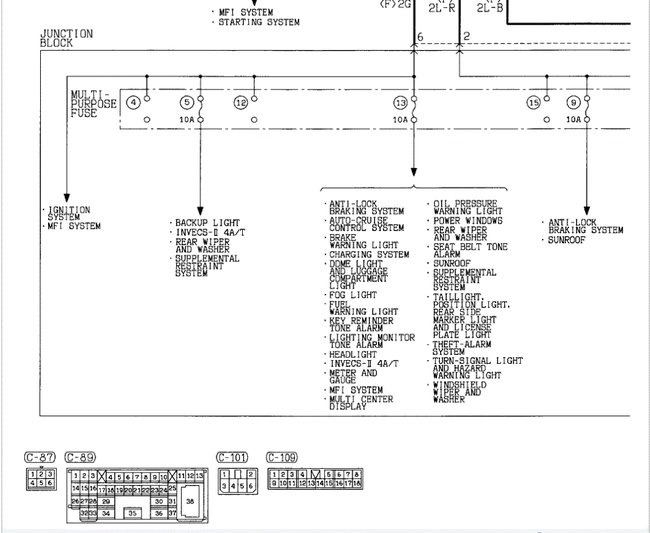

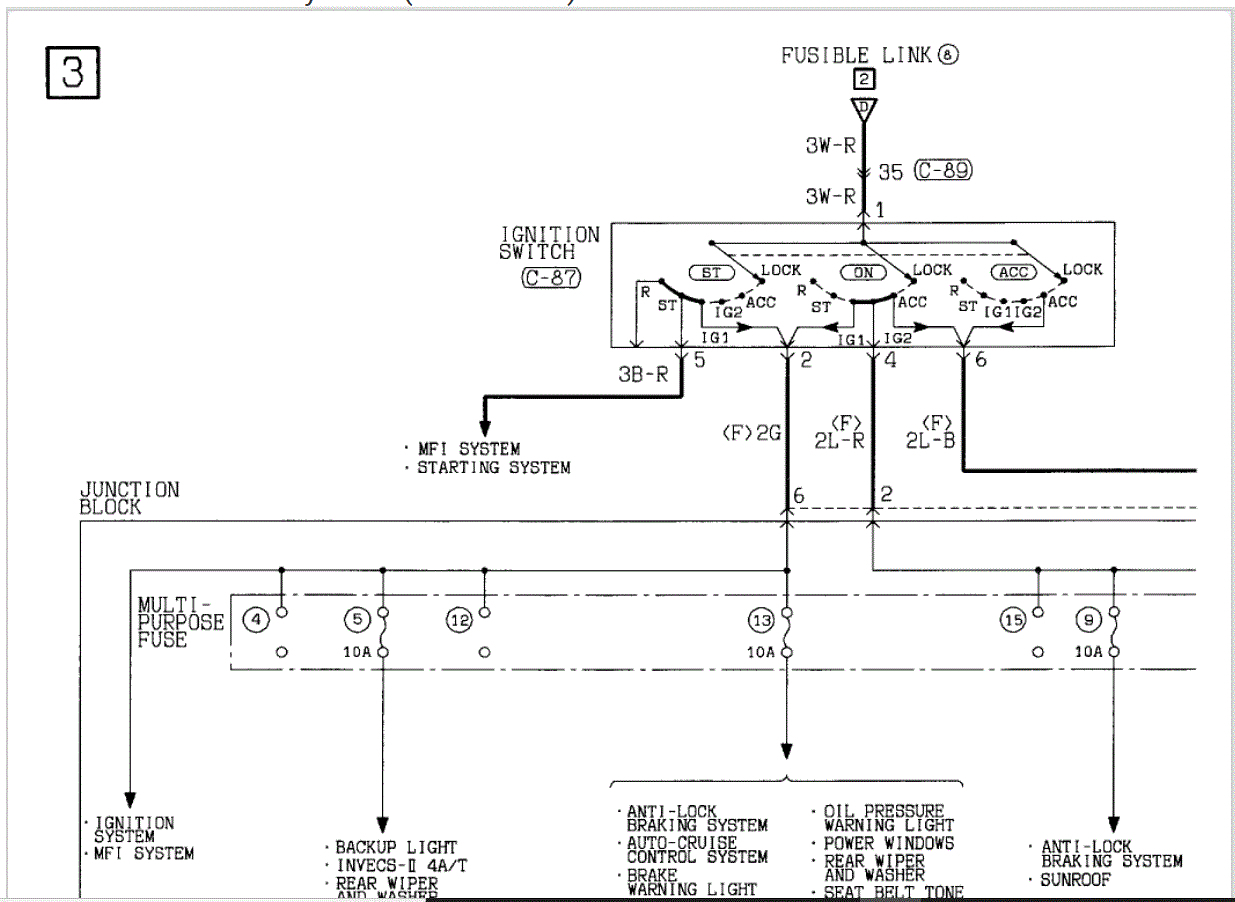

The last 4 pics are from my manual. I had to cut the pics in half to make them readable. I did overlap them. If you look at pic 5, I highlighted the ignition switch. This may be easier to follow for you.

Let me know if this helps or if you have other questions.

Here is a link you may find helpful:

https://www.2carpros.com/articles/how-to-check-wiring

I hope this helps.

Take care,

Joe

See pics below.
