intake manifold runner control

2001 FORD MUSTANG
200,000 MILES • 3.8L • 6 CYL • 2WD • AUTOMATIC
Avatar
CL927012
  • MEMBER
  • 5 POSTS
Where exactly am I supposed to connect these pins on the engine? I am going to replace the plastic bushings but I can't find where to place the pins other than where they both connect on the rotating mechanism.
Jul 9, 2019 at 10:53 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon,

Can you post a picture of what you see on the actuators?

Roy
Jul 9, 2019 at 11:06 AM
Avatar
CL927012
  • MEMBER
  • 5 POSTS

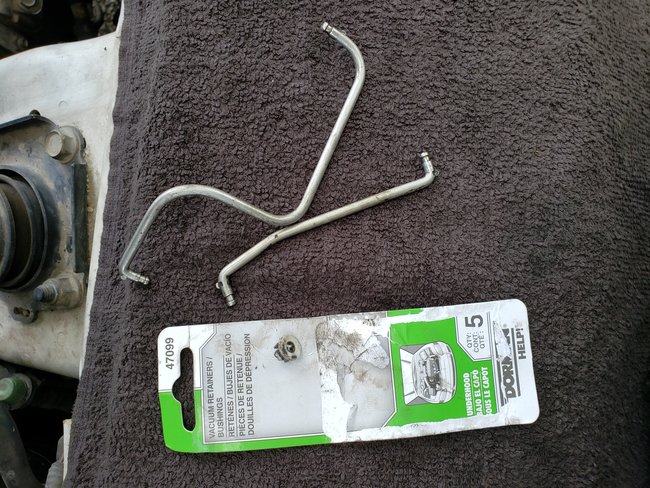

I thought these had already posted, sorry about that.
Images (Click to enlarge)
Attached Media
Attached Media
Jul 9, 2019 at 11:14 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
No worries.

The rods just push through the bushings on the runner itself.

Are the rods missing from the actuator to the runner?

Roy

Jul 9, 2019 at 11:23 AM
Avatar
CL927012
  • MEMBER
  • 5 POSTS

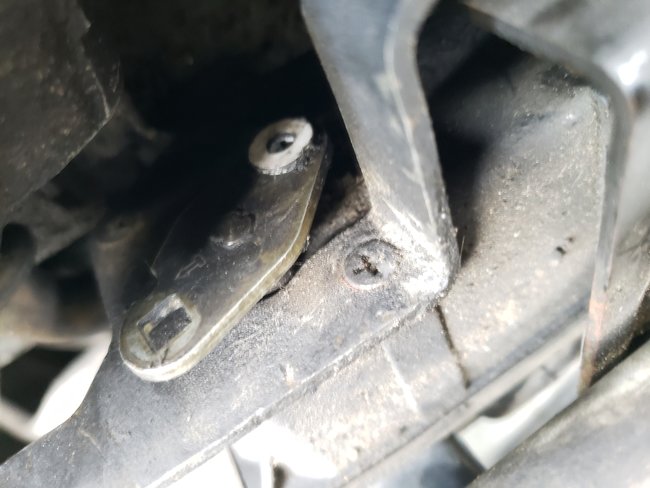

Yes, the rods were missing but I got replacements which are the ones in the picture. Now I know the rods go connected in the holes on the second photo but after that I can't where the end of both rods are supposed to be connected.
Jul 9, 2019 at 11:41 AM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS

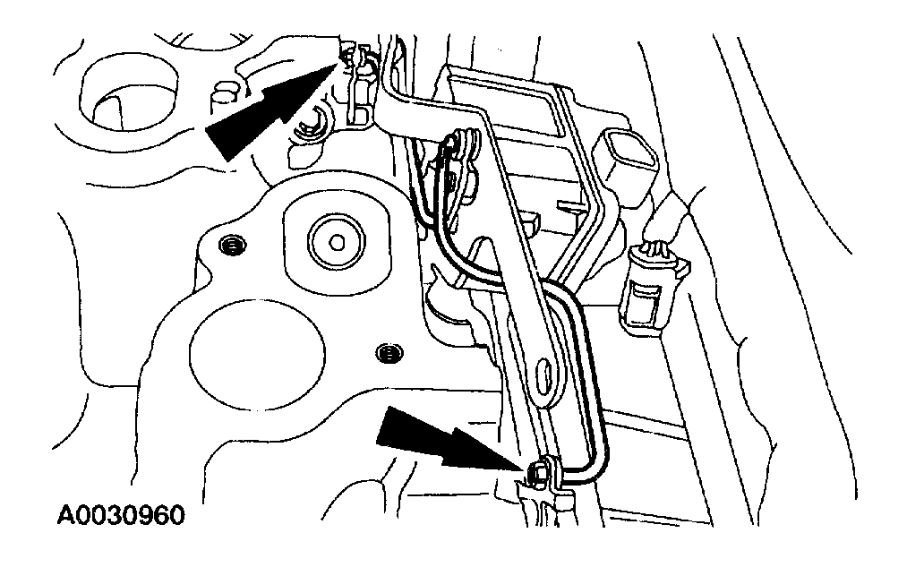

Does this picture help?

Roy
Image (Click to enlarge)
Attached Media
Jul 9, 2019 at 11:48 AM
Avatar
CL927012
  • MEMBER
  • 5 POSTS
Yes sir. Thanks a lot for the help.
Jul 9, 2019 at 11:58 AM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
You are welcome.

Always glad to help.

Roy
Jul 9, 2019 at 11:59 AM
