Installing an aftermarket stereo

2018 TOYOTA HARRIER
5,000 MILES
Avatar
LIMTK55
  • MEMBER
  • 1 POST

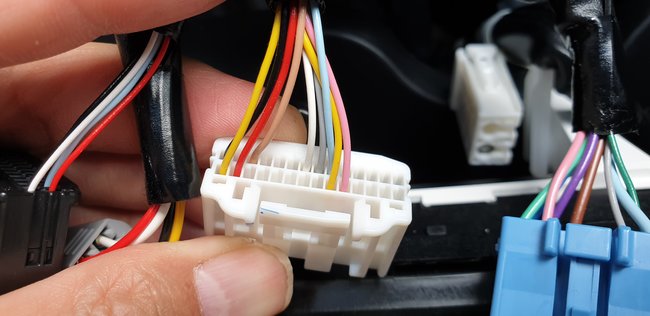

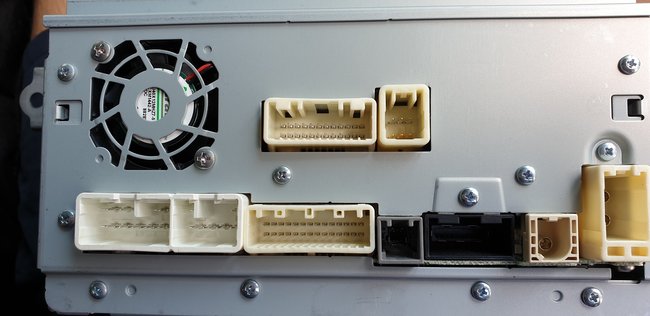

I am installing an Alpine iLX W650 into my car but have stumbled into some difficulties with understanding the wiring harness, especially the 28 pin and the 24 pin ones.
Would you happen to have a pinout diagram for this?

Much appreciated Sir.

Ray
Best regards.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 2, 2019 at 6:14 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

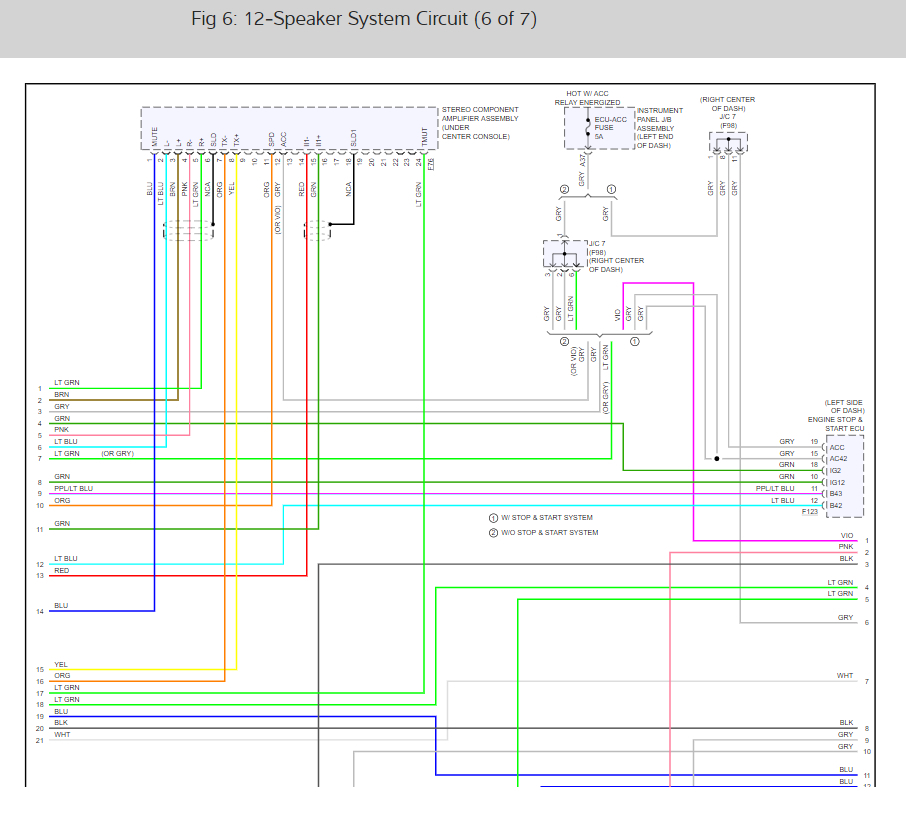

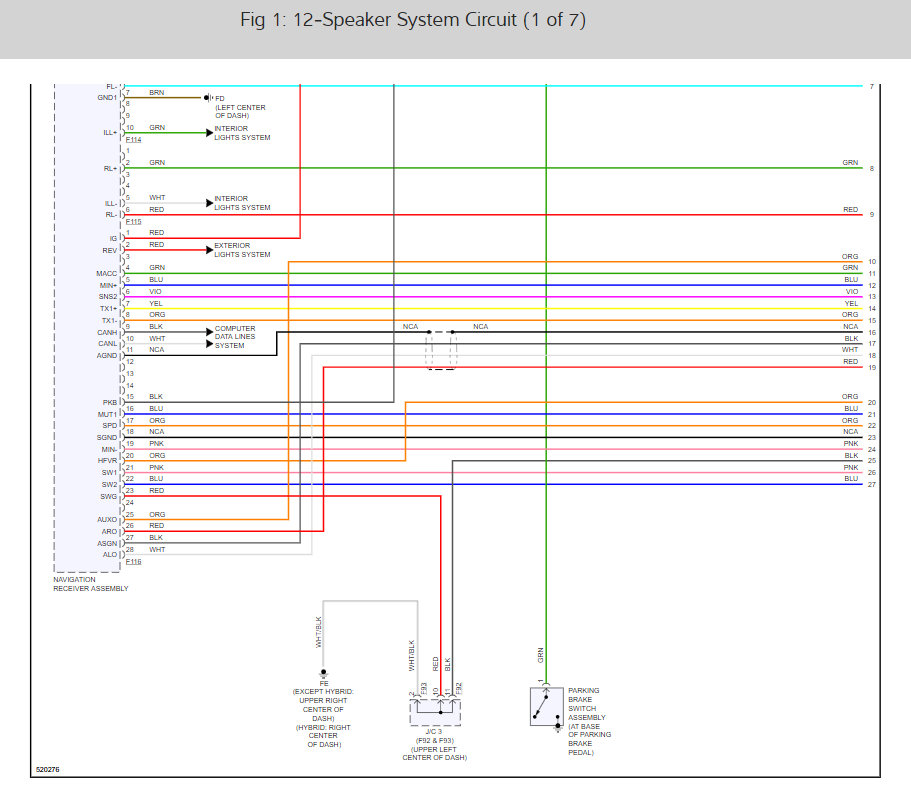

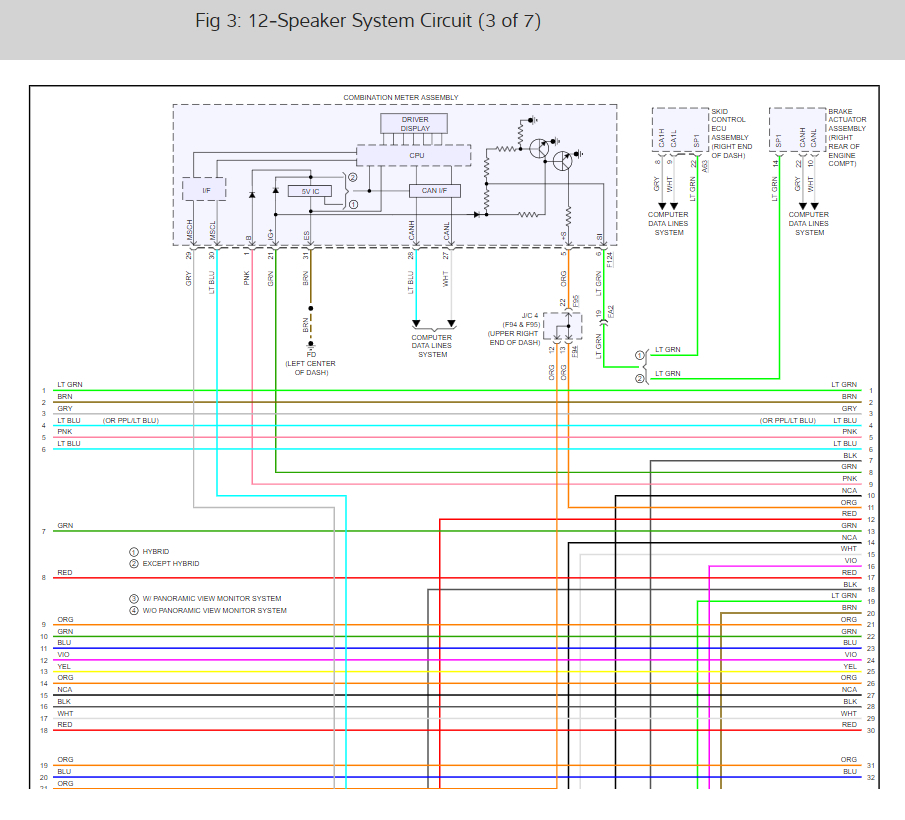

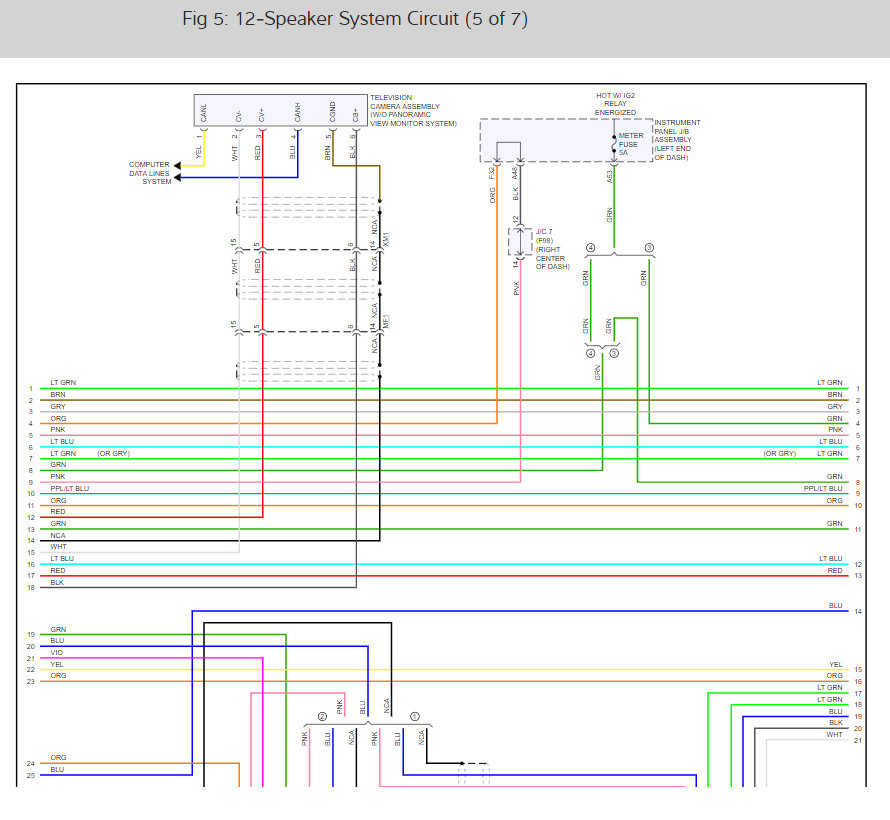

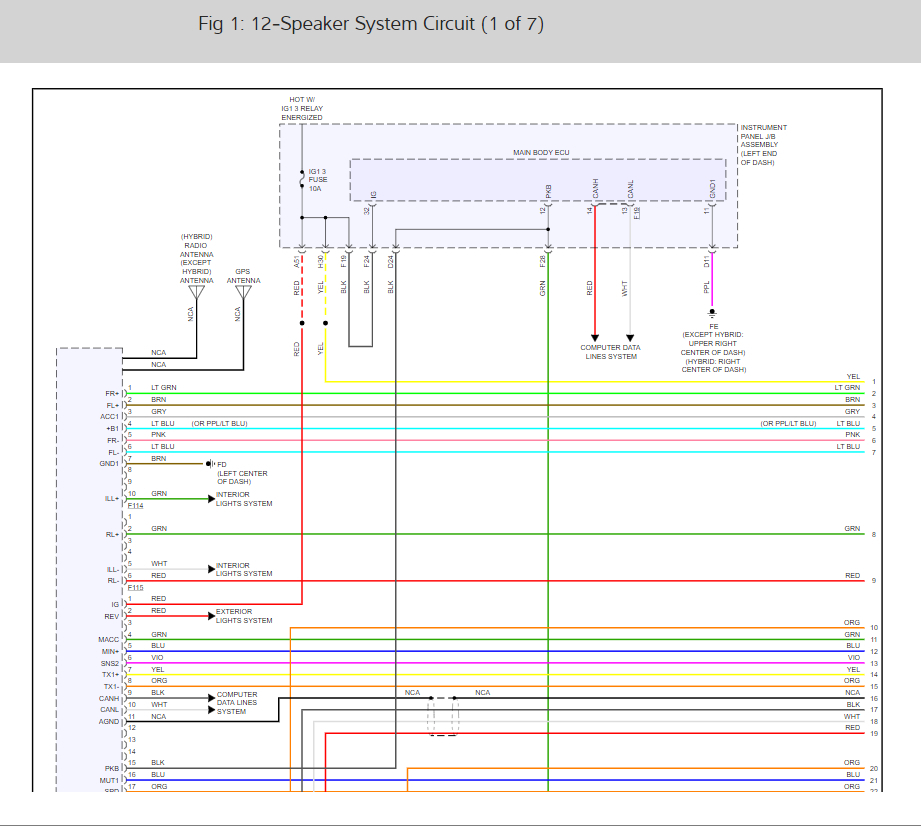

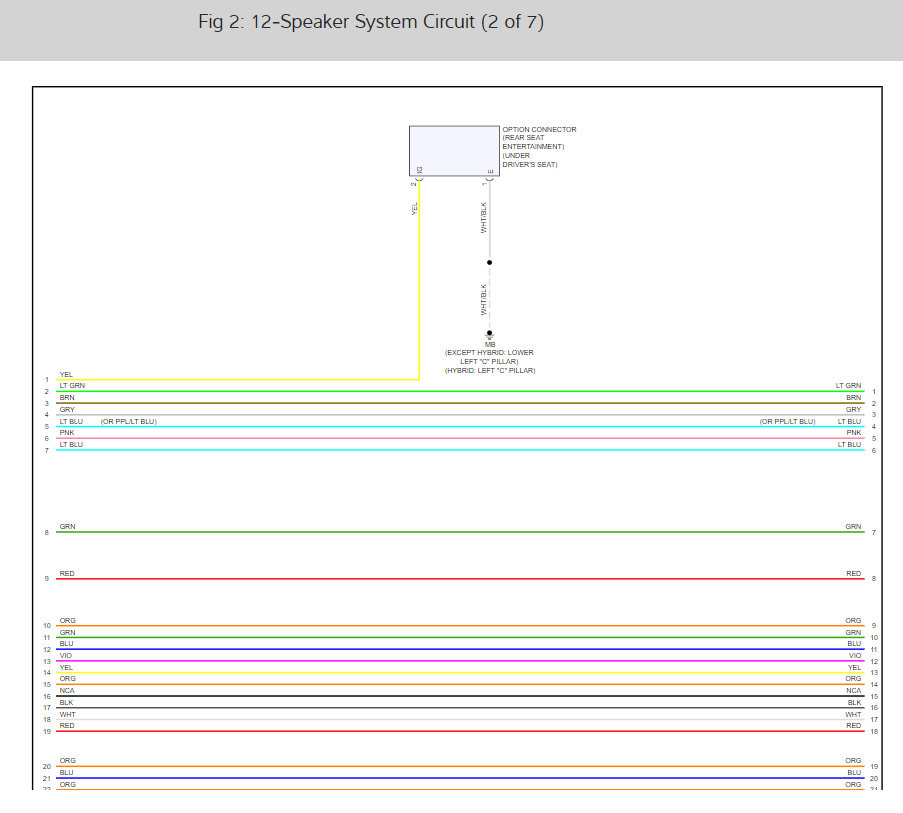

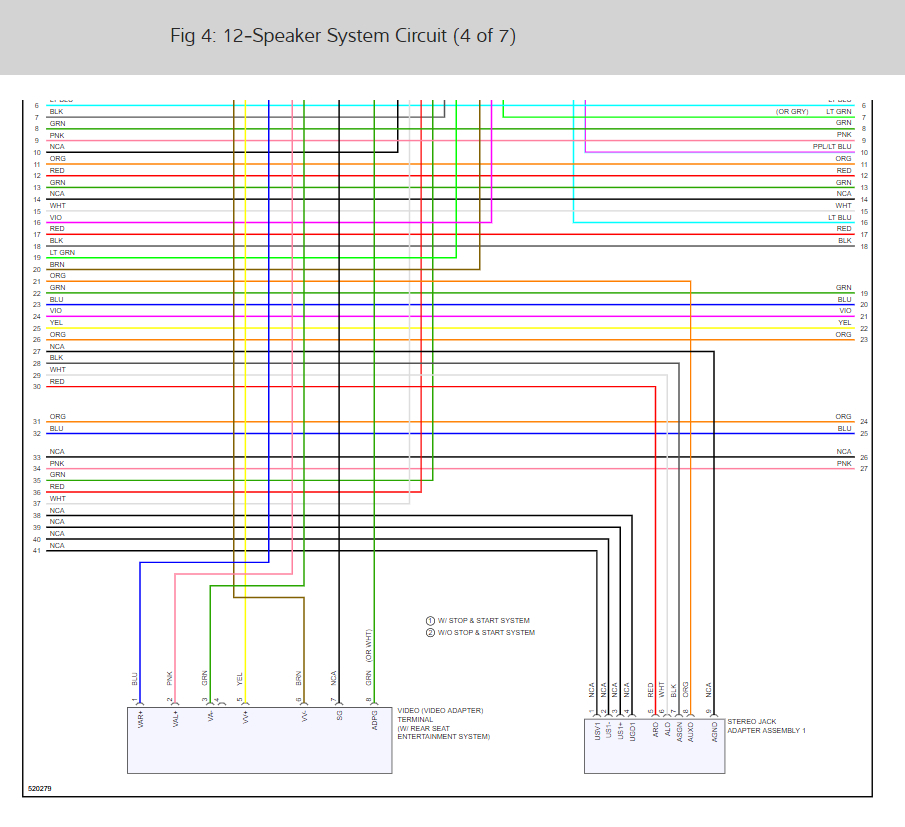

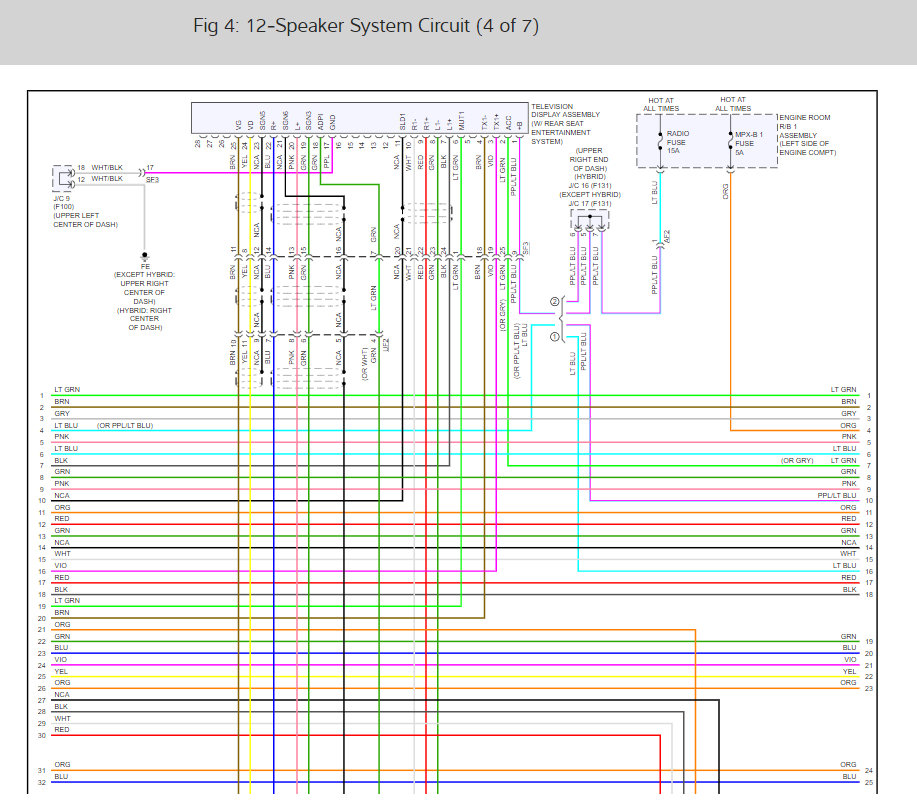

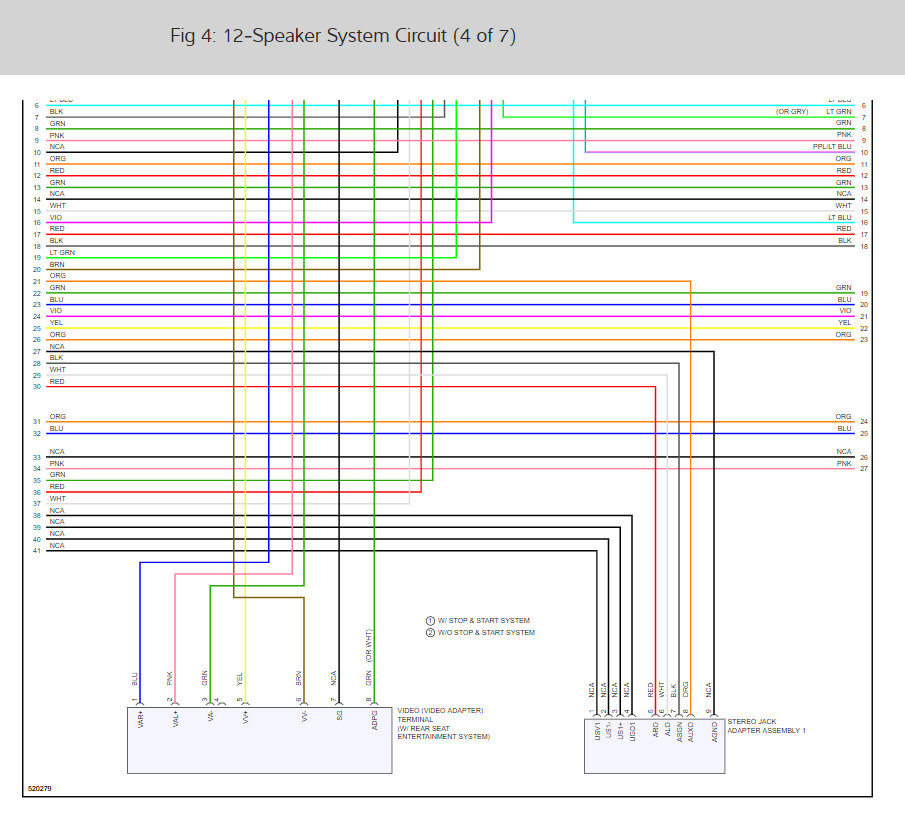

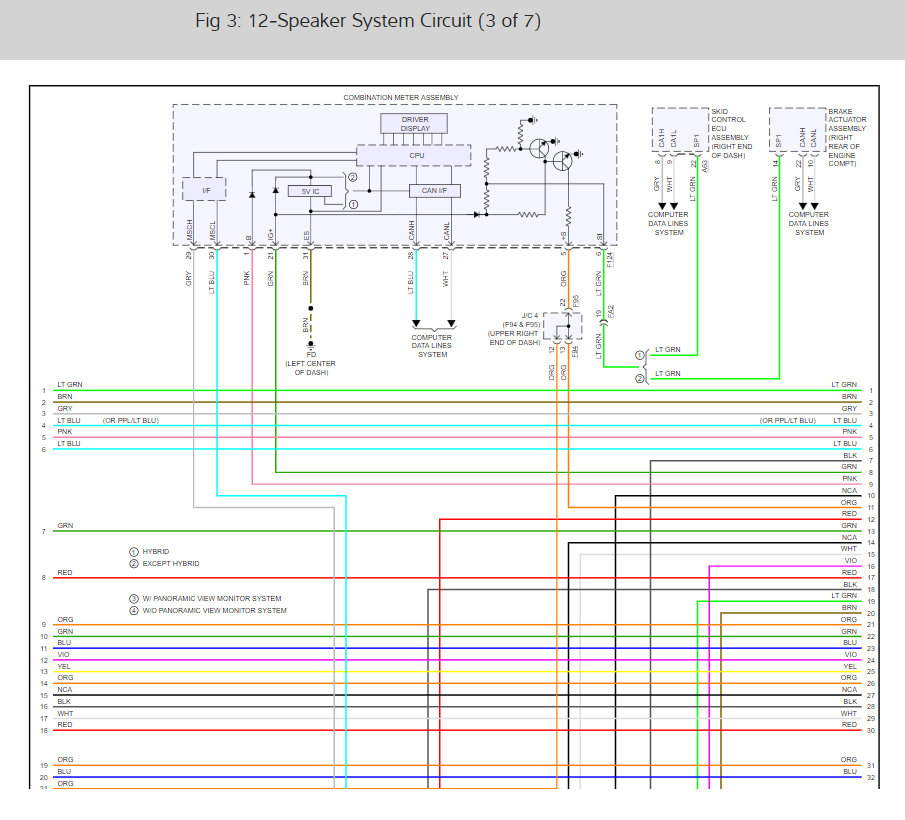

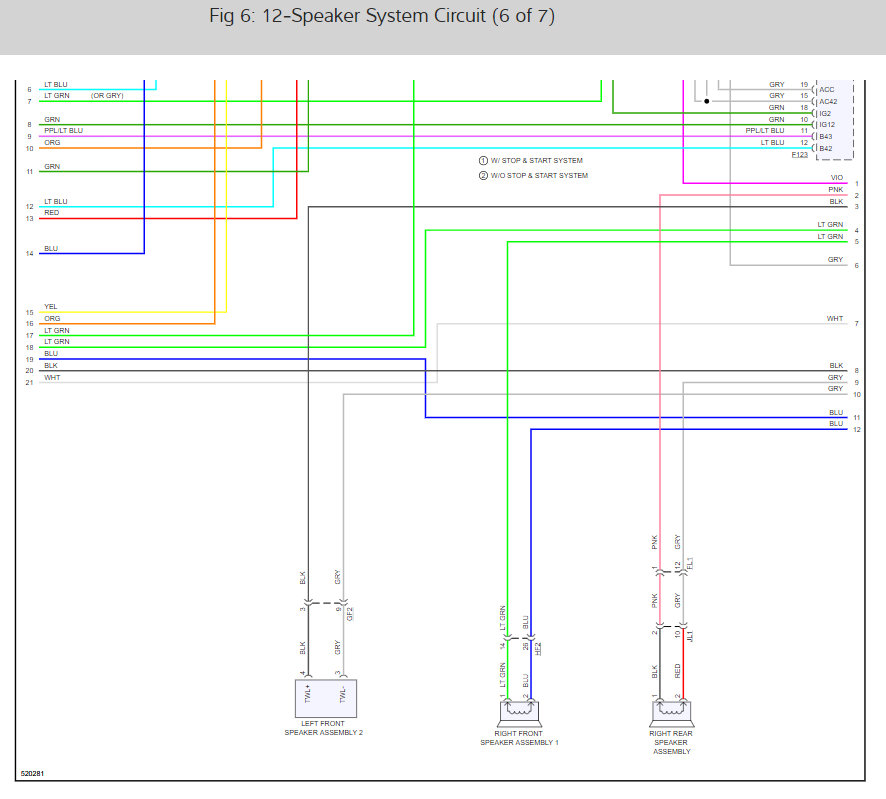

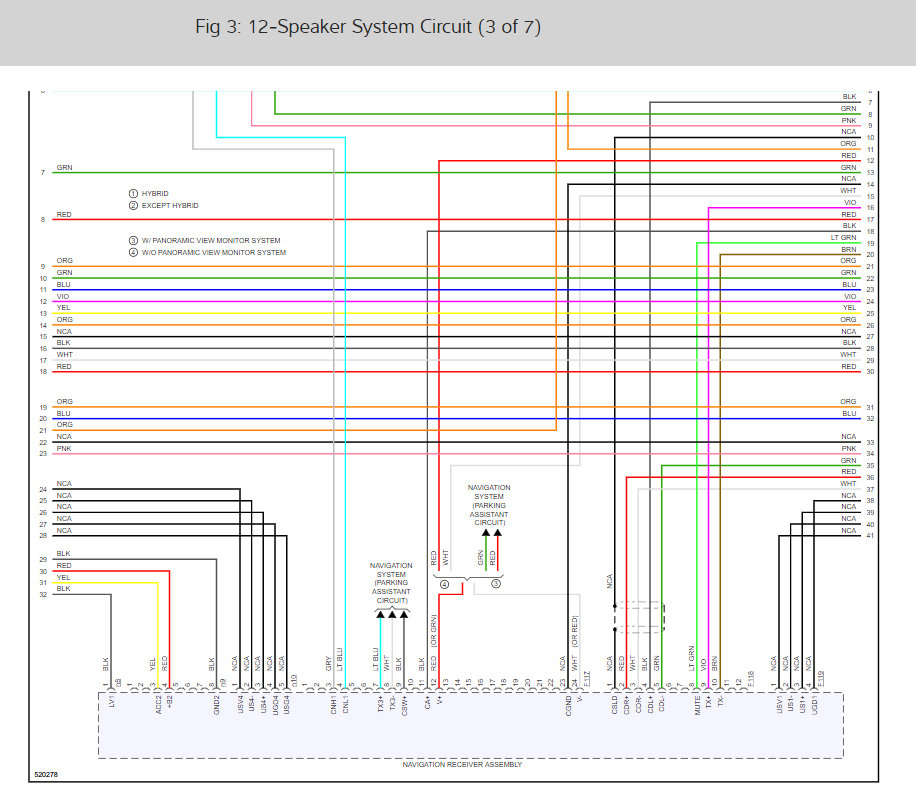

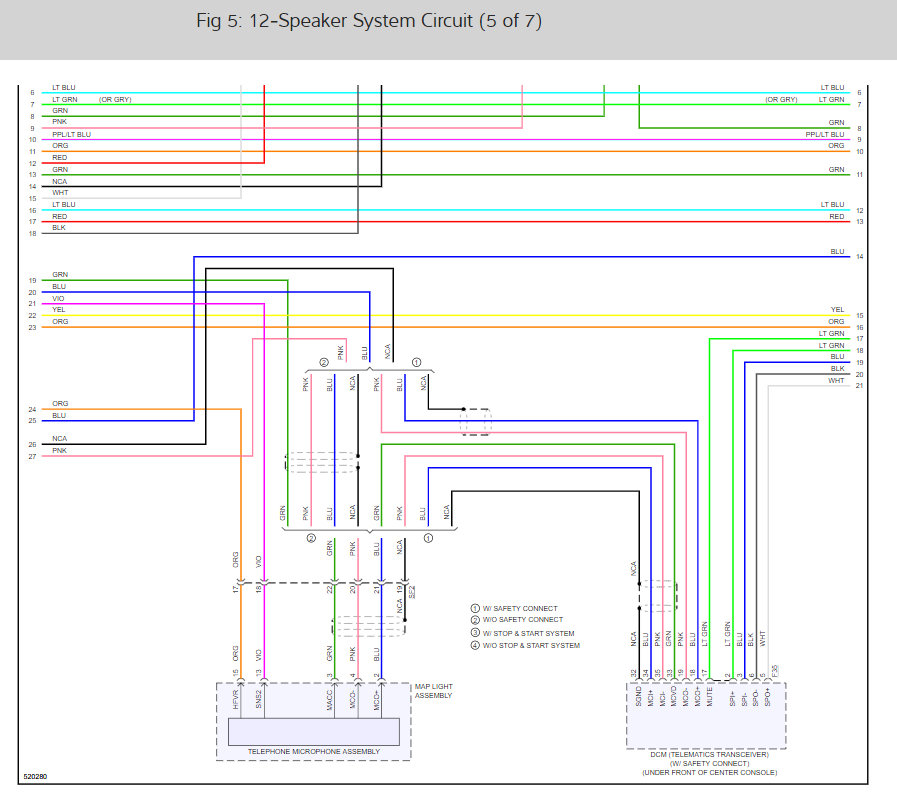

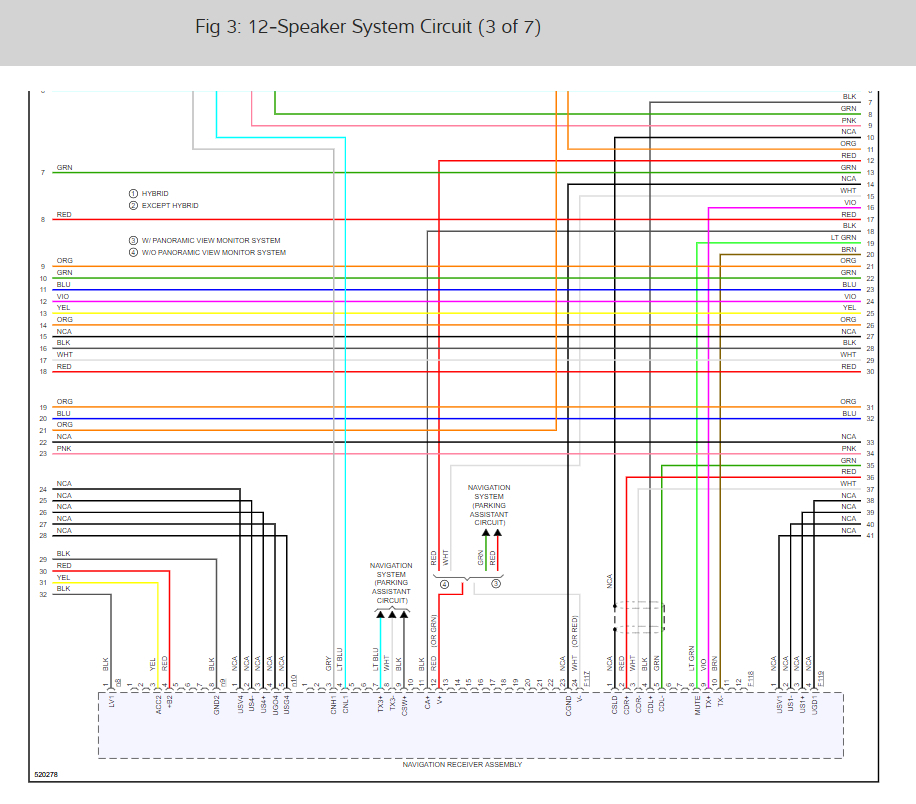

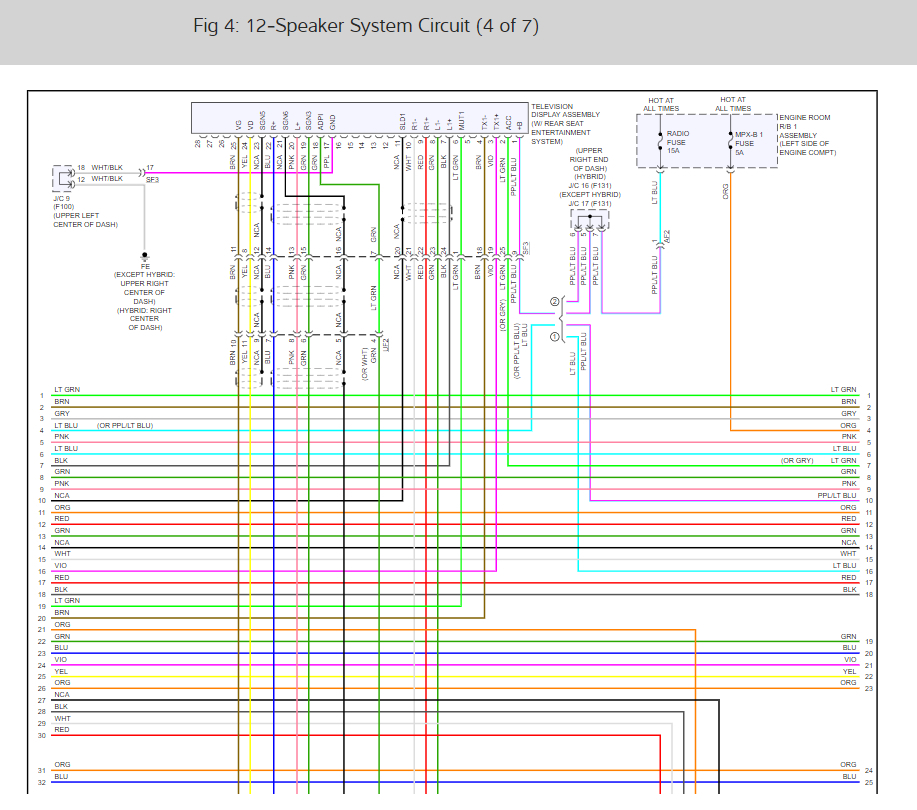

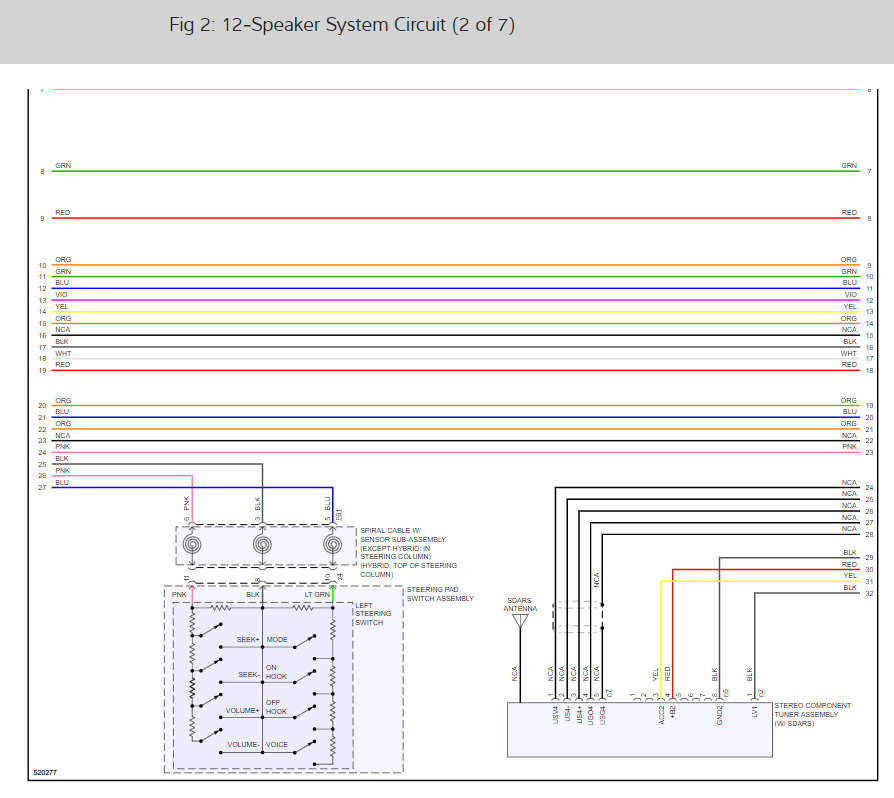

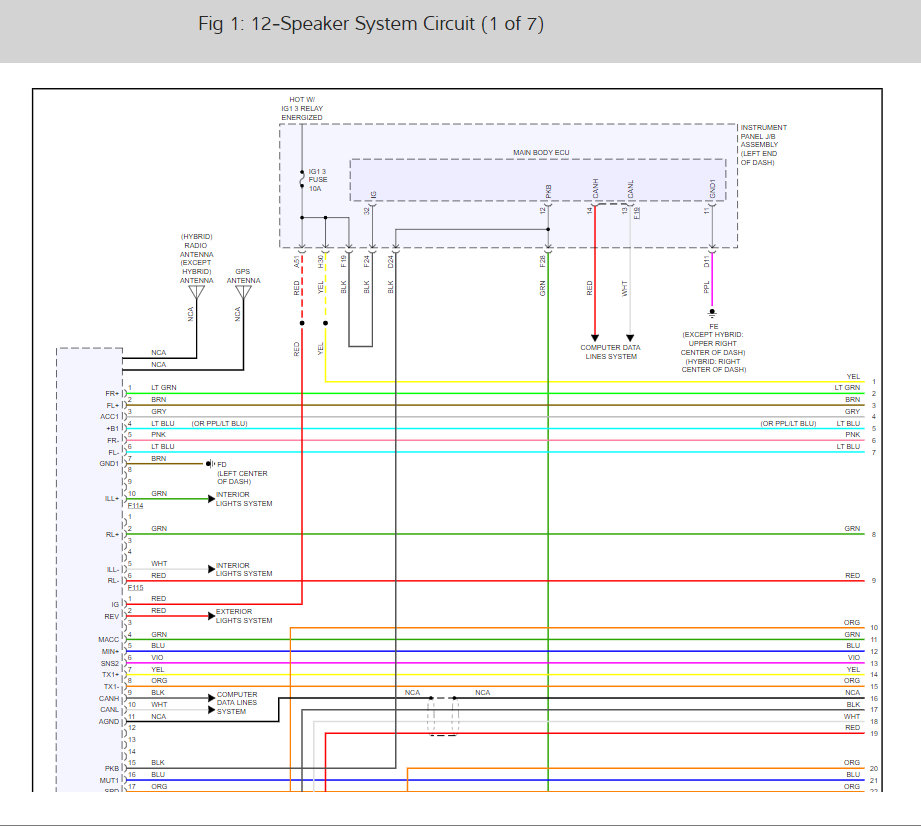

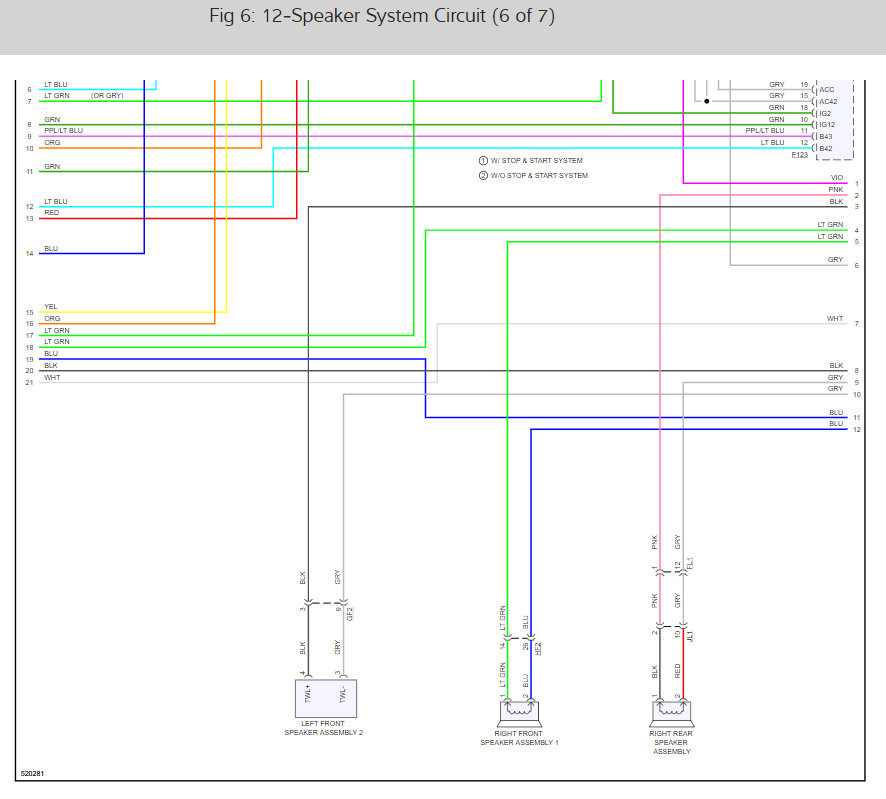

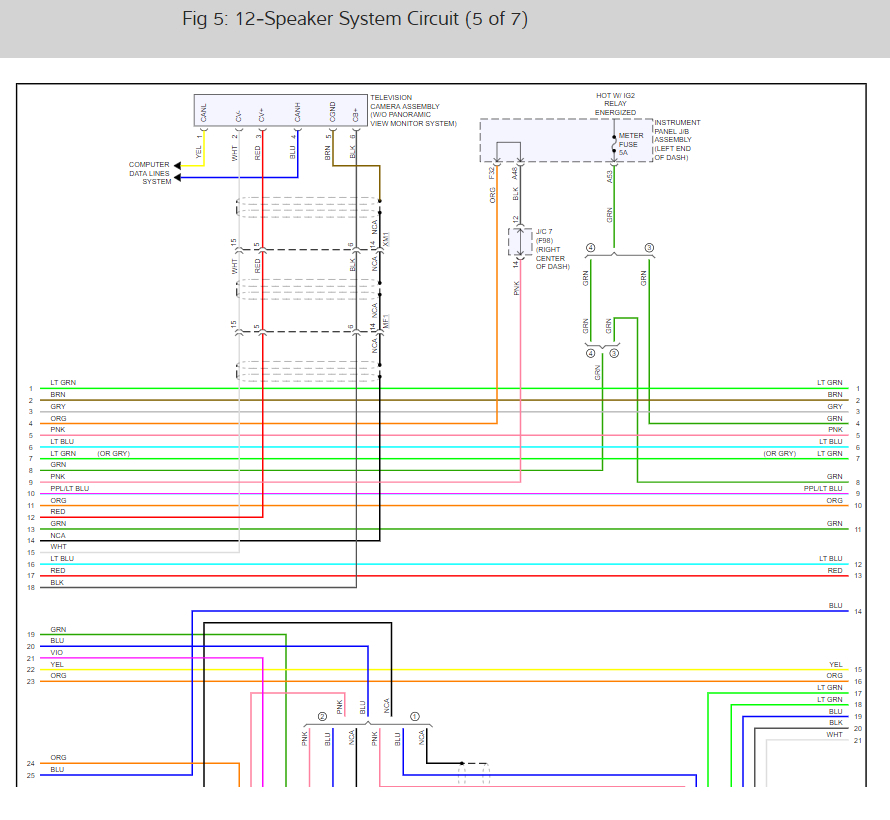

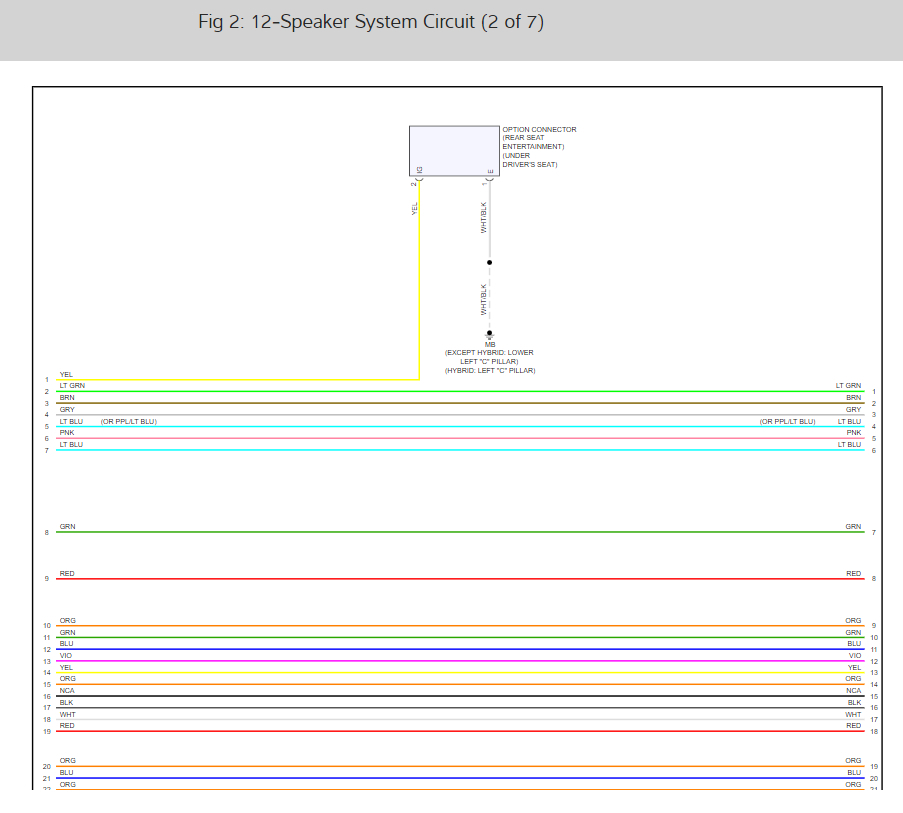

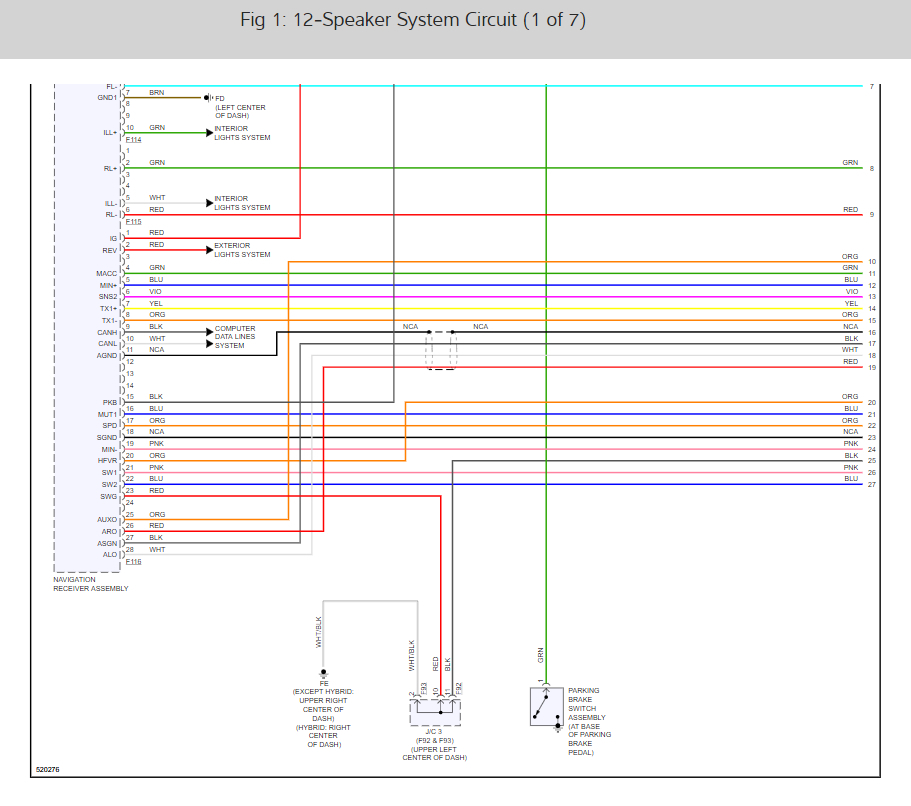

Here are the radio and speaker wiring diagrams for the 7 speaker system (below) along with a guide to check the wiring:

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Aug 3, 2019 at 11:26 AM
