Installation A/C pulley

Good afternoon,

I attached the procedure for removing the pulley for you.

Let me know if you have any other questions.


Roy

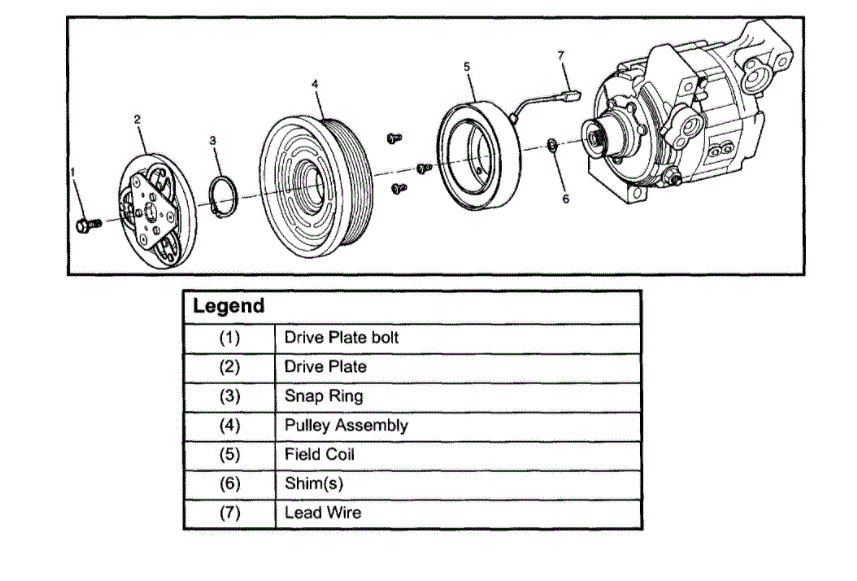

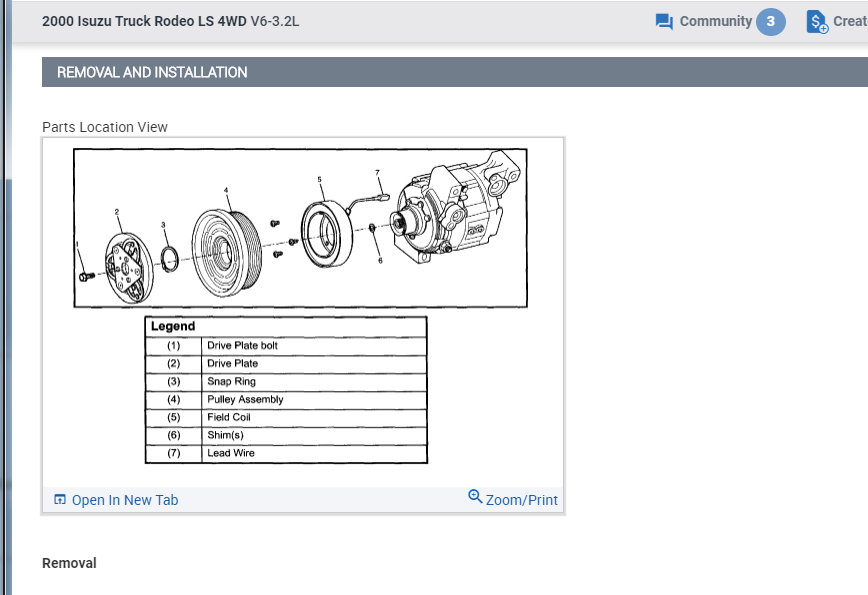

Removal


imageOpen In New TabZoom/Print

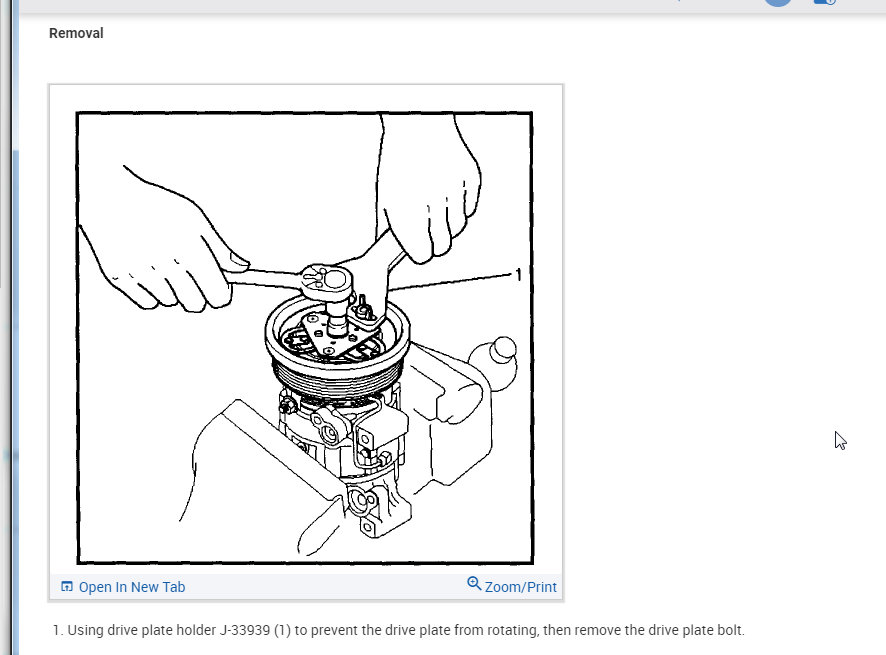

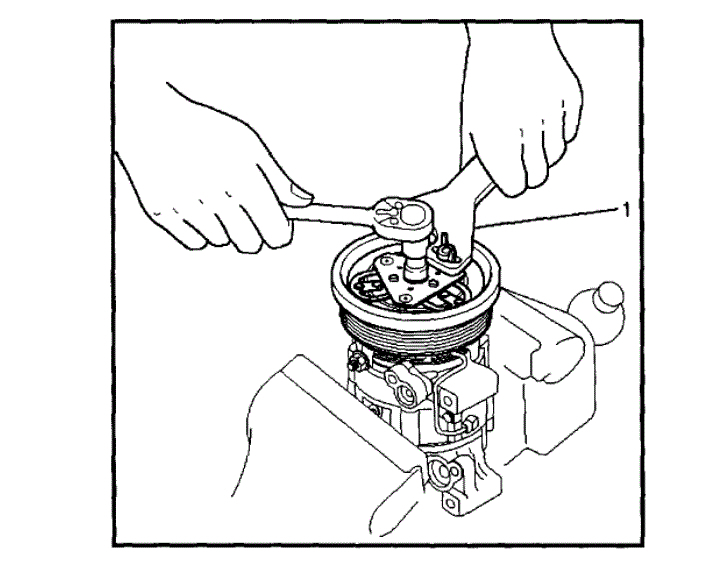

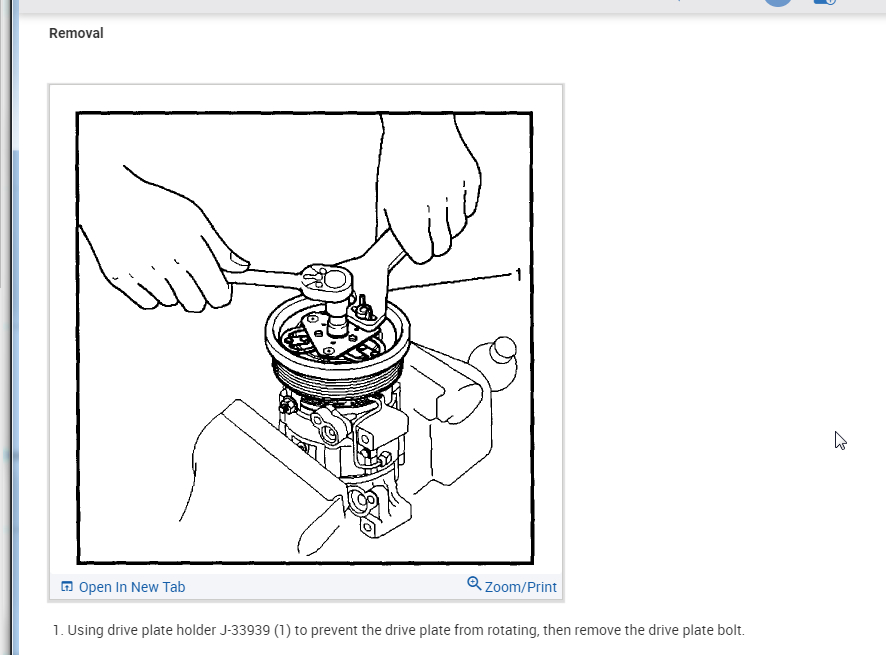

1. Using drive plate holder J-33939 (1) to prevent the drive plate from rotating, then remove the drive plate bolt.


imageOpen In New TabZoom/Print

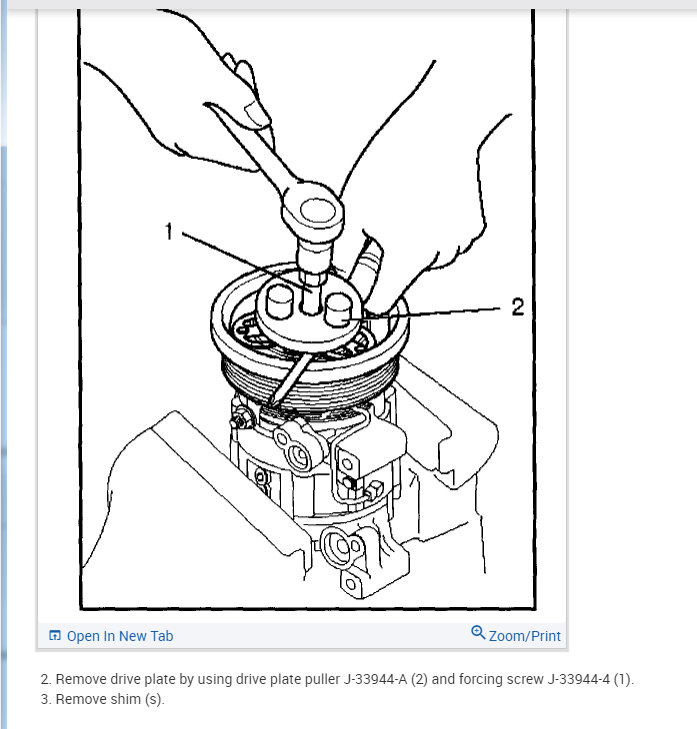

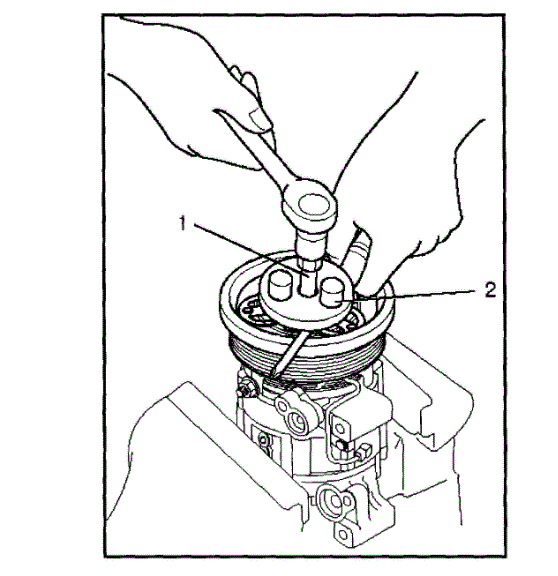

2. Remove drive plate by using drive plate puller J-33944-A (2) and forcing screw J-33944-4
3. Remove shim (s).


imageOpen In New TabZoom/Print

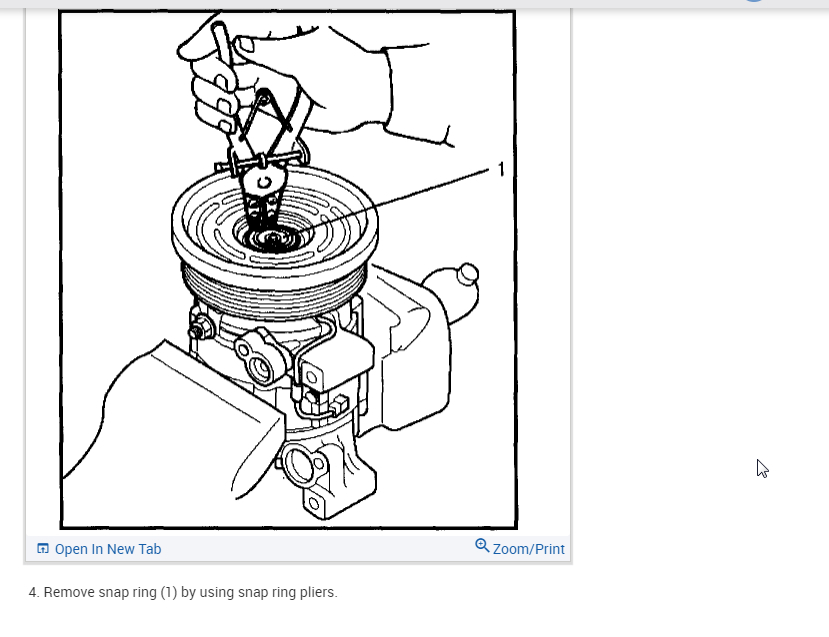

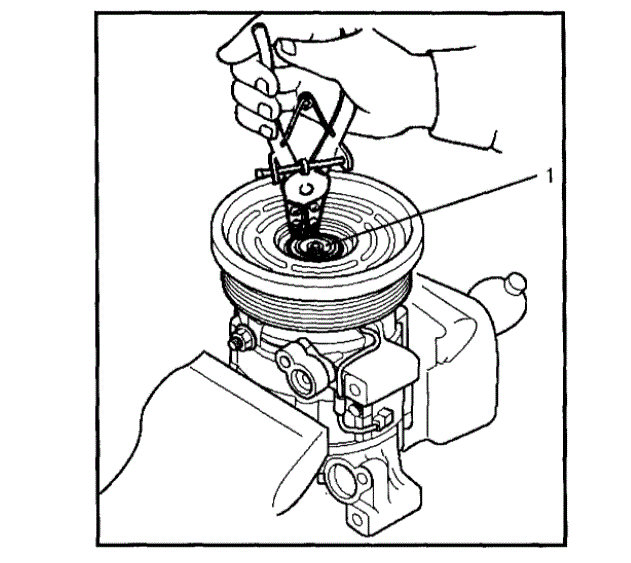

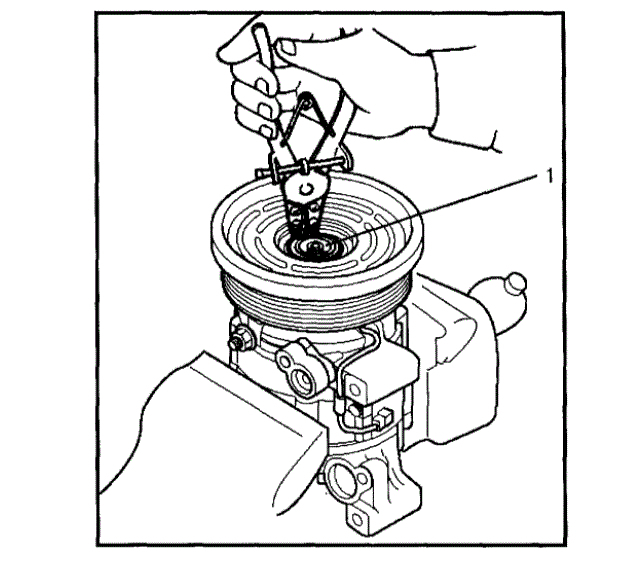

4. Remove snap ring (1) by using snap ring pliers.


imageOpen In New TabZoom/Print

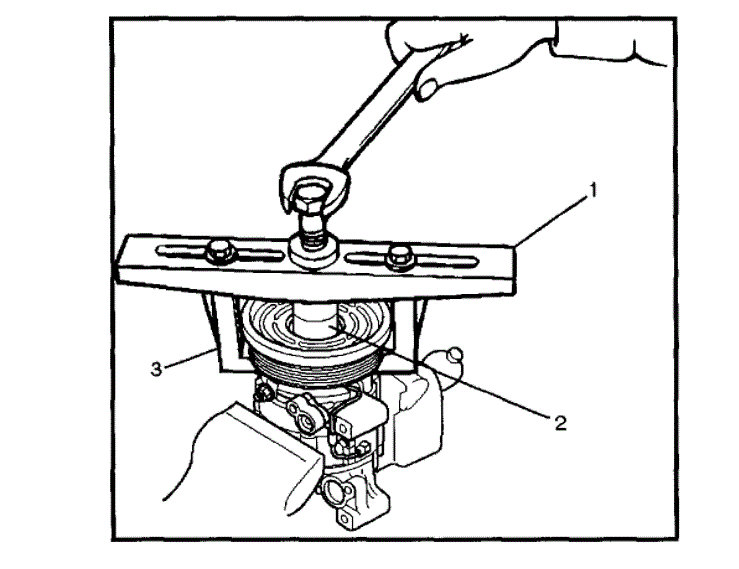

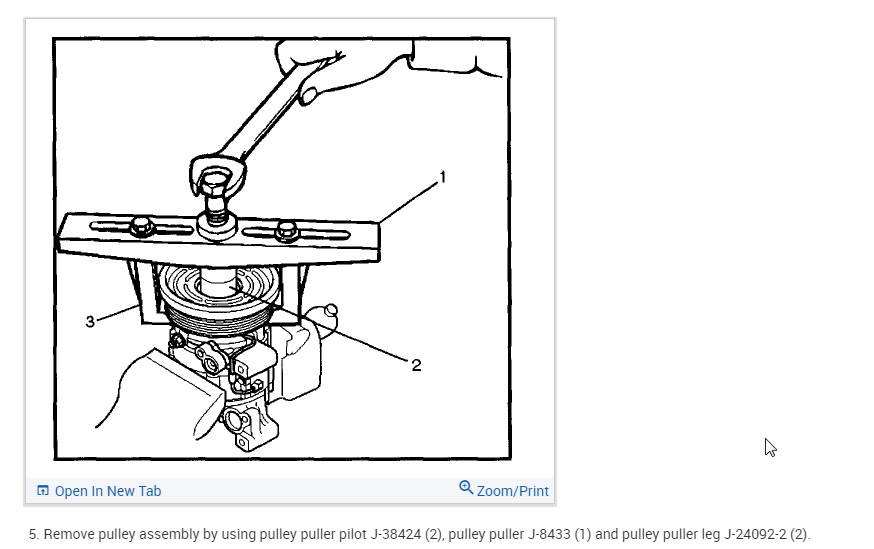

5. Remove pulley assembly by using pulley puller pilot J-38424 (2), pulley puller J-8433 (1) and pulley puller leg J-24092-2 (2).

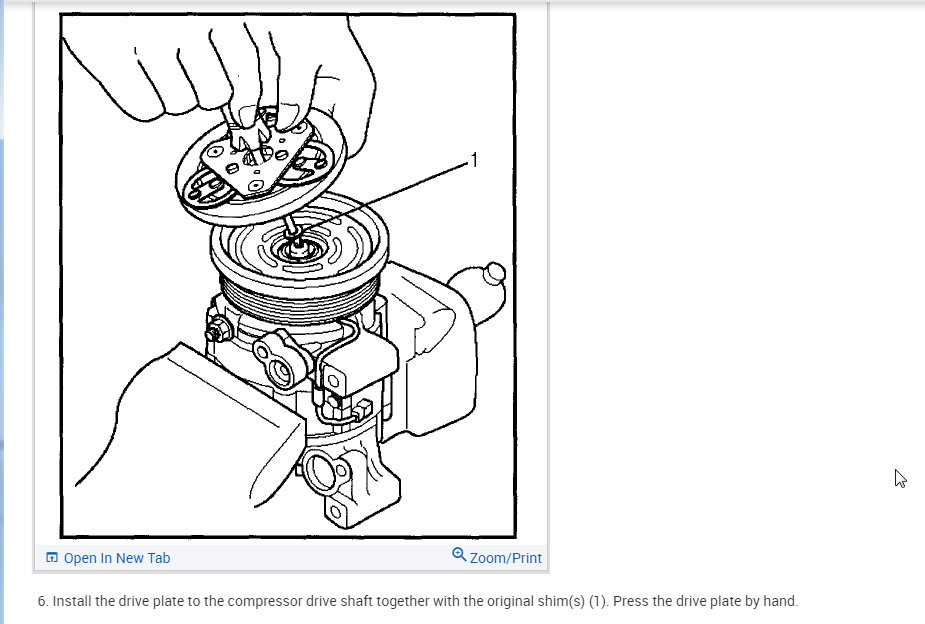

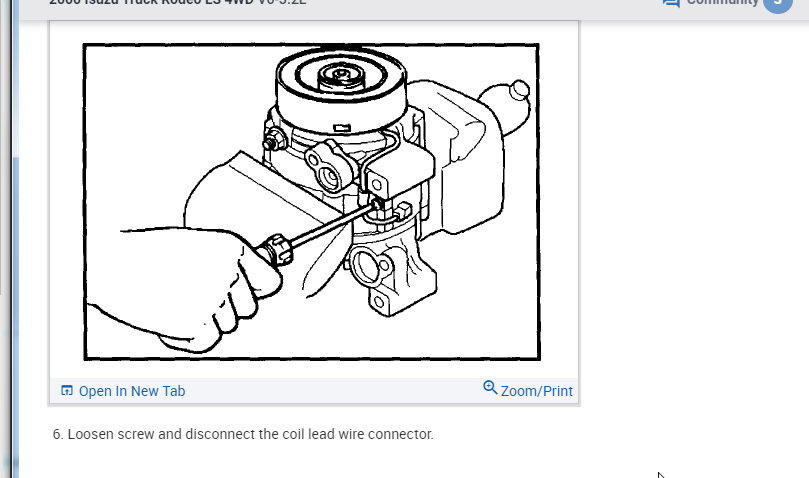

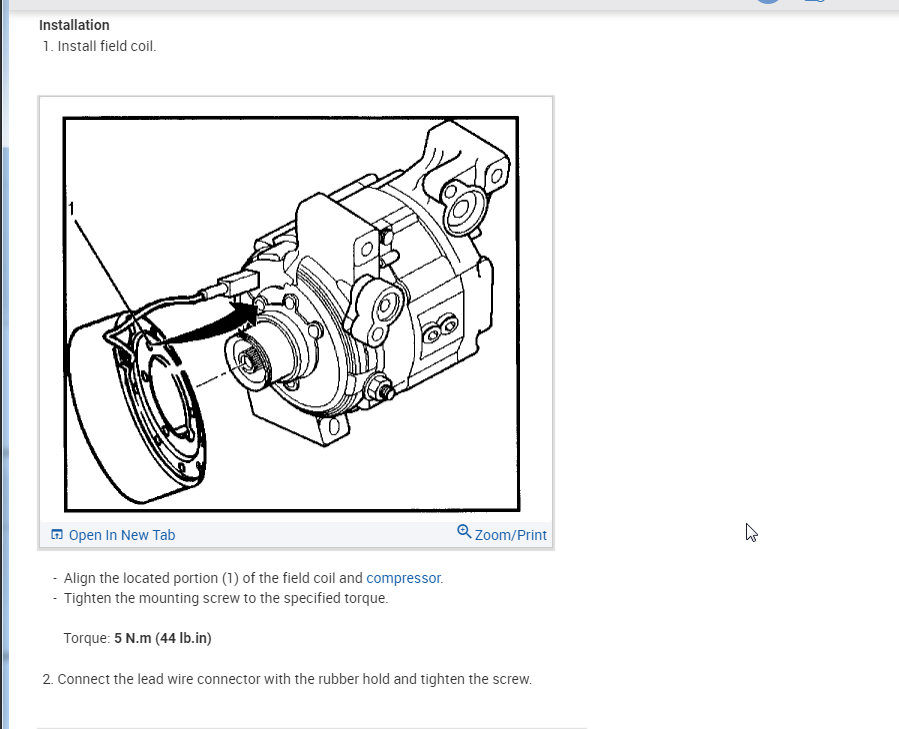

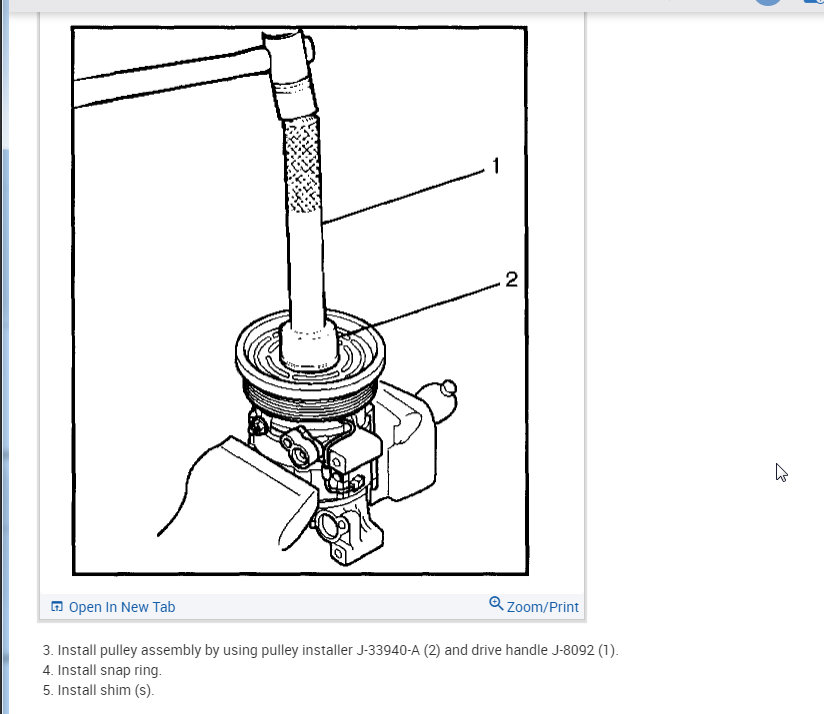

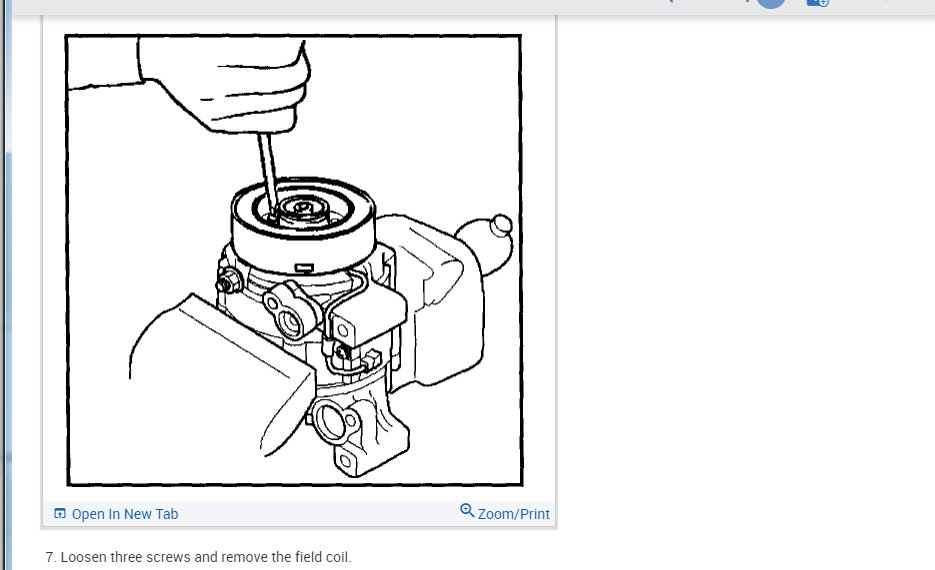

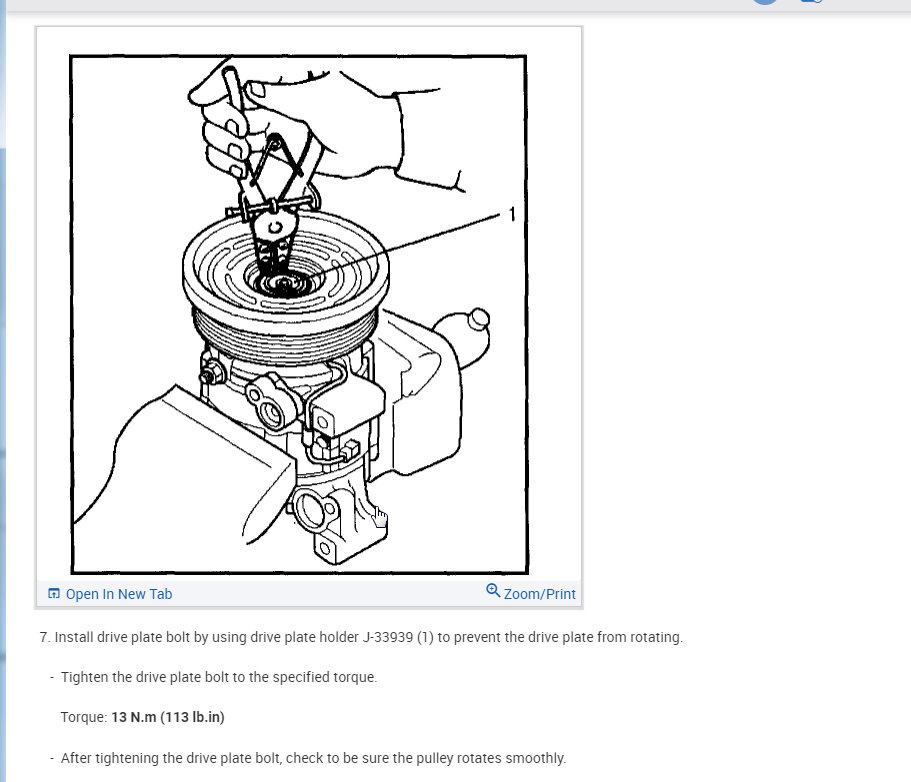

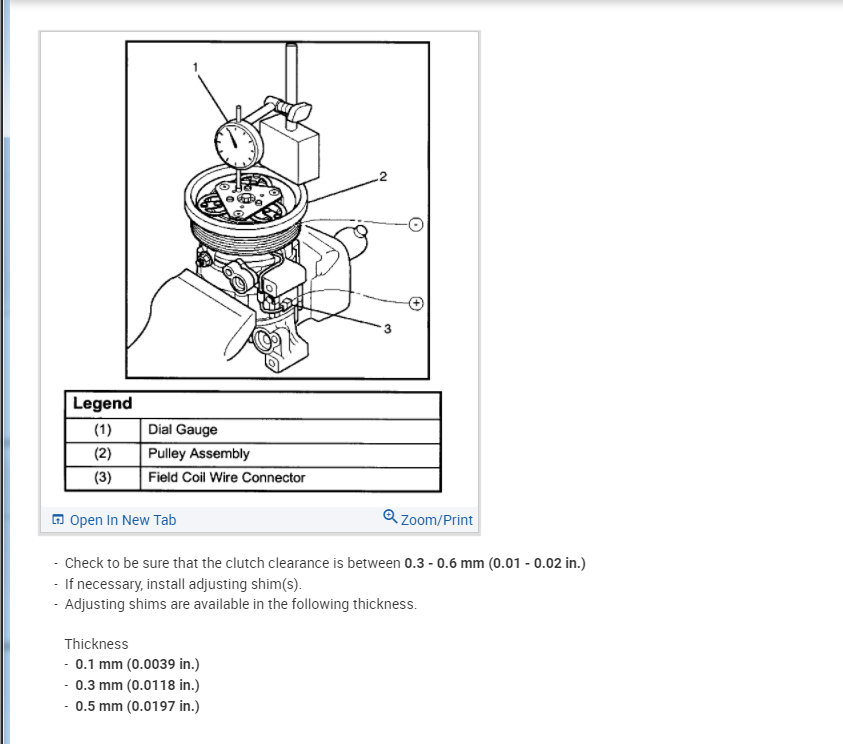

I am attaching the process needed to install the compressor clutch and pulley.

It may be easier to find a replacement compressor with the clutch and pulley installed but that is up to you.

Let me know how you make out. Thanks
