Inner tie rod removal

Good morning.

Can you post a picture of this cover?

I will attach some pictures below.

Roy

INNER TIE ROD

1. Remove outer tie rod.See: Tie Rod End > Removal and Replacement > Tie Rod End - Removal
2. Remove tie rod jam nut from inner tie rod.

imageOpen In New TabZoom/Print

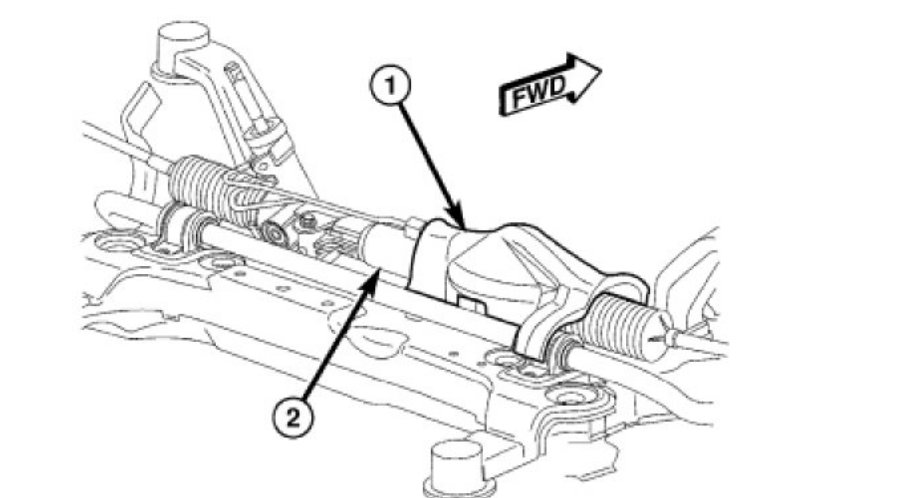

3. If servicing right inner tie rod, remove screws and push-pins securing heat shield (1) over right side of steering gear (2). Remove heat shield from over steering gear bellows.

imageOpen In New TabZoom/Print

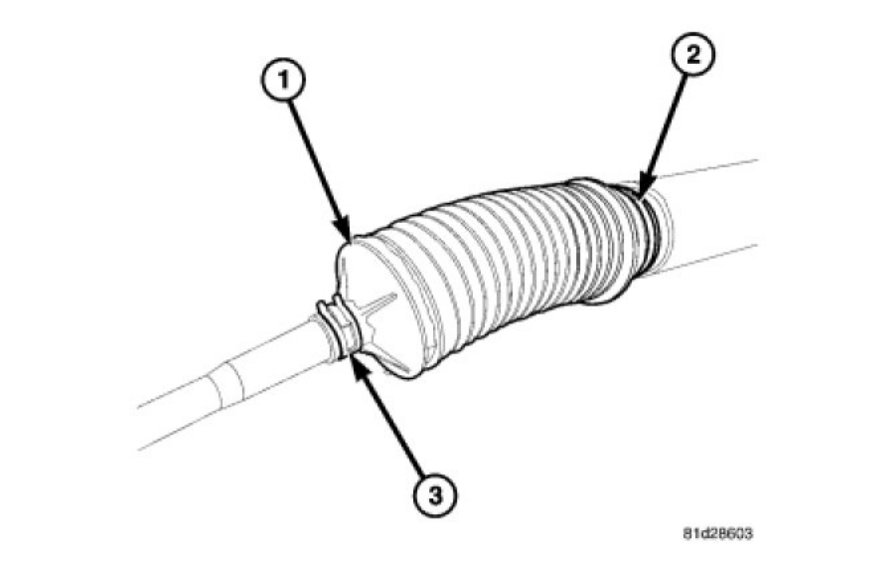

4. Remove clamp (3) securing bellows (1) to inner tie rod.
5. Remove clamp (2) securing bellows (1) to steering gear body.
6. Remove bellows.

imageOpen In New TabZoom/Print

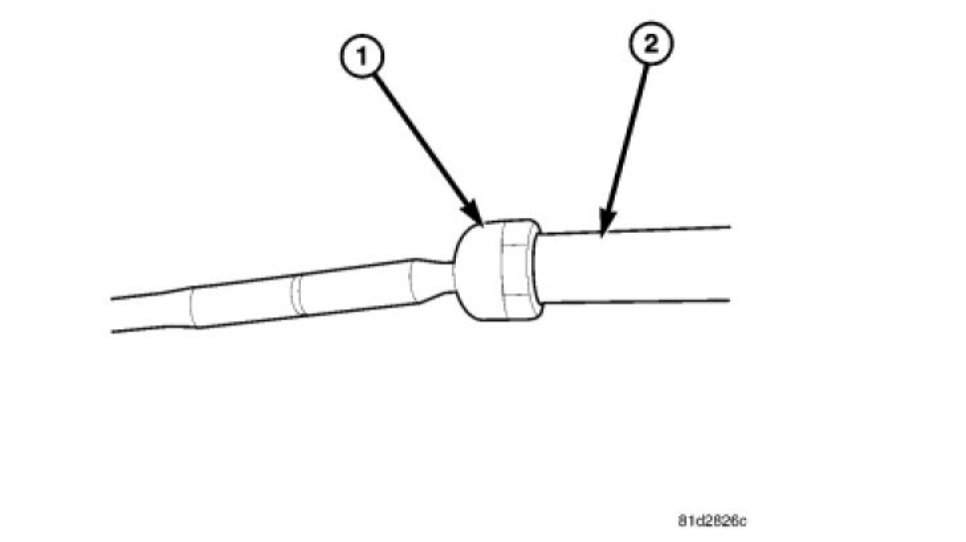

7. Install appropriate inner tie rod removal tool on inner tie rod (1) hex.

CAUTION: If inner tie rod cannot be removed using specified tools, do not use a hammer or heat to loosen. Damage to steering gear will occur. Replace entire steering gear.

8. Unthread and remove inner tie rod (1) from steering gear (2)
