ignition switch wiring harness, can I get a picture of the back of the ignition switch?

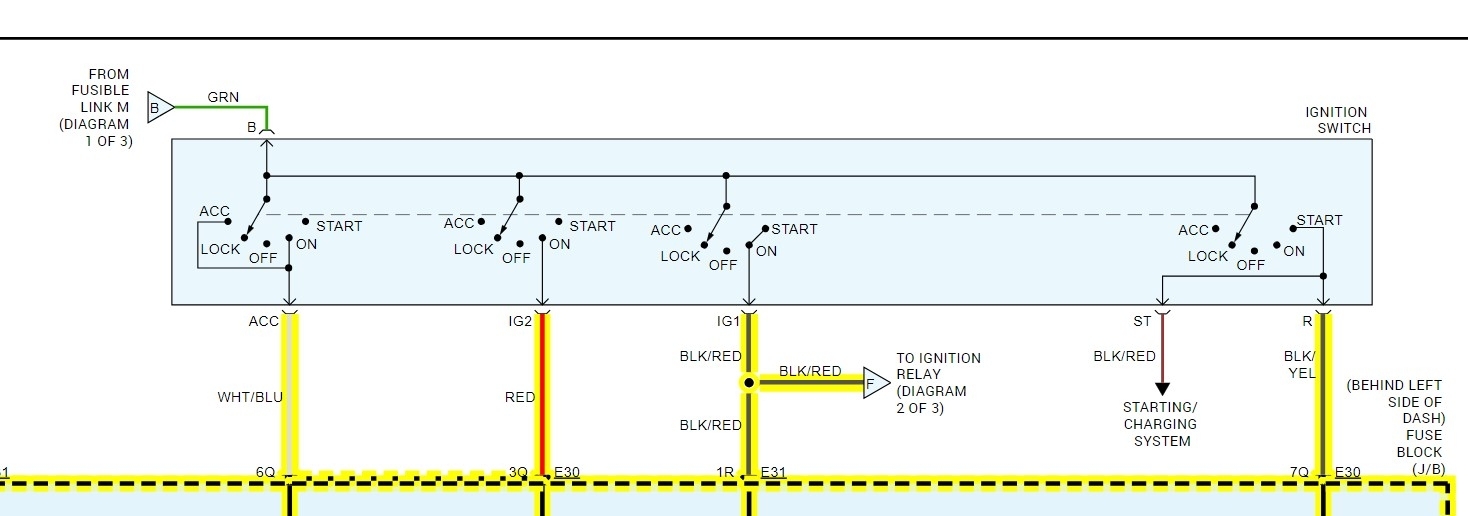

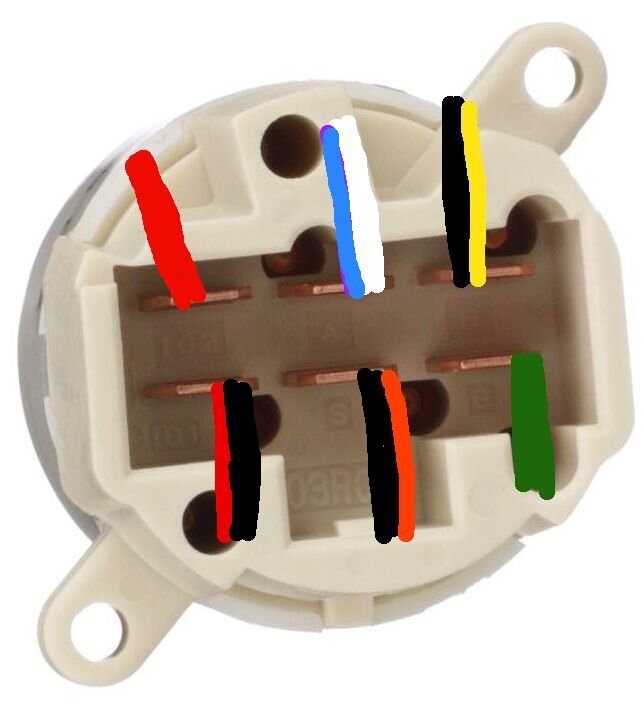

Nissan doesn't show the switch in their connector layouts in a color diagram, however using an image and the diagram we can show the connections. If you look inside the switch, it should also show the connection points. Hope that helps.

going to try it, thanks.

The only hard one is that they used Black with red for both the starting and the ignition. Probably the easiest way to figure those out would be to apply battery power to each one and the one that turns the starter motor goes to the S terminal in the middle.

still not doing right going to swap the red/blk and see if that works. thanks, a lot.

I can't see if the labels are there hard to get under there to check just been guessing no luck.

Yeah, I don't know why they used the same colors to do two different things. Makes no sense but Nissan does things like that.

still cant get it to do right is there something else I can do or try my gauges arent working now checked all fuses they r good

What is the original problem? Bad switch? Burned connection?

I'm not sure how do I tell if it is a burned connection.

also, since this I'm having to press the safety unlock switch to shift in gear. Why is this every time?

Can I take the 2 screws out of this piece on the ignition to remove that part for easier access without any other problems?

So, what is the original problem? You cannot shift out of park with the car stopped? The screws hold the switch together, don't remove them.
