ignition switch wire harness diagram needed?

2004 NISSAN MAXIMA
170,000 MILES • 3.5L • 6 CYL • 2WD • AUTOMATIC
Avatar
BRANDY78
  • MEMBER
  • 1 POST
I'm having to replace the wiring on my ignition switch. The wires came loose from the harness connection. i don't know where what color wire goes back where in my harness.
Oct 1, 2022 at 8:32 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS

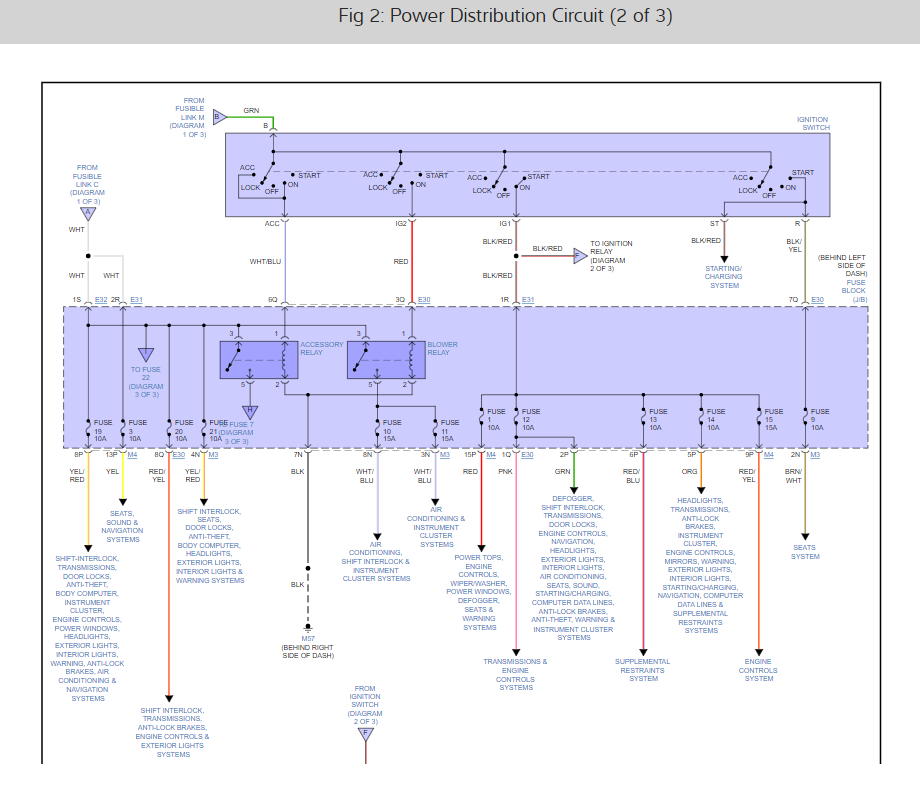

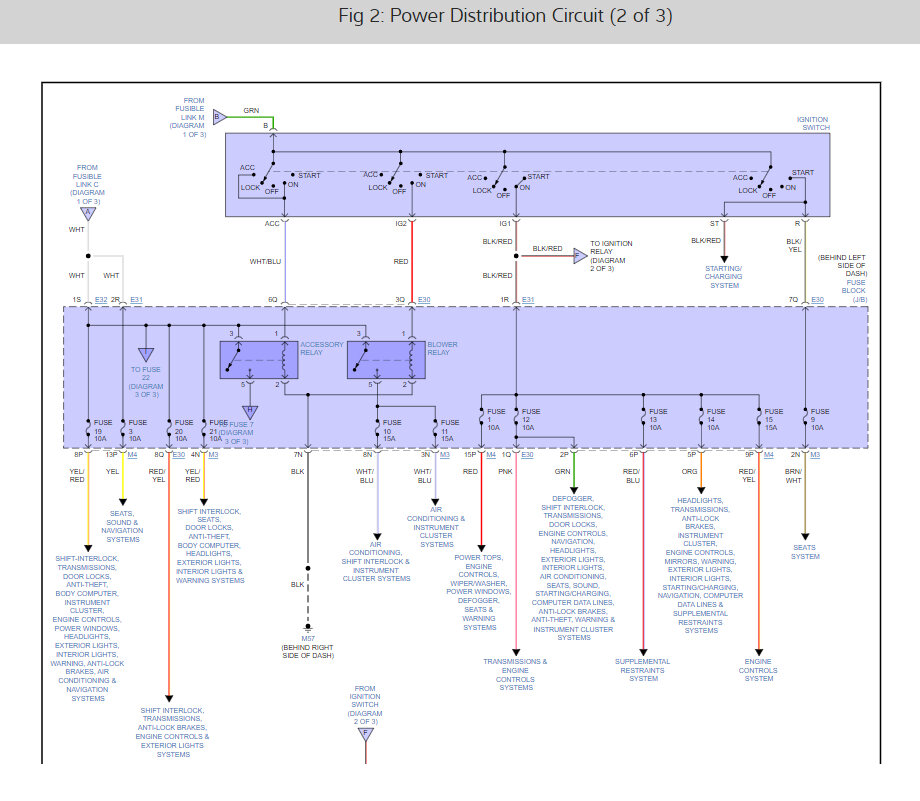

Yep, here are the ignition switch wiring diagrams as you have requested, and I have included a guide on how to test the wiring as well.

https://www.2carpros.com/articles/how-to-check-wiring

Check out the images (below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Oct 3, 2022 at 9:50 AM
