ignition switch tumbler

2002 CHEVROLET EXPRESS

120,000 MILES • 5.7L • V8 • 2WD • AUTOMATIC

ROBERTNGALE

MEMBER
3 POSTS
FOLLOW

I am replacing the tumbler (key part of ignition switch) but cannot get the top cover off of the steering so I can get to the ignition switch. Also,the steering wheel adjustment lever must come off apparently but how do i achieve this?

Jan 23, 2020 at 5:39 AM

KASEKENNY

CERTIFIED EXPERT
18,907 POSTS

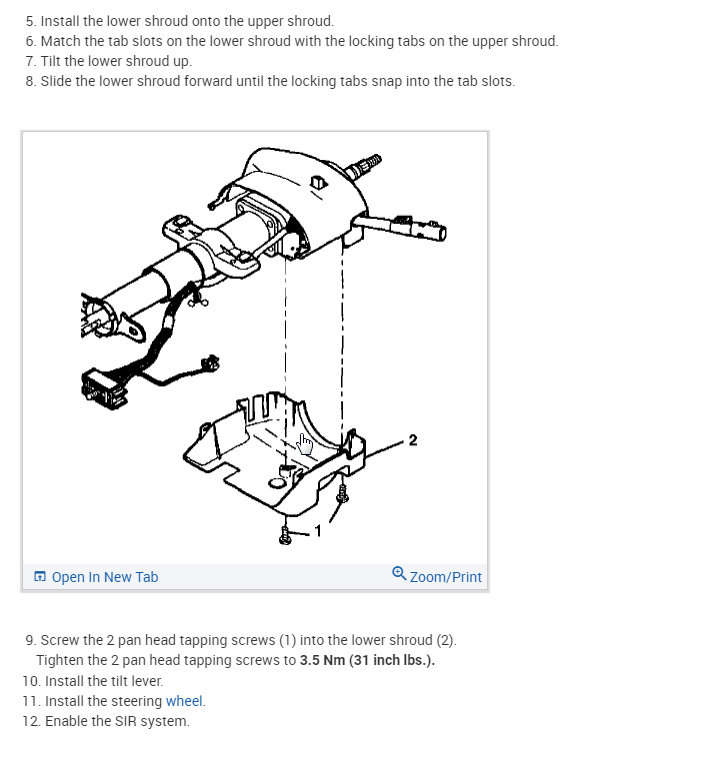

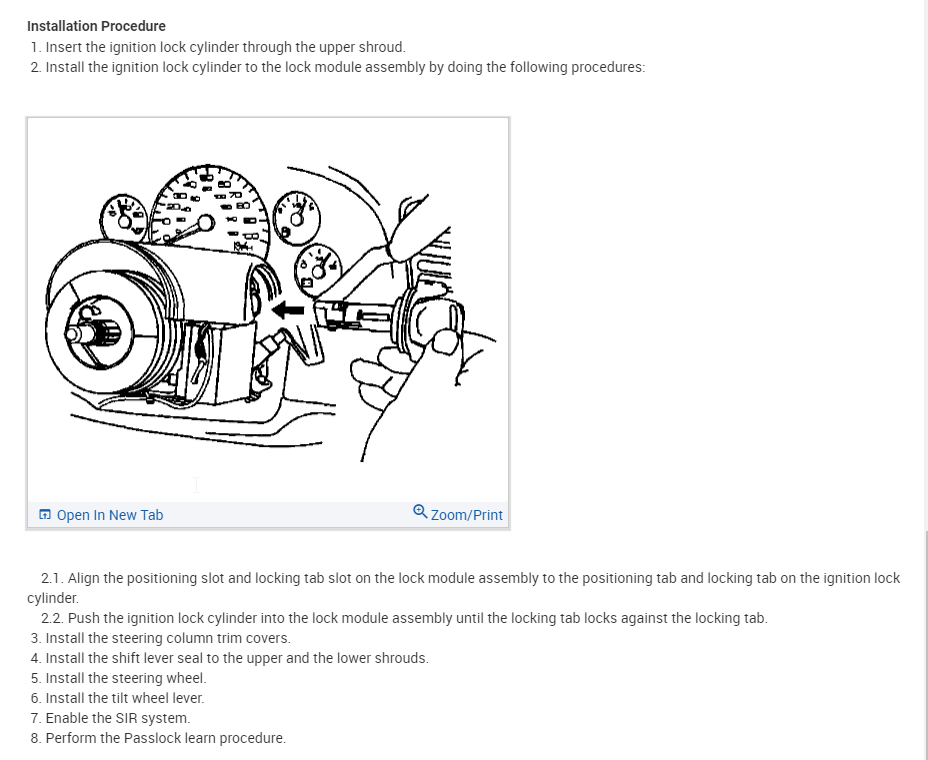

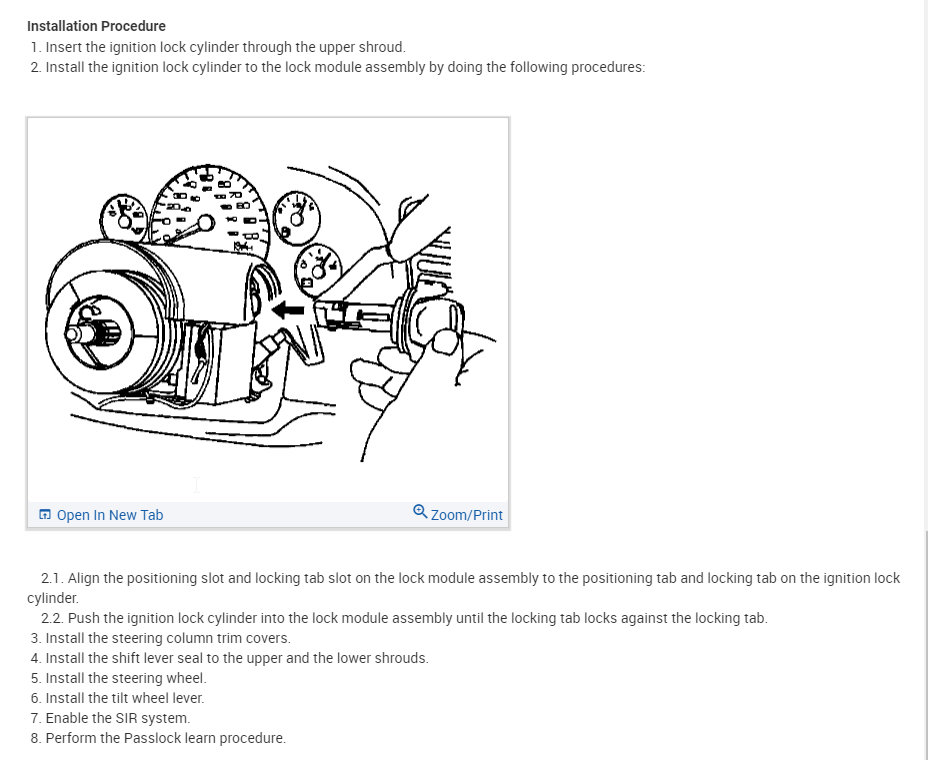

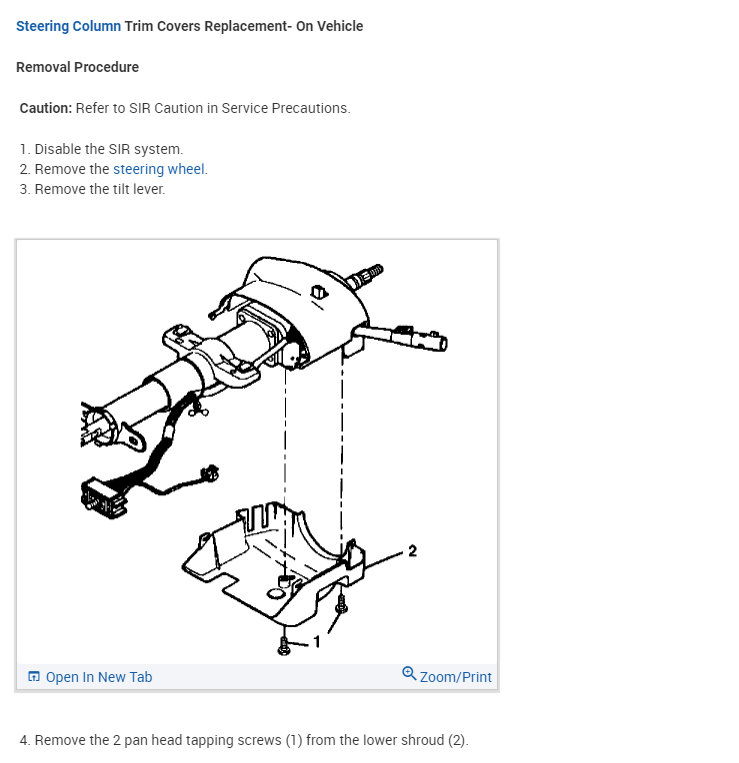

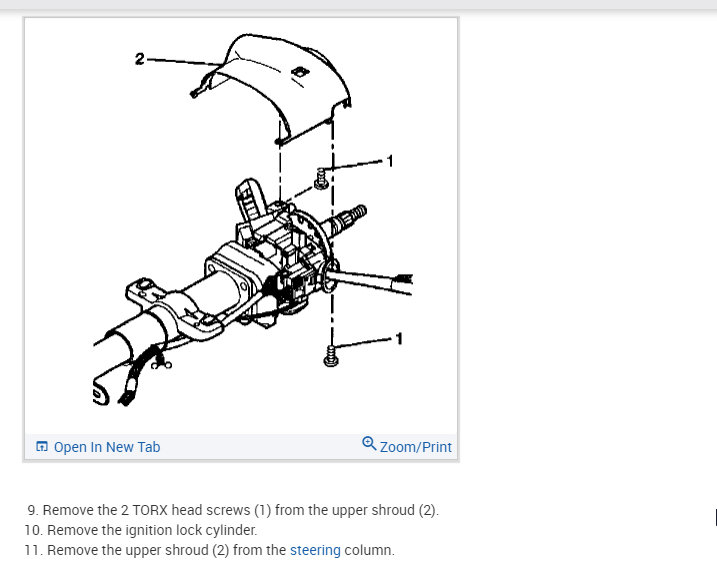

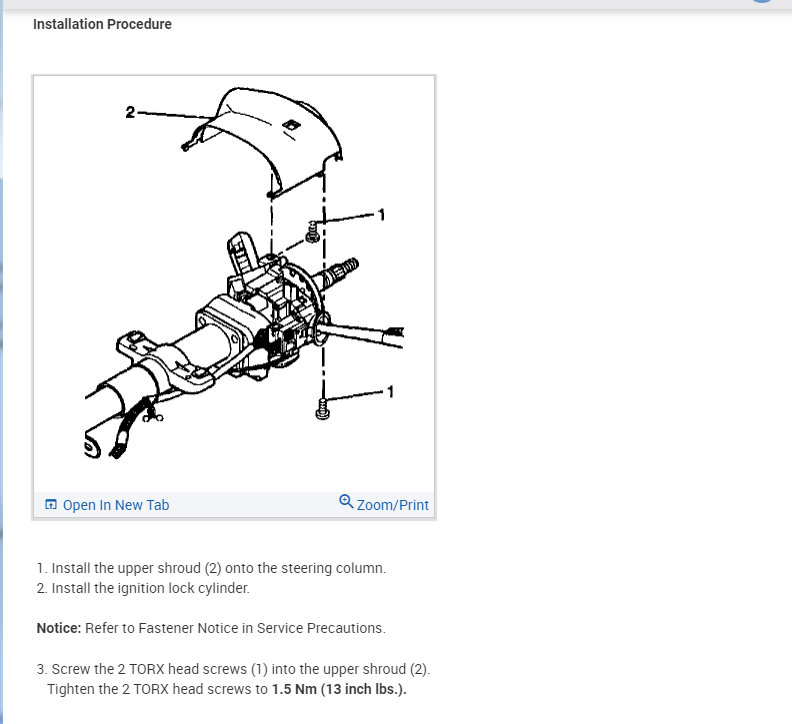

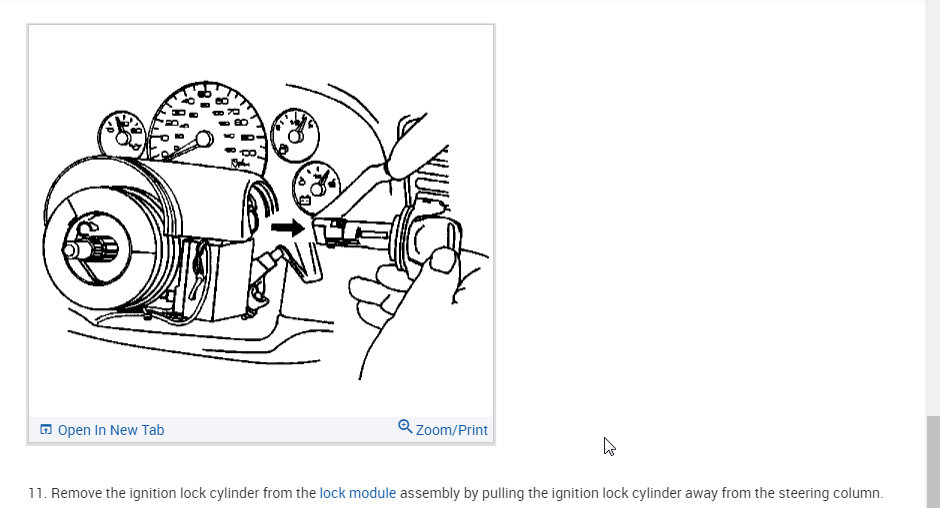

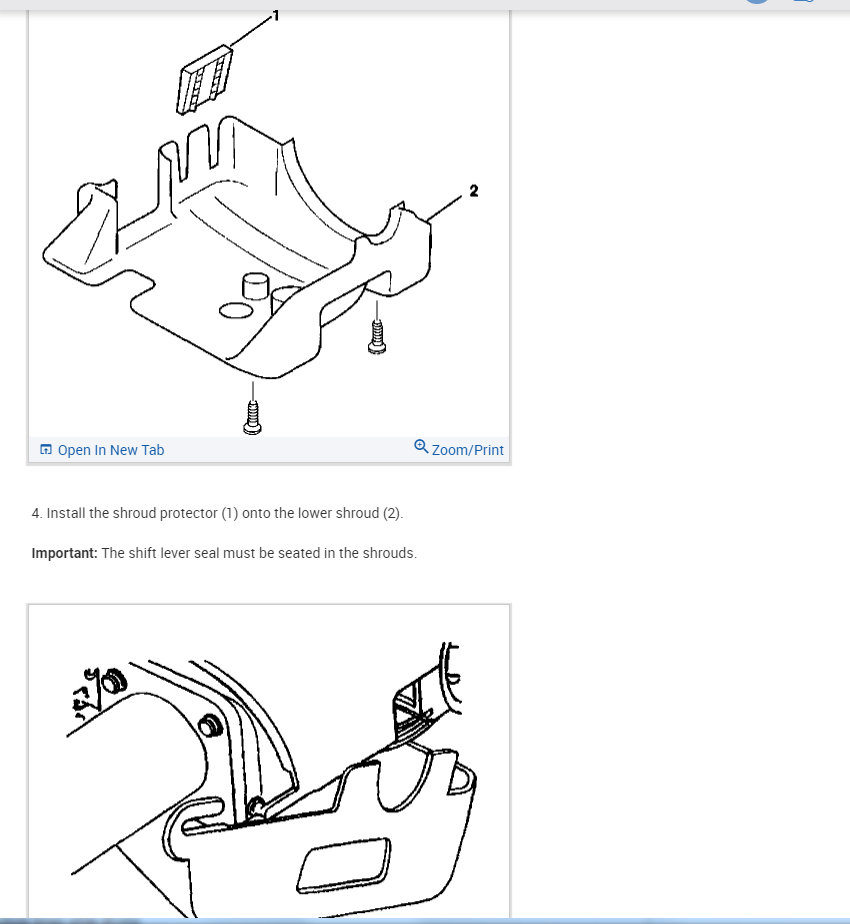

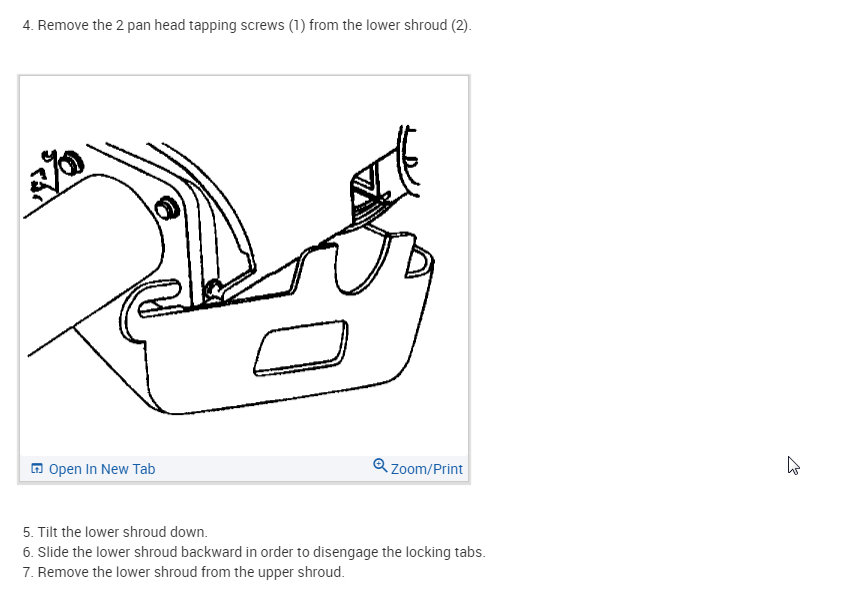

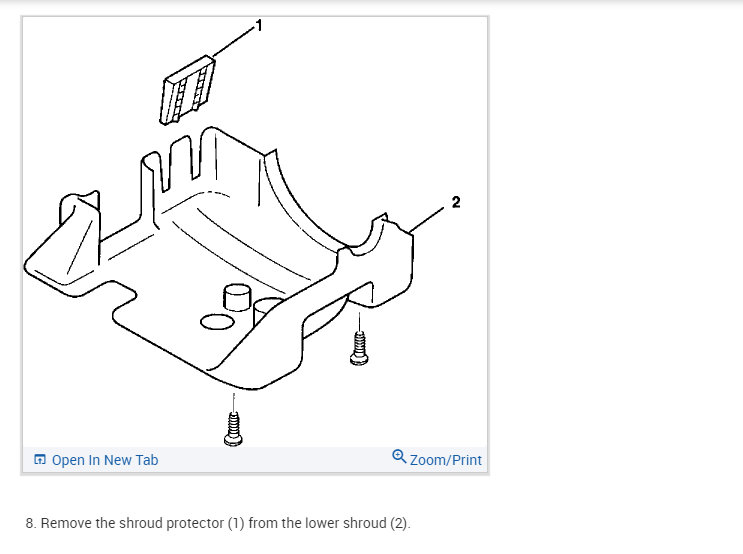

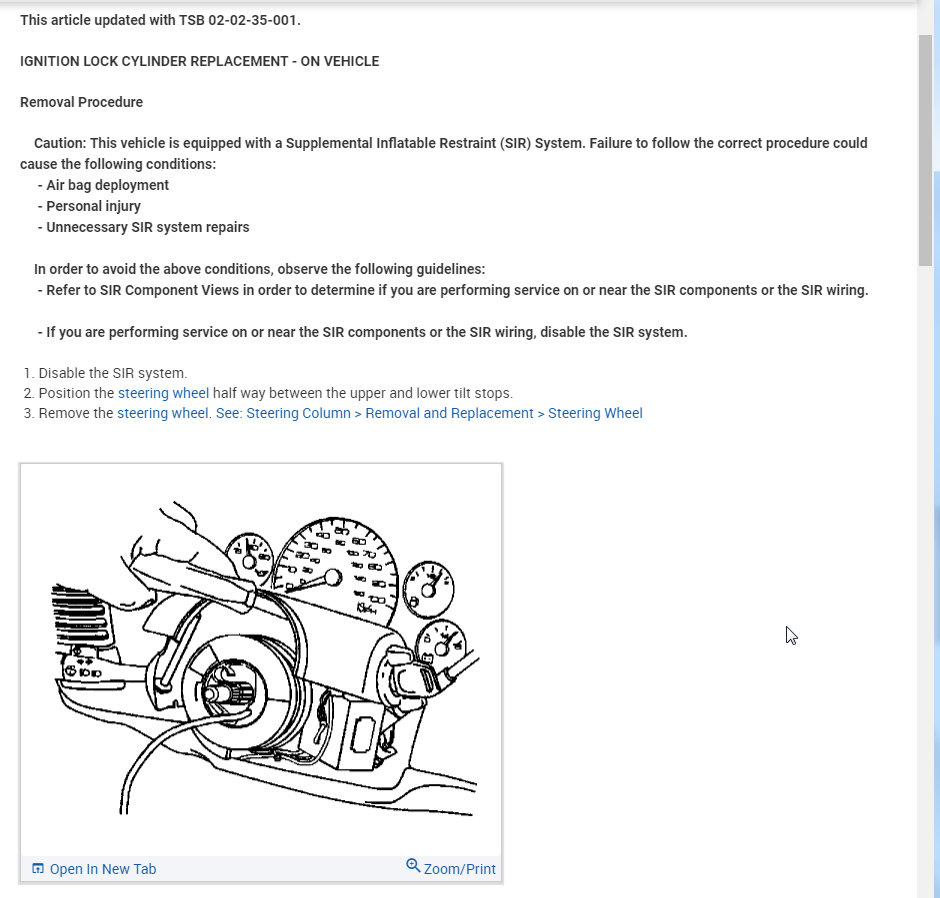

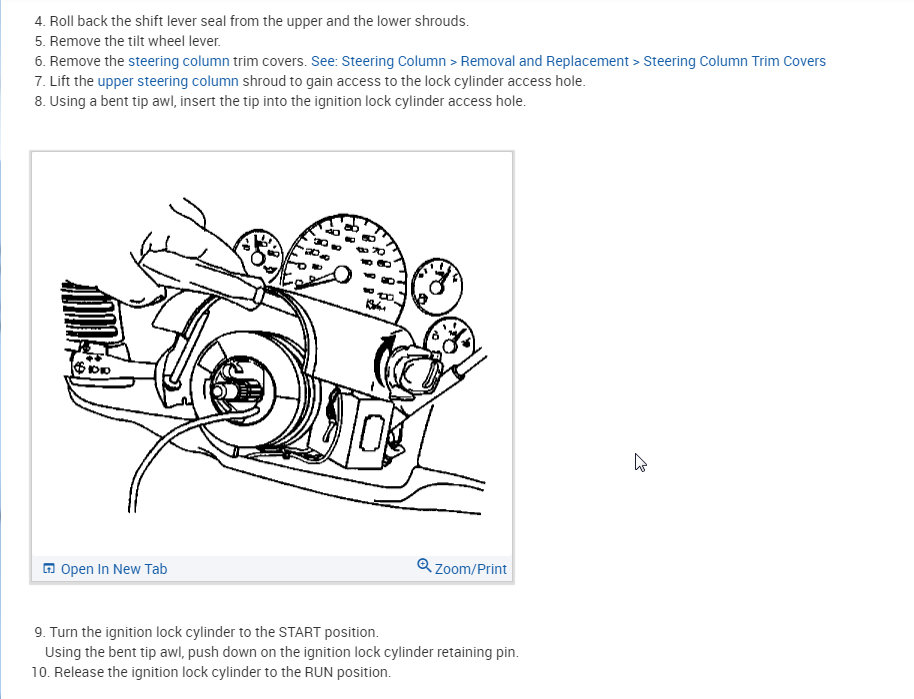

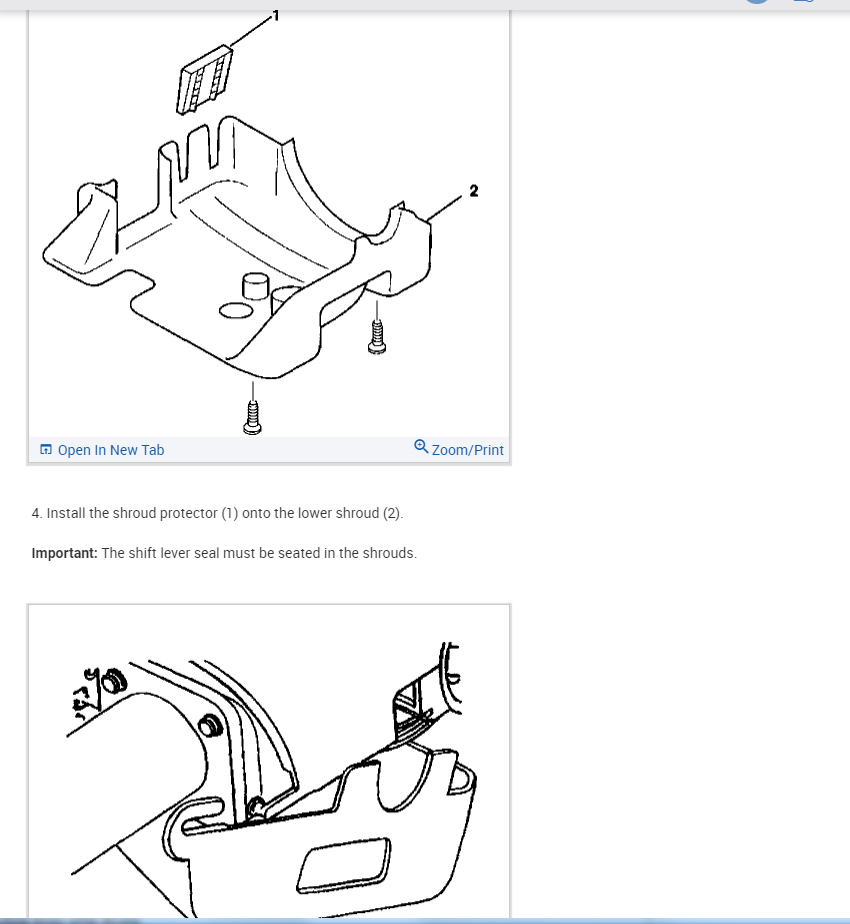

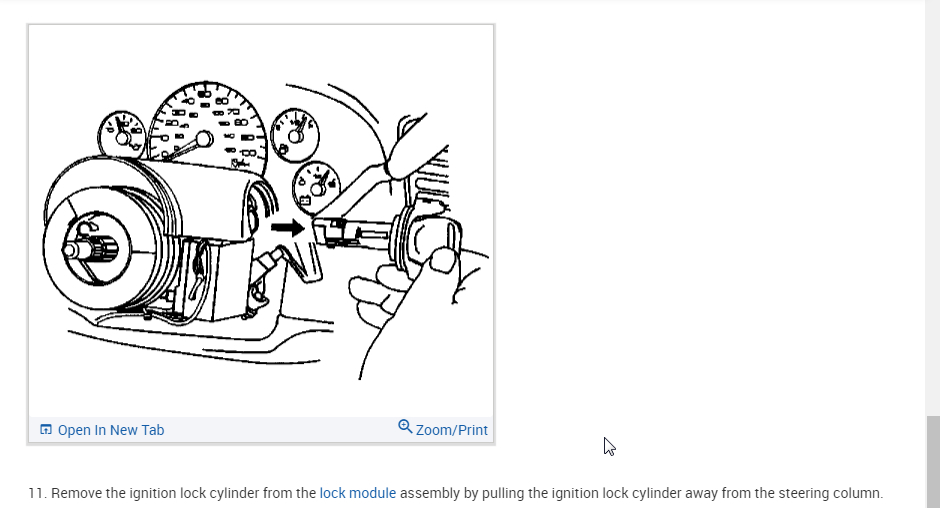

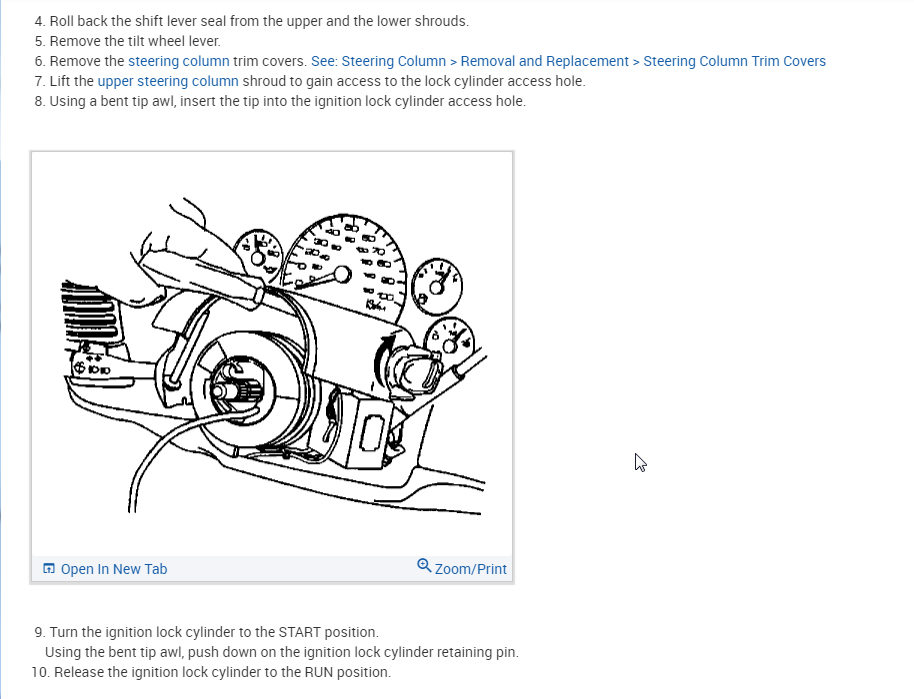

I attached the procedure for this. I am not sure where you are having issue but run through the procedure and see if you are missing something. More than likely there is a screw or clip that you haven't released yet.

Let us know if you have issues still figure out what it was. Thanks

Images (Click to enlarge)

Jan 23, 2020 at 4:33 PM
