Ignition switch plug wiring order needed

2001 CHRYSLER PT CRUISER
6,400 MILES
Avatar
DINEEN81.EDG
  • MEMBER
  • 4 POSTS
Need to know the ignition switch plug wire order from left to right to plug into my new ignition switch.
Feb 8, 2022 at 6:42 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

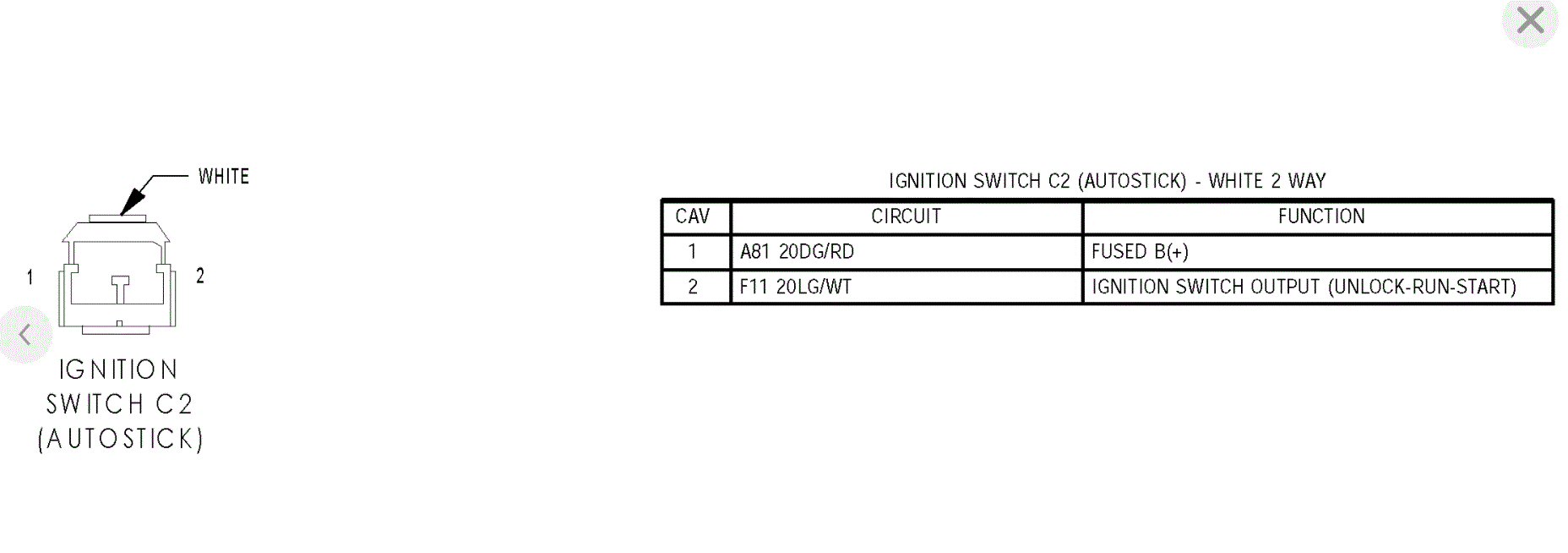

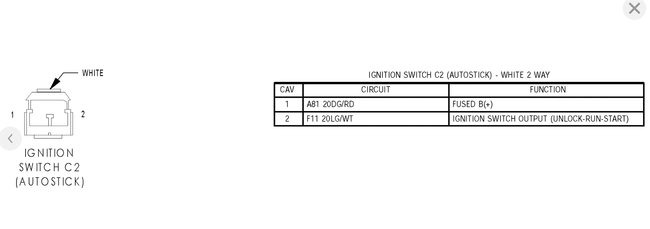

I have attached the pinout for the ignition switch below, it shows the order as well as the wire color.

Please let me know if you have any questions.
Thank you.
Image (Click to enlarge)
Attached Media
Feb 8, 2022 at 9:24 PM
Avatar
DINEEN81.EDG
  • MEMBER
  • 4 POSTS
You gave me a picture of the wiring, I can't tell if it's the back of the switch or the plug for it.
Feb 11, 2022 at 5:12 PM (Merged)
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

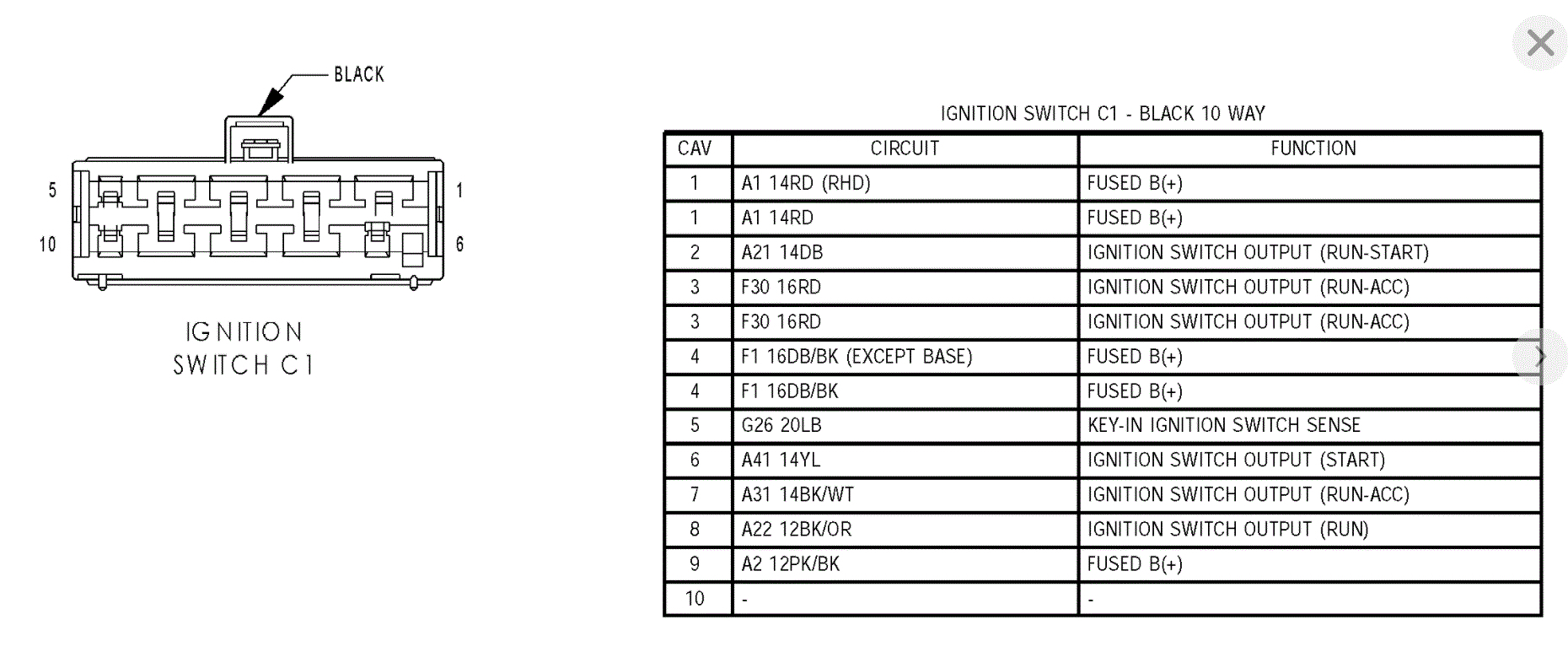

I'm not sure what was sent. However, I attached pics below showing the connectors. Let me know if this helps or if you have other questions.

Take care,

Joe

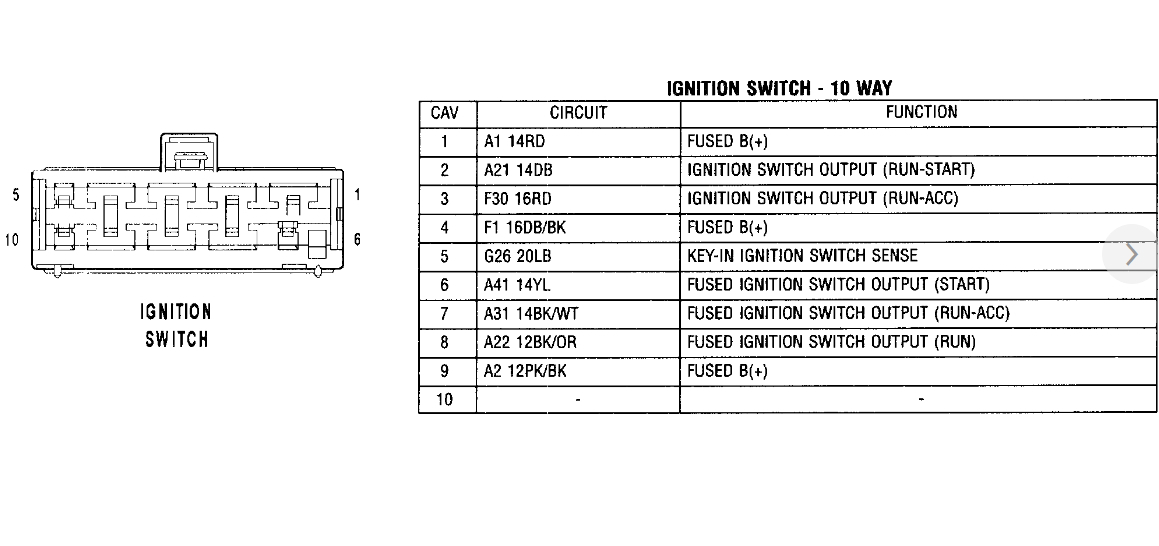

See pic below.
Images (Click to enlarge)
Attached Media
Attached Media
Feb 11, 2022 at 5:12 PM (Merged)
