Ignition coil connector wiring diagram needed?

2010 VOLVO XC60
205,000 MILES • 3.0L • V6 • 4WD • AUTOMATIC
Avatar
LARDOG58
  • MEMBER
  • 1 POST
I bought new connectors online that they said were color coded, but they don't match. Do you have a color coded wiring diagram for the coils on the vehicle listed above t6 3.0?
Aug 6, 2024 at 3:17 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

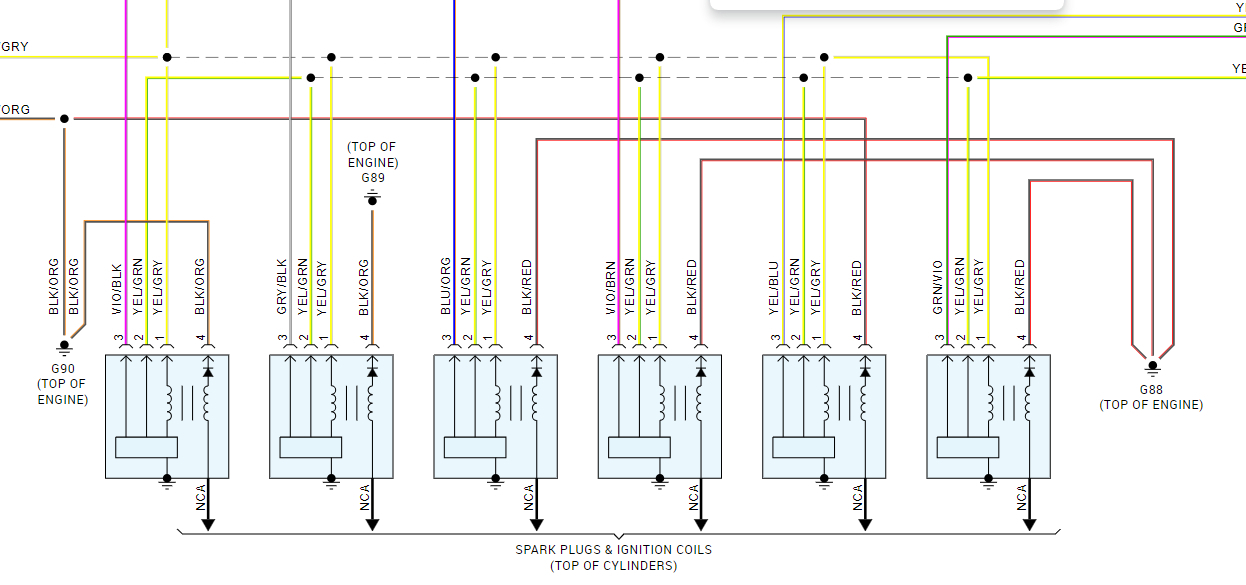

I attached the schematic below from my manual. I noticed the cylinder number isn't indicated, but you should be able to identify each by the wire to the PCM which is different for each.

I traced the wiring to the PCM, and it doesn't identify a cylinder number either.

Let me know if this helps.

Take care,

Joe

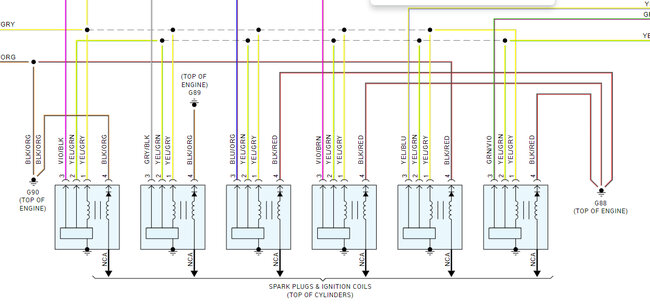

See pic below.
Image (Click to enlarge)
Attached Media
Aug 6, 2024 at 6:38 PM
