I need to know the tightening sequence for my cylinder head bolts?

2009 GMC SIERRA
200,000 MILES • 4.3L • V6 • 2WD • AUTOMATIC
Avatar
SAMPLES98
  • MEMBER
  • 1 POST
I can’t find the tightening sequence for my specific make and model anywhere online. My engine has 13 bolts per head.
Feb 13, 2026 at 5:47 PM
Advertisement
Avatar
CARADIODOC
  • CERTIFIED EXPERT
  • 34,306 POSTS

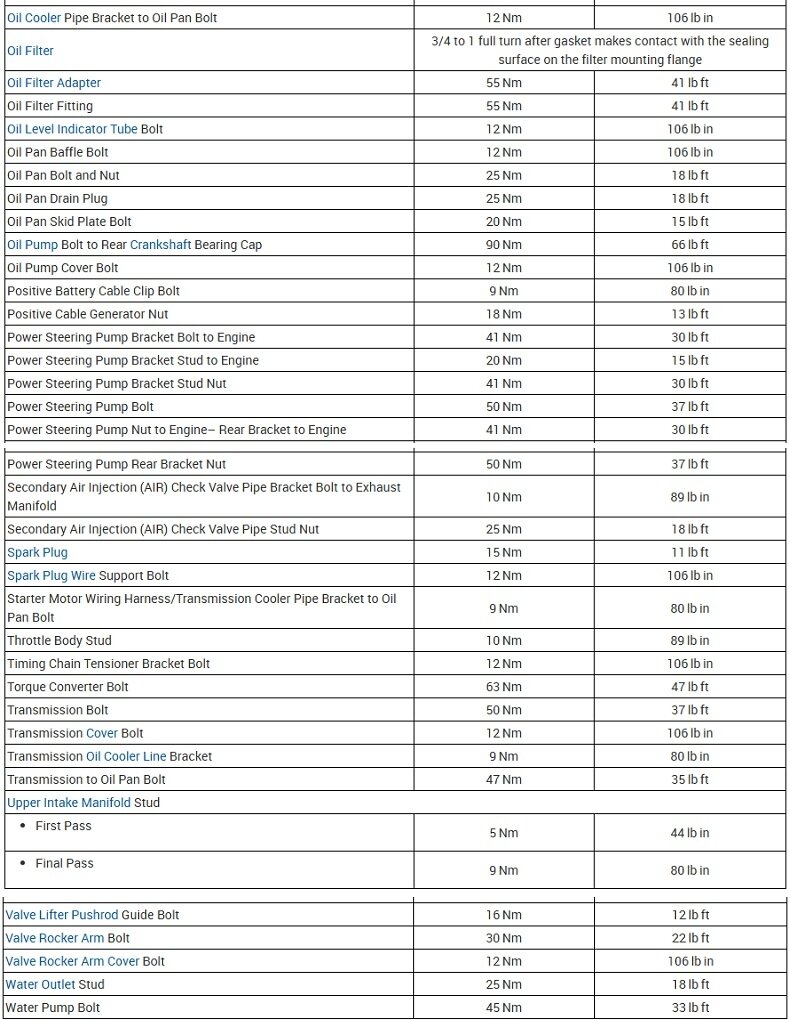

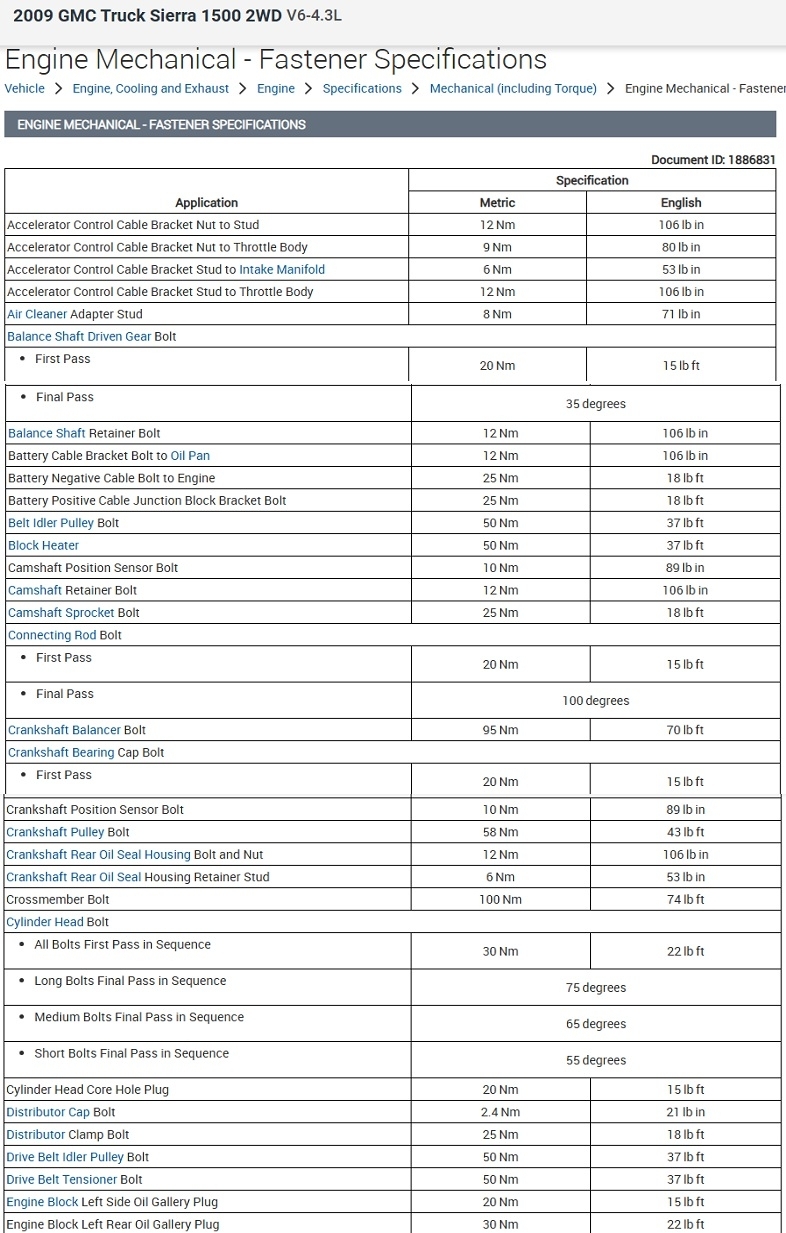

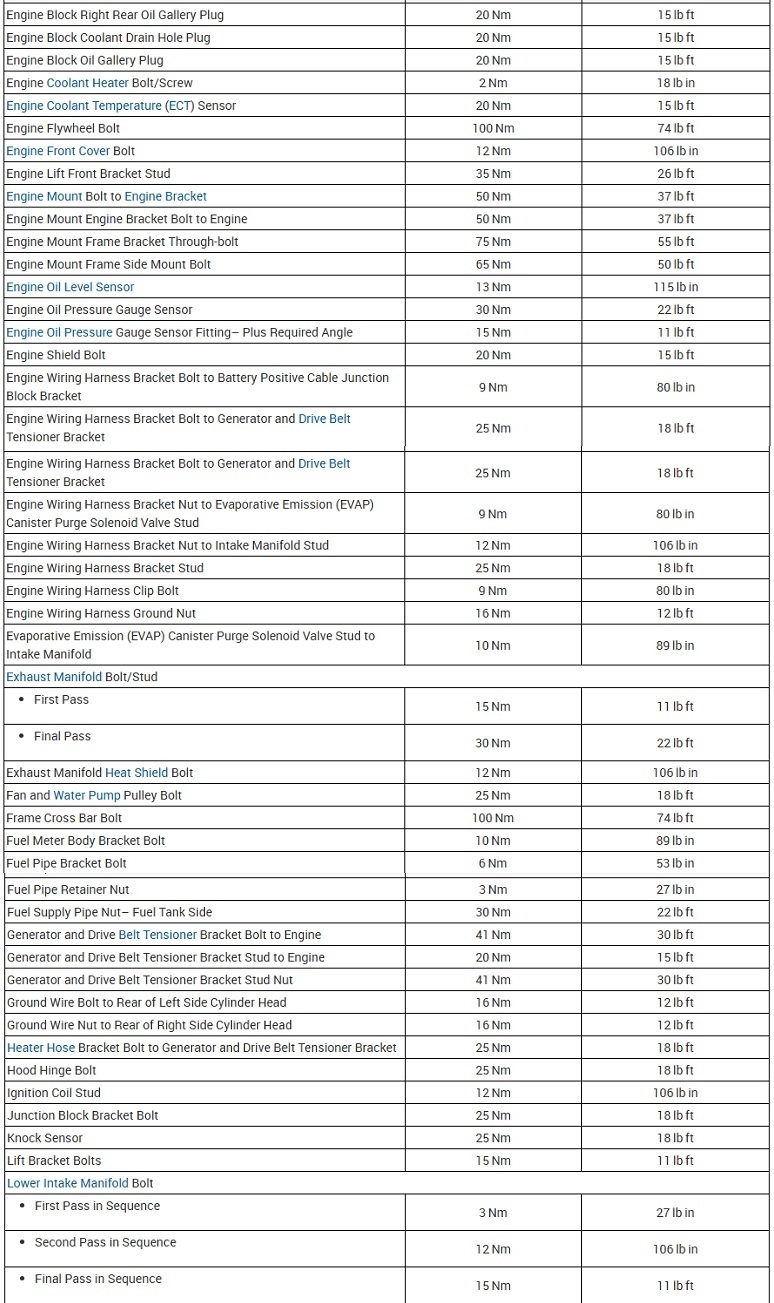

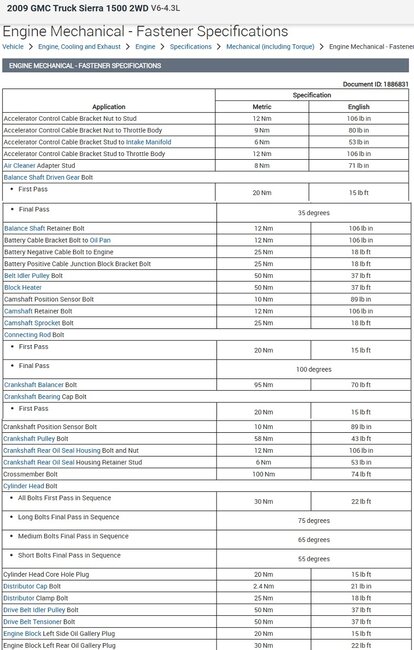

Let me know if you can't read the numbers in the fourth image. You can copy and paste it into a typing program such as MS Word, where it can be expanded, or I can put some larger callouts on it for you.

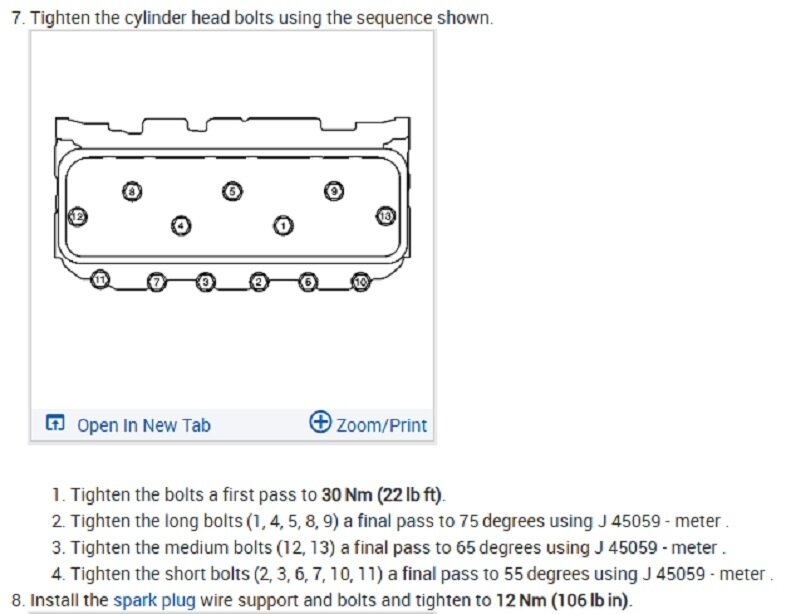

The special tool they're referring to is: J 45059 - Angle Meter. You may be able to borrow a comparable tool from an auto parts store that rents or borrows tools. Let me know if you don't know what they're referring to for the procedure.
