I mixed the EGR valve sensor wiring

1995 HONDA ACCORD
156,000 MILES • 2.7L • V6 • FWD • AUTOMATIC
Avatar
HASSAN SHUAIBU
  • MEMBER
  • 40 POSTS
I mistakenly mixed the wiring from the car ECU to the EGR valve connector. I removed wires from the connector to fix a broken part and afterwards I do not remember where each of the wires goes into the connector. The wires are colored white/black stripe, green /blue stripe and yellow /blue stripe. Please help me out so do not put the wires in the wrong place.
Dec 11, 2016 at 11:10 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

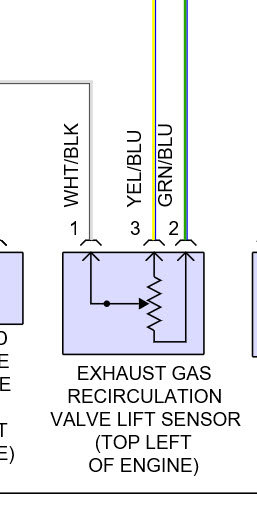

see picture and look for numbers on connector to see where they go.
Image (Click to enlarge)
Attached Media
Dec 11, 2016 at 5:05 PM
Avatar
HASSAN SHUAIBU
  • MEMBER
  • 40 POSTS
I do not under the image. I need a description of which wire goes into the EGR valve looking at the valve pins or connector facing me.
Dec 11, 2016 at 10:00 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
get another connector and put them to the chart there is a one, two and three in picture where wires go into connector.
Dec 12, 2016 at 7:36 AM
