Fuel pump relay

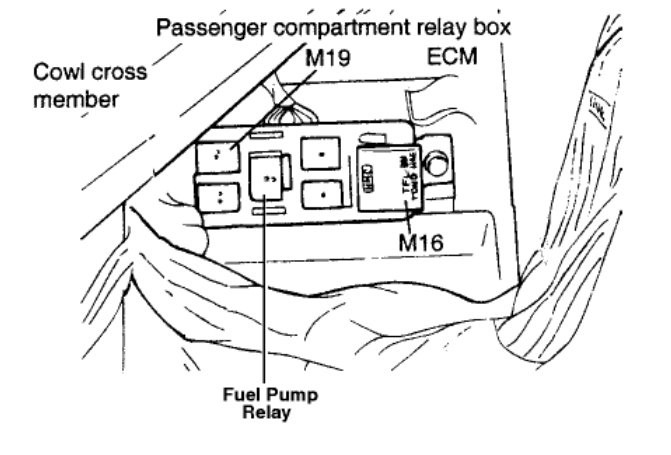

The fuel pump relay is in the passenger compartment relay box under the hood. See the image below

Here is a guide to help you test the relay to confirm the failure. https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit Check out the diagrams (Below). Please let us know what happens.

Electrical problem
2000 Hyundai Tiburon 4 cyl Front Wheel Drive Manual 125300 miles

Where is the fuel pump relay on a 2000 hyundai tiburon and does it have an inertia switch

2000 Hyundai Tiburon L4-2.0L Fuel Pump Relay

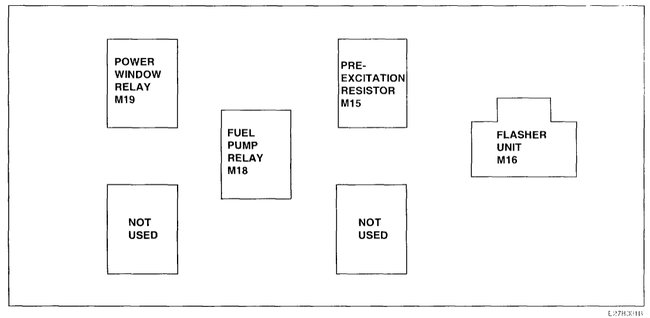

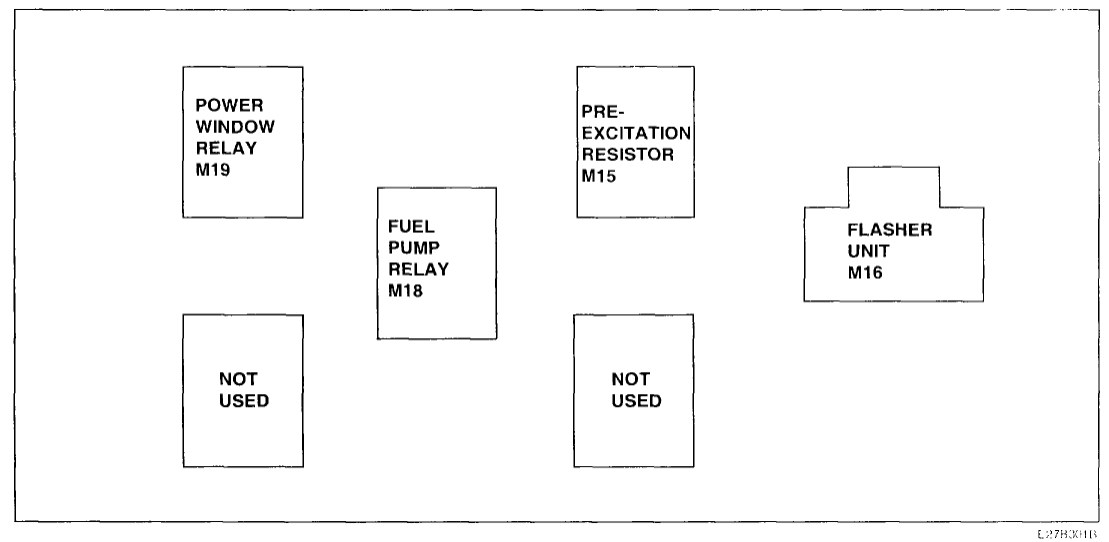

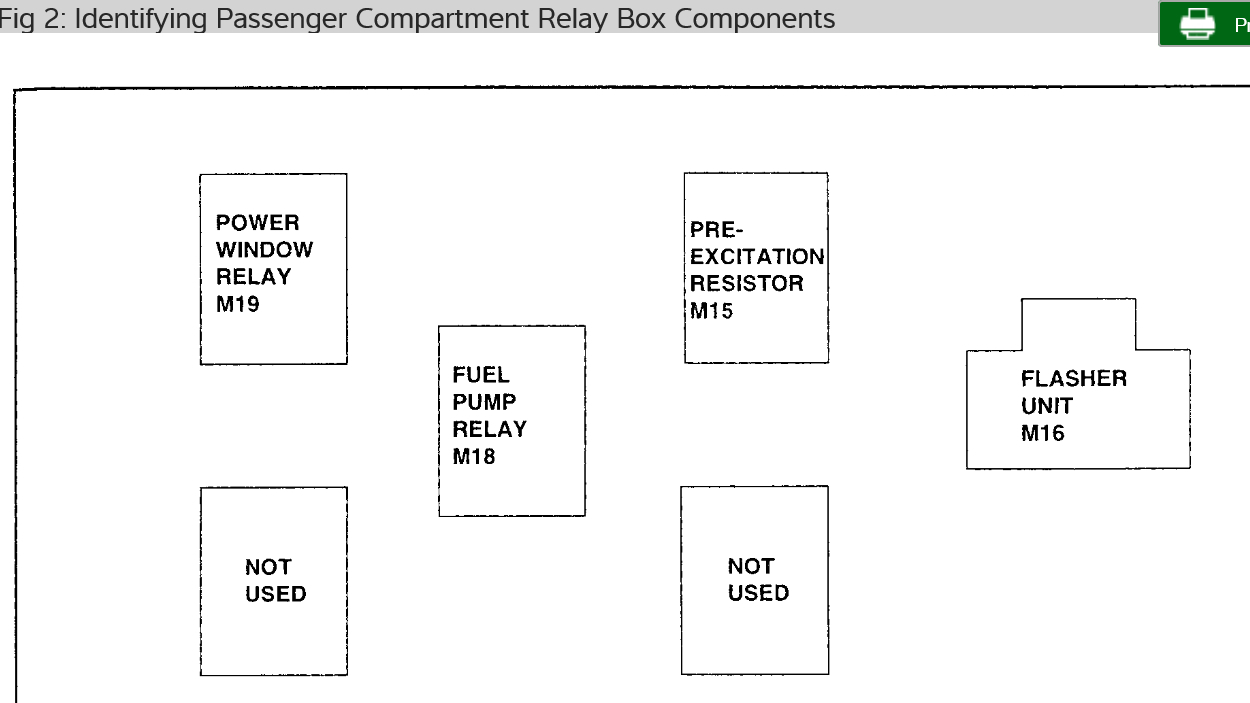

Passenger Compartment Relay Box (Layout)

No it does not have an inertia switch.

Engine Mechanical problem
2000 Hyundai Tiburon 4 cyl Front Wheel Drive Automatic

changed fuel pump -car won't start - where is fuel pump relay located

Check under the hood. I believe there is a power distribution box that contains all of the relays.

Replaced cam sensor twice and still only code that pops up is 0343. plus now we think the fuel pump is bad or maybe the relay. do not know where to find the relay. driving down the interstate car gave no signs just all of a sudden started bogging down would not accelerate just eventually shut off. but after it say for a day it started right back up and drove to town and home with no problem. next time I drove it it went about a mile and a half and shut off again.

I kind of doubt it is the relay as they either work or will not work. check fuel pressure with a gauge it may be blockage on return line if you have or filter auto parts rent gauge and you may need an adapter to test. See link and picture relay in pass compartment relay box.
https://www.2carpros.com/articles/how-to-check-fuel-system-pressure-and-regulator

Hey guys, so I have an interesting problem. I have an 01 tiburon and it cranks but does not start (turn over).

So I figured the problem could be fuel, spark or air. Checked the spark and air and they are good. Check the fuel and there was no gas going to the engine. So I took out the back seat and checked the fuel pump. The fuel pump turns on if manually given 12 volts but it doesnt turn on normally. Checked the voltage at the electric line coming in and it was 0. So I thought it was the fuel pump relay. I swapped out one of the relays from the front and still no voltage.

After a job to keep the frustration subsided, I decided to hook up an obd device to read the codes. The device (that I know usually works and worked in another car) was having a hard time connecting to the car but after 20 tries or so it finally connected and gave me these codes. (using pro scan 5.9)

1. P0100
Powertrain: MAF Sensor Ckt. Insufficient Activity

2. P0765
Powertrain: Shift Solenoid D Malfunction

I turned the car off and then on again and the codes had disappeared, but the connecting issue was still there.

Any thoughts on how to further proceed would be greatly appreciated.

Oh, I almost forgot to mention the pre cursor to how the car came to be in this predicament. I was driving but didnt notice that I was running low on gas. The gas dropped to almost the VERY end of E (past the little notch) but it still drove to the gas station. I filled up the tank and drove back home. I parked the car over night and tried to start it in the morning. It just cranked but did not turn over (start)

first, there will only be power to the pump for 2 seconds with the key on, then 12 volts while cranking.

re test the pump under these conditions first

Roy

Hi Roy, I checked the voltage in the beginning as well as while cranking and its still 0 (it fluctuates a bit but only by .01 volts).

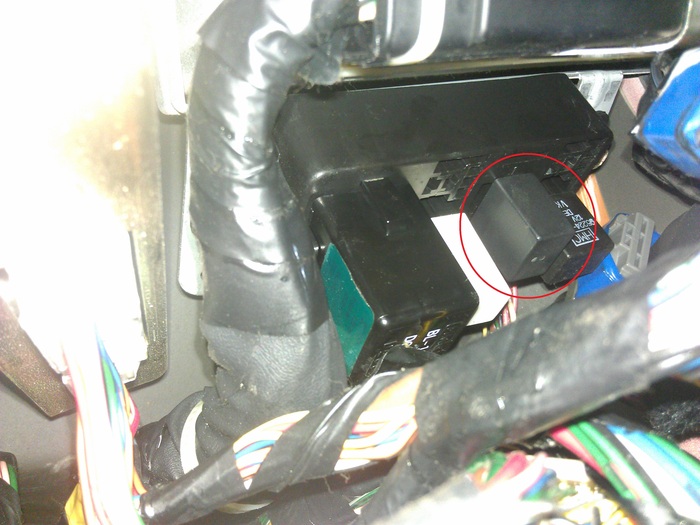

My next thought was to check the relay once again and I replaced the relay that was there. here is a picture of what I replaced.

I also gave 12v to the fuel pump diagnostic port in the engine bay and the fuel pump did not come on. (The fuel pump still comes on if I give it 12v directly)

I’m having the exact same issue. Almost ran out of gas. And next day after getting gas wouldn’t start. Did you figure out the problem?

It sounds like a wiring issue between the relay and the fuel pump.

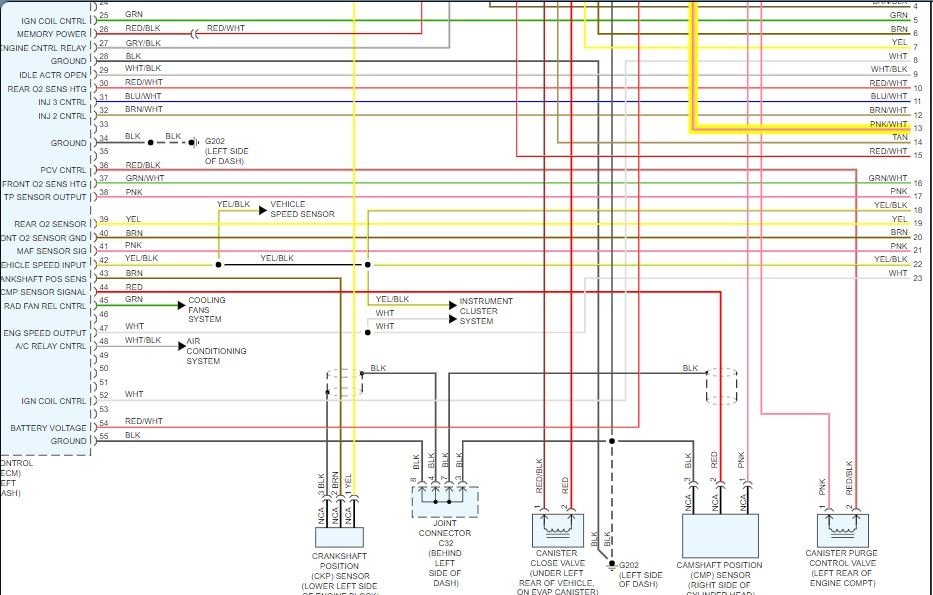

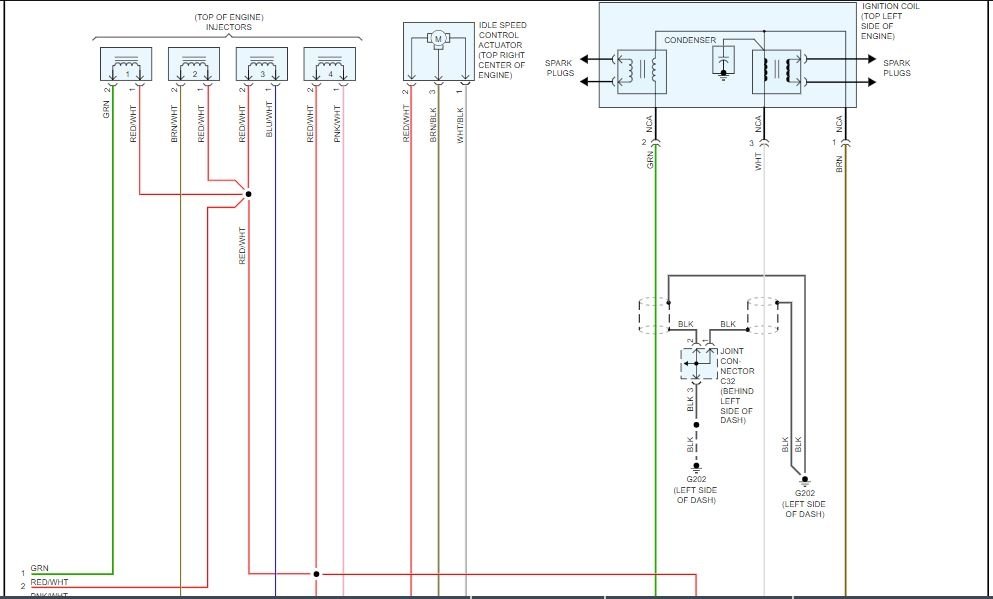

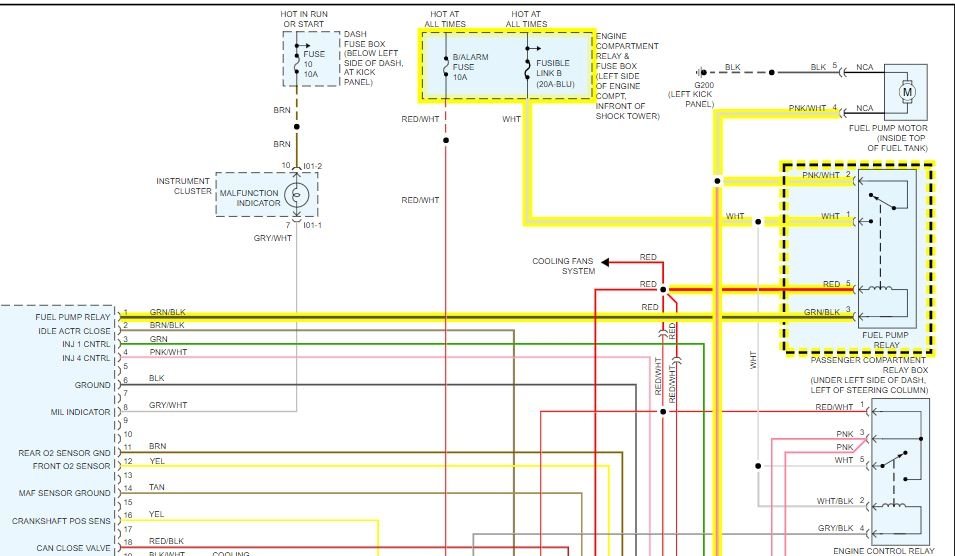

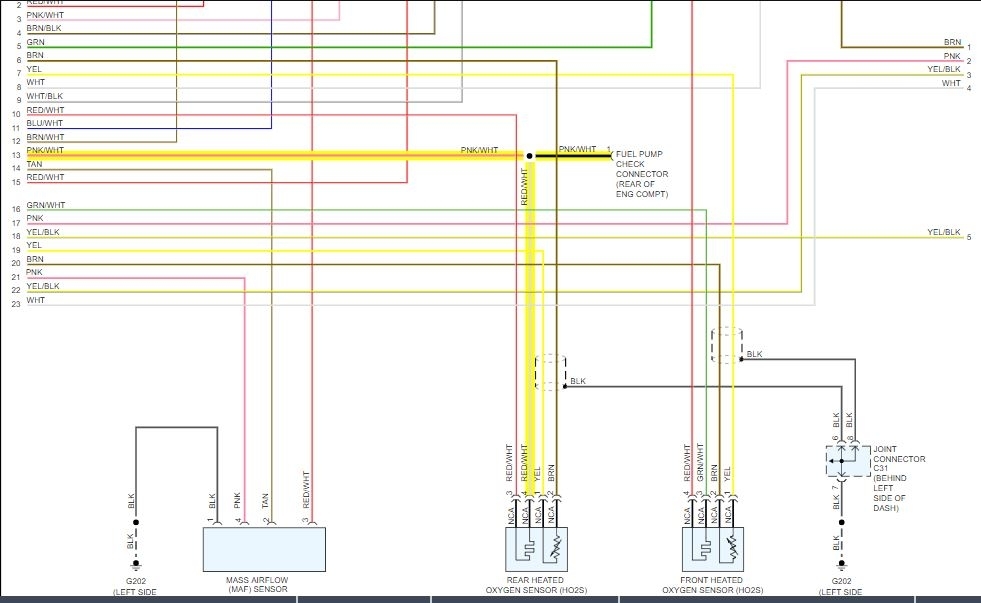

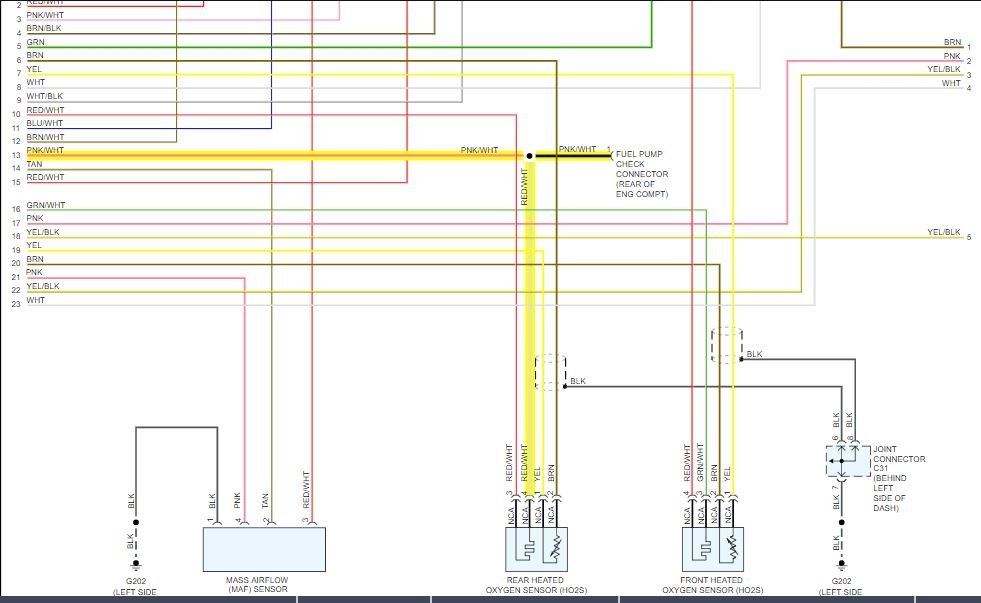

I attached a wiring diagram for you to view.

Check for powers to the relay to be sure power is available.

Roy
