How to detect EVAP system leak with smoke tester?

2003 PONTIAC MONTANA
85,000 MILES • 3.4L • 6 CYL • 2WD • AUTOMATIC
Avatar
XJSHEN
  • MEMBER
  • 245 POSTS
There was a EVAP system leak test failed by by DTC's diagnosis. I got smoke tester. But I don’t know where to connect the smoke delivery tube tip.
Thanks for your instruction and helps!
Nov 21, 2020 at 2:01 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

The EVAP service port is located in the EVAP purge pipe between the EVAP purge solenoid and the EVAP canister. The service port is identified by a green-colored cap

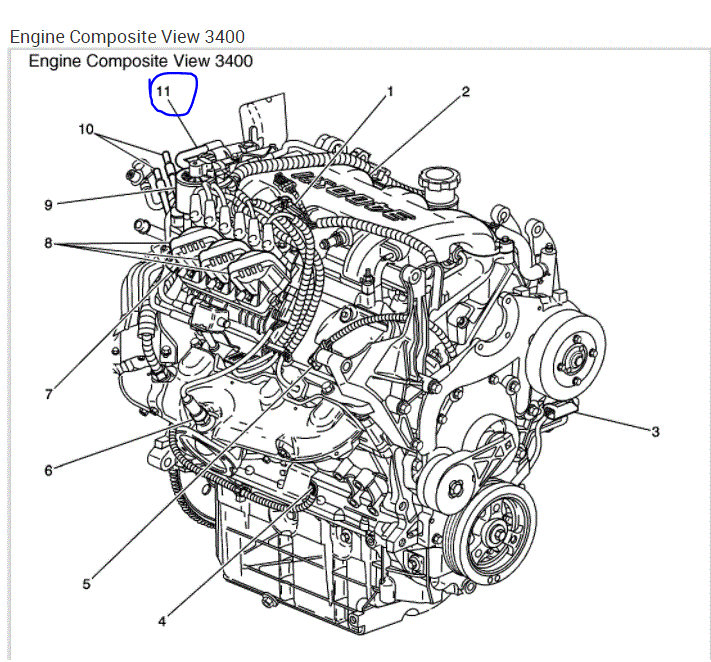

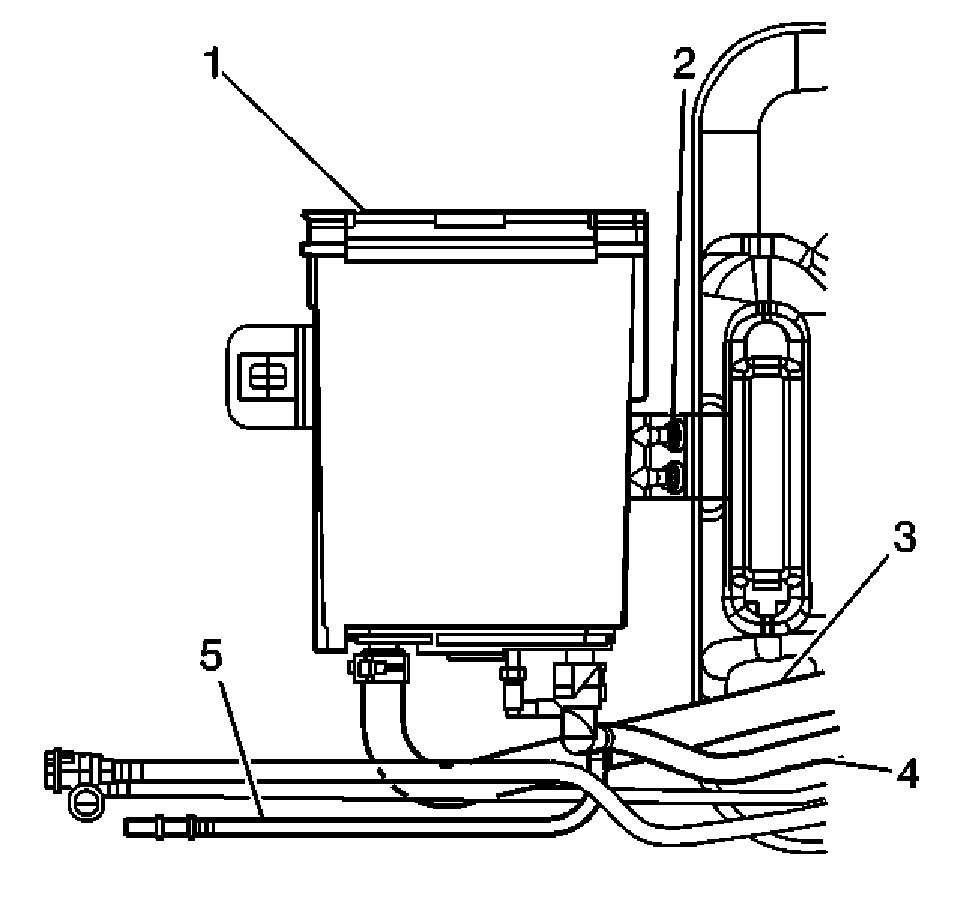

I attached two pics below. The first shows the canister which is near the fuel tank. The second shows the solenoid. If I recall, the service port is near the purge solenoid (number 11 in pic 2)

Let me know if this helps.

Joe.
Images (Click to enlarge)
Attached Media
Attached Media
Nov 21, 2020 at 7:55 PM
