how to test and remove alternator?

2005 CHRYSLER CROSSFIRE
37,000 MILES • 3.2L • 6 CYL • 2WD • AUTOMATIC
Avatar
CHARLES C. DOWNEY
  • MEMBER
  • 1 POST
Car won't crank. Charge battery overnight. Car starts and runs for about 15 minutes then shuts off then won't crank over. Have to charge battery again.
Aug 15, 2022 at 8:59 AM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

On idle the alternator should have an output between 13.6V to 15.2V to the battery.

Here is a guide on how to test the alternator:

https://www.2carpros.com/articles/how-to-check-a-car-alternator

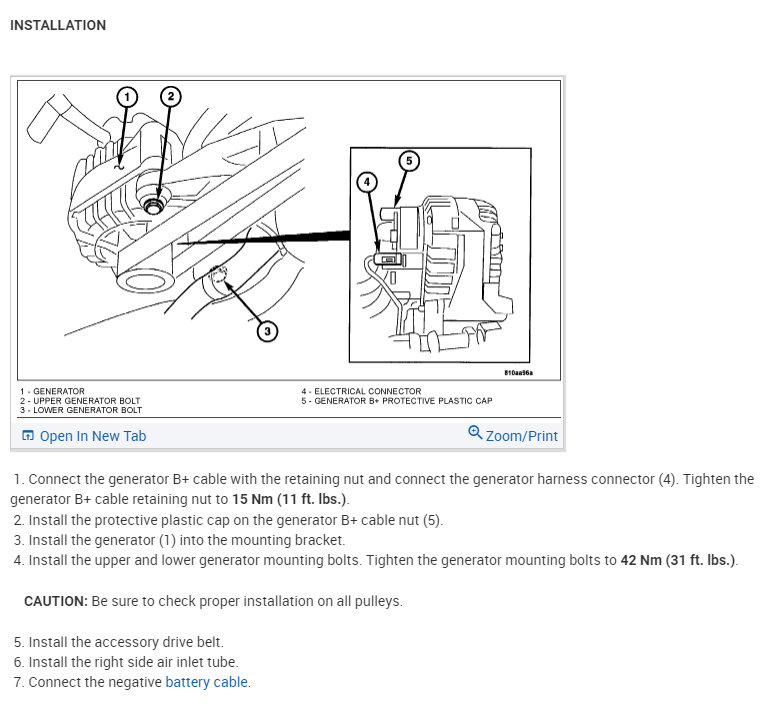

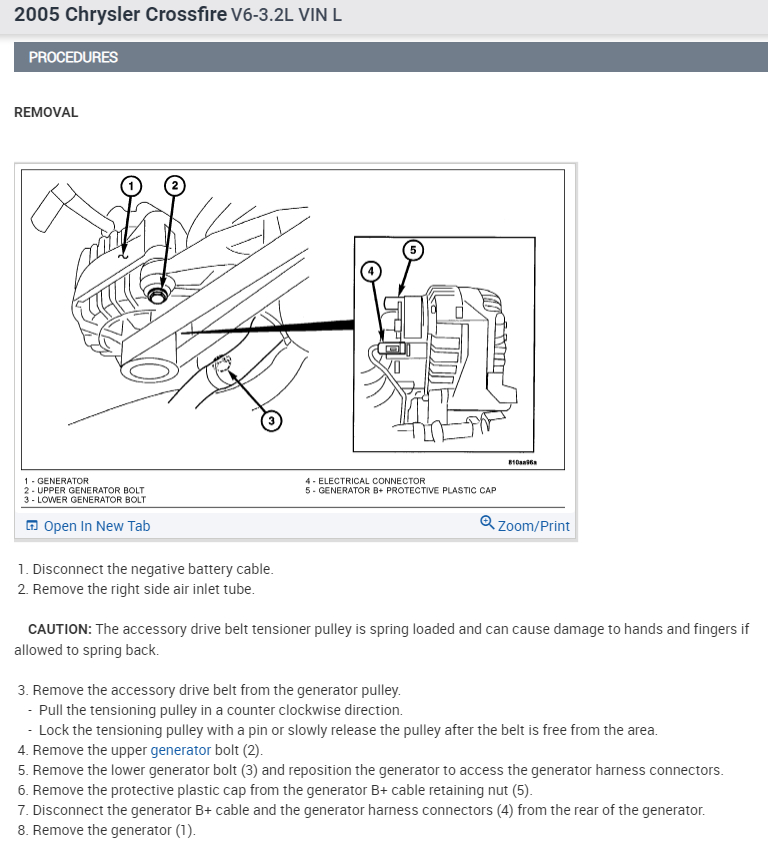

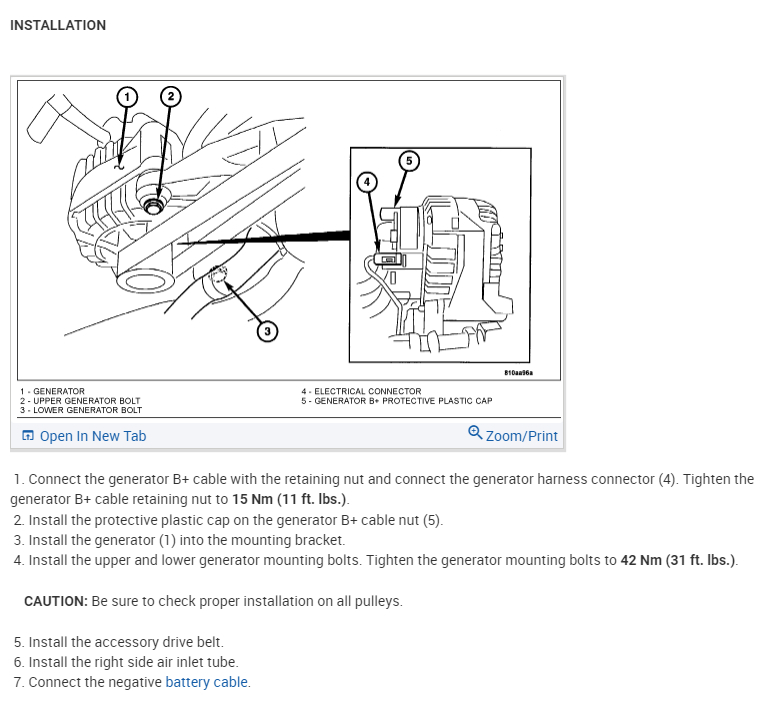

Look below for the alternator replacement procedure.

Let me know of any questions.
Thank you.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 15, 2022 at 10:00 AM
