Where is the horn relay located?
1987 CHEVROLET CELEBRITY
TERMAXCO
- MEMBER
- 54 POSTS
- FOLLOW
Advertisement
Hi,
I found information indicating there is one. However, the wiring schematic indicates it is at the end of the left side of the instrument panel and when I tried to get a pic of it, the manual indicates it's on the right side. Ugh!!!

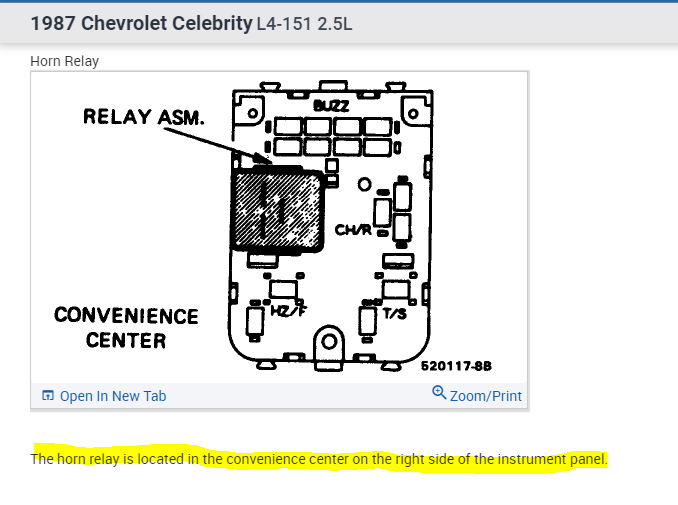

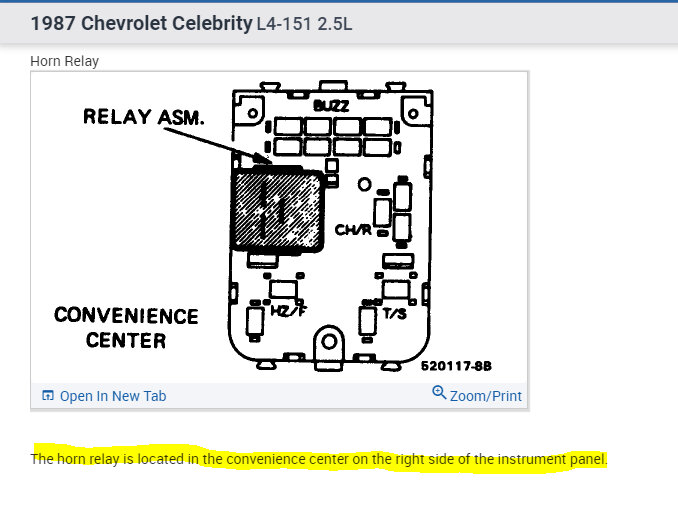

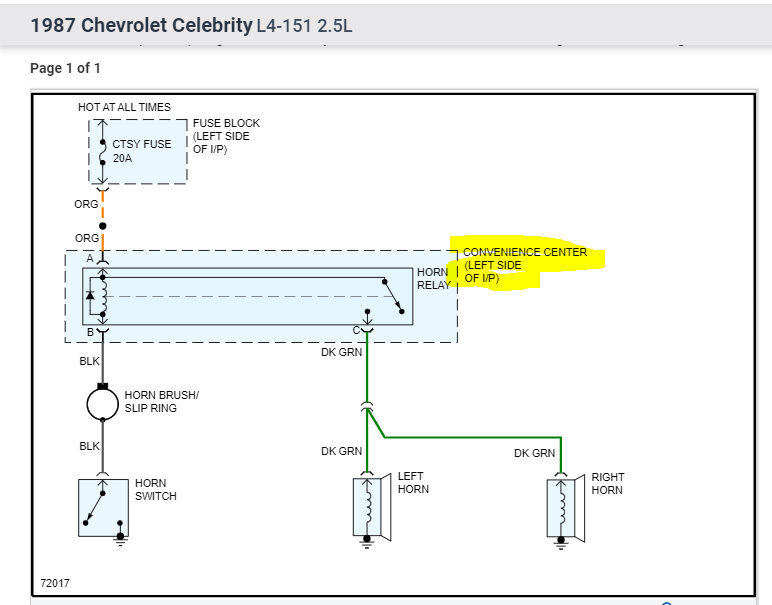

Check both sides and let me know if you find it. I attached the horn circuit schematic below, so you have a reference. Pic 2 is the alleged location. LOL
Let me know if this helps or if you have questions.
Take care,
joe
See pics below.
I found information indicating there is one. However, the wiring schematic indicates it is at the end of the left side of the instrument panel and when I tried to get a pic of it, the manual indicates it's on the right side. Ugh!!!
Check both sides and let me know if you find it. I attached the horn circuit schematic below, so you have a reference. Pic 2 is the alleged location. LOL
Let me know if this helps or if you have questions.
Take care,
joe
See pics below.
