ABS wire harness harness information

2005 CHEVROLET EQUINOX
180,695 MILES • 3.4L • 6 CYL • 4WD • AUTOMATIC
Avatar
ADOLFOV.
  • MEMBER
  • 1 POST
A couple of months ago i bought this vehicle not knowing that the ABS sensor wire harness was cut. after replacing both front wheel hub i don't know how or where that wire goes to to replace it.
Feb 10, 2019 at 5:02 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

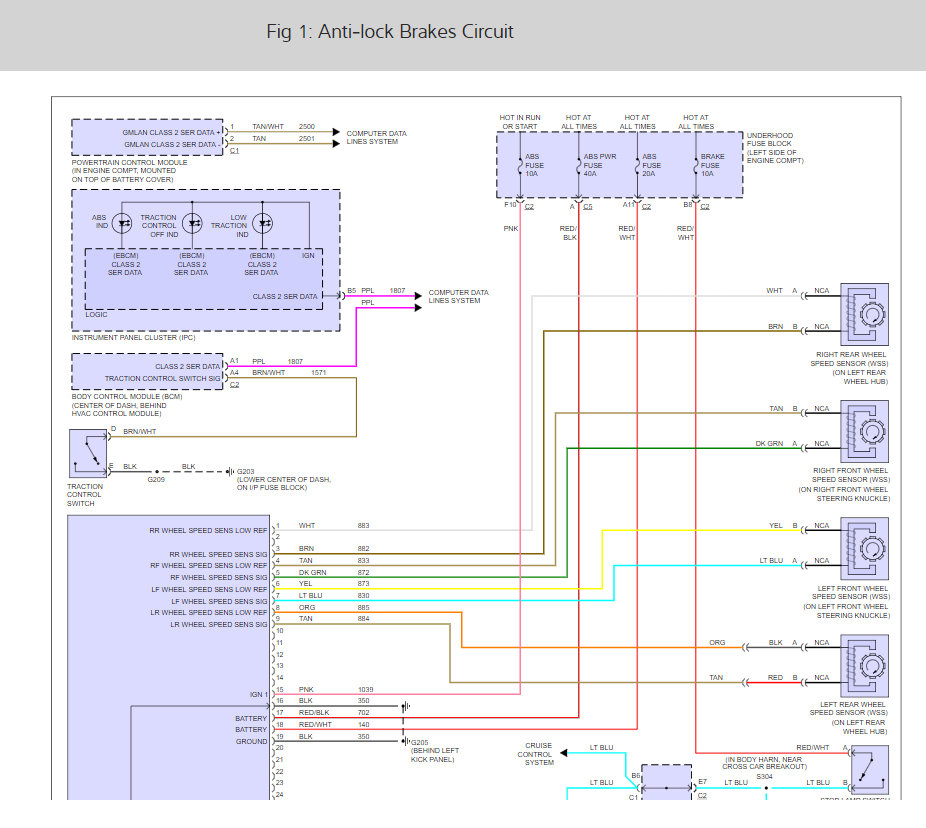

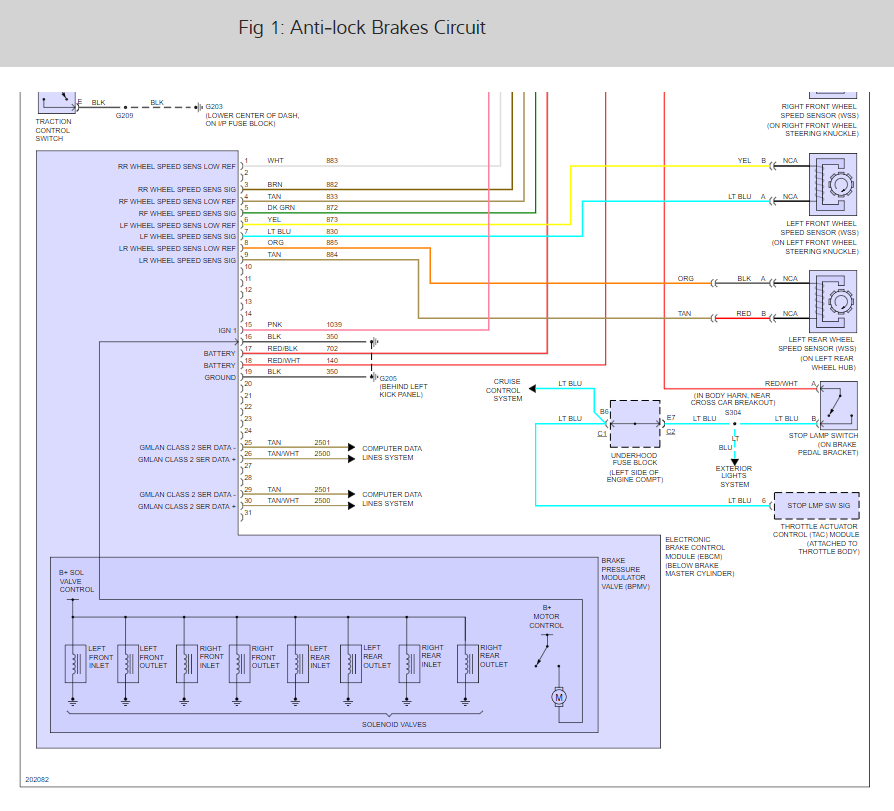

Here is the ABS wiring diagrams you need (below) with a guide to help you test the connections:

https://www.2carpros.com/articles/how-to-check-wiring

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Attached Media
Attached Media
Oct 14, 2020 at 11:42 AM
