Guage fuse blows and non of the gauges work

1991 CHEVROLET S-10
20 MILES
Avatar
KATHERINE SCHMIDT
  • MEMBER
  • 2 POSTS
Instrument panel doesn't work.
Apr 3, 2019 at 11:42 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon,

If you remove the connector from the cluster, does the fuse still fail?

If it does, it has a short in the harness.

If it does not then the cluster is the issue and it will have to be sent out for repair.

Roy

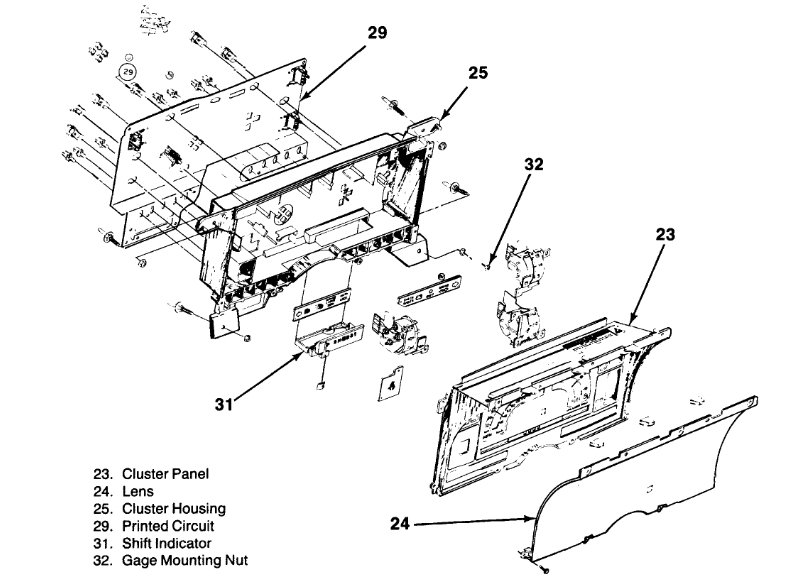

REMOVE OR DISCONNECT
1. Instrument cluster, refer to Instrument Panel / Service and Repair.
2. Lens retaining screws and lens.
3. Cluster panel from the cluster housing.
4. Speedometer mounting screws and speedometer.
Image (Click to enlarge)
Attached Media
Apr 3, 2019 at 11:55 AM
Avatar
KATHERINE SCHMIDT
  • MEMBER
  • 2 POSTS
How do I remove connector from cluster?
Apr 3, 2019 at 1:17 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Once you remove the cluster as I gave you the procedure, you remove the connector at the back of the unit.

Roy
