fuel pump not working?

2002 GMC SIERRA
254,000 MILES • V8 • 4WD • AUTOMATIC
Avatar
MIKEBAIN
  • MEMBER
  • 1 POST
i just put a new fuel pump,filter,relay and fuse on my truck and there is no power going to the pump. also i found out that the old pump still works. so i am wondering what would cause the pump to lose power.
Feb 14, 2009 at 11:09 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Hello,

It sounds like the fuel pump relay needs to be checked here is a guide and the reay location so you can run the test.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

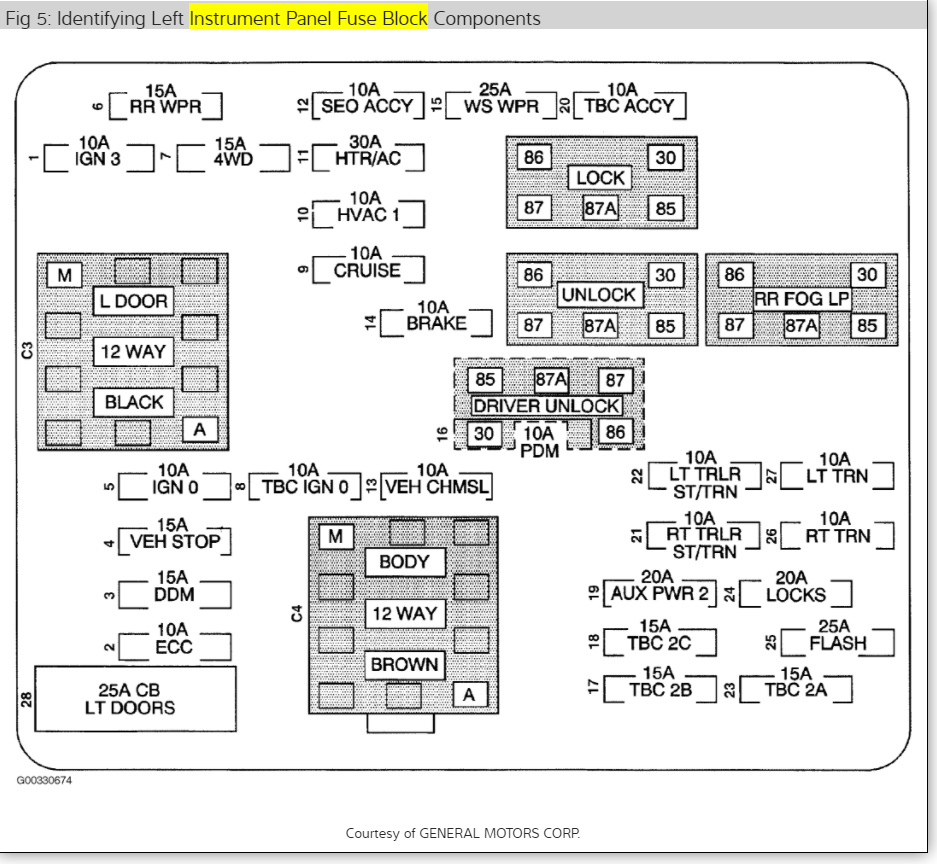

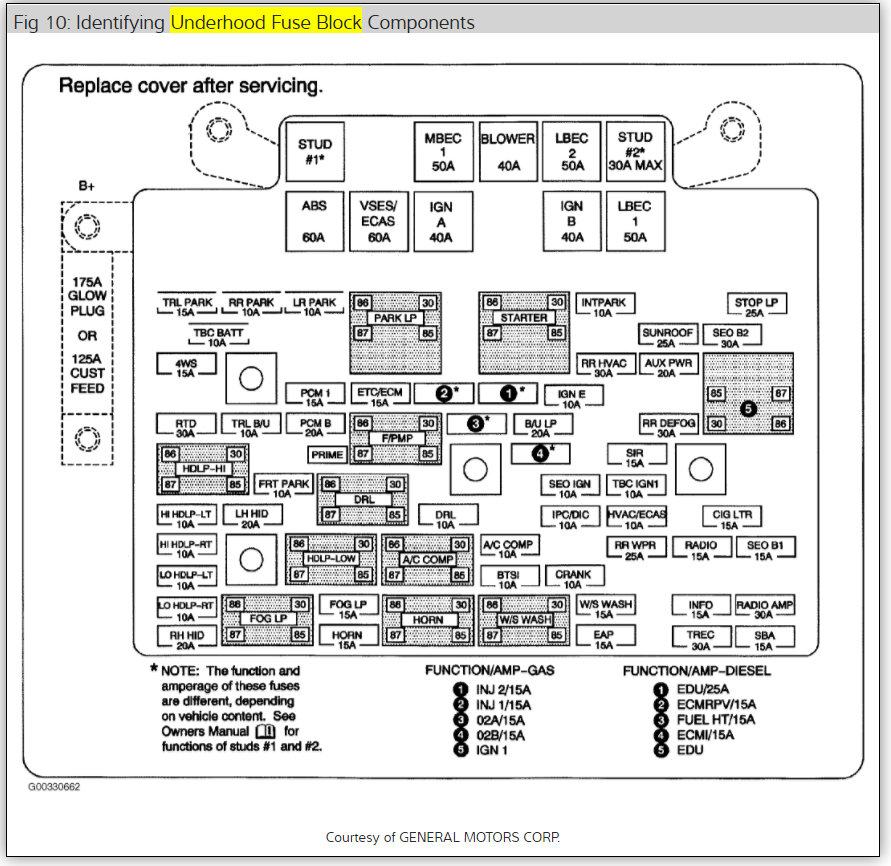

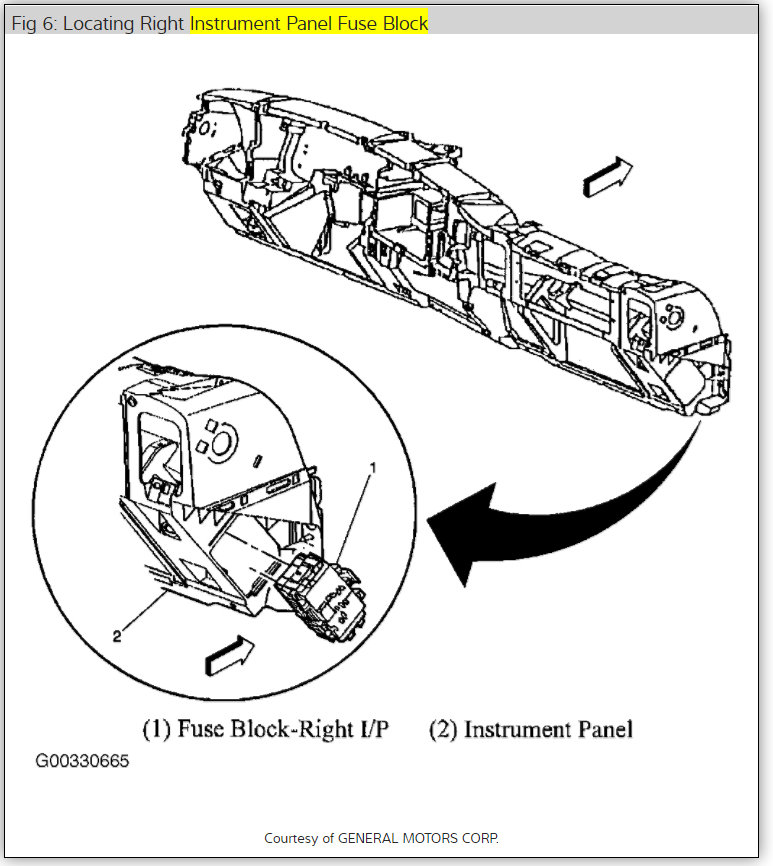

Check out the diagrams (Below). Please let us know what happens.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Feb 14, 2009 at 11:15 PM
Avatar
MAILMAN008
  • MEMBER
  • 2 POSTS
Thank you so much for this post helped me get my truck going again I love this site.
Jul 6, 2018 at 3:17 PM
