Gem Module xl5t-14b205-dc, wiring diagram needed

1999 FORD RANGER

117,000 MILES • V6 • 2WD

ERNIESEEL99

Need to snip the wire that goes to the buzzer but do not know which color wire it is.

Jun 13, 2022 at 7:12 PM

SQM

Hello,

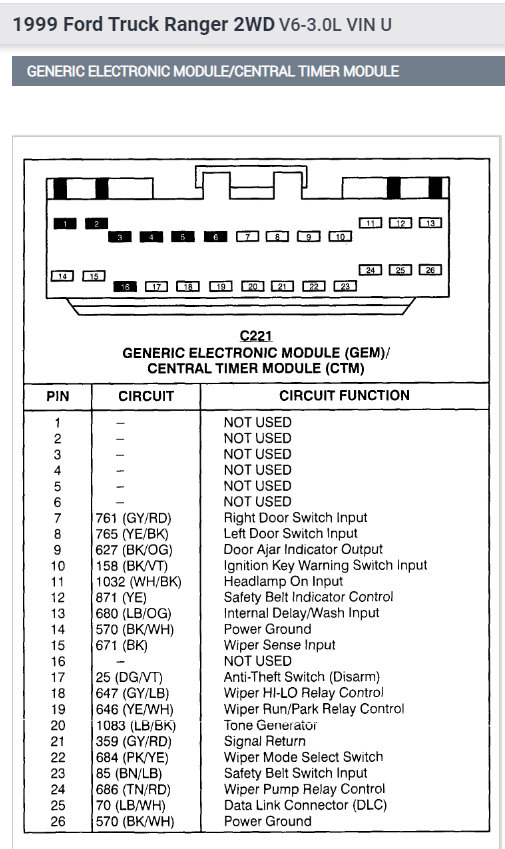

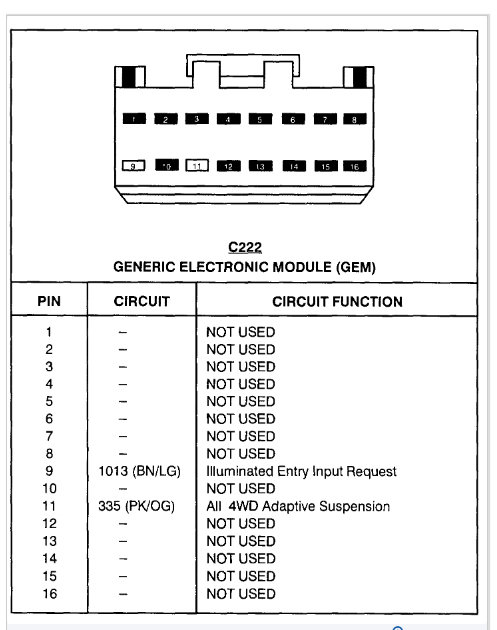

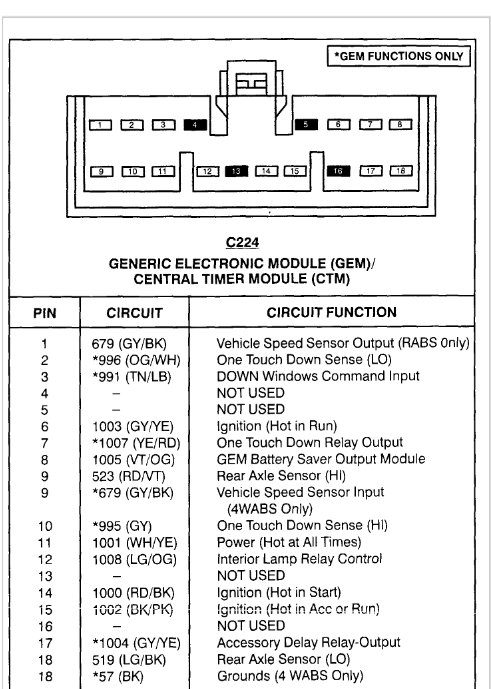

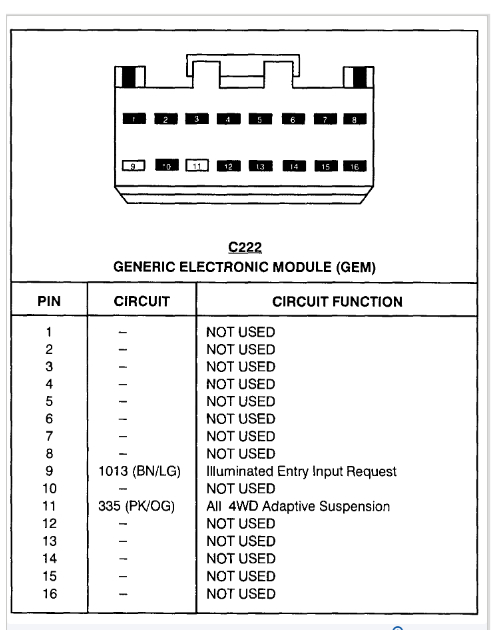

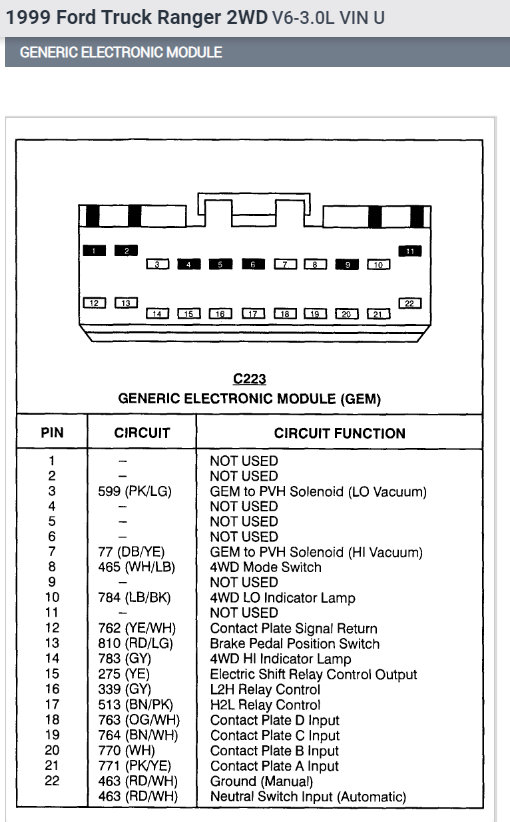

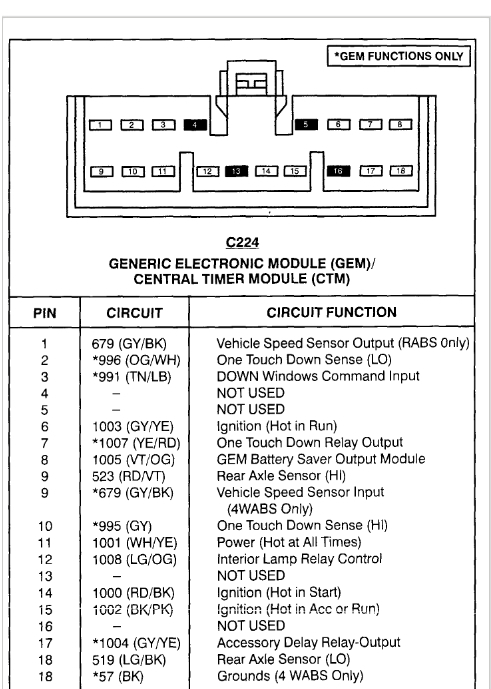

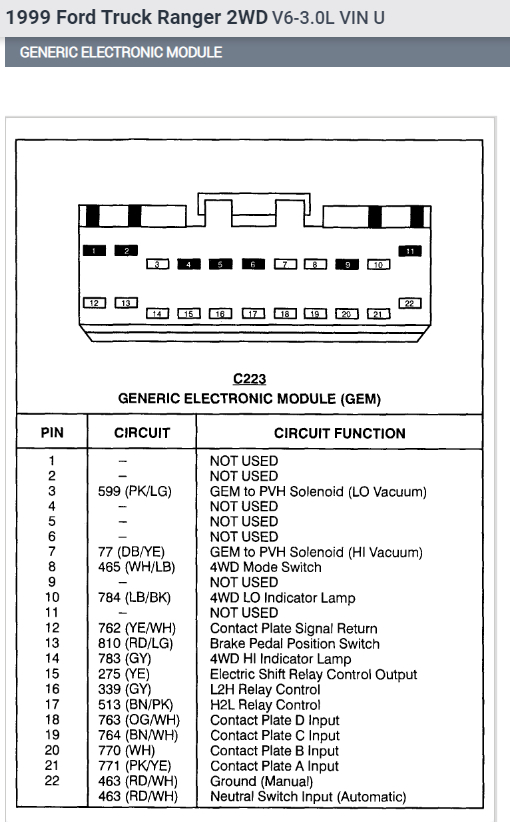

See attached for the GEM pinout, it shows the color and location of each wire.

Let me know of any questions.
Thank you.
