Need a fuse diagram please. I have no manual and need to find the fuses
Aug 24, 2021 at 7:26 AM
fuse diagrams where are they?
2013 VOLKSWAGEN JETTA HYBRID
CHRISTIAN RUBIO
- MEMBER
- 2 POSTS
- FOLLOW
Advertisement
Hello,

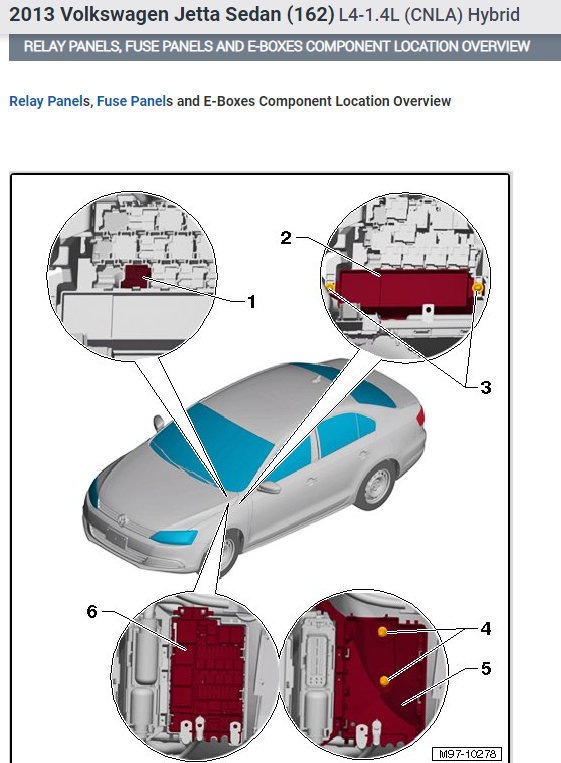

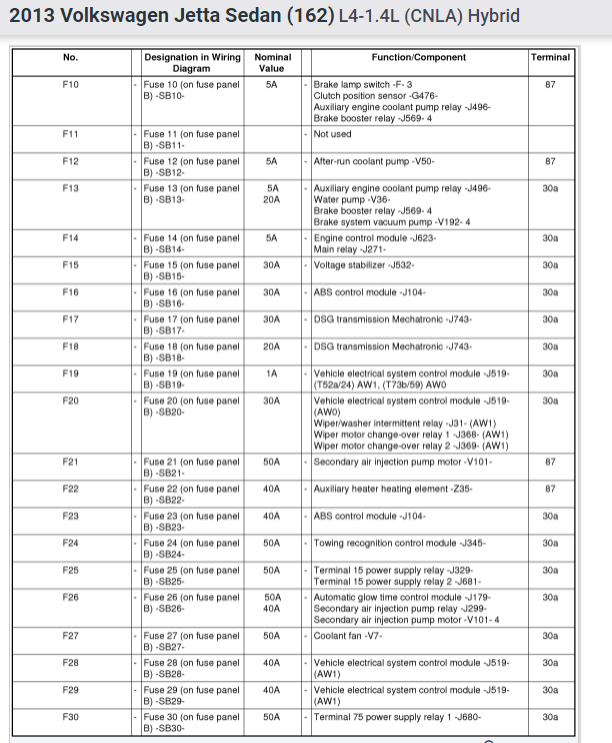

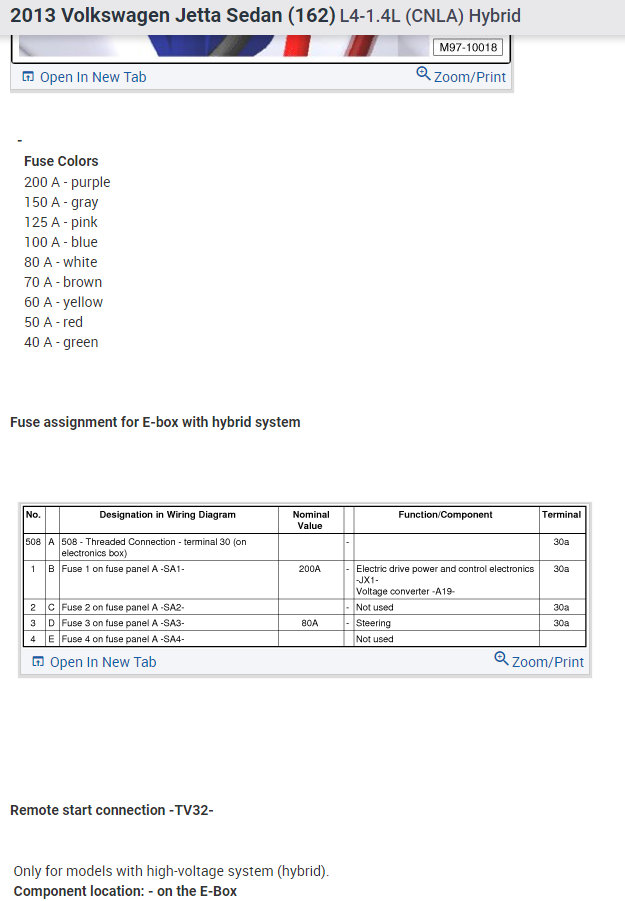

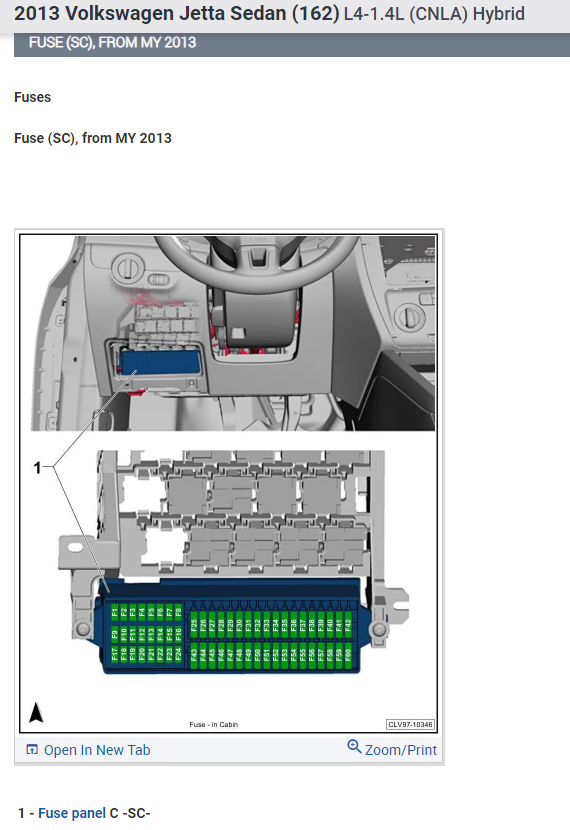

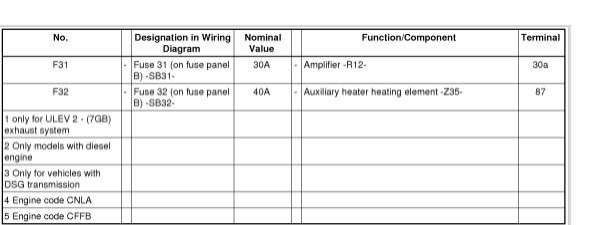

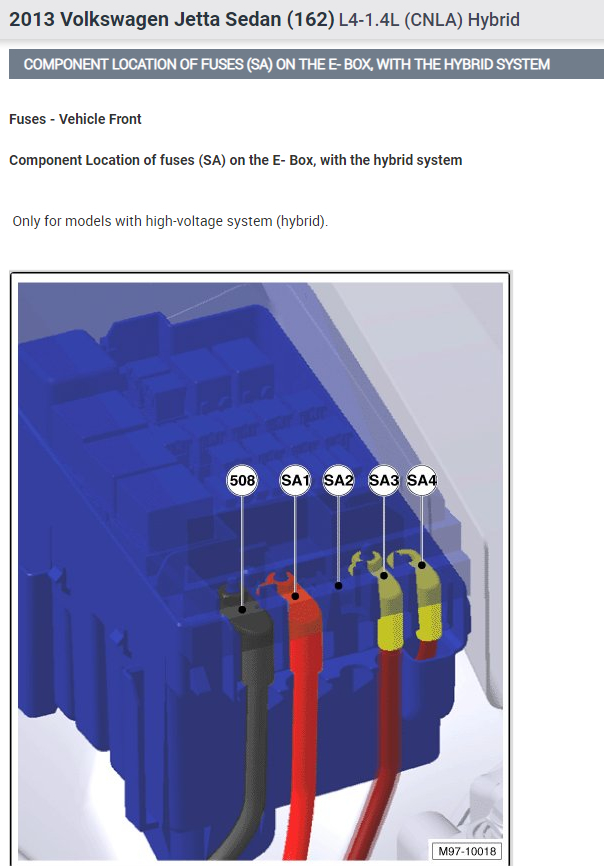

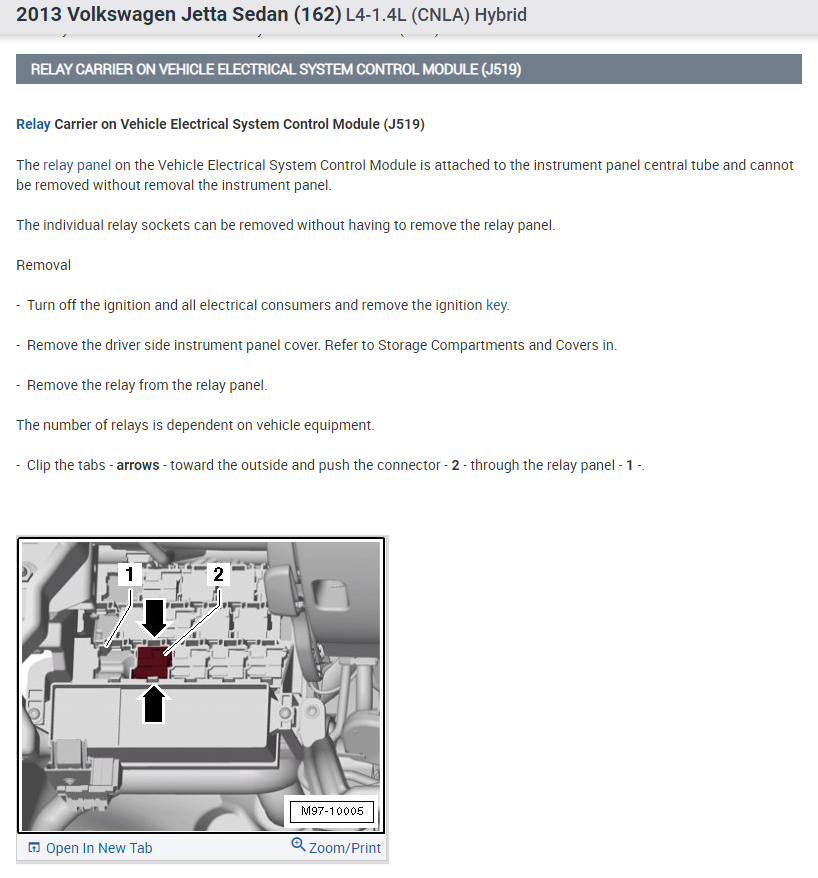

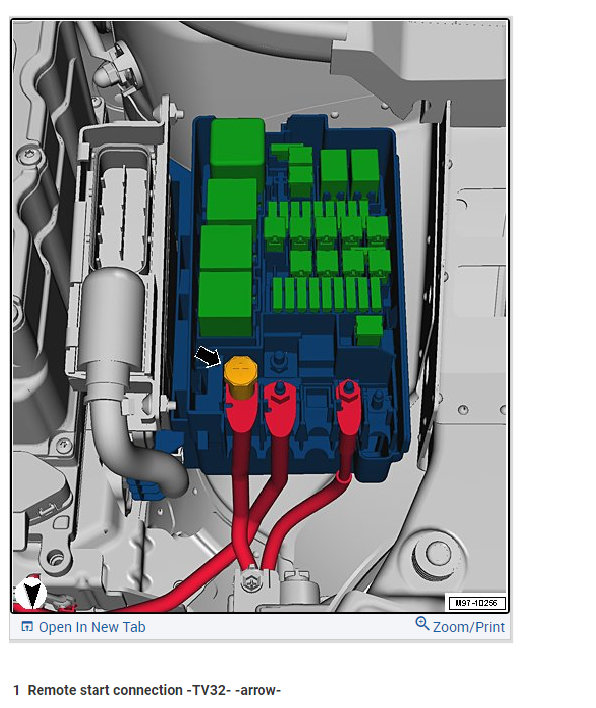

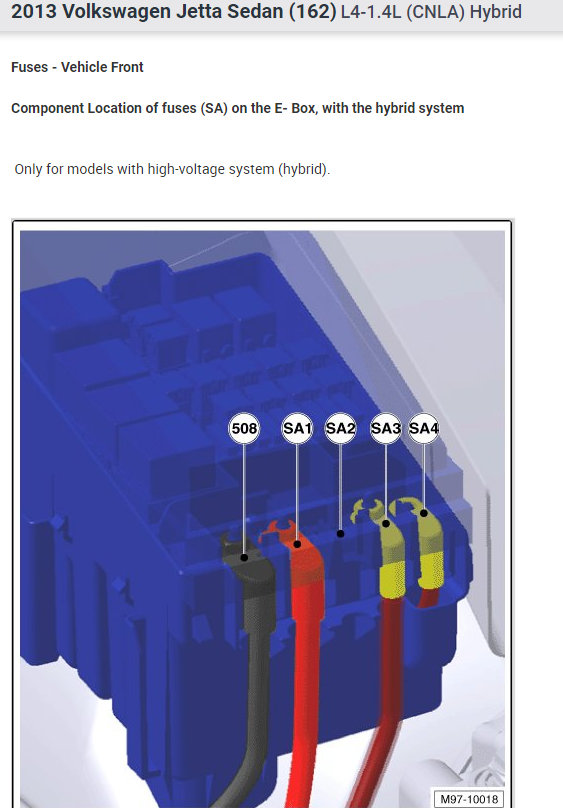

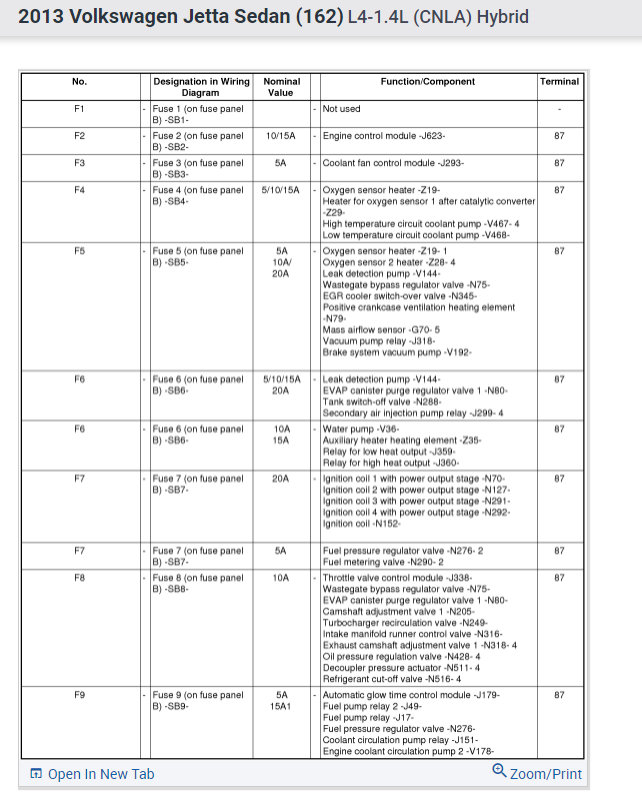

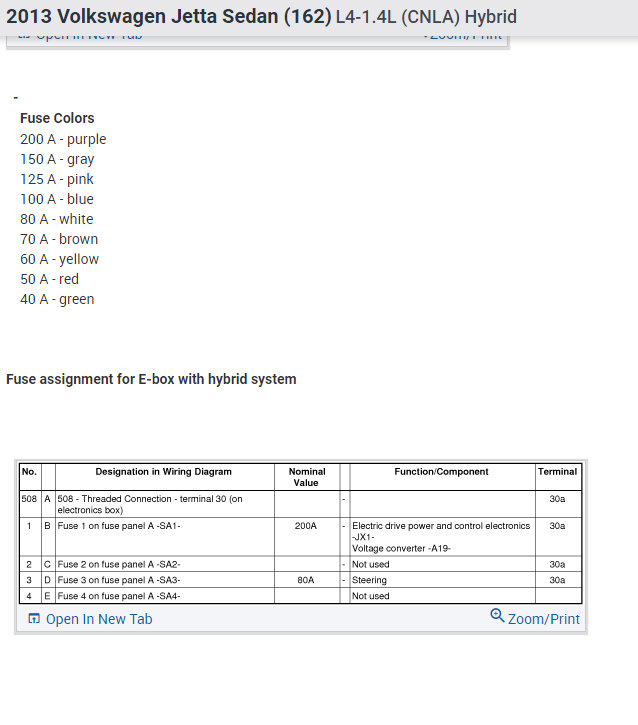

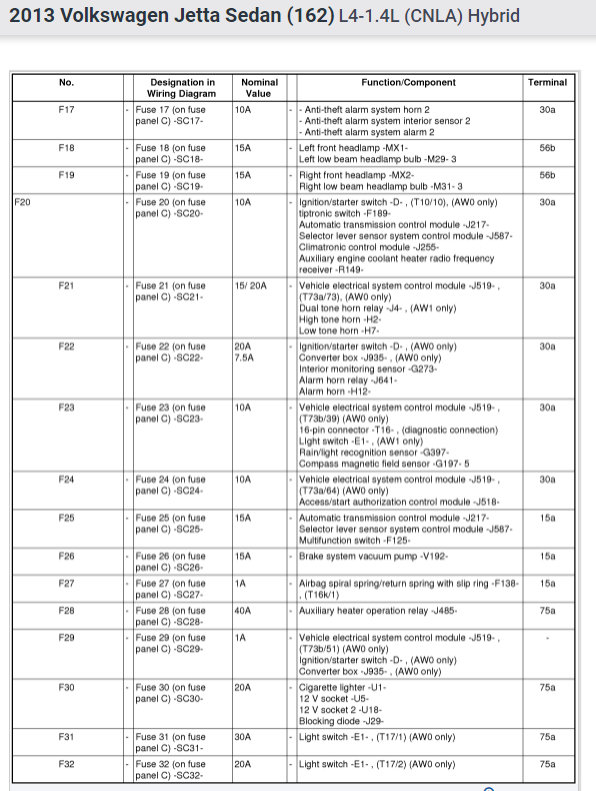

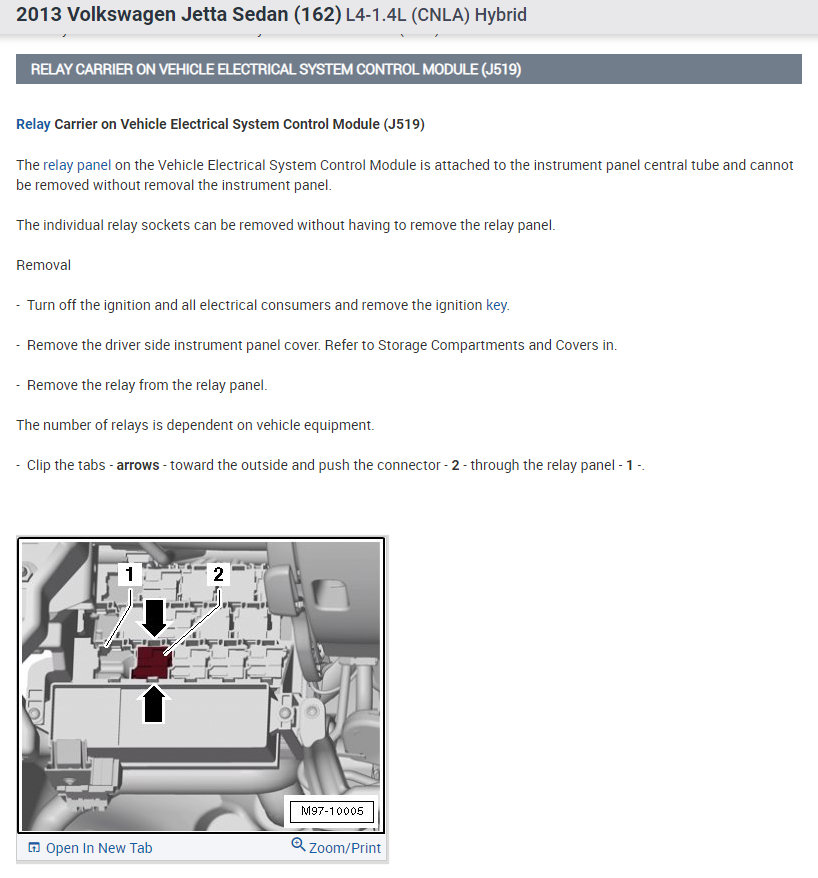

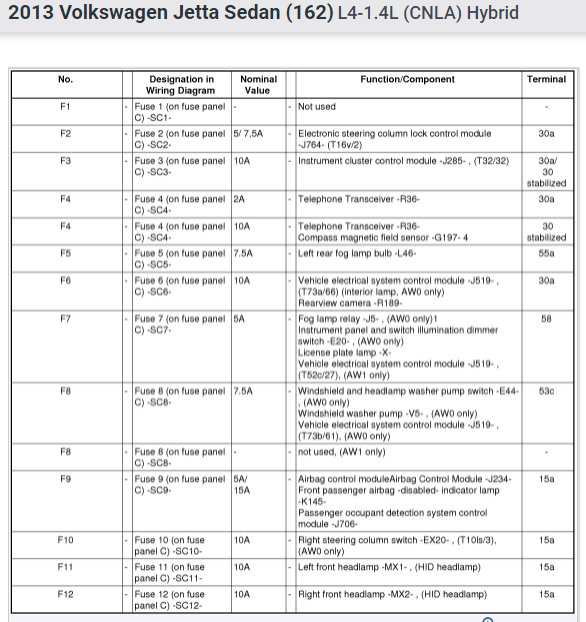

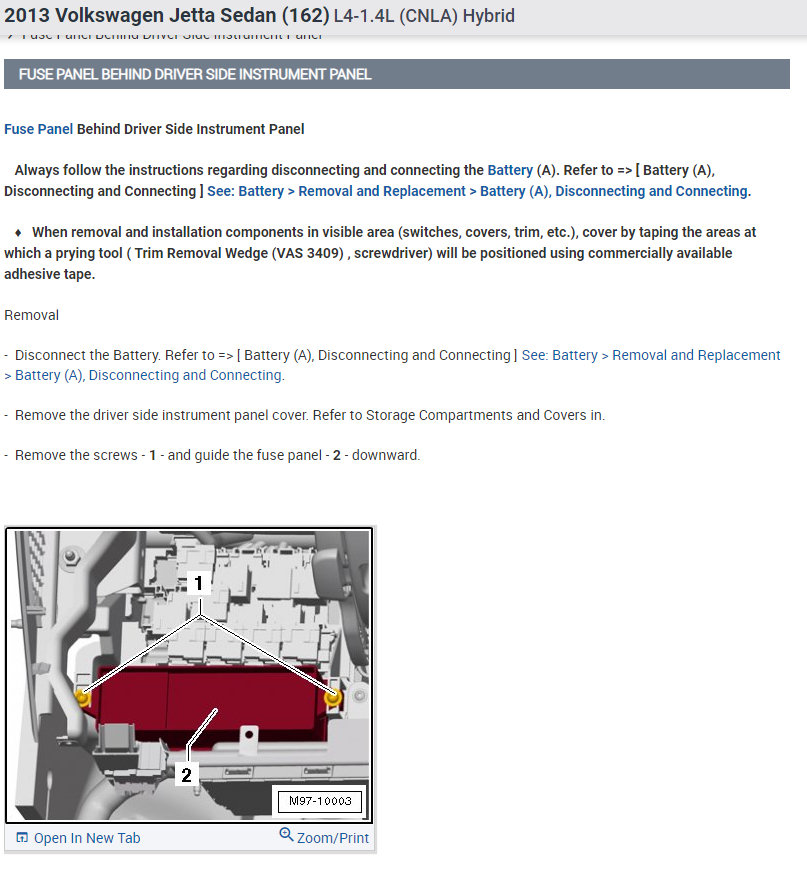

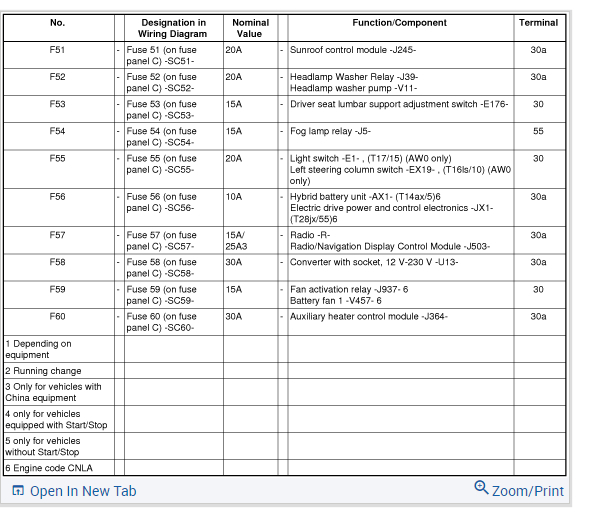

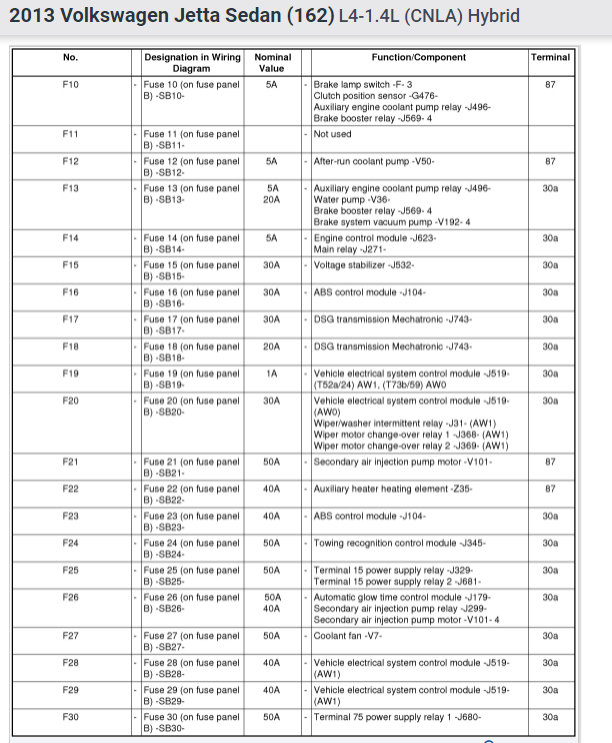

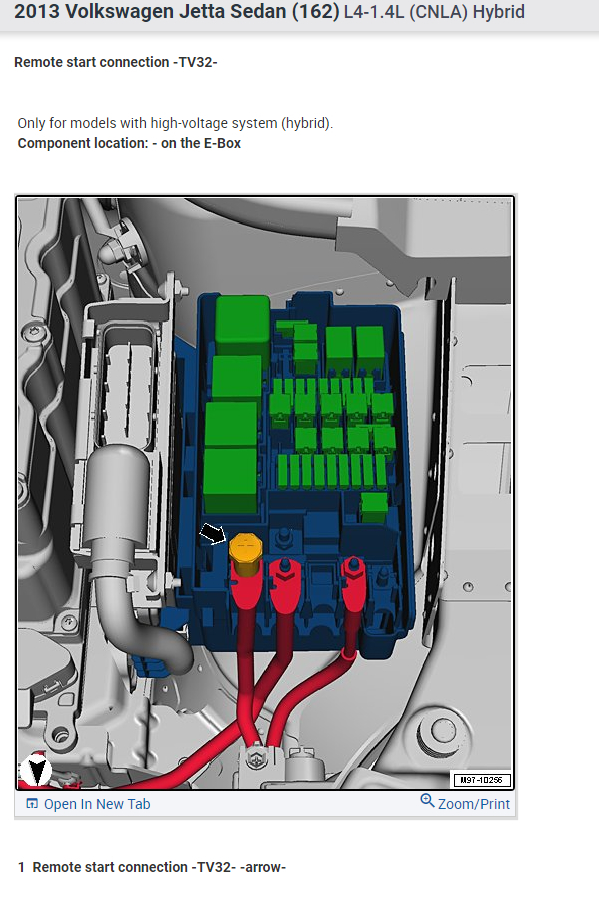

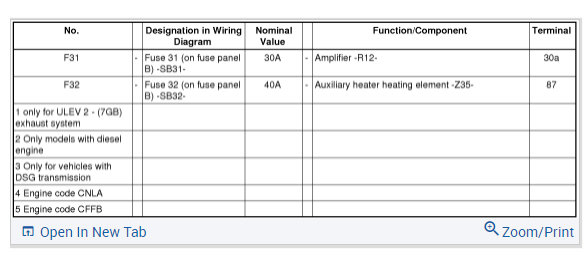

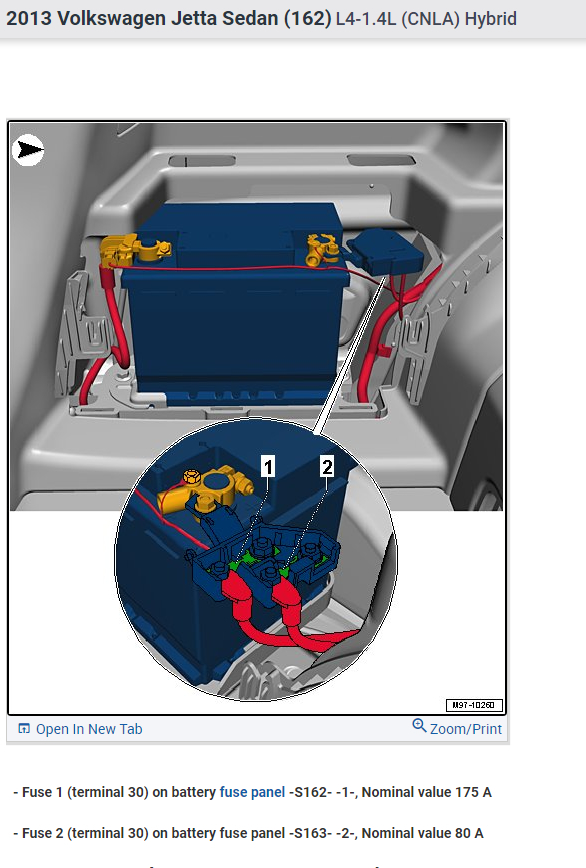

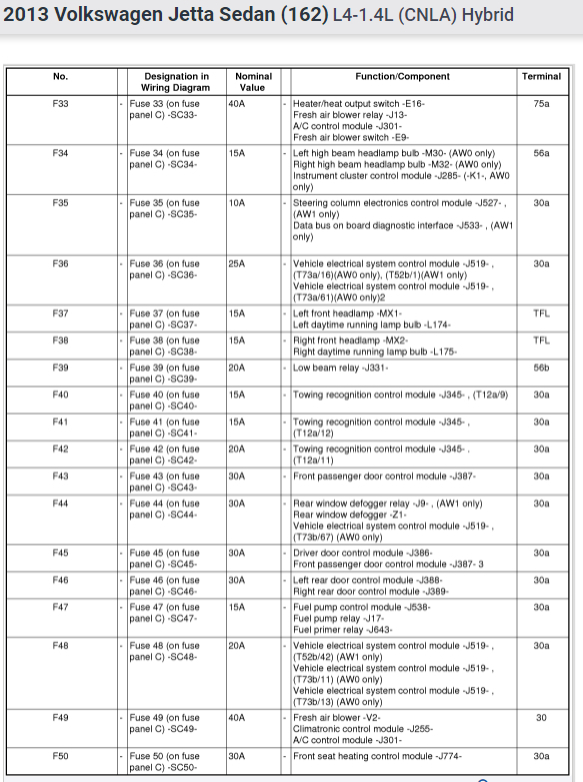

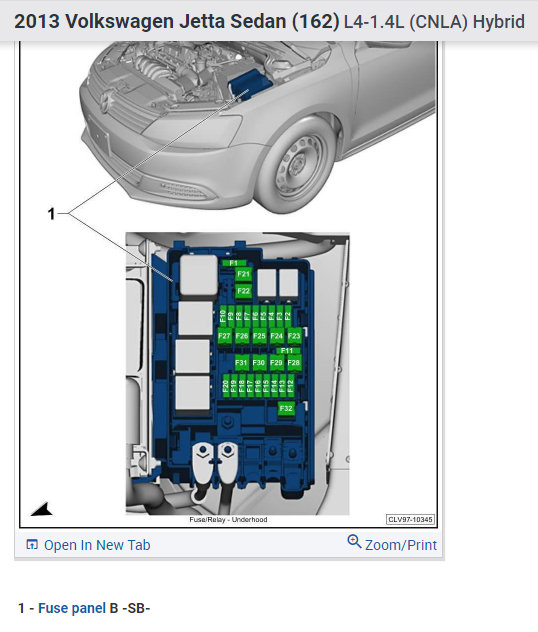

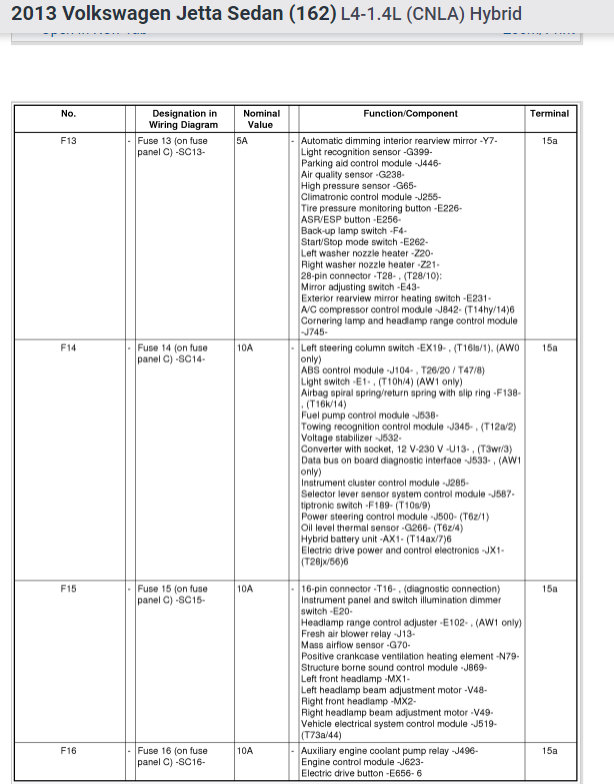

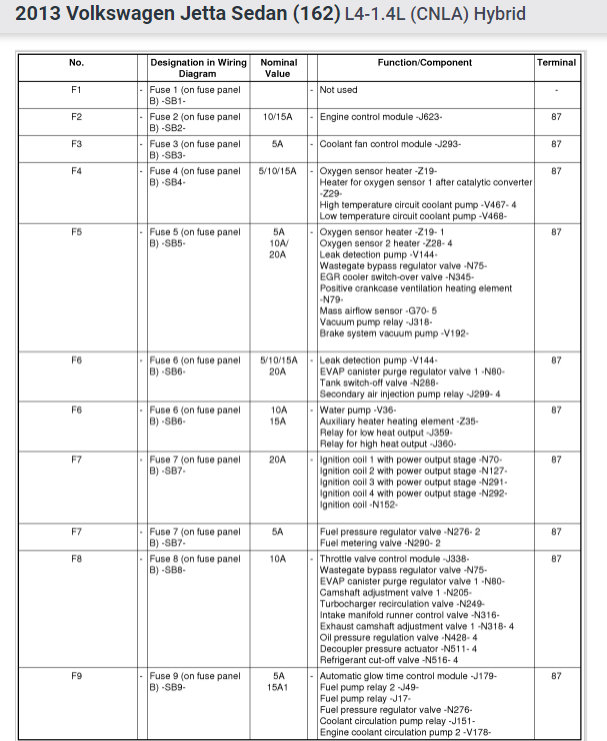

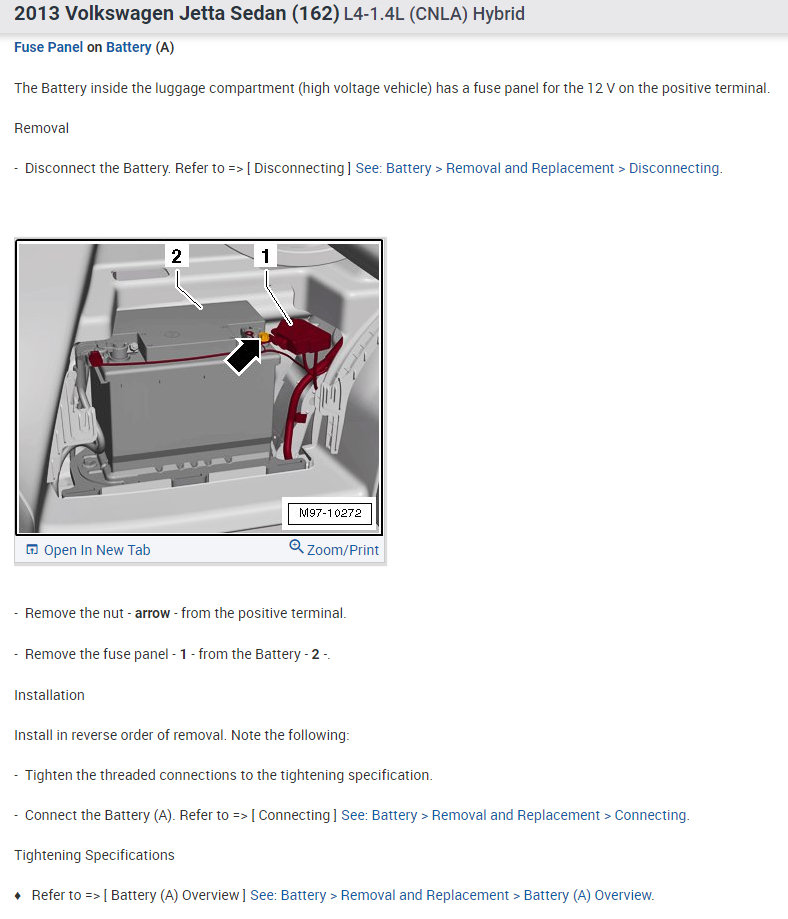

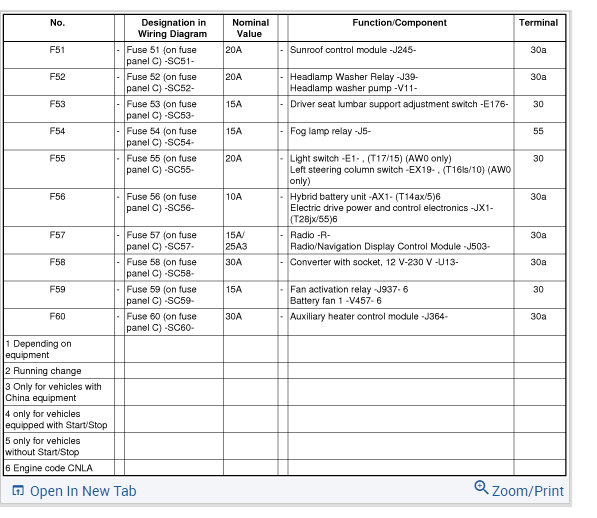

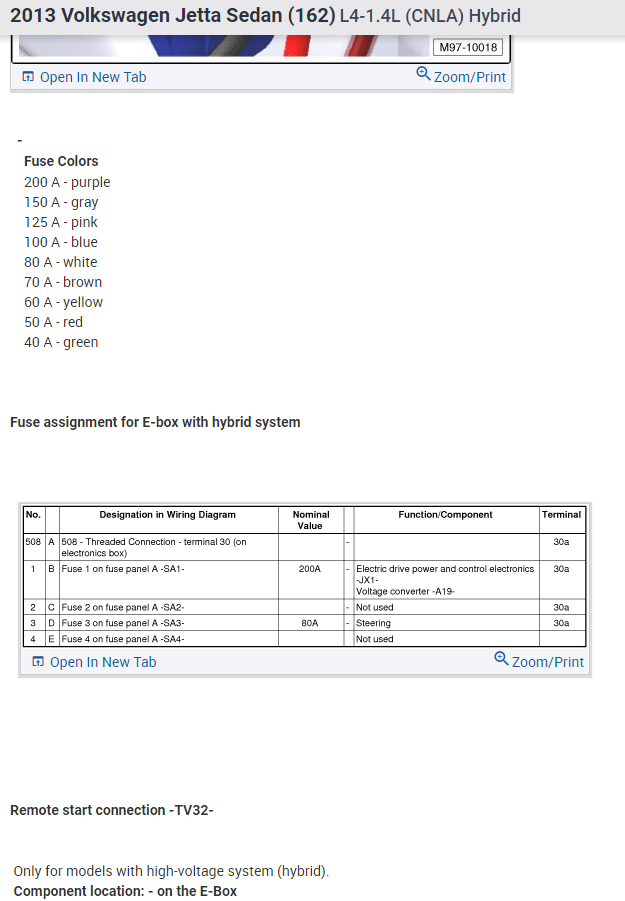

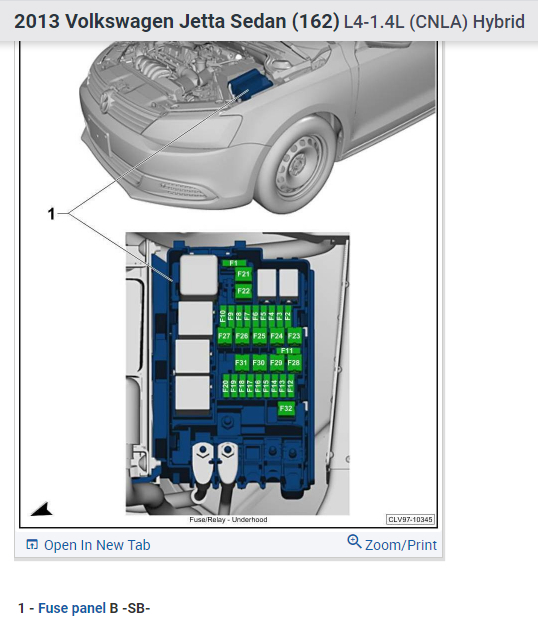

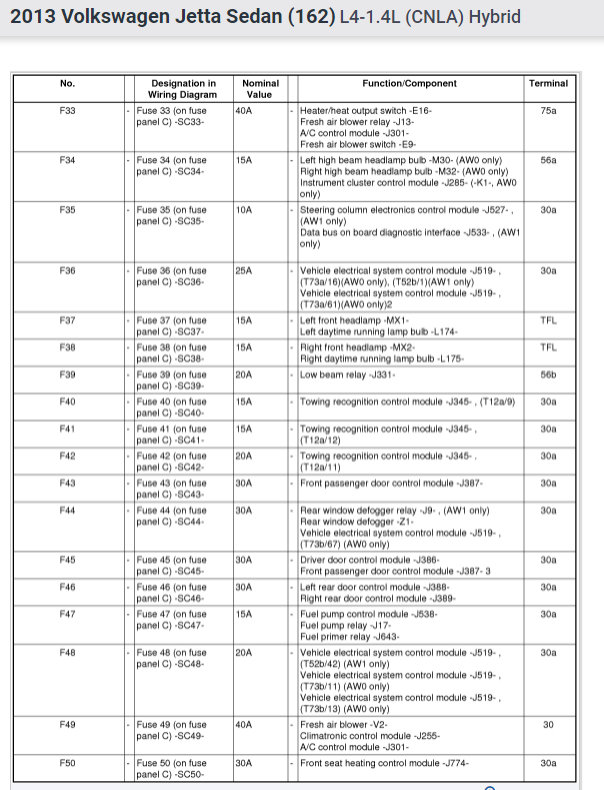

I have attached diagrams for all the fuse blocks for your reference.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
https://youtu.be/Hlna_kUt7As
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
Please let me know of any questions.
Thank you.
I have attached diagrams for all the fuse blocks for your reference.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
https://youtu.be/Hlna_kUt7As
https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit
Please let me know of any questions.
Thank you.
Images (Click to enlarge)
Aug 24, 2021 at 2:07 PM
I need the fuse card to see what fuse goes where.
Sep 13, 2021 at 9:43 AM
(Merged)
Advertisement
Hello,

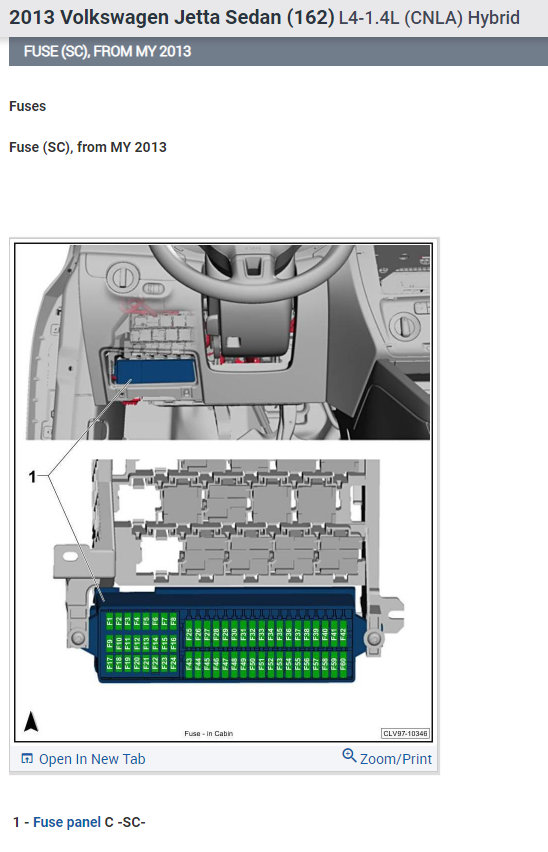

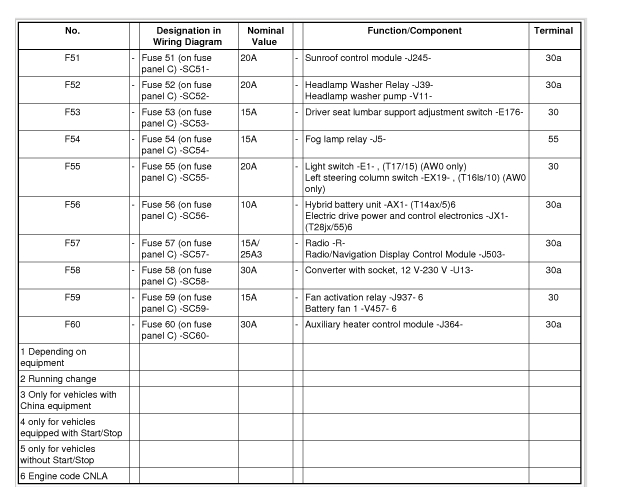

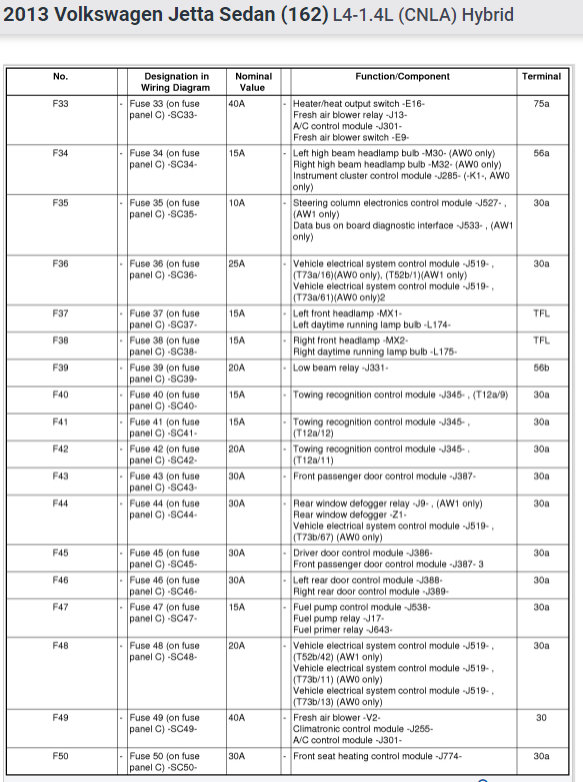

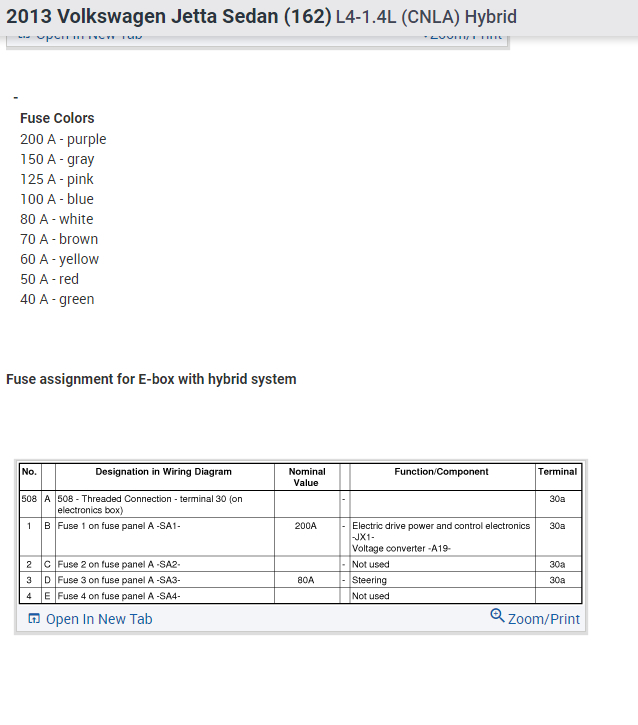

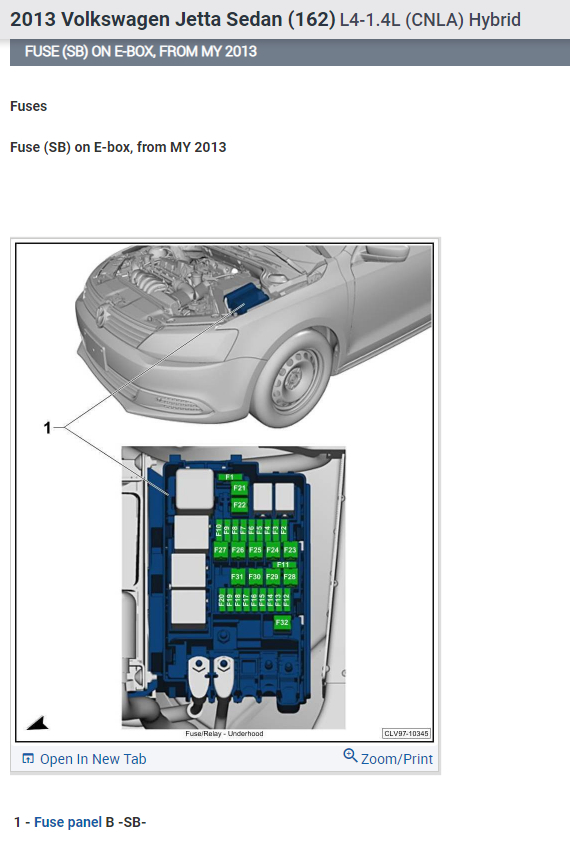

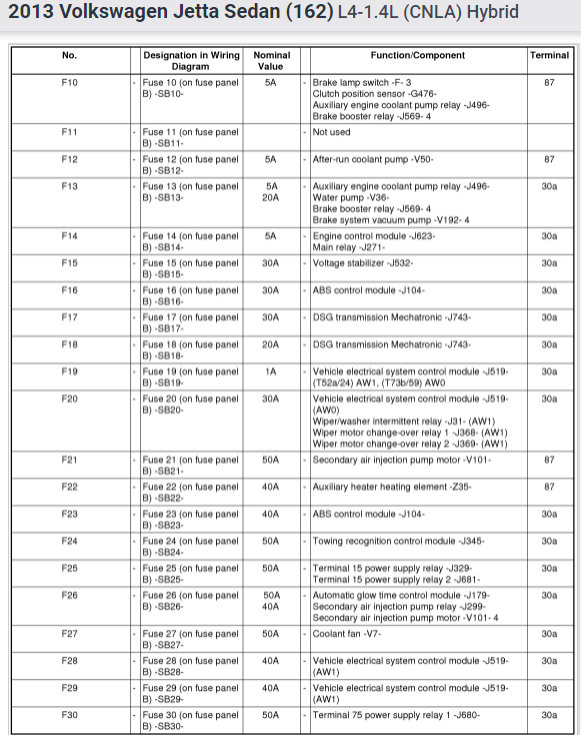

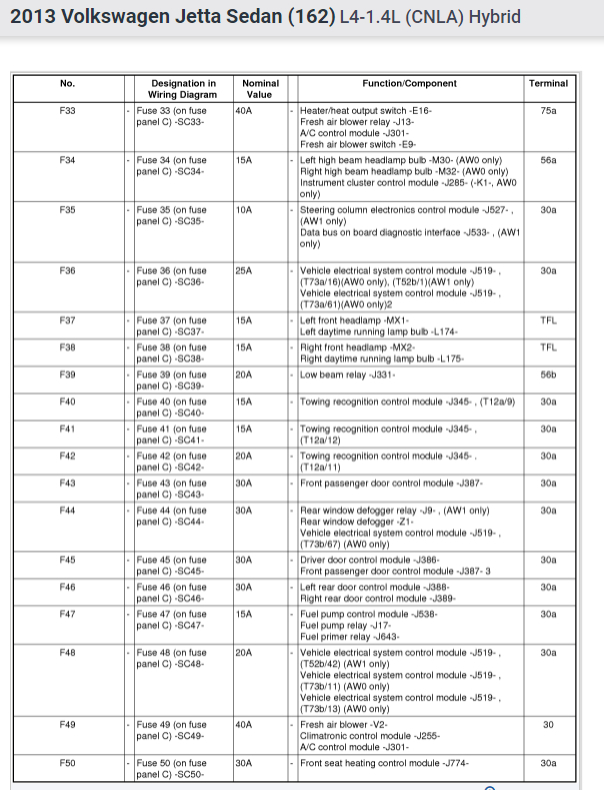

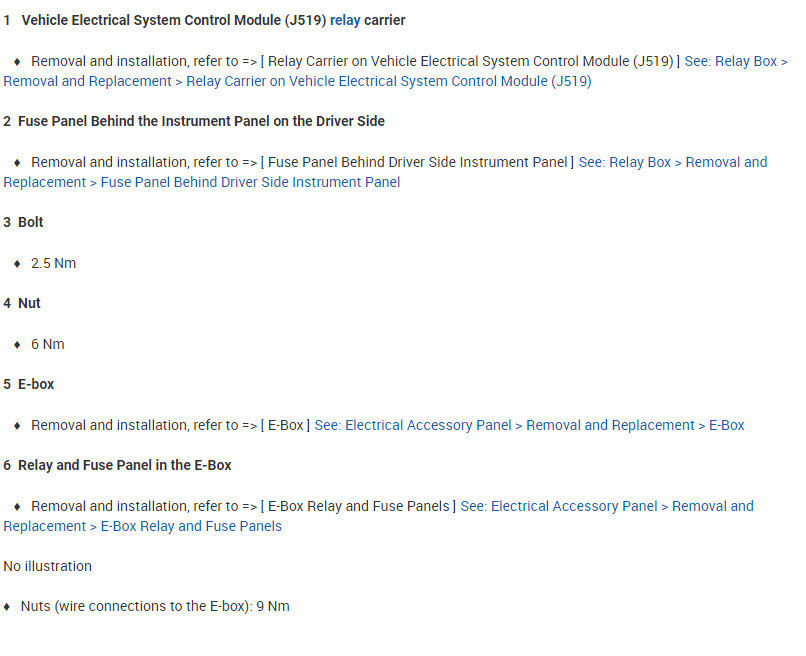

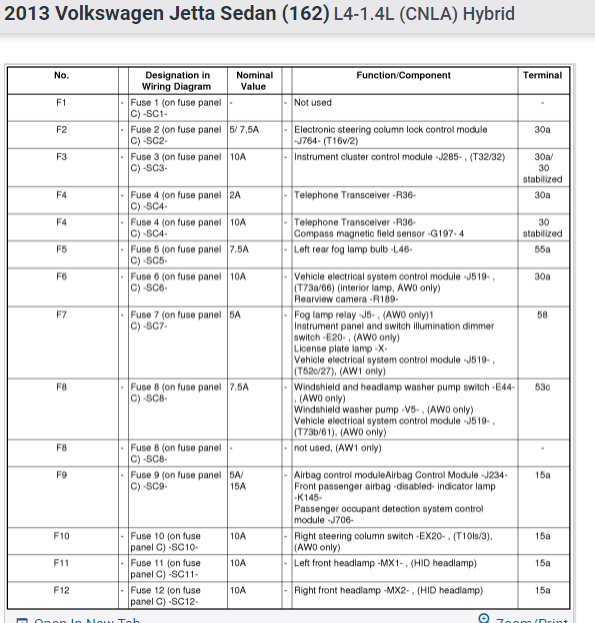

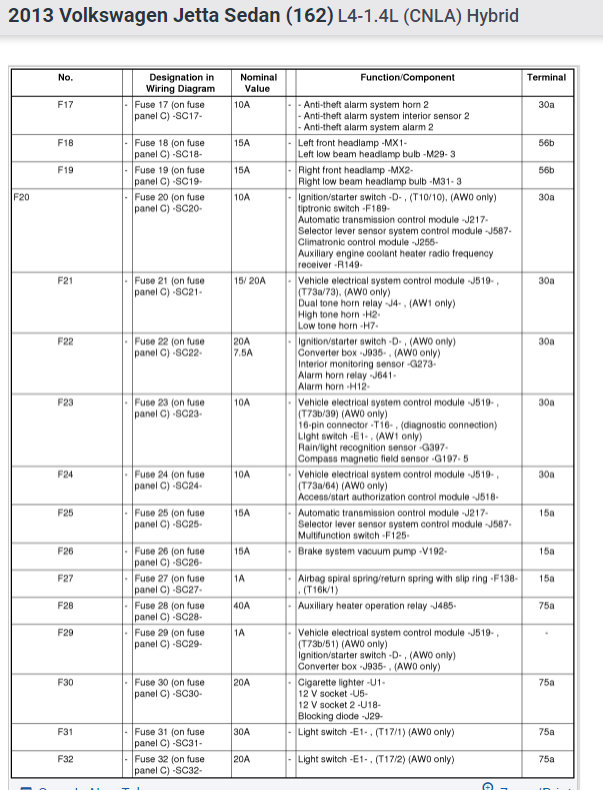

Look below for the fuses and relay diagrams and descriptions.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
Let me know of any questions.
Thank you.
Look below for the fuses and relay diagrams and descriptions.
https://www.2carpros.com/articles/how-to-check-a-car-fuse
Let me know of any questions.
Thank you.
Images (Click to enlarge)
Sep 13, 2021 at 9:43 AM
(Merged)
