Fuse diagram needed for under dash

1988 FORD F-150
184,652 MILES • 5.0L • 2WD • AUTOMATIC
Avatar
MOUSE357
  • MEMBER
  • 58 POSTS
Need to know what the fuses go to so we can hook the inside components up. Thank you for your time.
Mar 29, 2020 at 10:47 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good morning,

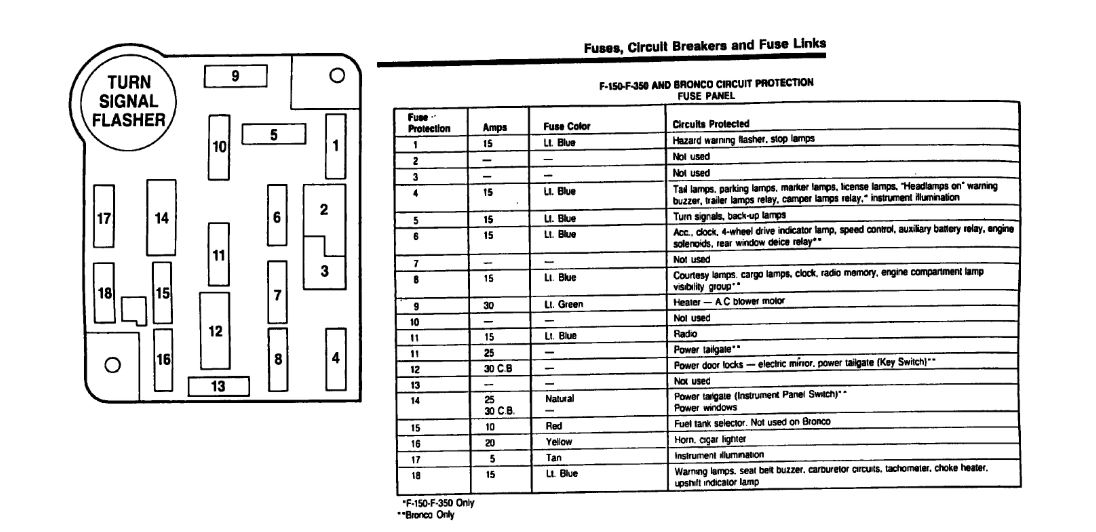

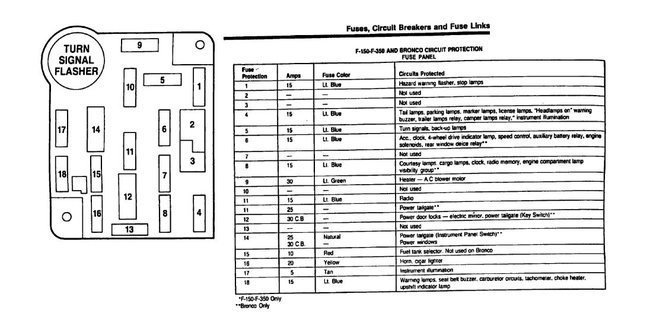

I attached a diagram of the fuse block with fuse locations, amps and what they control.

Roy
Image (Click to enlarge)
Attached Media
May 5, 2021 at 12:45 PM
Avatar
MOUSE357
  • MEMBER
  • 58 POSTS
Thank you for time. greatly appreciated.
May 5, 2021 at 12:45 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
You are welcome.

Let me know if you have any other questions.

Roy
May 5, 2021 at 12:45 PM
