I have been trying to find a diagram of the fuse box

1998 CHEVROLET CHEYENNE
150,000 MILES • 6.5L • V8 • TURBO • AUTOMATIC
Avatar
ELIZABETH ARTEAGA
  • MEMBER
  • 2 POSTS
i have been trying to find a diagram of the fuse box for my truck listed above turbo diesel, but i haven't had much success. can you help me?
Feb 3, 2021 at 12:58 PM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good afternoon,

There are 3 fuse boxes in your truck.

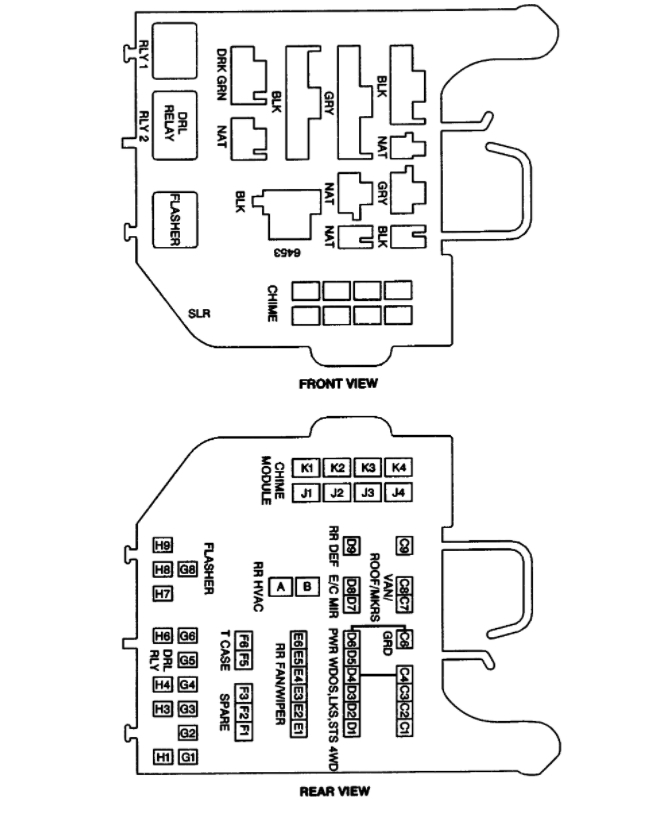

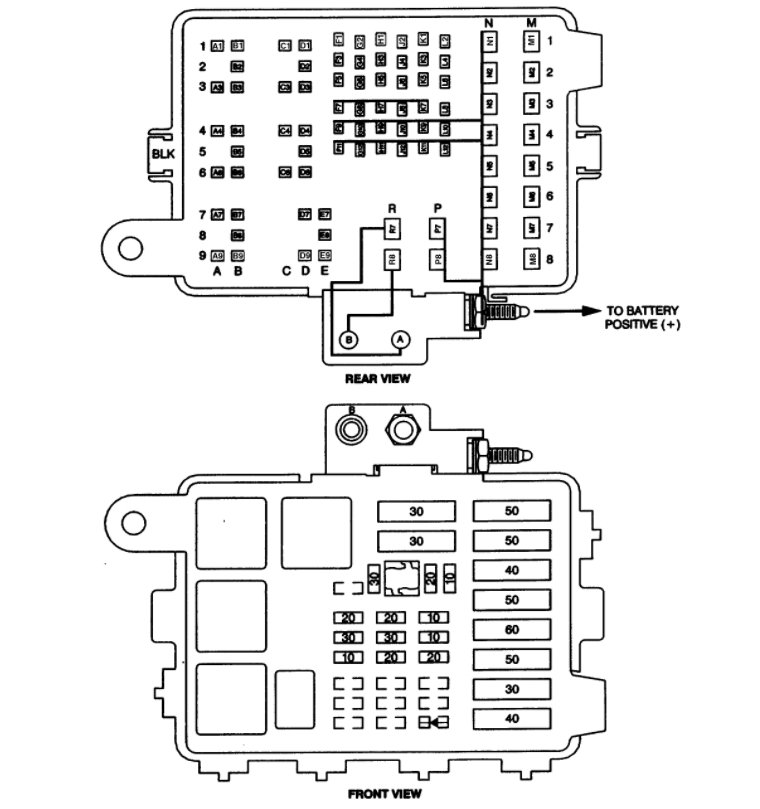

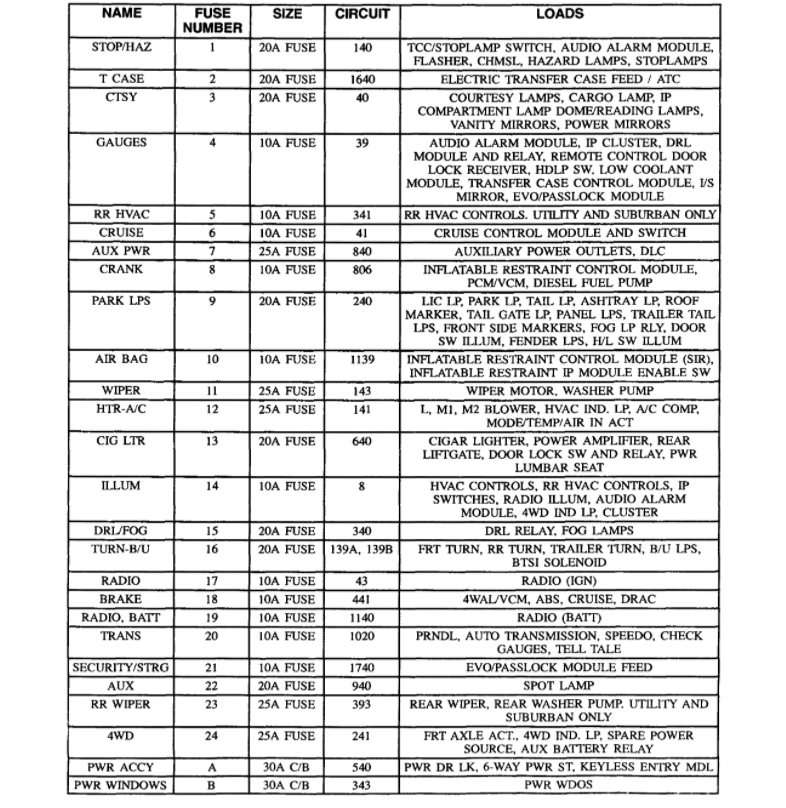

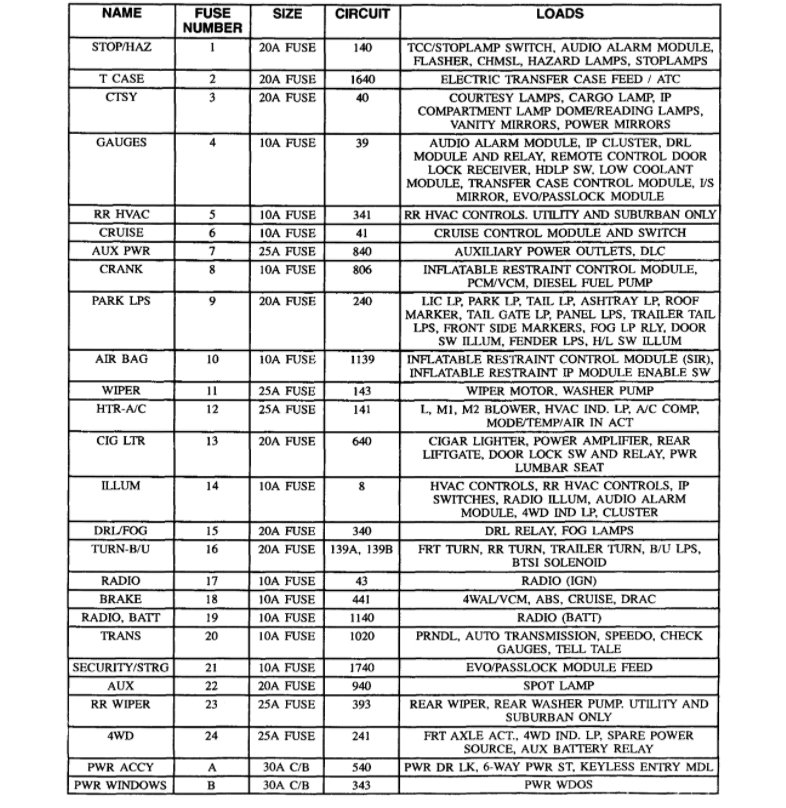

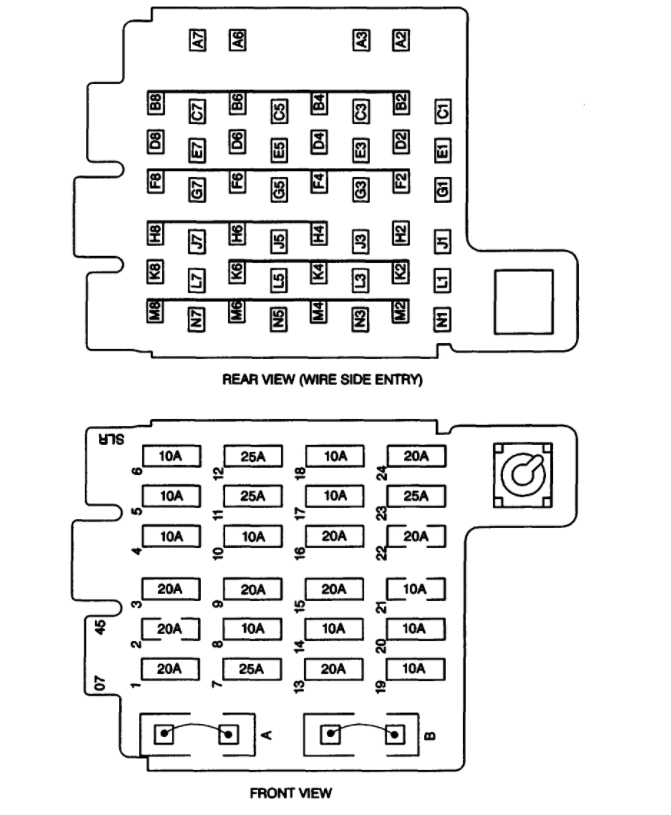

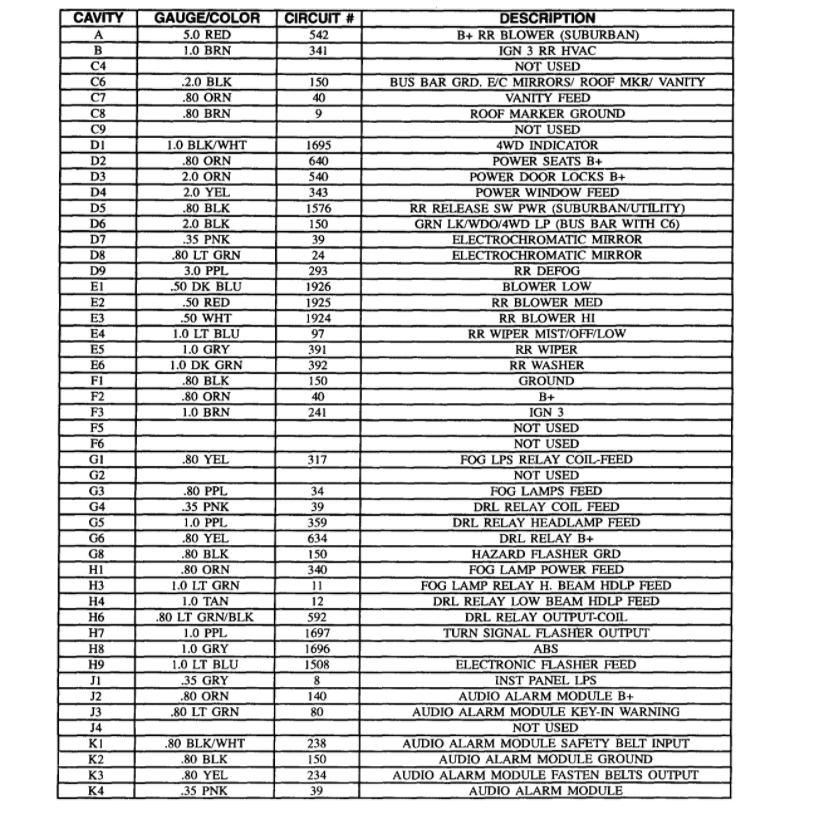

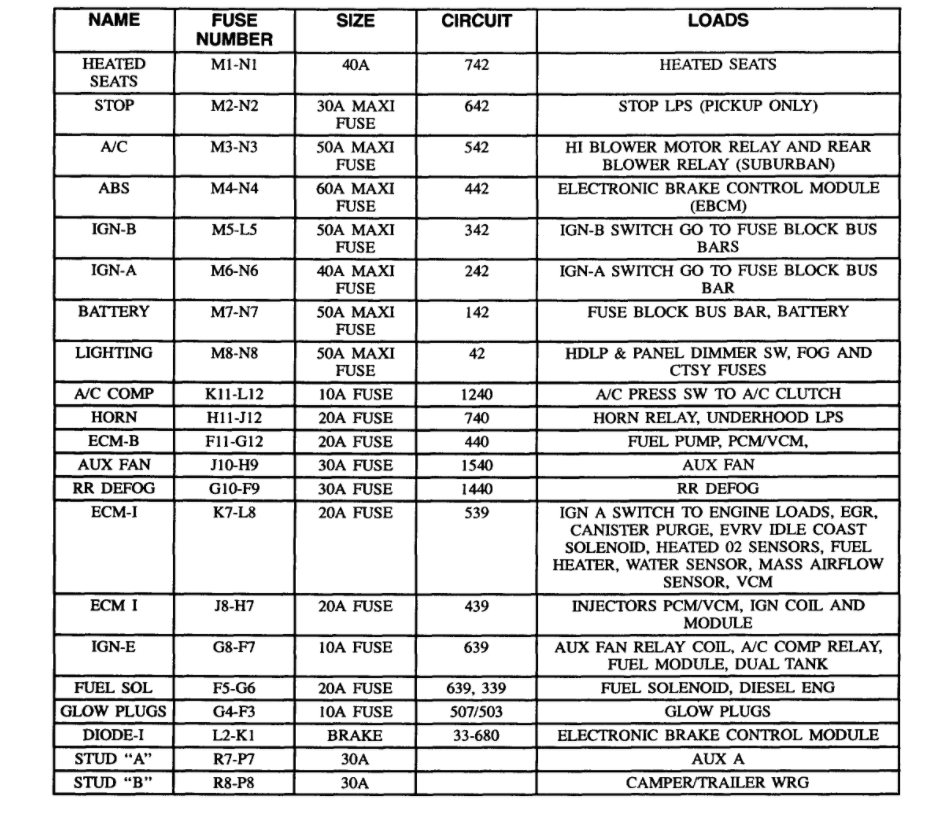

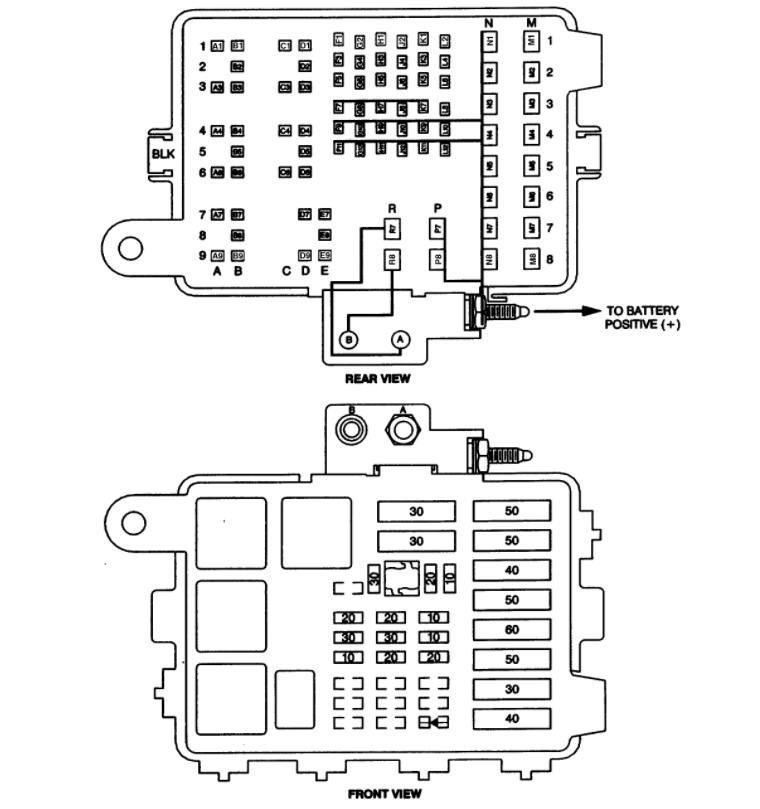

I attached views of all 3 fuse boxes for you to view.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Roy
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
