Fuel tank pressure sensor 3 pin wiring diagram needed?

2015 NISSAN SENTRA
1,696,799 MILES • 1.8L • 4 CYL • 2WD • AUTOMATIC
Avatar
CHRIS432MARQUEZ
  • MEMBER
  • 2 POSTS
My fuel tank pressure sensor was pulled off after I had a blow out on the rear passenger side. I bought a new sensor and a connector but I'm not sure how to wire it back. I need to know the what wire goes where.
Jul 25, 2024 at 4:11 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

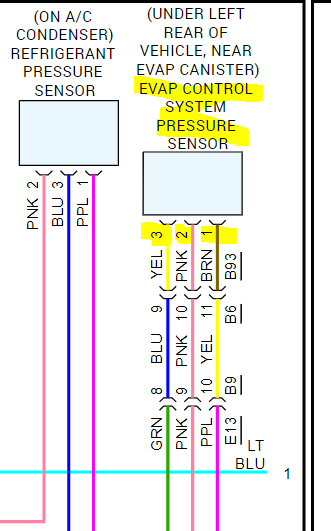

My manual shows me the wiring at the connector and numbers the connector. However, I can't find a picture of the pin-out.

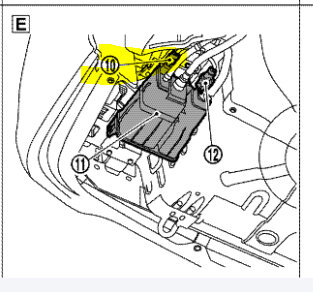

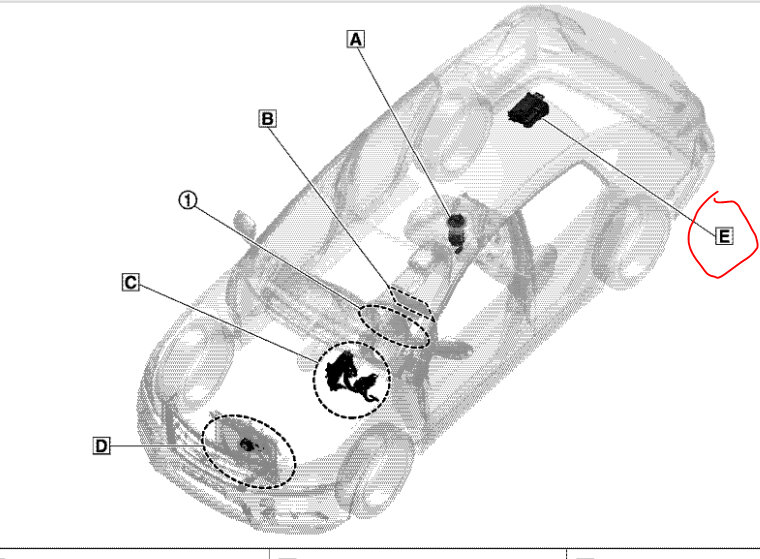

Take a look at the pics I attached. The first two are to confirm I have the right part. I think you meant an evaporative control system pressure sensor. I'm not finding a fuel tank pressure sensor. See the pics and let me know.

Take care,

Joe

See pics below.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jul 25, 2024 at 9:12 PM
Avatar
CHRIS432MARQUEZ
  • MEMBER
  • 2 POSTS
Yes, it’s on the Evap canister l. So, this picture of the pin out would be top view right. I’ve searched everywhere looking for a pin out on this sensor and I just can’t find it anywhere, but this is helpful. thanks
Jul 27, 2024 at 5:20 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi Chris,

I tried again to find it with no luck. I hope what I sent helps a little. If you do find it, let me know.

Take care,

joe
Jul 27, 2024 at 9:57 PM
