Fuel pump relay location

2010 NISSAN ARMADA
90,000 MILES • V8 • 4WD • AUTOMATIC
Avatar
JESSICA CAMBRE BOENEKE
  • MEMBER
  • 1 POST
Where is the fuel pump relay located?
Jul 19, 2016 at 10:40 AM
Advertisement
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS

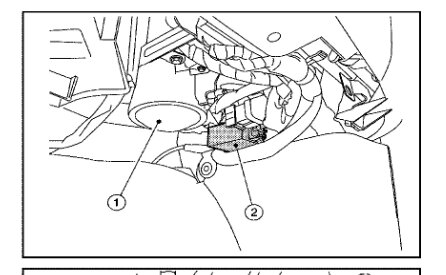

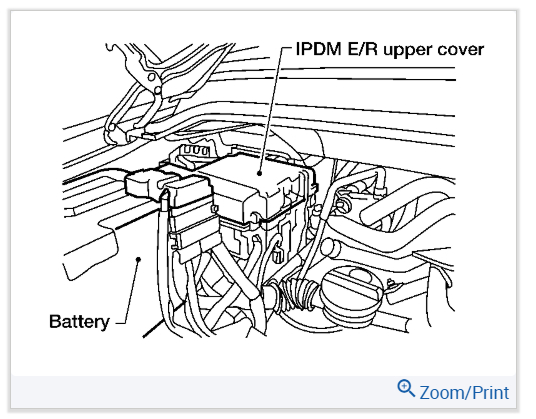

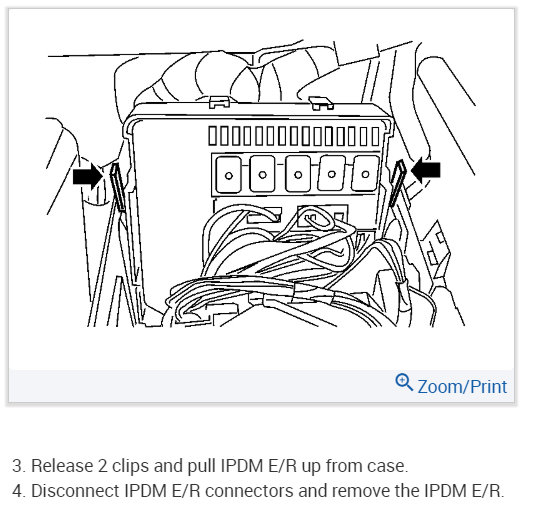

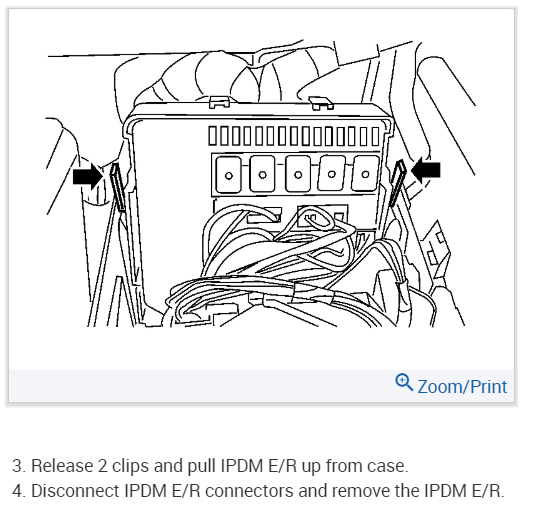

In a 2010 Nissan Armada, the fuel pump relay is located in the engine compartment fuse and relay box. Here's how you can locate it, but I have seen the relay be "bult in" to the IPDM so it will be not serviceable. Check out the diagrams (Below). Please let us know what happens.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jul 19, 2016 at 11:28 AM
Avatar
SCORPIO08
  • MEMBER
  • 8 POSTS
Can you tell me which relay it is? They are not telling me.
Sep 3, 2016 at 11:26 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hello,

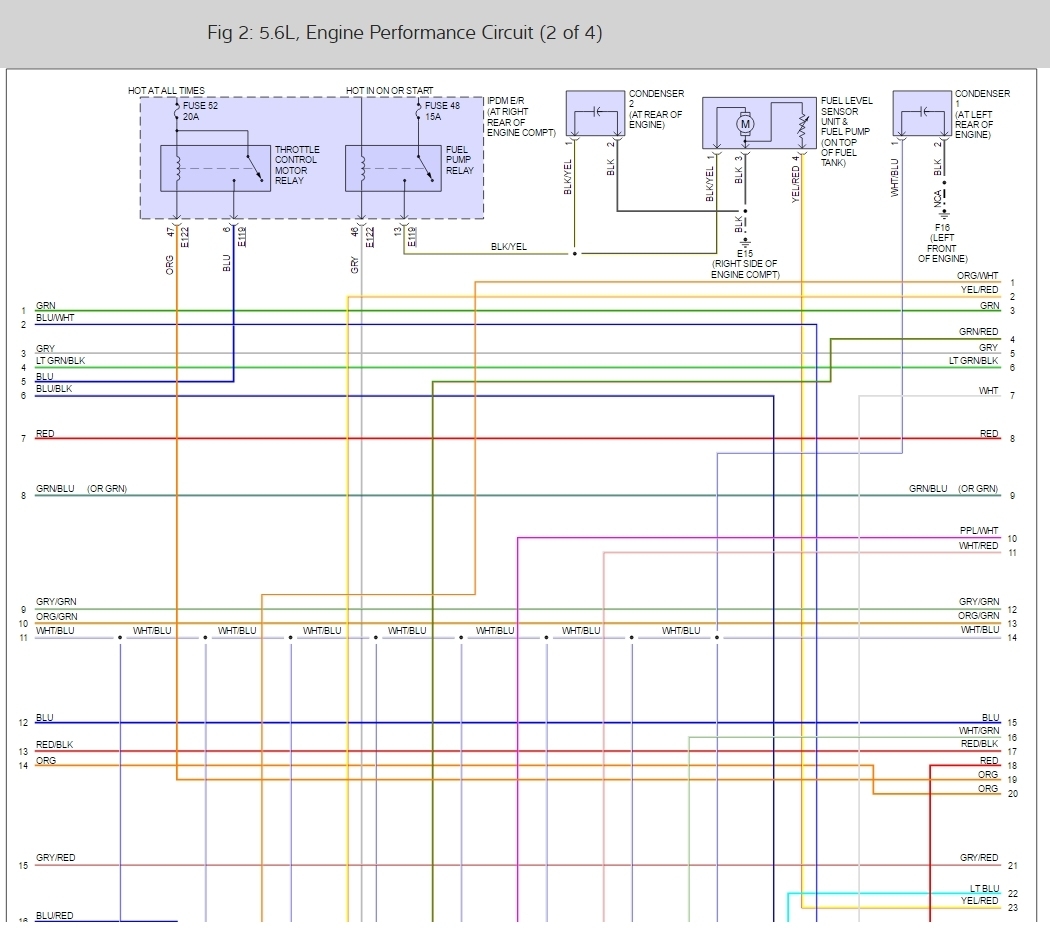

I found this diagram for you that shows the wiring colors and the location of the relay you will need to match the wiring color to the relay be sure to check the fuse #52.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Let me know if you need anything else.
Image (Click to enlarge)
Attached Media
Sep 3, 2016 at 12:06 PM
Avatar
SCORPIO08
  • MEMBER
  • 8 POSTS
Hi Ken, Thanks for taking the time to answer my question and also for the diagram. I must be getting old because it seems like my eyesight is going! Is there any way I can blow that diagram up? Thanks again!!
Sep 3, 2016 at 4:45 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Just click on the image in the above post.
Sep 3, 2016 at 6:02 PM
