Fuel pump relay is buzzing?

1996 BUICK PARK AVENUE
150,000 MILES • 3.8L • V6 • 2WD • AUTOMATIC
Avatar
JESSIE420B
  • MEMBER
  • 5 POSTS
The fuel pump won't kick on and one of the relays is buzzing up under the passenger side dash. I replaced the relay still buzzes. I don't know what the problem could be.
Dec 8, 2024 at 9:43 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Usually this will be caused by a bad ground, weak battery or a shorted accessory. Does the engine crank over? which relay is buzzing can you upload an image?
Dec 8, 2024 at 10:31 AM
Avatar
JESSIE420B
  • MEMBER
  • 5 POSTS
Cranks won't start. replaced fuel pump, still won't kick on. still buzzes when it doesn't buzz the back air suspension will turn on and run. when it is buzzing back air suspension won't run.

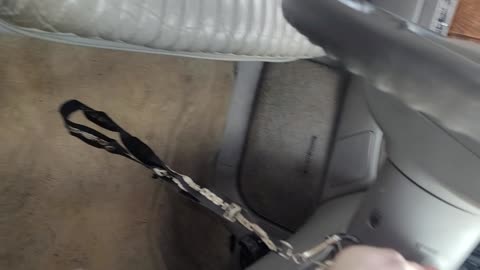

Video (Click to enlarge)
Attached Media
Dec 10, 2024 at 1:46 PM
Advertisement
Avatar
JESSIE420B
  • MEMBER
  • 5 POSTS
I bought an obd2 tester throws misfire monster code, fuel system monitor code, catalyst monitor code, oxygen sensor monitor code, oxygen sensor heater code, and EGR system monitor code.
Dec 10, 2024 at 1:50 PM
Avatar
JESSIE420B
  • MEMBER
  • 5 POSTS
And code P1655.
Dec 10, 2024 at 1:51 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

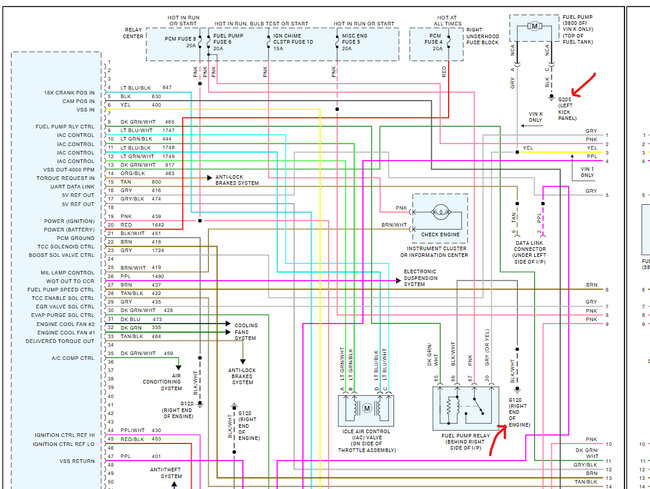

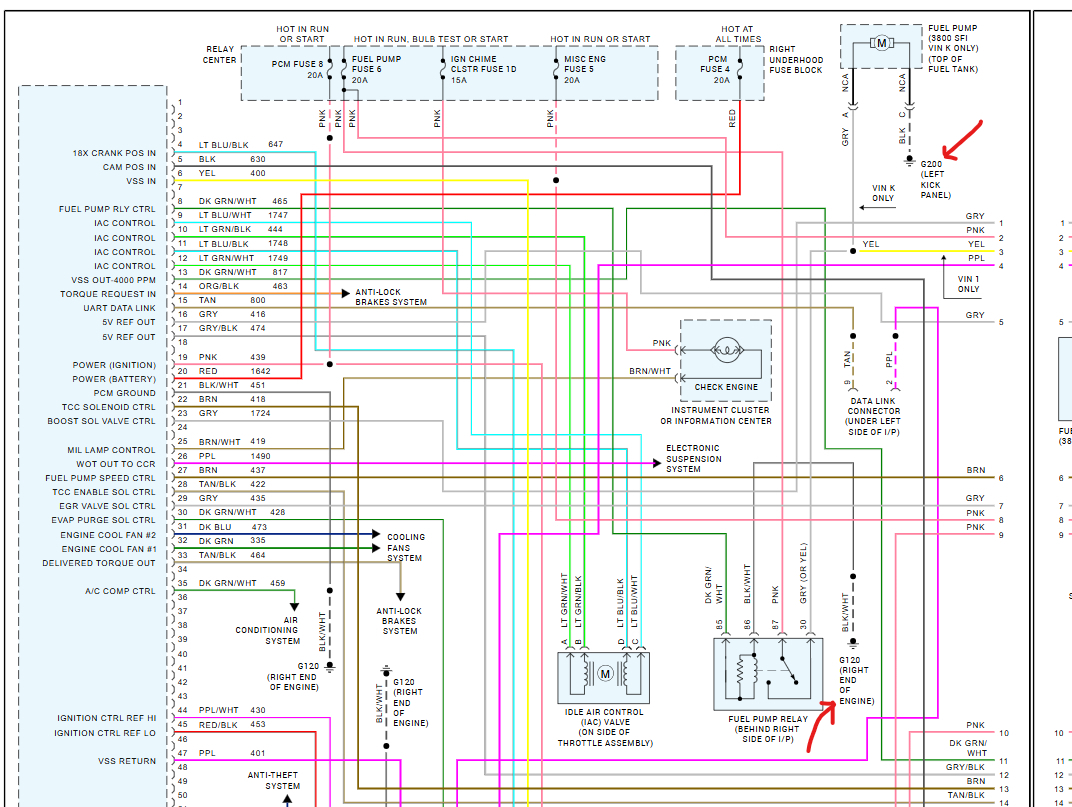

Thanks for the video. did the relay make the noise before the fuel pump, replacement? If not, I would remove the fuel pump and get another one because it sounds like it is defective. Thanks for the video, it helps. Also, there is a ground wire off the relay and fuel pump in the left kick panel, and the relay ground is at the right end of the engine, I would check these grounds first. Check out the images (below). Please let us know what happens.
Image (Click to enlarge)
Attached Media
Dec 11, 2024 at 10:15 AM
