Can I get the fuel line diagram?

2003 CHEVROLET TAHOE
150,000 MILES • 4.8L • V8 • 4WD • AUTOMATIC
Avatar
DANNY1231
  • MEMBER
  • 1 POST
I bought a truck with gas tank out I need a fuel line diagram.
Oct 5, 2024 at 5:44 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

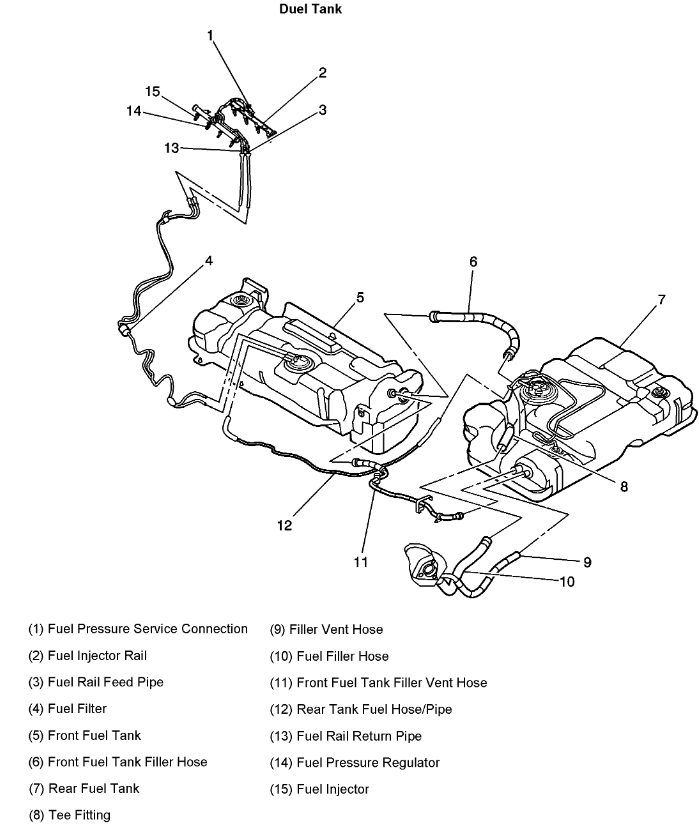

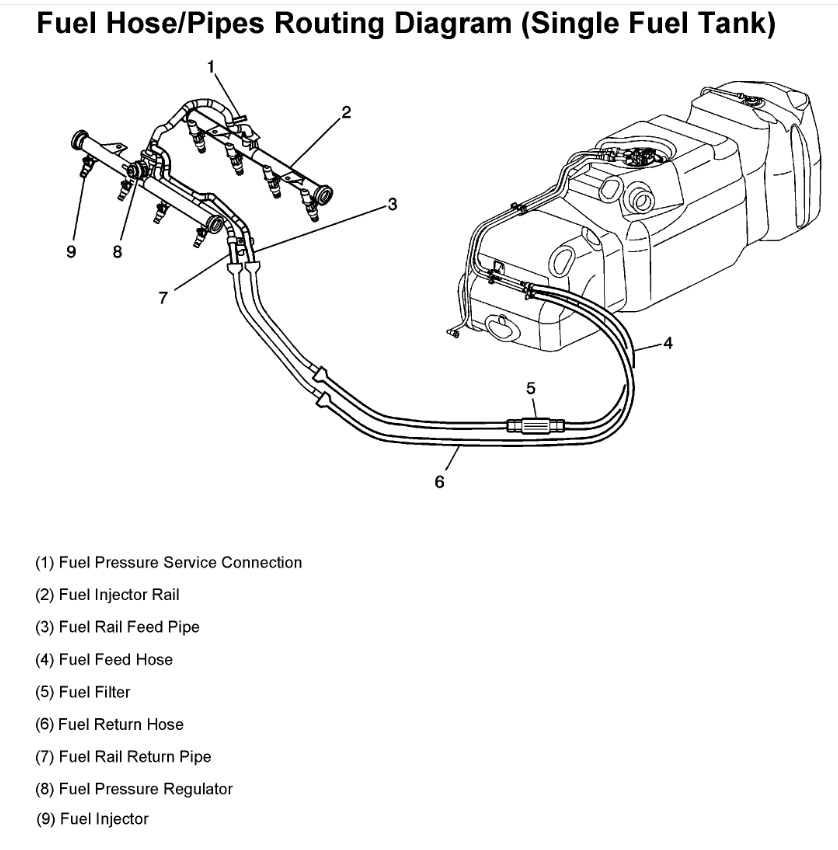

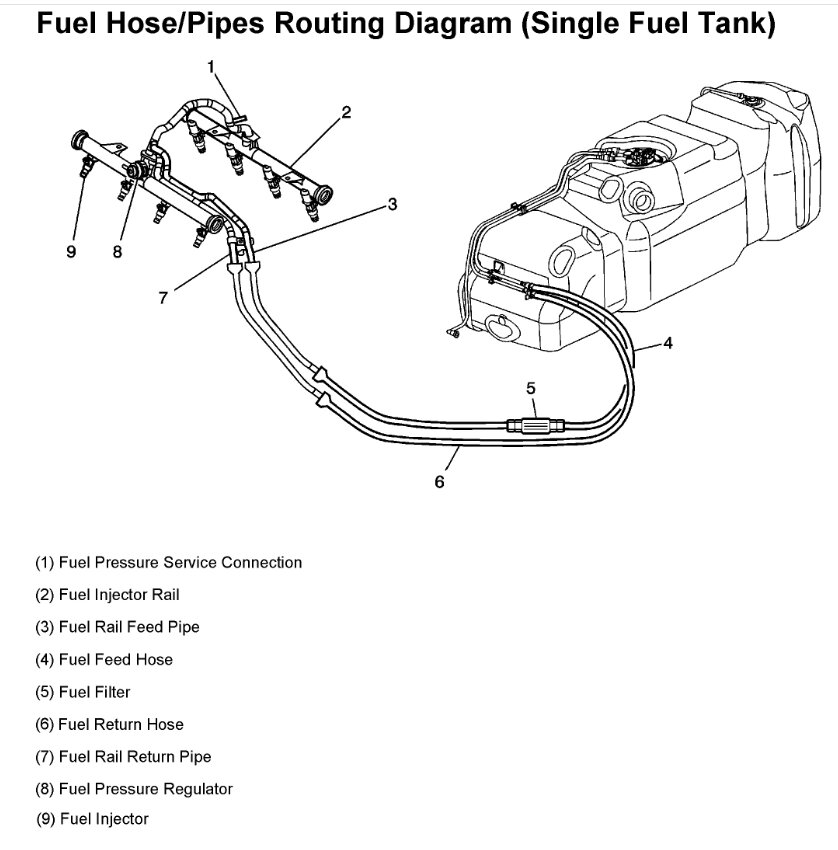

Sure, here are the fuel lines for the single and dual tanks. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
