Fuel gauge, speedometer, temperature gauge not working

2000 CHEVROLET IMPALA
153,550 MILES • 3.8L • 6 CYL • FWD • AUTOMATIC
Avatar
KINGJET
  • MEMBER
  • 2 POSTS
Fuel gauge, temperature gauge and speedometer not working in dash. New cluster was put in and still nothing. Took out backhand cleaned connections. Still not working? BCM?
Jul 30, 2017 at 2:25 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Hello,

I would do a power and ground test to the cluster to start. Here is a guide and some wiring diagrams to help get you started:

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

and

https://www.2carpros.com/articles/how-to-use-a-voltmeter

If everything checks out here is the location of the BCM

Please run some tests and get back to us we are interested to see what it is.

Cheers, Ken
Images (Click to enlarge)

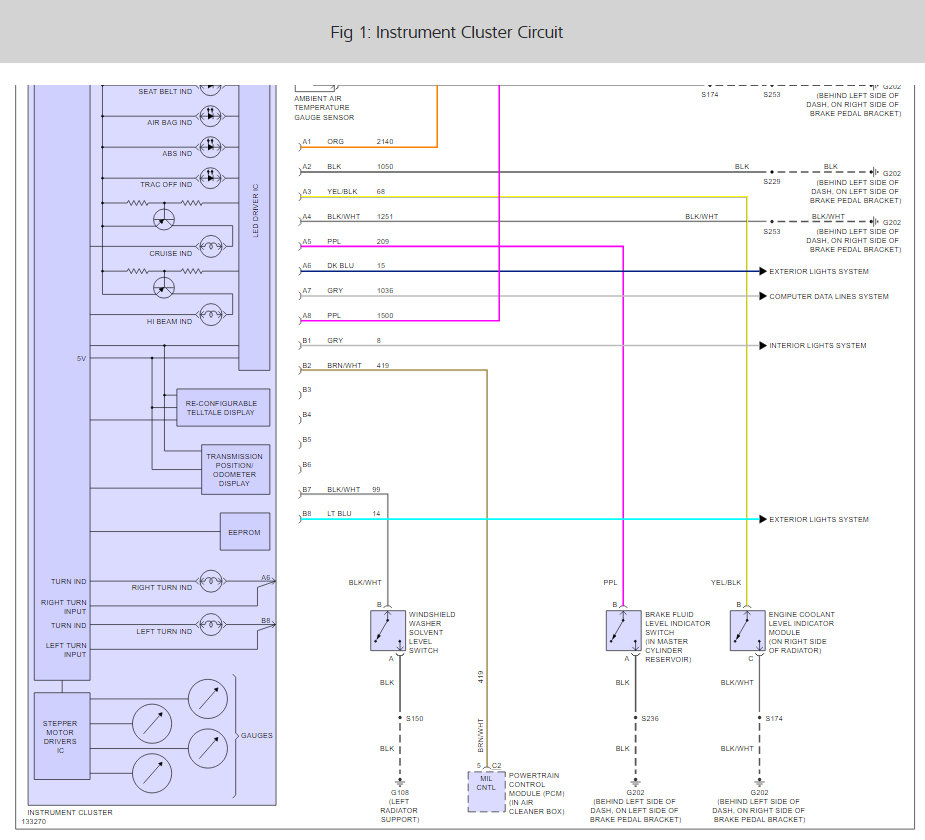

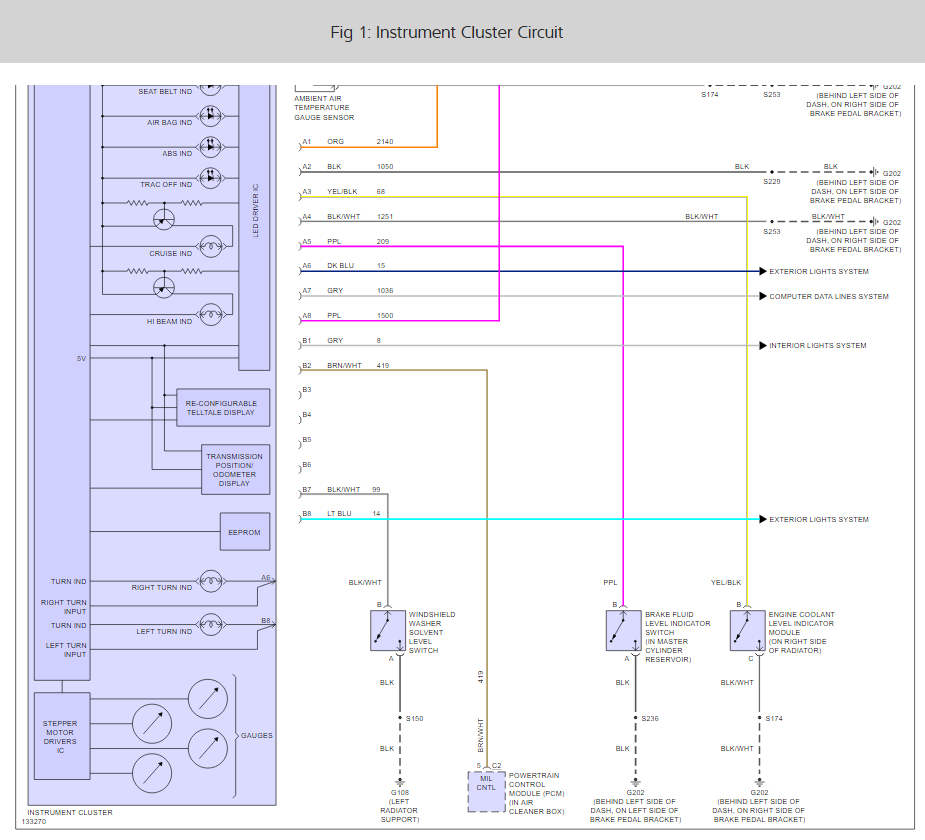

Attached Media

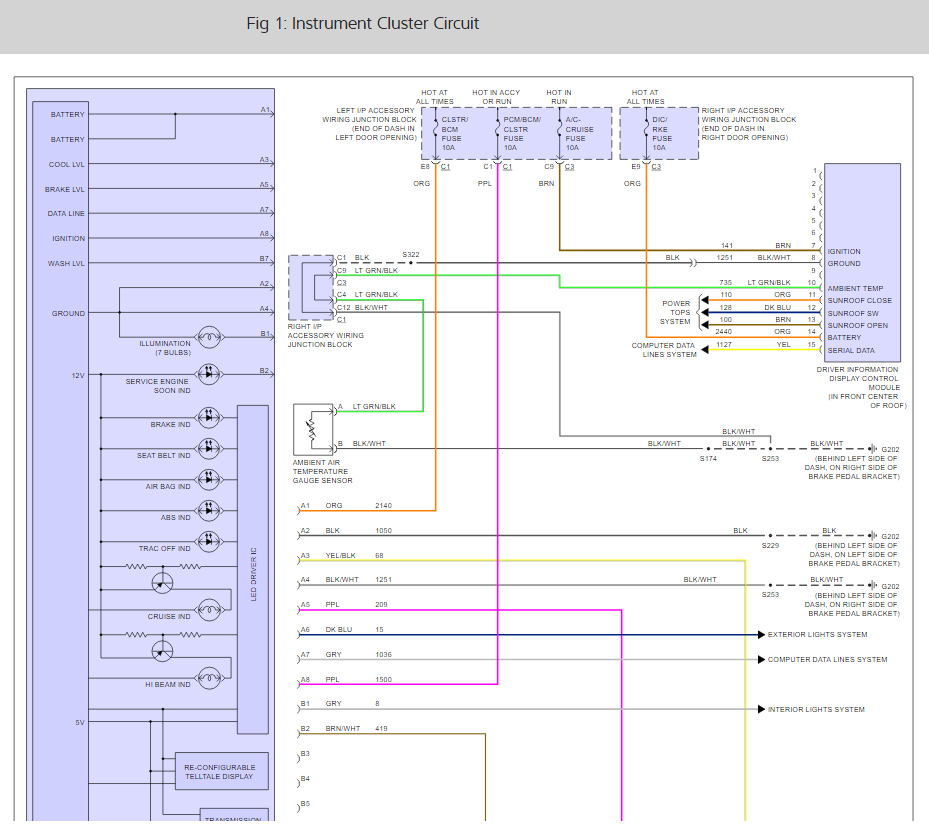

Attached Media

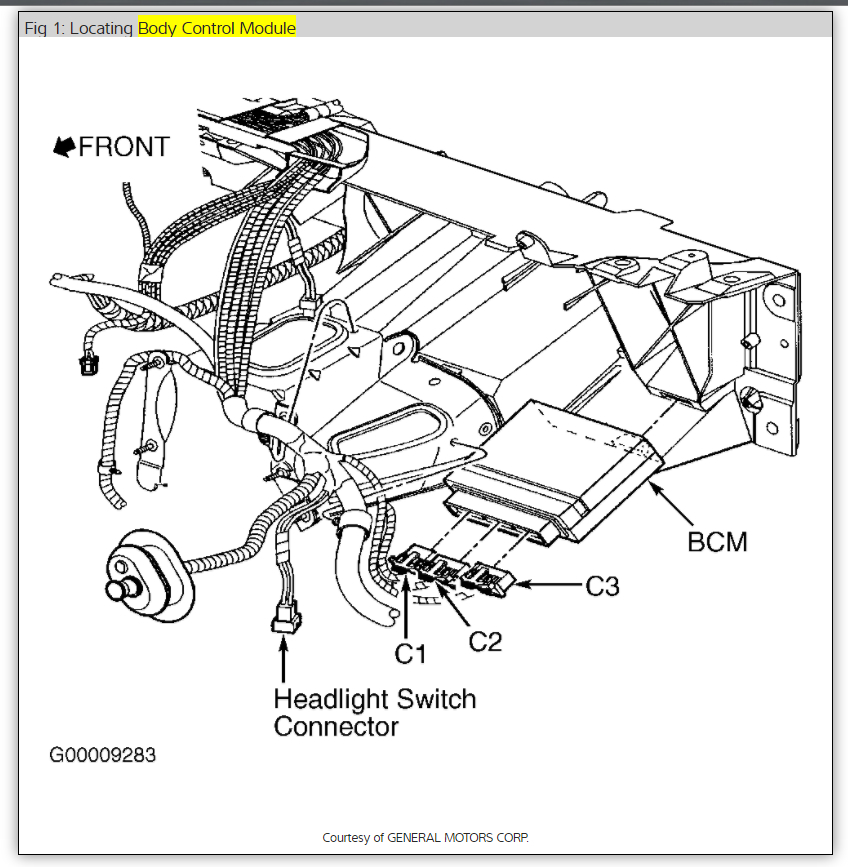

Attached Media
Jul 31, 2017 at 12:45 PM
Avatar
KINGJET
  • MEMBER
  • 2 POSTS
Thank you for the detailed diagrams. I purchased a manual for the car but it does not have the grounds listed. So thank you! I will take your advice and let you know what happens.
Jul 31, 2017 at 6:47 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Please do :)
Aug 2, 2017 at 10:31 AM
