Good morning,
The TSB says it is a lifetime warranty extension which means it is a warranty repair for the line. That is assuming it is the line itself.

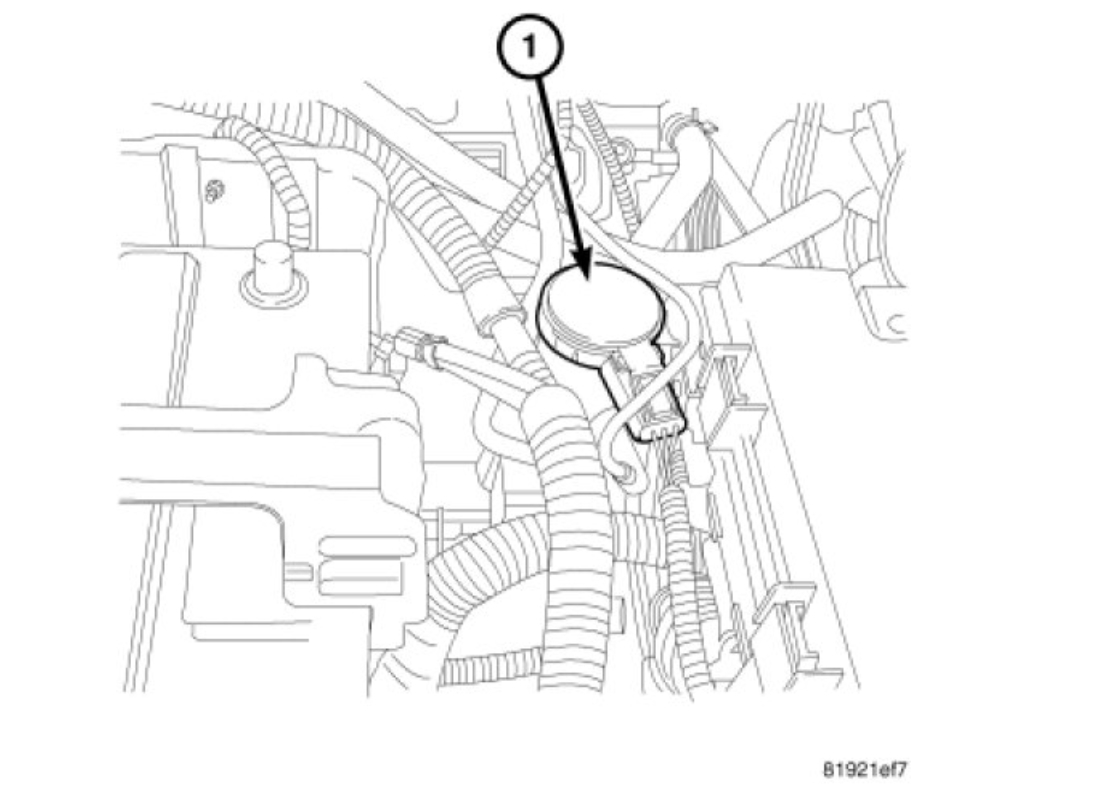

There is also the vent solenoid which is part of the canister assembly. If it is stuck closed, no air can bleed off for the fuel and this will result.
Roy
REMOVAL
imageOpen In New TabZoom/Print

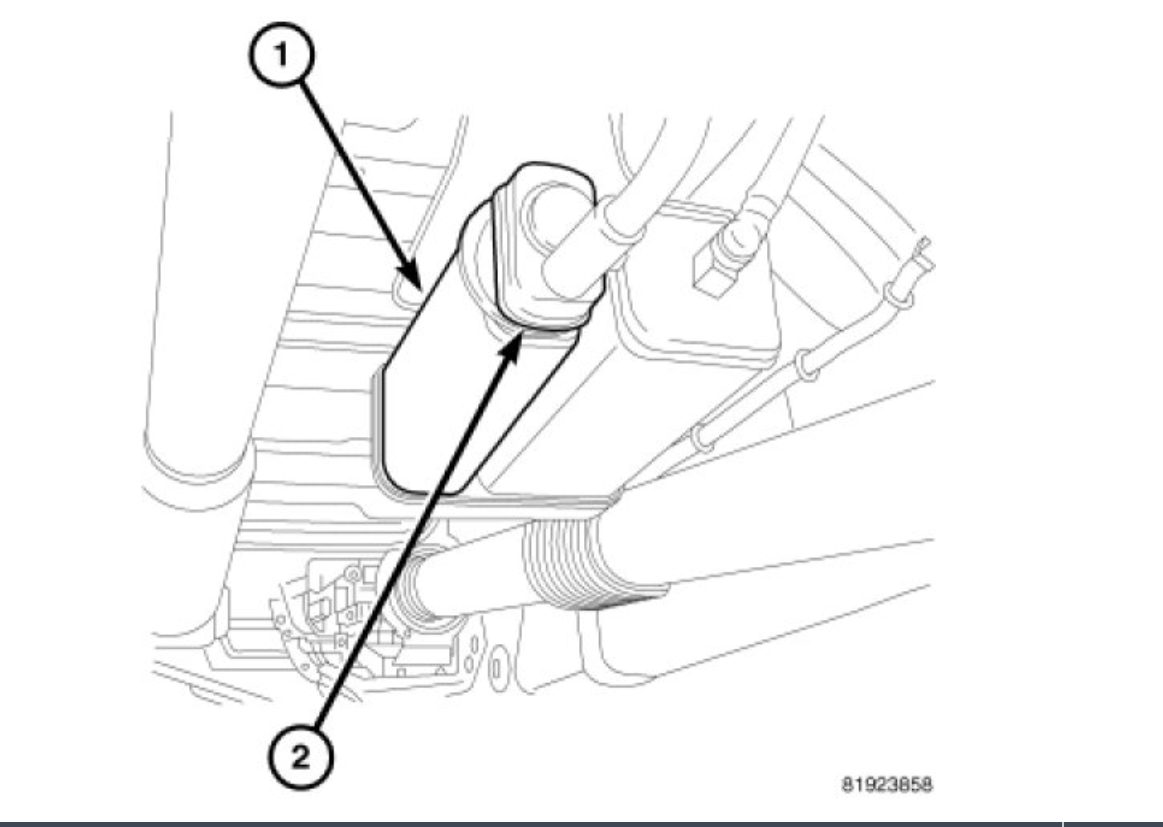

The EVAP canister (1) is located under the vehicle next to the rear prop shaft. The ESIM switch (2) is attached to the EVAP canister.
imageOpen In New TabZoom/Print

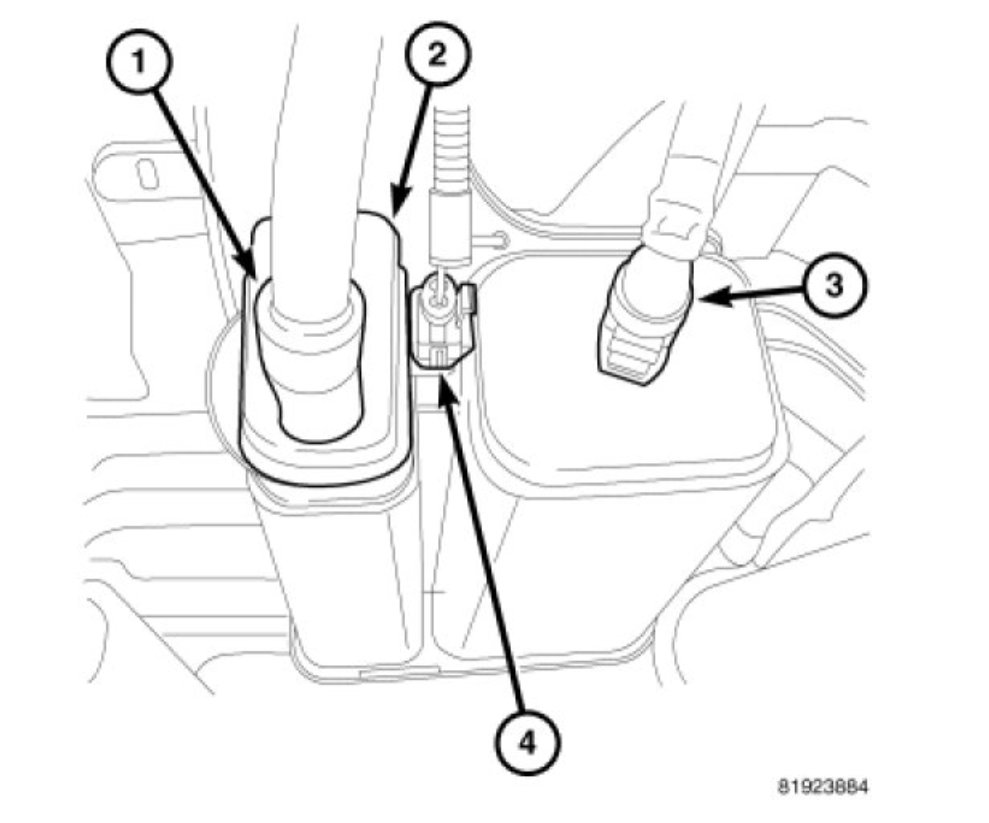

1. Raise and support vehicle.
2. Clean dirt or debris from canister vacuum lines.
3. Disconnect electrical connector (4) at ESIM switch (2).
4. Disconnect rubber hose (1) from ESIM switch.
5. Disconnect fitting (3) at EVAP canister.
imageOpen In New TabZoom/Print

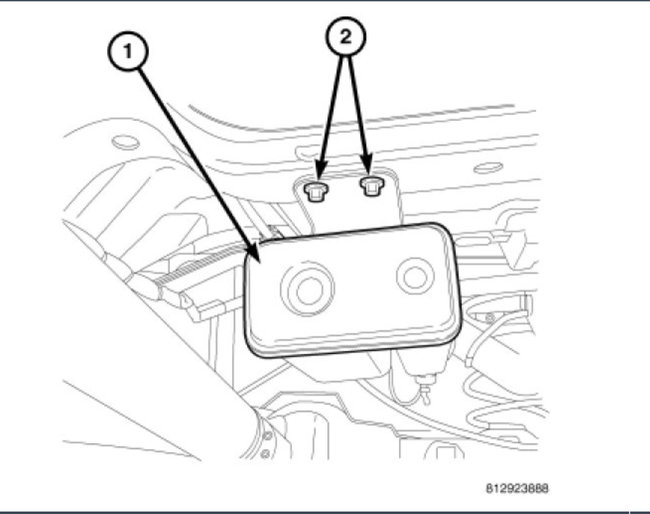

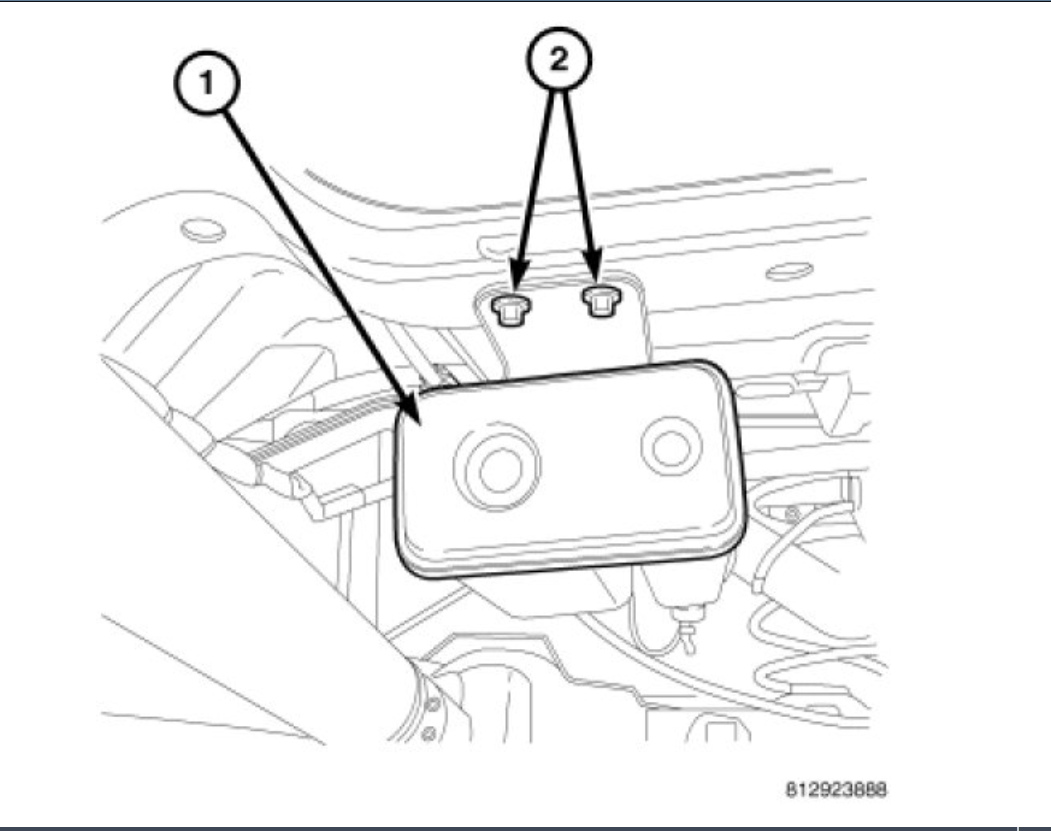

6. Remove two bolts (2) at front of canister mounting bracket (1).
7. Remove two bolts at rear of canister mounting bracket.
imageOpen In New TabZoom/Print

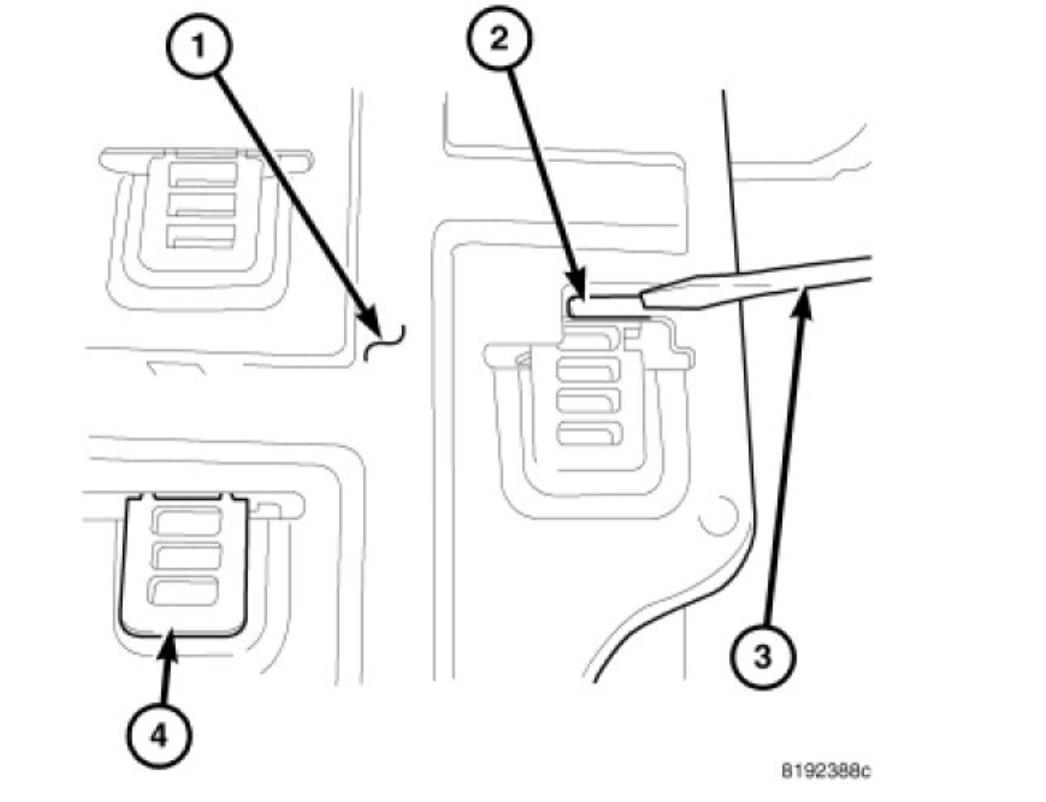

8. To separate EVAP canister (4) from mounting bracket (1), pry on lock-tab (2).
TSB
NUMBER: 14-001-13
GROUP: Fuel System
DATE: January 30, 2013
SUBJECT:
Fuel Spit Back During Refueling (X47 Lifetime Warranty Extension)
OVERVIEW:
This bulletin involves replacing the fuel tube at the fuel tank. This new fuel tube has a check valve.
MODELS:
2007 - 2008 (JK) Wrangler
NOTE:
This Extended Warranty Bulletin applies to vehicles equipped with a 3.8L engine (sales code EGT) built before March 1, 2007 (MDH0301XX) and after March 31, 2008 (MDH 0331XX).
SYMPTOM/CONDITION:
Some customers may experience a fuel spit back condition during a refueling event.
DIAGNOSIS:
If the customer experiences the symptom/condition, proceed to the repair procedure.
PARTS REQUIRED:
REPAIR PROCEDURE:
1.Open Hood.
2.Disconnect and isolate negative battery cable.
3.Remove fuel cap.
4.Hoist vehicle.
imageOpen In New TabZoom/Print

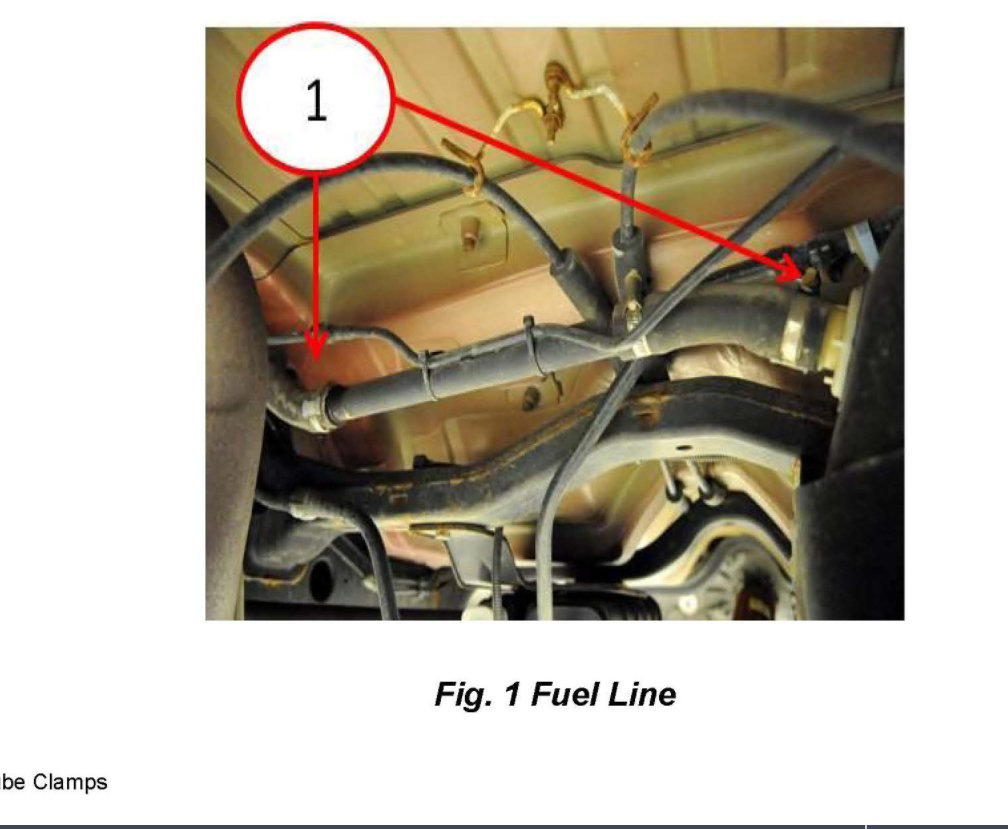

5.Cut the tie straps holding the recovery line to the fuel tube.
6.Remove the fuel tube and discard (Fig. 1).
7.Install the fuel tube (CNNNX321AC) and torque clamps to 3 Nm (30 in. lbs).
8.Tie strap (p/n 06016076) recovery line to fuel tube in two places (Fig. 1).
POLICY:
Reimbursable within the provisions of the warranty.
NOTE:
Vehicles included in this Service Bulletin have a lifetime coverage warranty for this repair. See Warranty Bulletins; U.S. D-13-08, Canada SAB-2013-04 or International ID-13-02 for details associated with the extended warranty.
TIME ALLOWANCE:
FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
Images (Click to enlarge)
Mar 12, 2021 at 5:35 AM
