Front locking hub/axle diagram

Good morning,

I attached the procedure and the pictures for you of the locking hub.

What repair are you doing?

https://www.2carpros.com/articles/how-to-replace-front-wheel-bearings-and-seals

Roy

Removal
1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. Remove the front brake rotor.


imageOpen In New TabZoom/Print

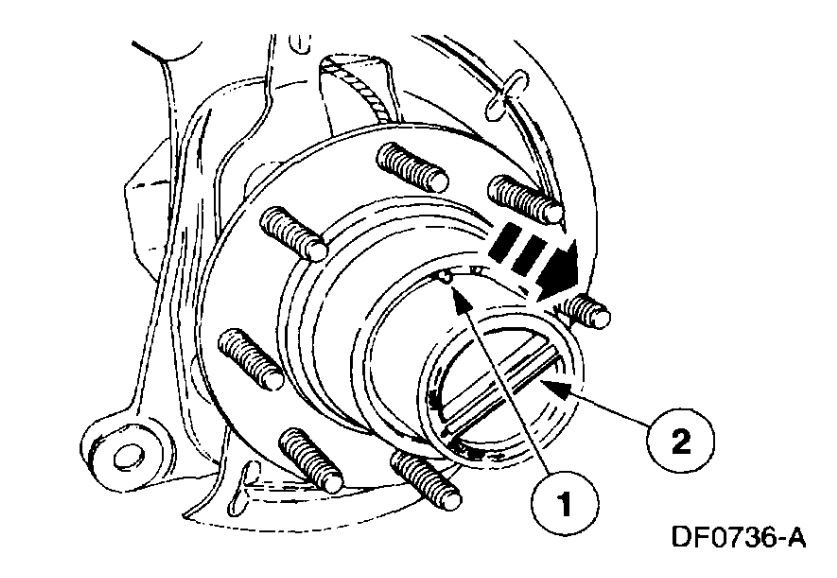

4. Remove the hub lock.
1 Remove the retainer ring.
2 Pull outward and remove the hub lock.


imageOpen In New TabZoom/Print

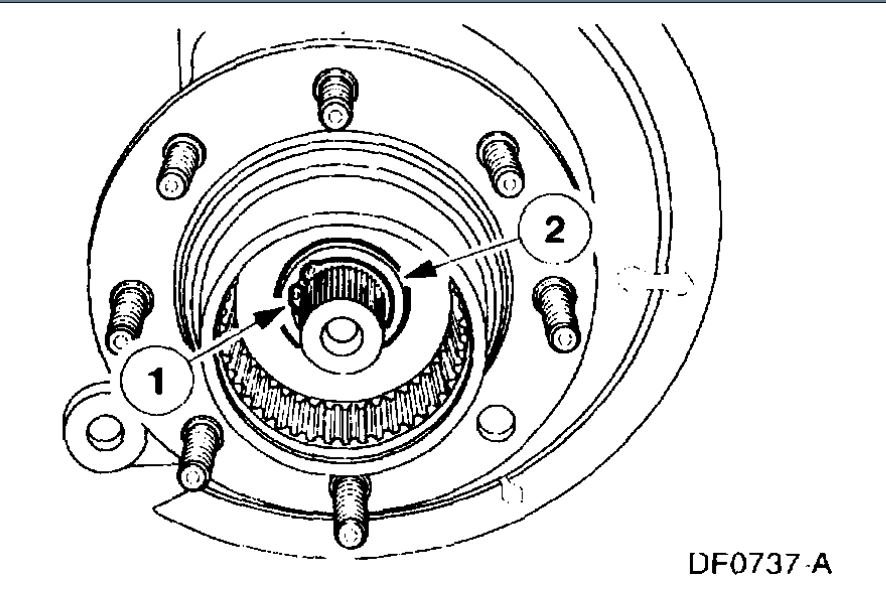

5. Remove the axle shaft thrust washers.
1 Remove the snap ring.
2 Remove the three thrust washers.


imageOpen In New TabZoom/Print


6. NOTE: The following step is for vehicles equipped with ABS only.

Disconnect the ABS wheel sensor harness.
1 Disconnect the connector.
2 Disconnect the harness routing clips.


imageOpen In New TabZoom/Print


7. NOTE: The wheel hub and bearing is a slip fit design and should not require a puller to remove it.

Remove the wheel hub and bearing.
1 Remove the four lock nuts.
2 Remove the wheel hub and bearing.
