Need to know the firing order to the coil packs from the cylinder head. Also, where is the camshaft position sensor located?
Sep 13, 2022 at 11:57 PM
What is the firing order?
1996 TOYOTA CAMRY
PACIFICISLANDER
- MEMBER
- 240 POSTS
- FOLLOW
Advertisement
Hello,
This engine only has one coil which feeds the distributor. If your vehicle has two ignition coils, then you are working on a 1997 model.

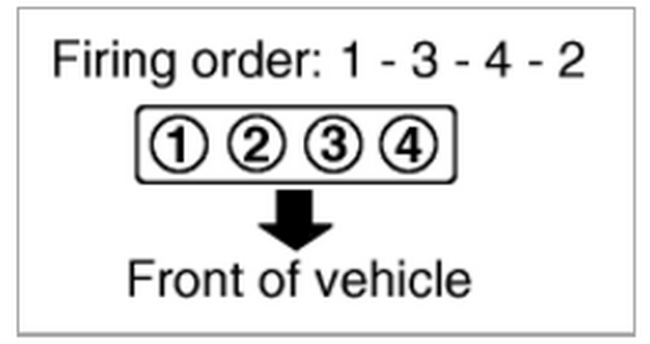

The firing order is the same, 1-3-4-2 with cylinder 1 being nearest to the timing belt.
See image one below.
On the vehicle using two coils the left coil fires cylinder 1+4 and the right coil, further back, fires cylinders 2+3. The coils are marked.
How to replace double coils:
https://youtu.be/78R8dEhnE2c
If the engine has a distributor, then the camshaft position sensor is located inside the distributor.

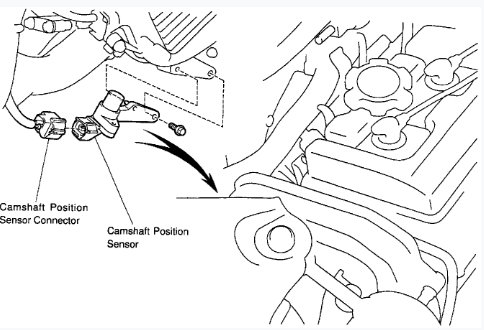

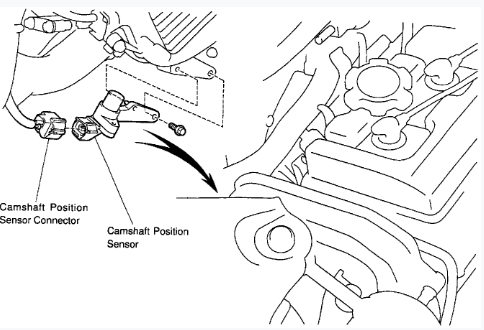

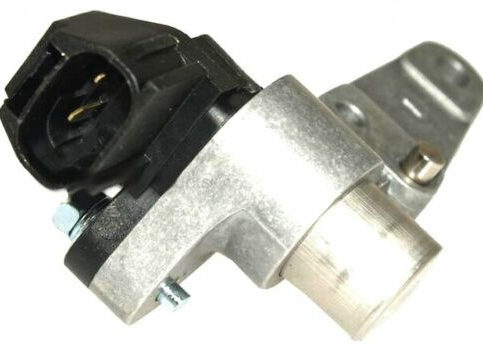

The later model has the camshaft position sensor located near the from camshaft pulley.
See image 2+3 below.
Cheers, Boris
This engine only has one coil which feeds the distributor. If your vehicle has two ignition coils, then you are working on a 1997 model.
The firing order is the same, 1-3-4-2 with cylinder 1 being nearest to the timing belt.
See image one below.
On the vehicle using two coils the left coil fires cylinder 1+4 and the right coil, further back, fires cylinders 2+3. The coils are marked.
How to replace double coils:
https://youtu.be/78R8dEhnE2c
If the engine has a distributor, then the camshaft position sensor is located inside the distributor.
The later model has the camshaft position sensor located near the from camshaft pulley.
See image 2+3 below.
Cheers, Boris
