Ford TSB 08-8-9 Mode Door Fix?

2005 FORD F-150
180,000 MILES • 5.4L • V8 • 4WD • AUTOMATIC
Avatar
F150VICTORIA
  • MEMBER
  • 3 POSTS
Hi,
I removed the mode-door motor, cam plate and cam, to lube the cam. When I put it back together, I don’t think i had the cam in the correct position and powered the climate control. When the motor wouldn’t turn, i took it apart again and energized the motor. You’ll notice in the TCB it says to "Do Not Energize the Mode Door Motor Without It Being Connected". So, that is what I accidentally did and now the gear from the motor will not fit into the cam. How can I fix this?
Jan 9, 2023 at 7:00 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

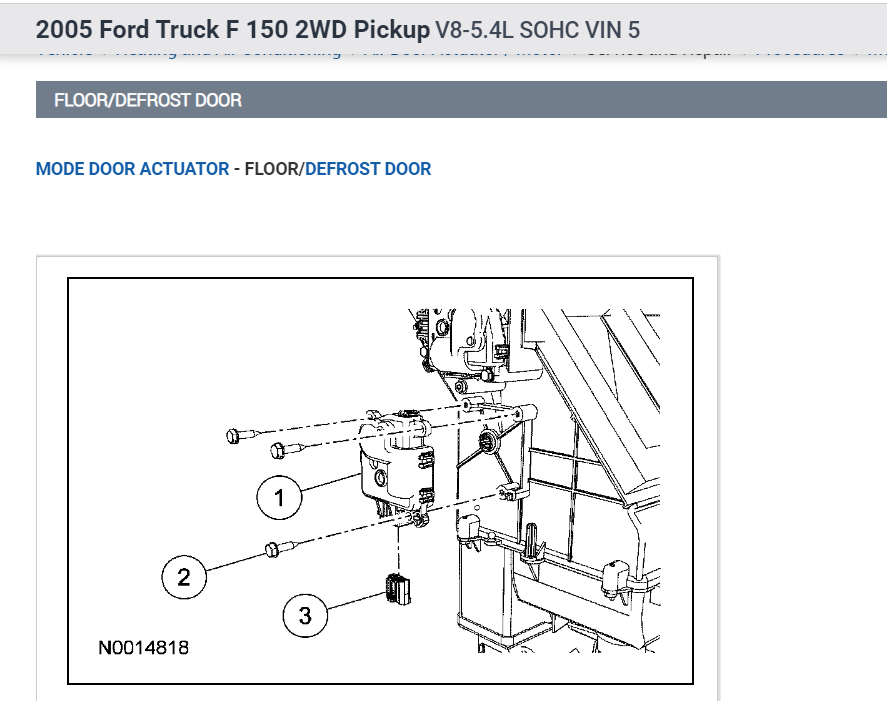

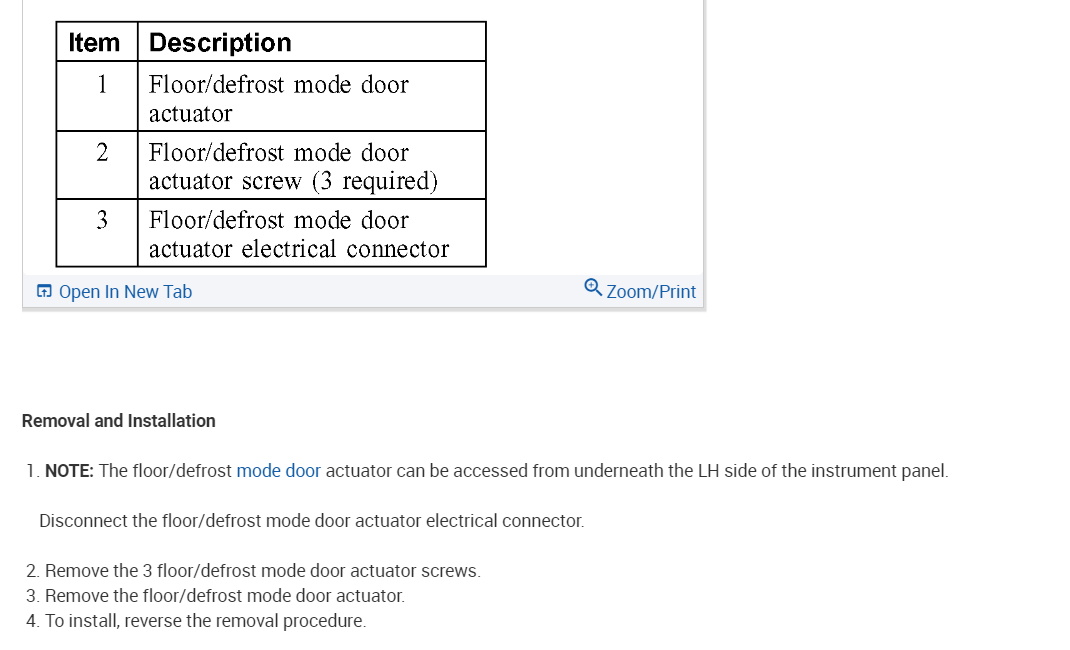

You can remove the cover of the blend door actuator and reposition the gear to fit the blend door pivot or reconnect the blend door actuator and turn the key on to work the HVAC control to see if you can get it to move then unplug it when it is in the correct position. Also, i have included how to change the mode actuator so you can see how the job is done. Check out the images (below). Let us know what happens and please upload pictures or videos of the problem.
Images (Click to enlarge)
Attached Media
Attached Media
Jan 9, 2023 at 12:48 PM
Avatar
F150VICTORIA
  • MEMBER
  • 3 POSTS
Thank you, Ken. I’ll see if either of those work and let you know. Cheers
Jan 9, 2023 at 4:02 PM
Advertisement
Avatar
F150VICTORIA
  • MEMBER
  • 3 POSTS
Hi Ken,

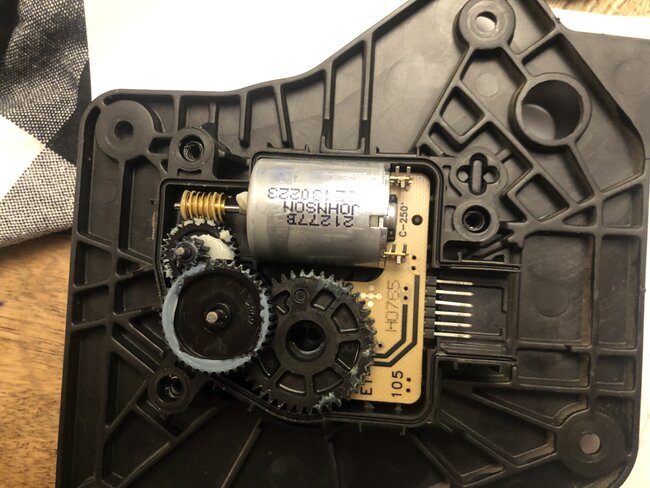

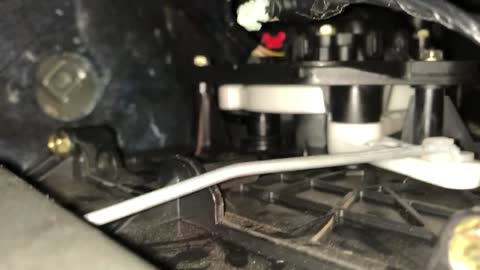

I am happy to say the advice you gave solved my issue. I decided to take the face plate off the actuator and manually reposition the gear. Operates normally now. Can’t thank you enough.
Cheers
Image & Video (Click to enlarge)
Attached Media
Attached Media
Jan 10, 2023 at 10:49 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Nice work, we are the team! Can you please leave us a rating? (copy entire link)
