Fuse box diagram?

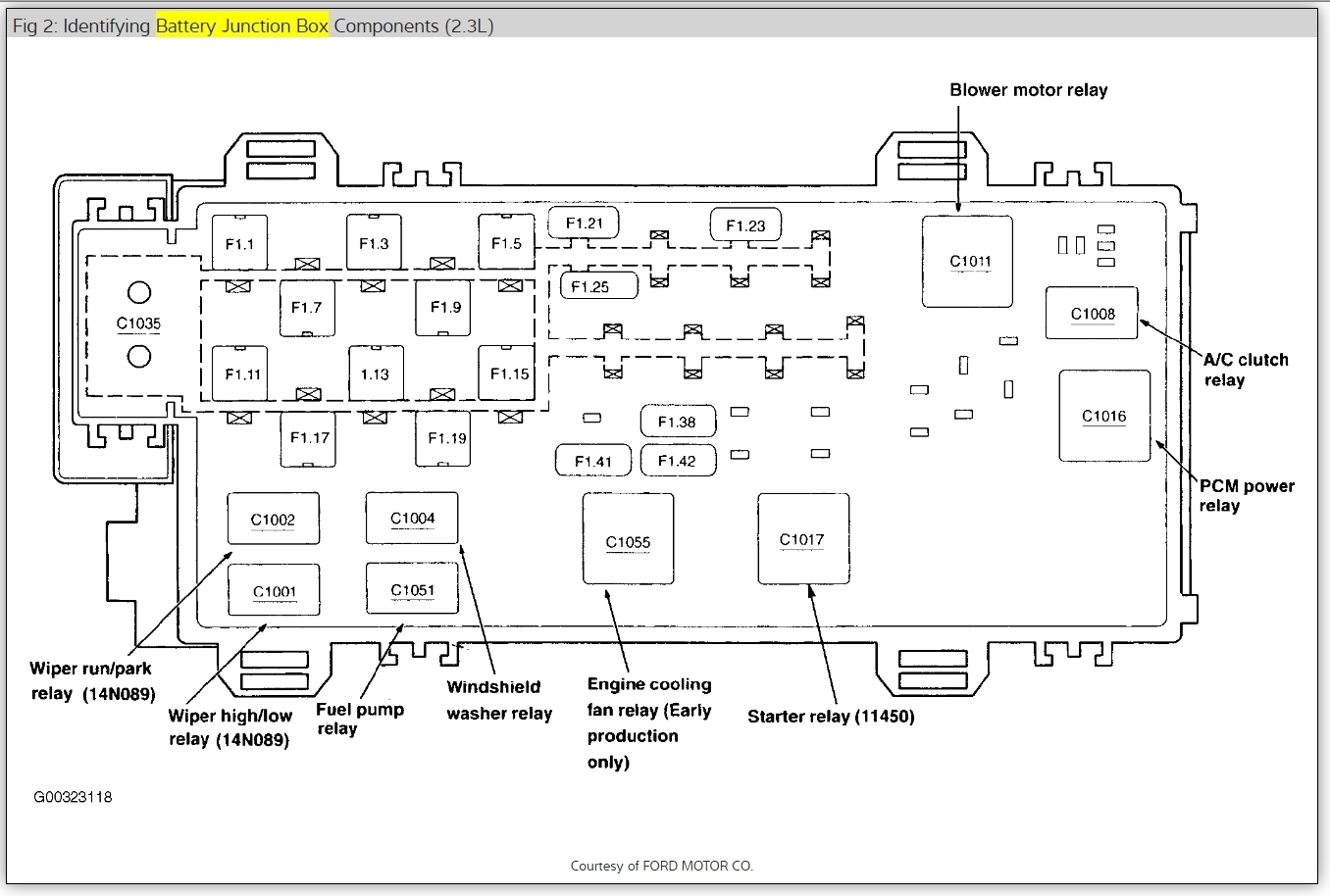

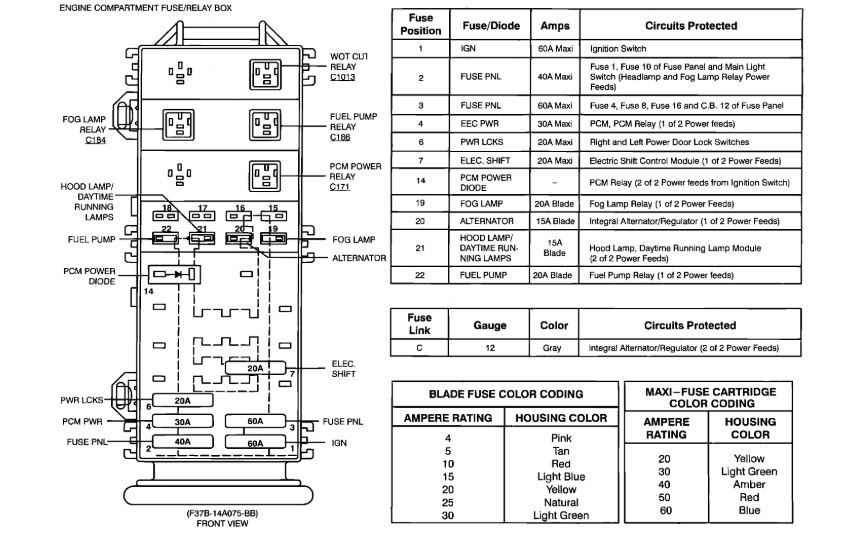

Hello, I found these diagrams for you (below), one is under the hood and the other under the dash. This guide will help you check for pwoer

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed. If this is not correct please tell us why in the vote comments.

I am not getting fuel to the engine. I was wondering if it it is the fuse and where is it located?

There is a relay, an inertia switch, and wiring. Check to see if the pump can be heard for 2-3 seconds when the key is turned to on. See if the red button on the inertia switch is pressed down. (below)

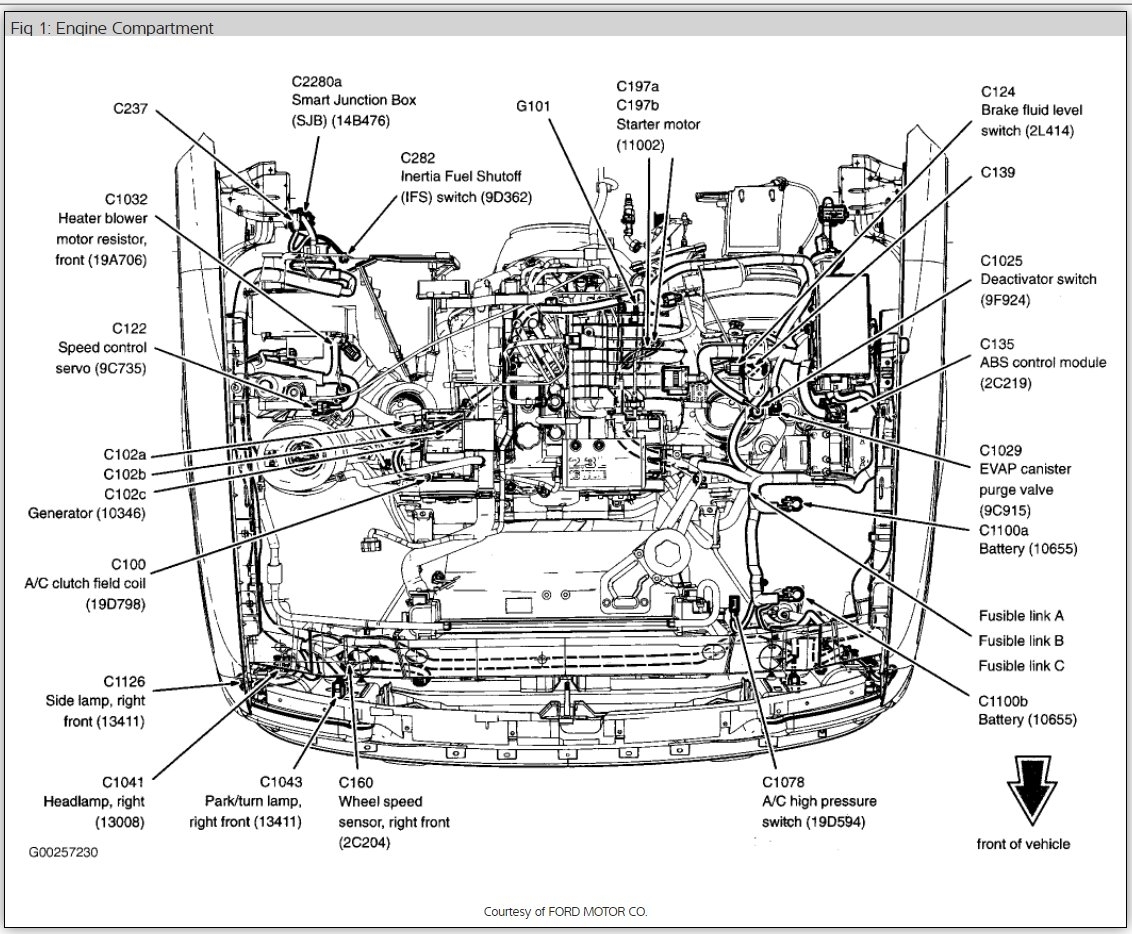

The inertia switch is on the right front kick panel.

where is the alternator charging fuse located?

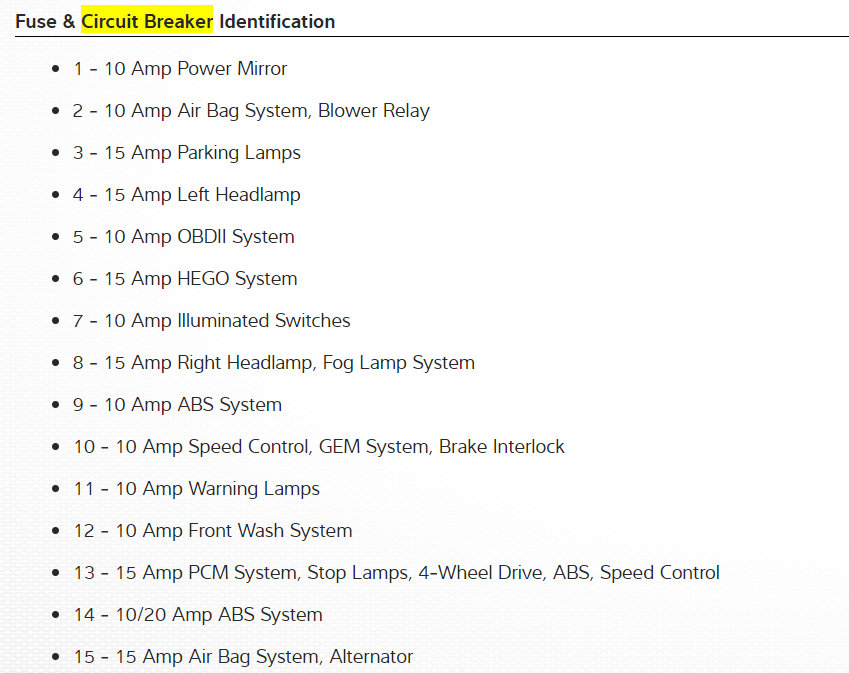

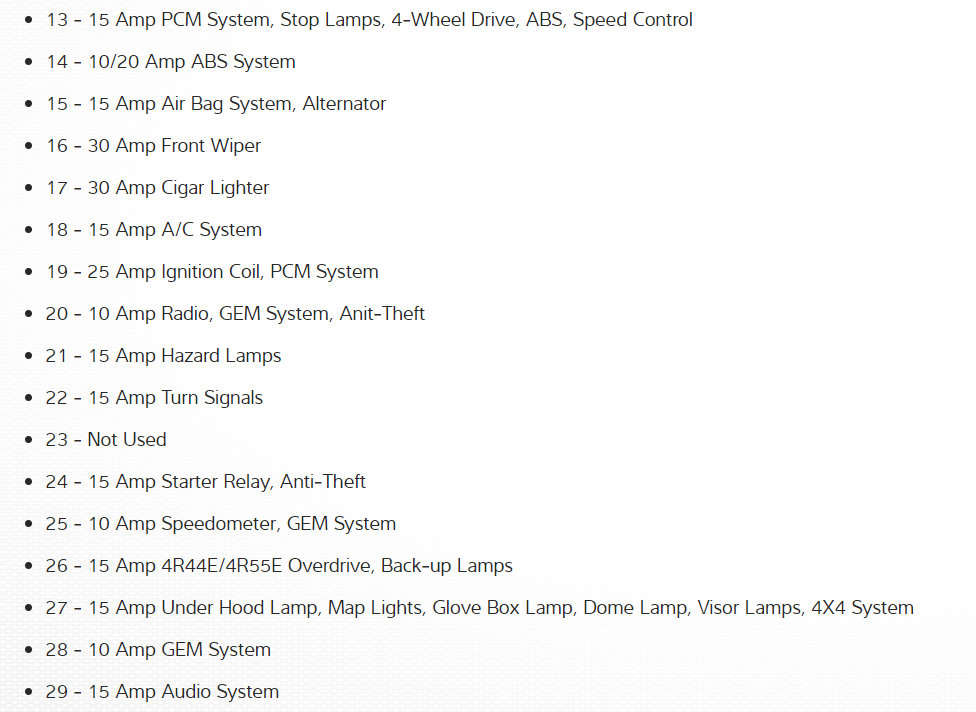

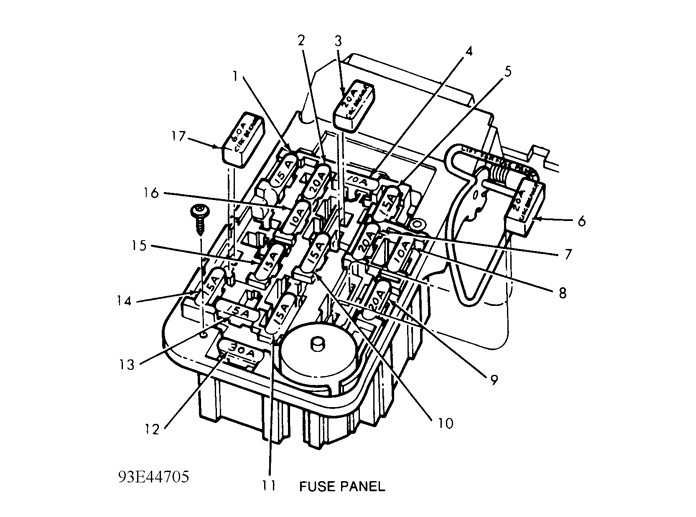

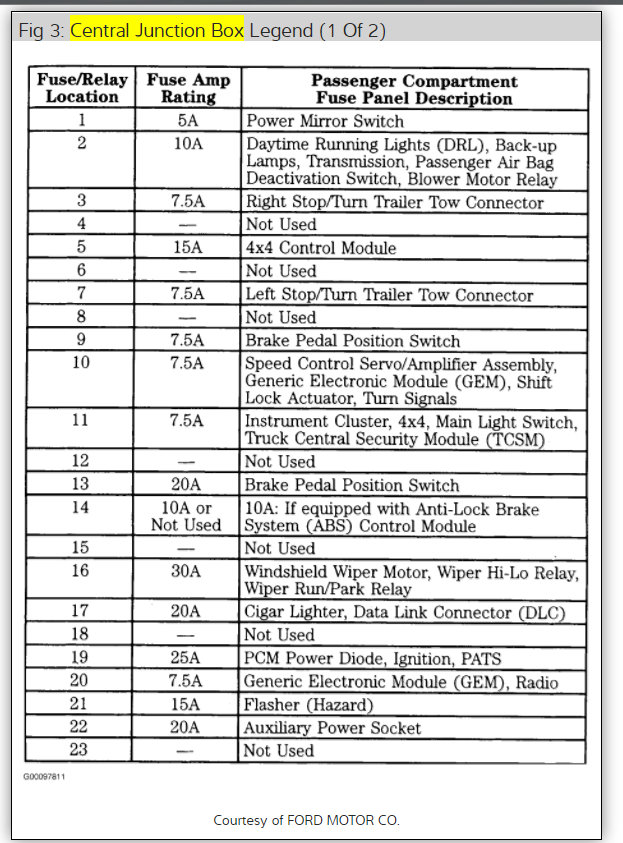

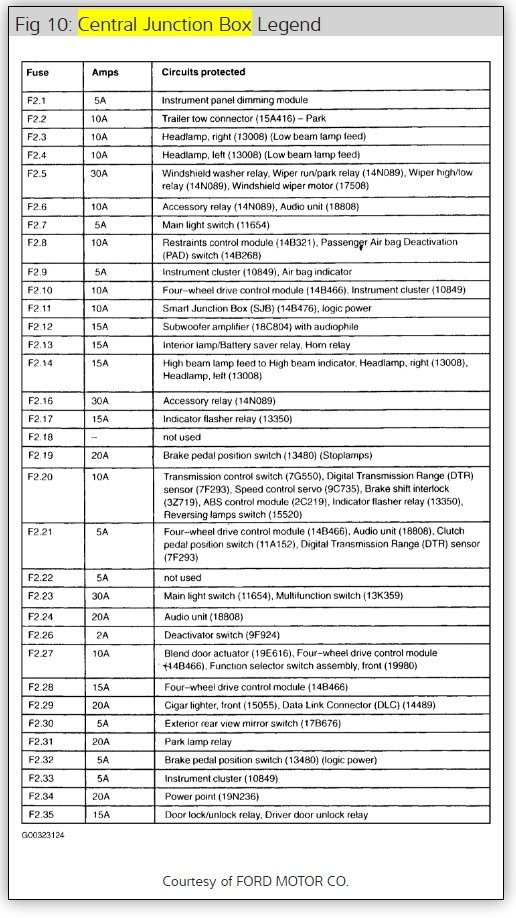

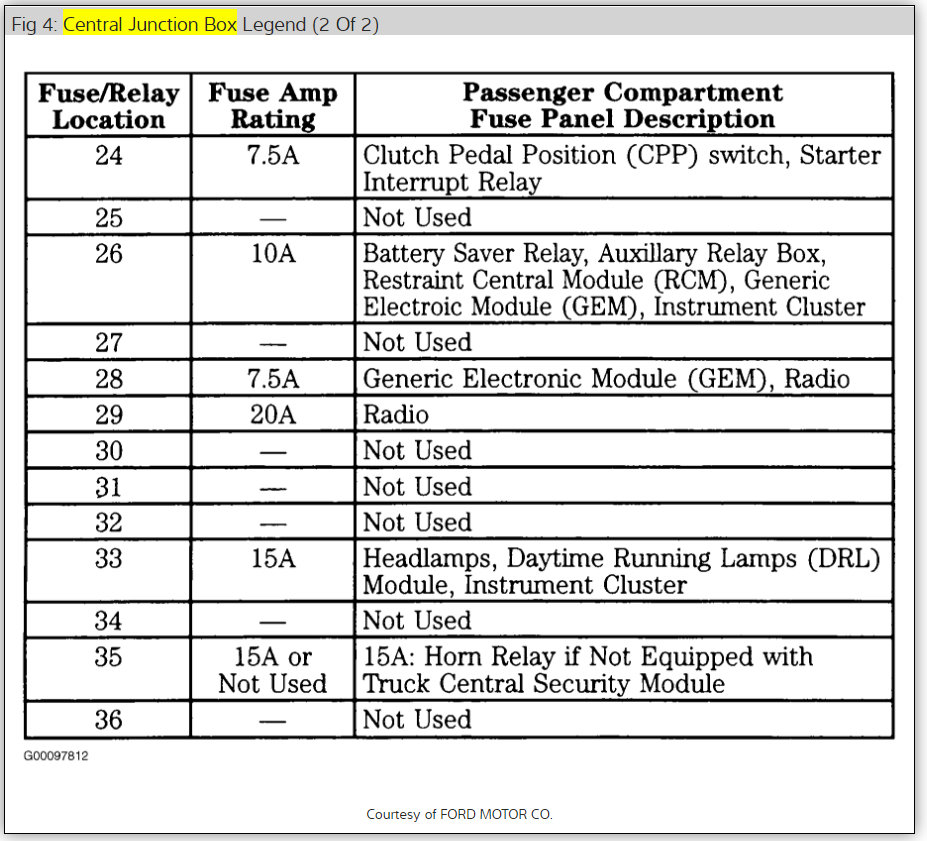

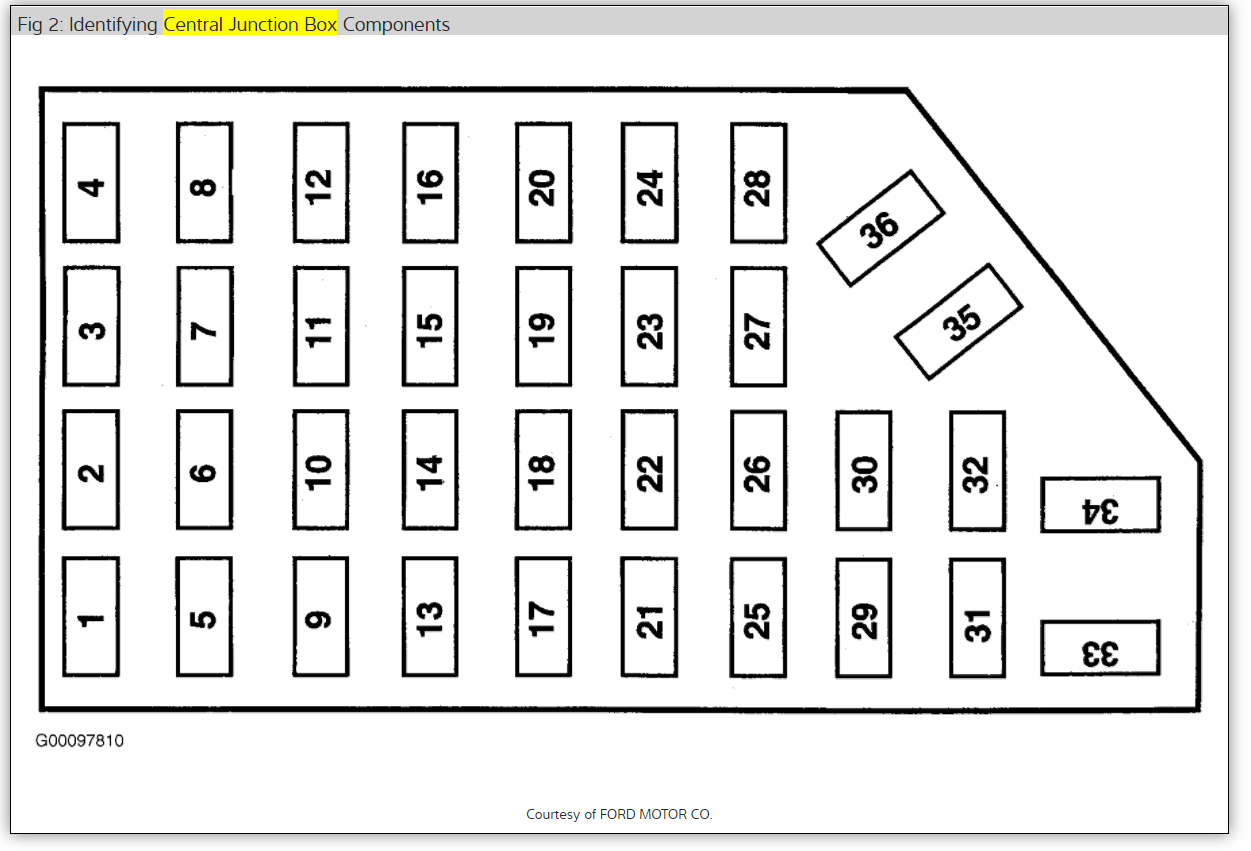

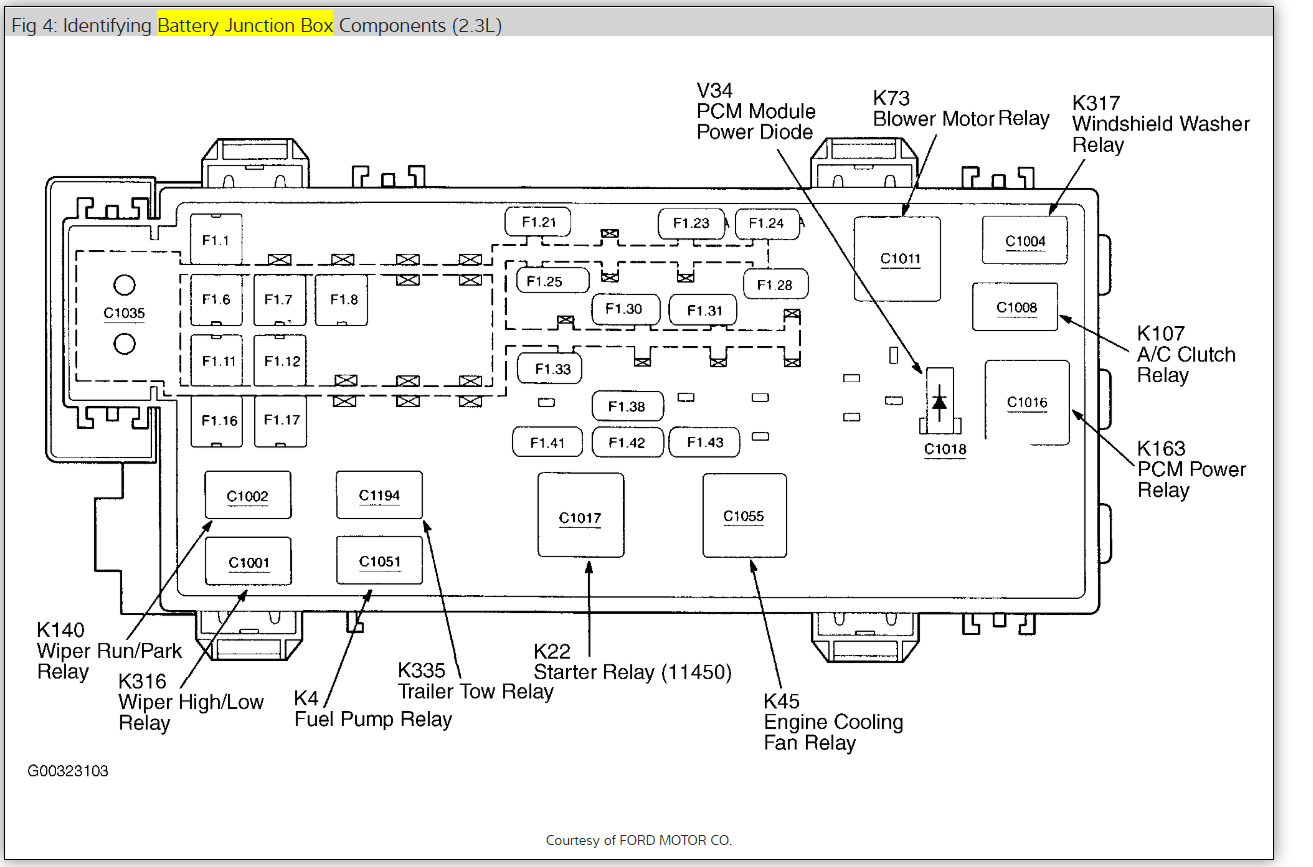

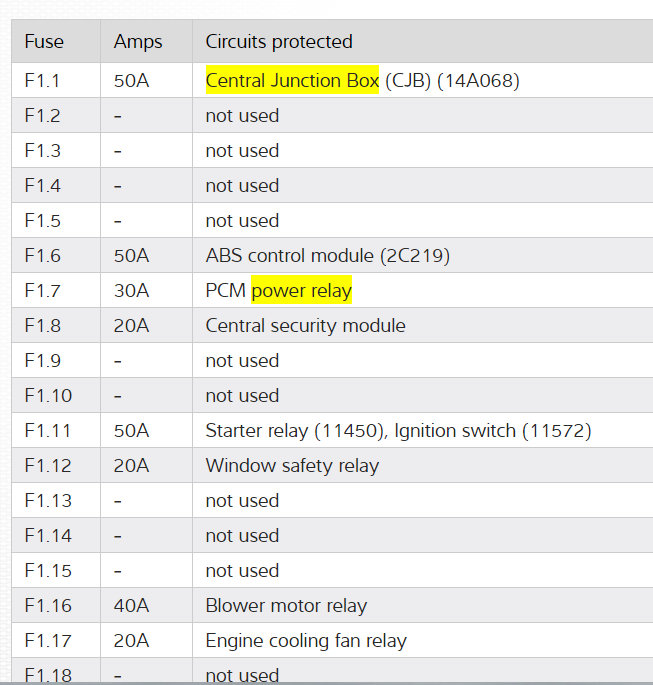

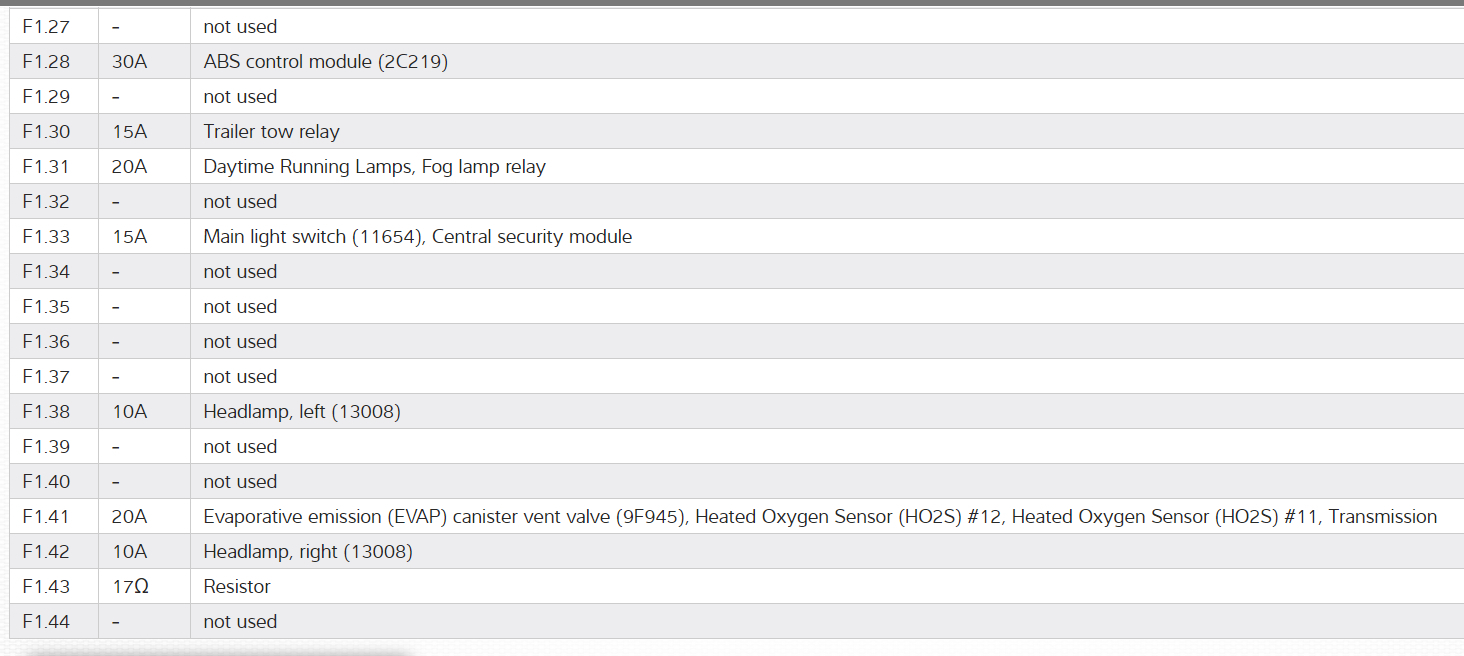

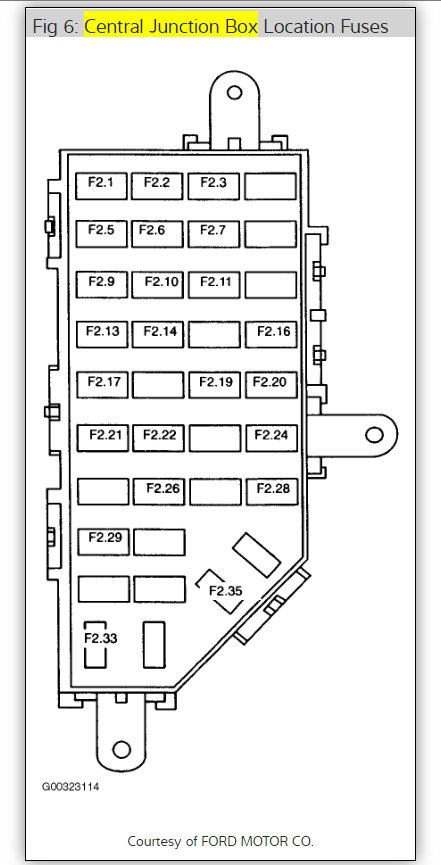

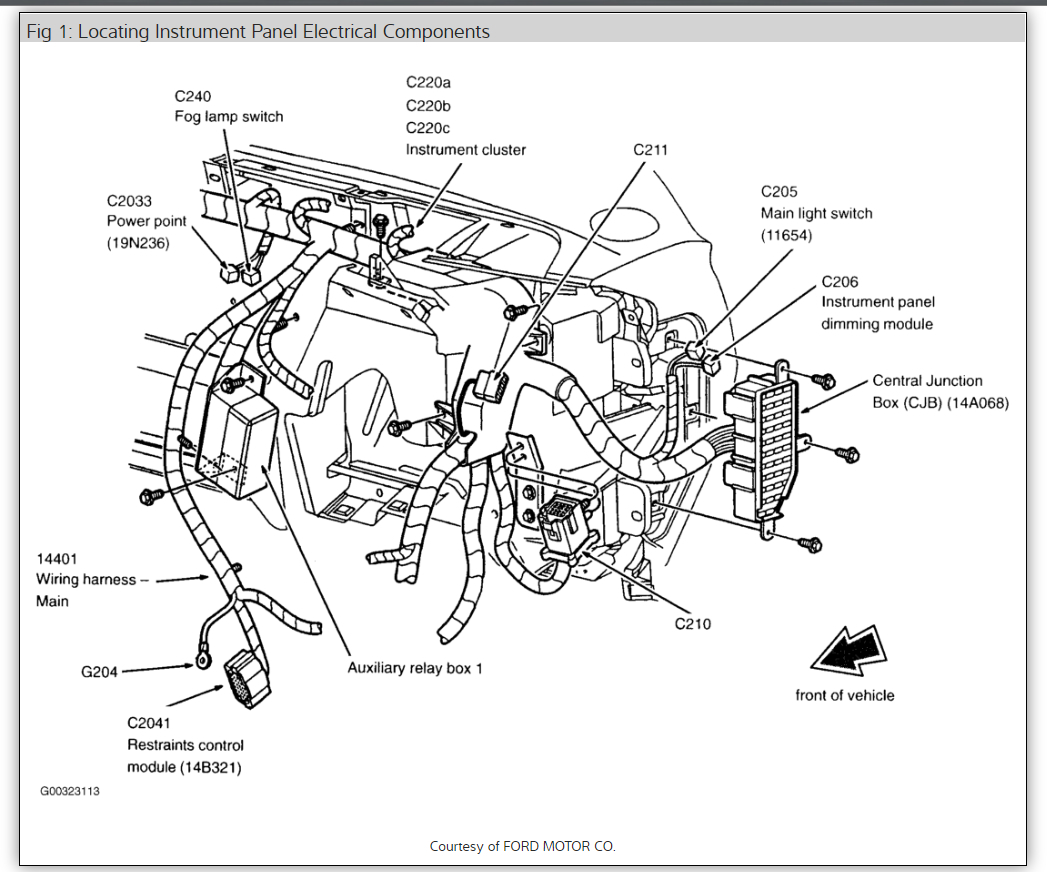

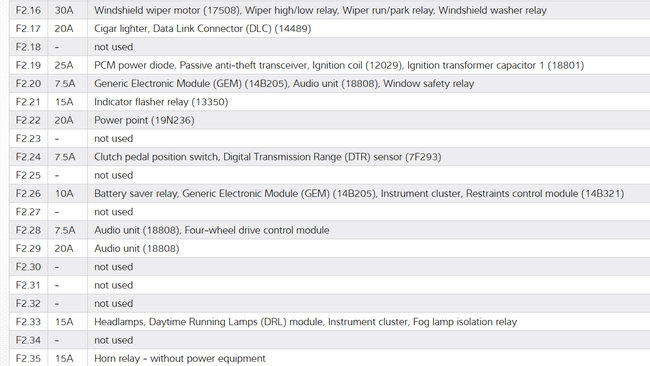

Its fuse no.11 7.5 amp its in the central junction box behind left side of dash here is a guide and the fuse panel location and identification below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

What about a 2000 ford ranger? Would it be in the same place? Is it a square fuse about 1.5cm (L) by 1.5cm (W) by 1.5cm (H).?

It should be in the same place. Let me know if you find it

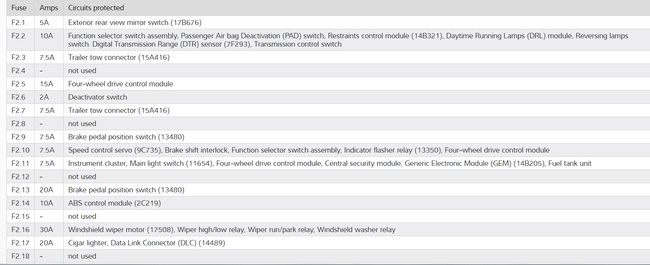

where is the fuse located in the fuse box panel?

Here is guide to help you check the fuse and the location as well.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below) Please let us know if you need anything else to get the problem fixed.

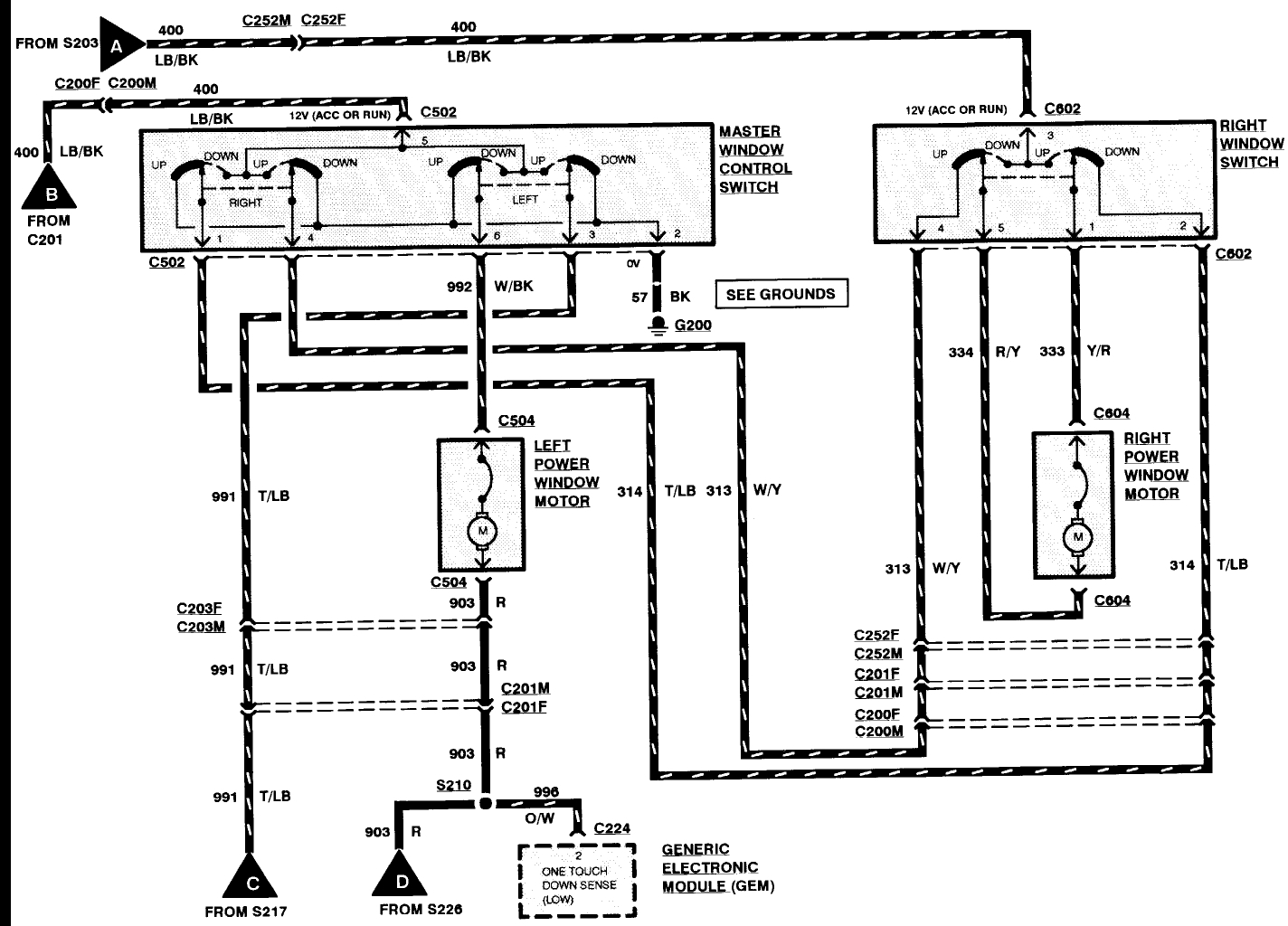

Windows not working. Need relay placement for box under dash with eight relays in it.

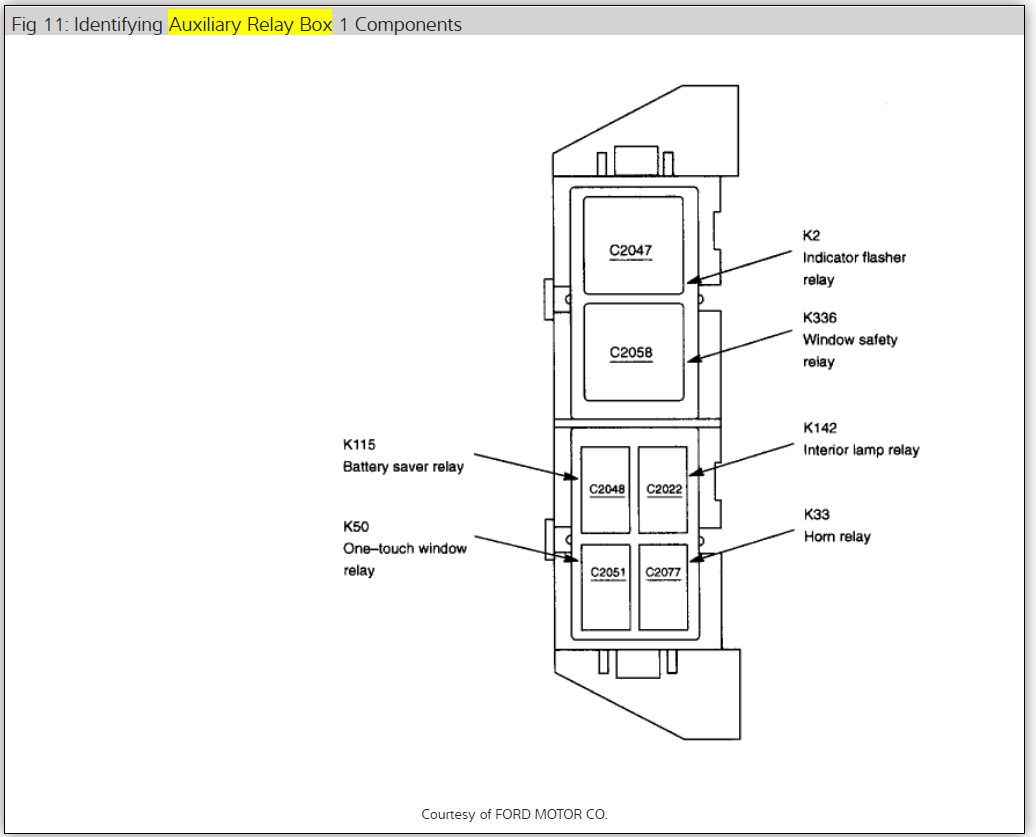

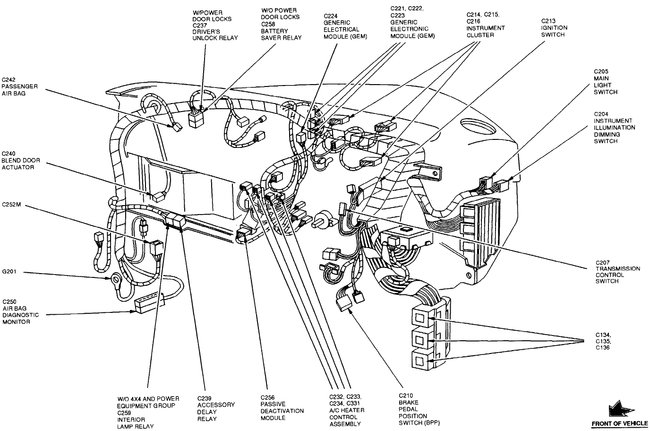

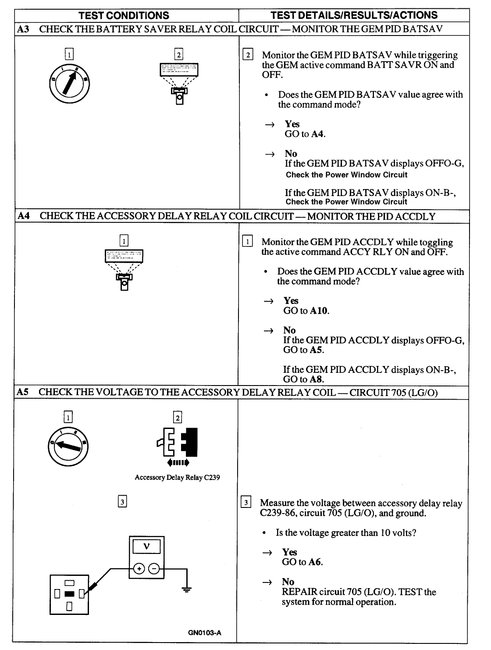

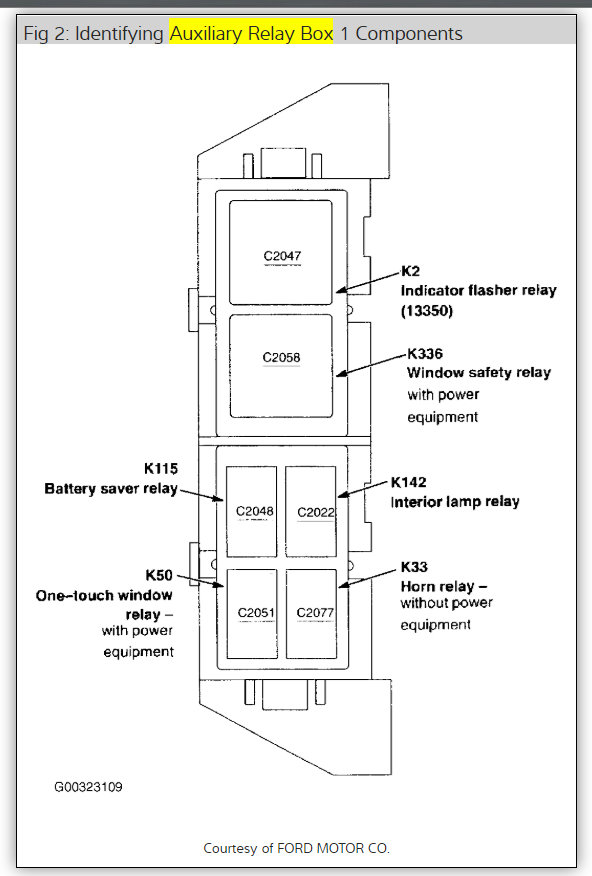

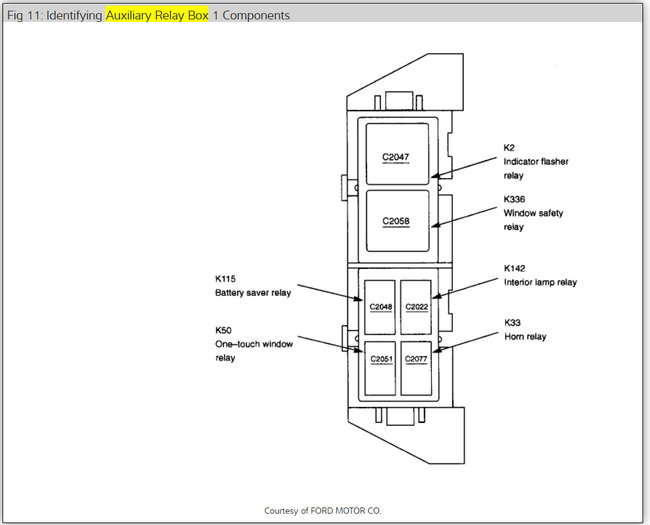

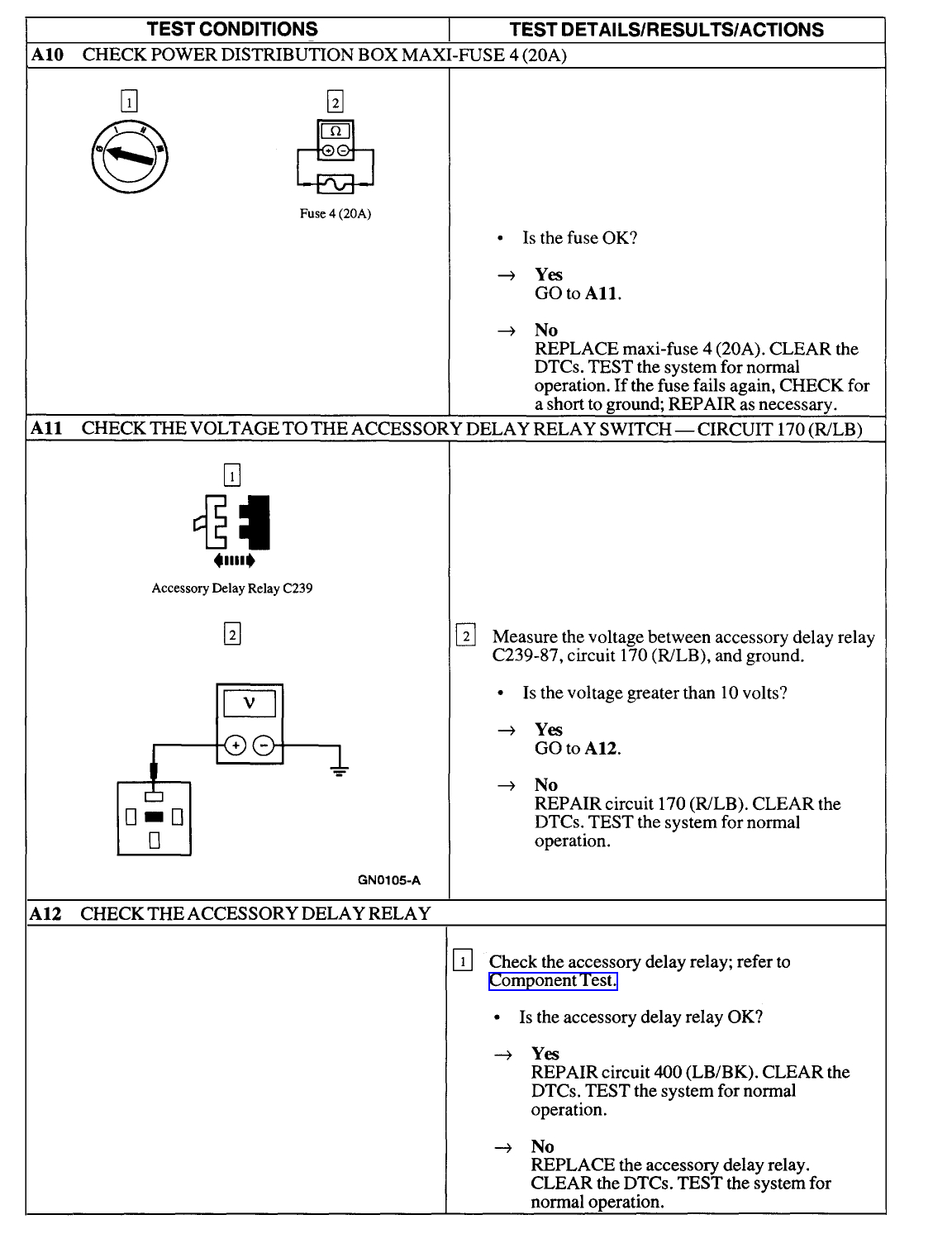

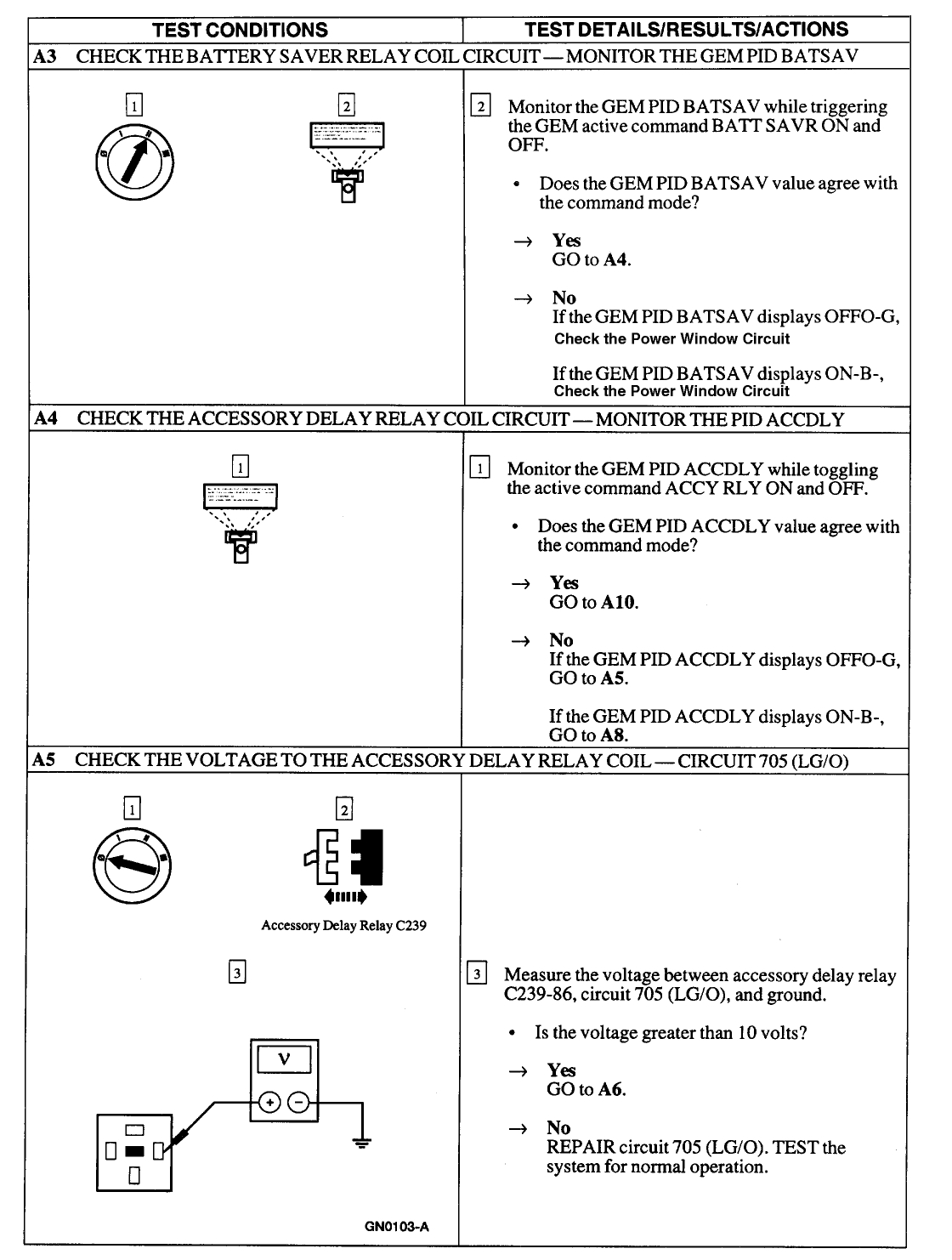

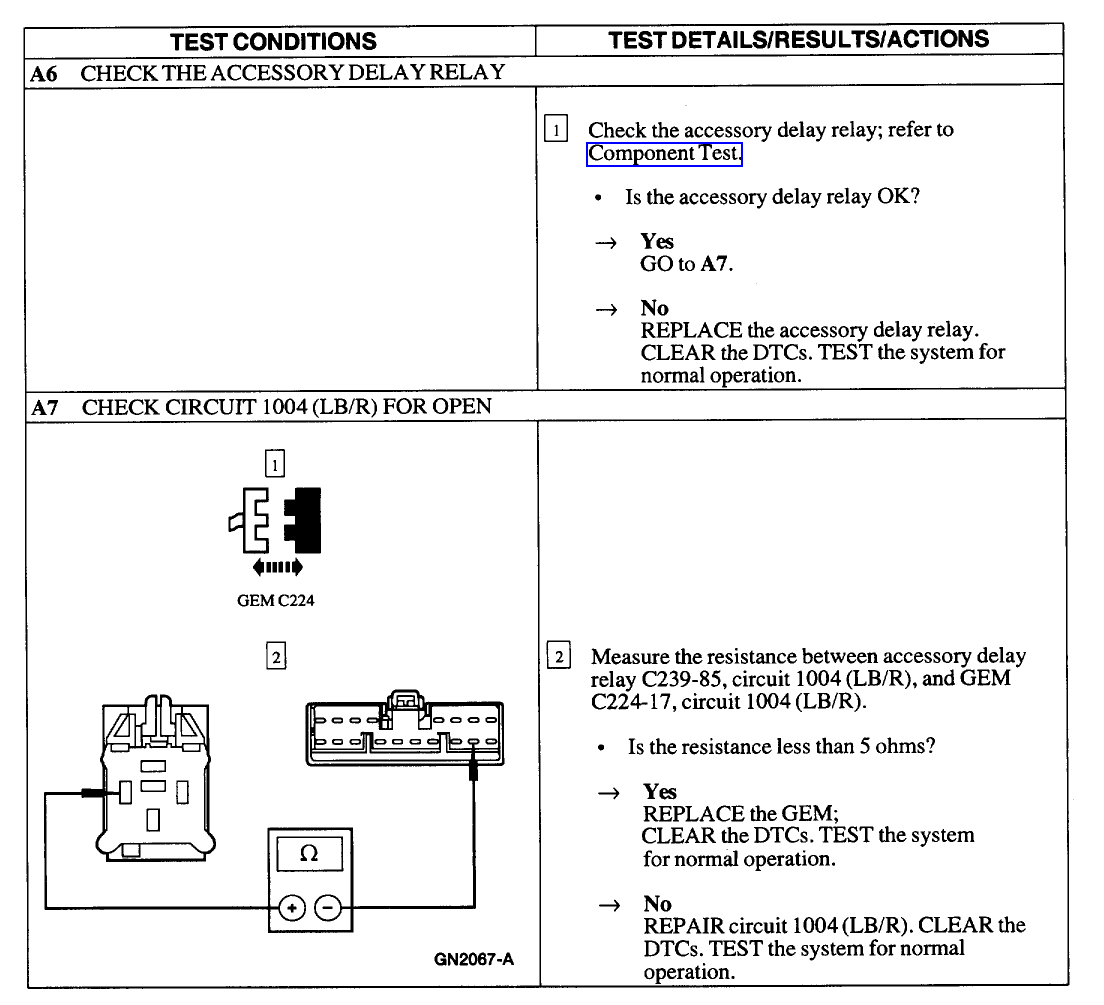

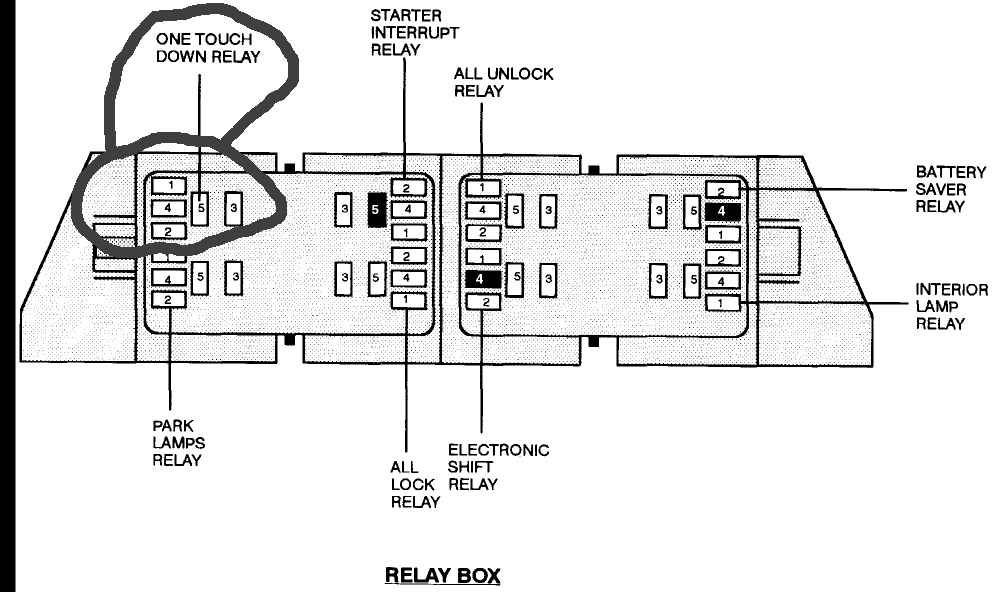

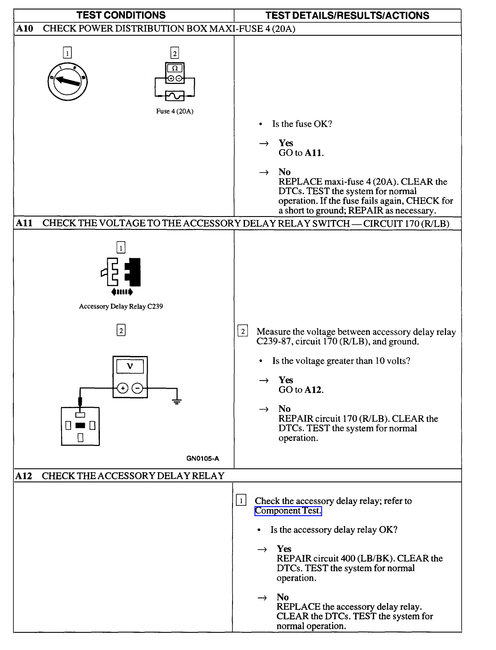

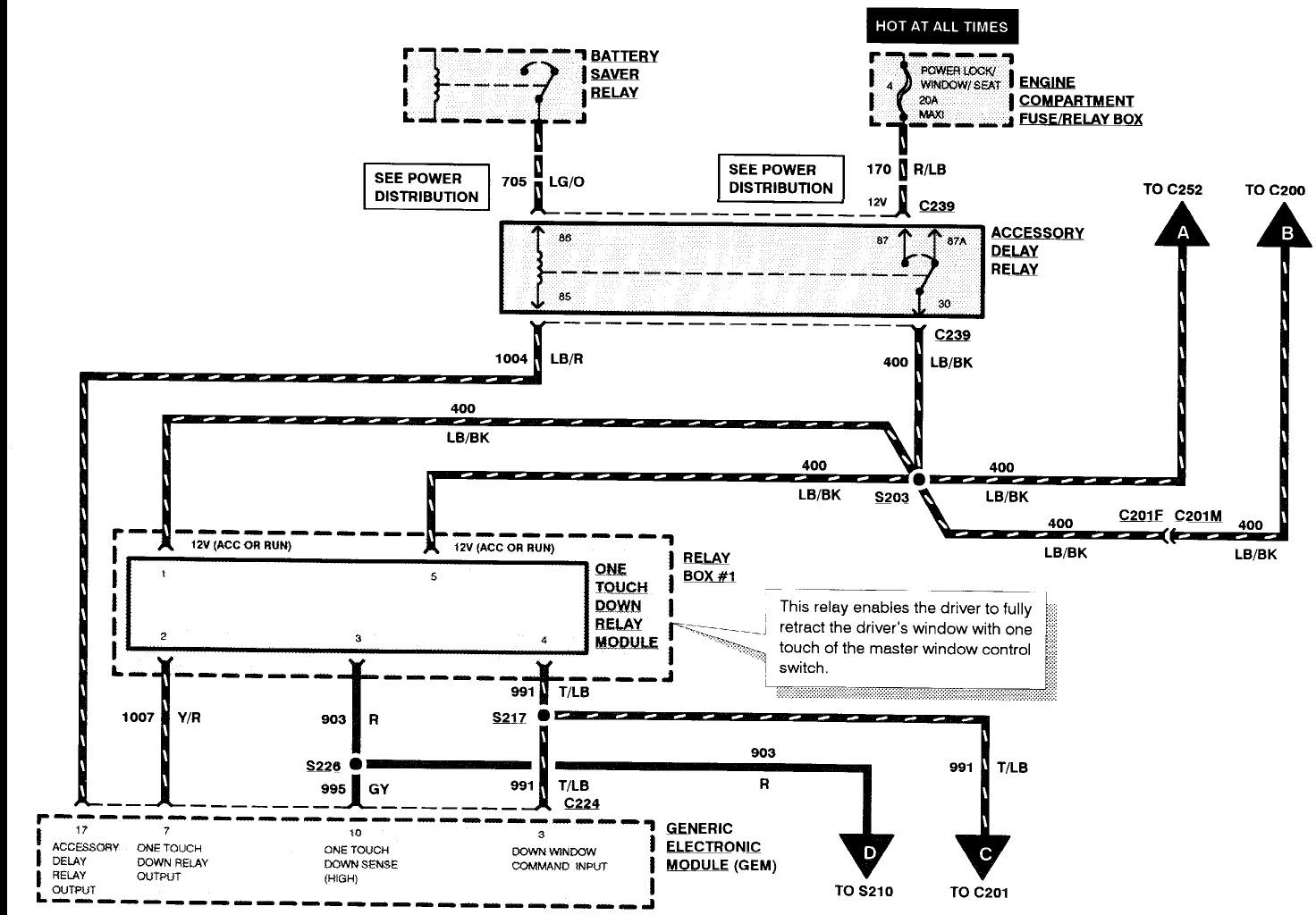

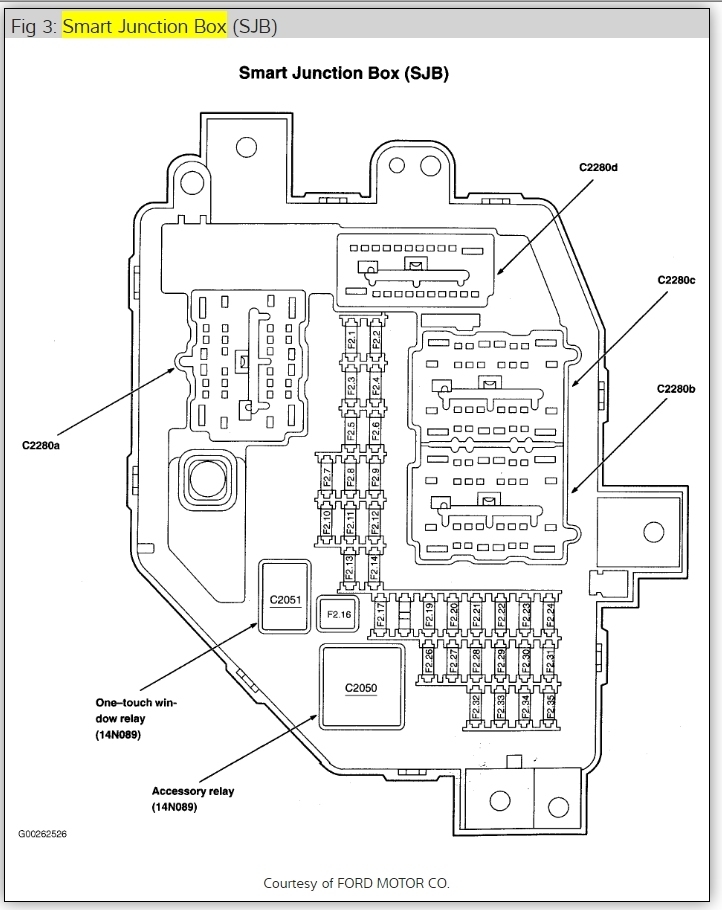

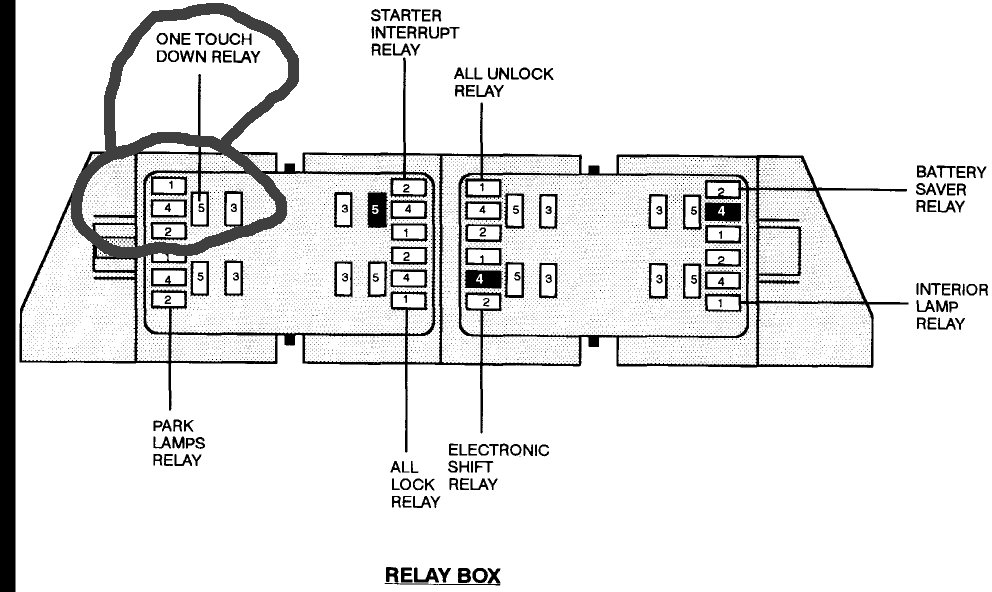

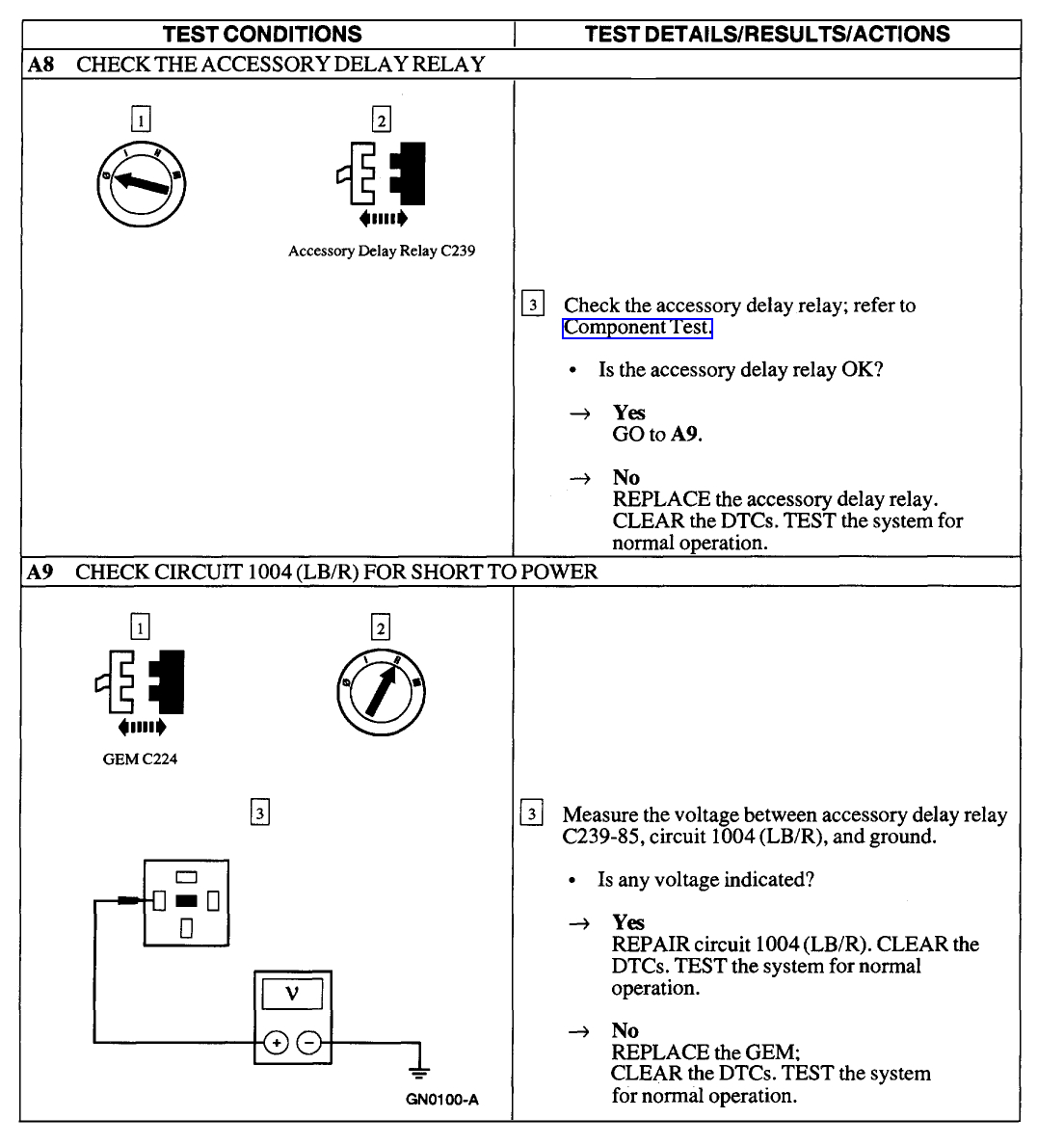

Fuse 4 in the under-hood box is power windows and locks as well as power seats. The under dash box contains only the one touch relay for the windows. The accessory delay relay is the other window related relay. The rest is controlled through the GEM module.
The AD relay is on its own connection not in the relay box.

Awesome thanks so much.

Nice work Steve,

Let us know what happens and please upload pictures or videos of the problem.

Cheers, Ken

i have a 1996 ford ranger with the 2.3l engine and one day the fuel pump went out and so we tested the pump and it was fine we came to find out that it wasnt getting any power so i was wondering if and were the fusible link would be located
thanks joey

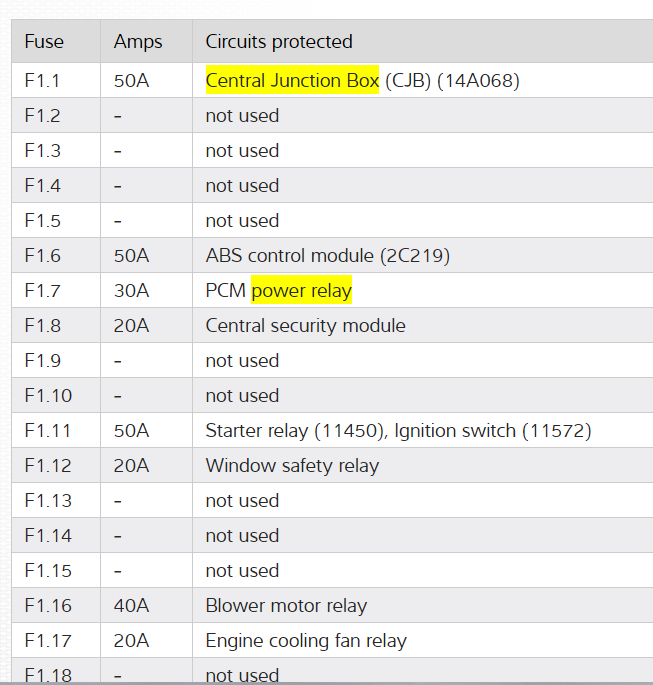

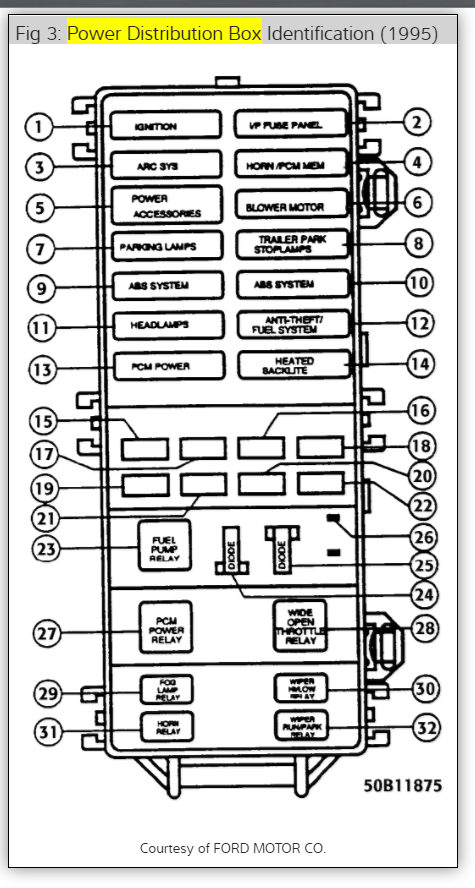

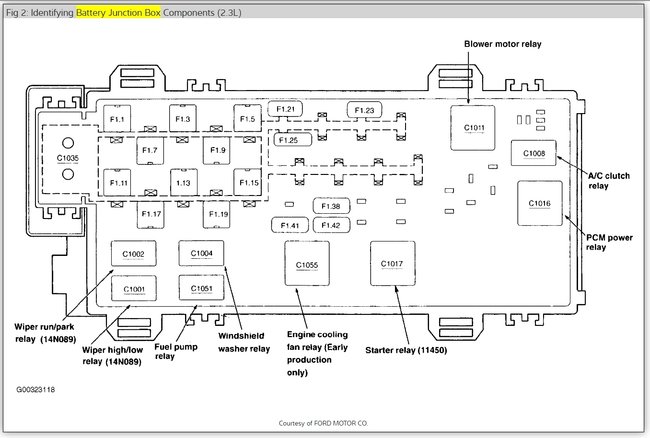

Check fuse 20amp fuel sys/anti theft in engine fuse/relay box, fuel pump relay and PCM power relay-
If it were the fusible link you would have lost power to more than just the fuel pump, it doesn't have its own power feed

Read the guide below on testing relays, it will help

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

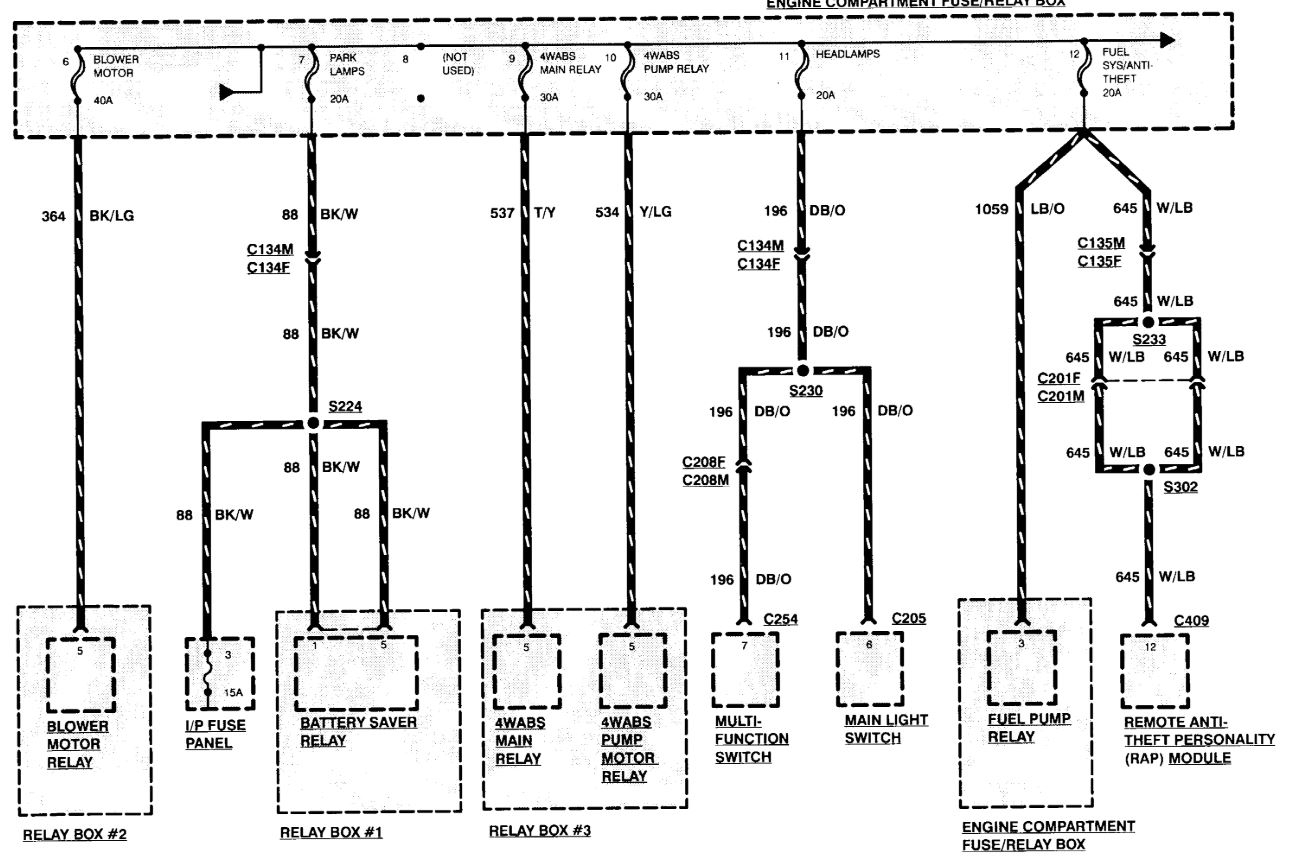

The power distribution wiring is attached below

Can't find fuse diagram guides.

Good evening,

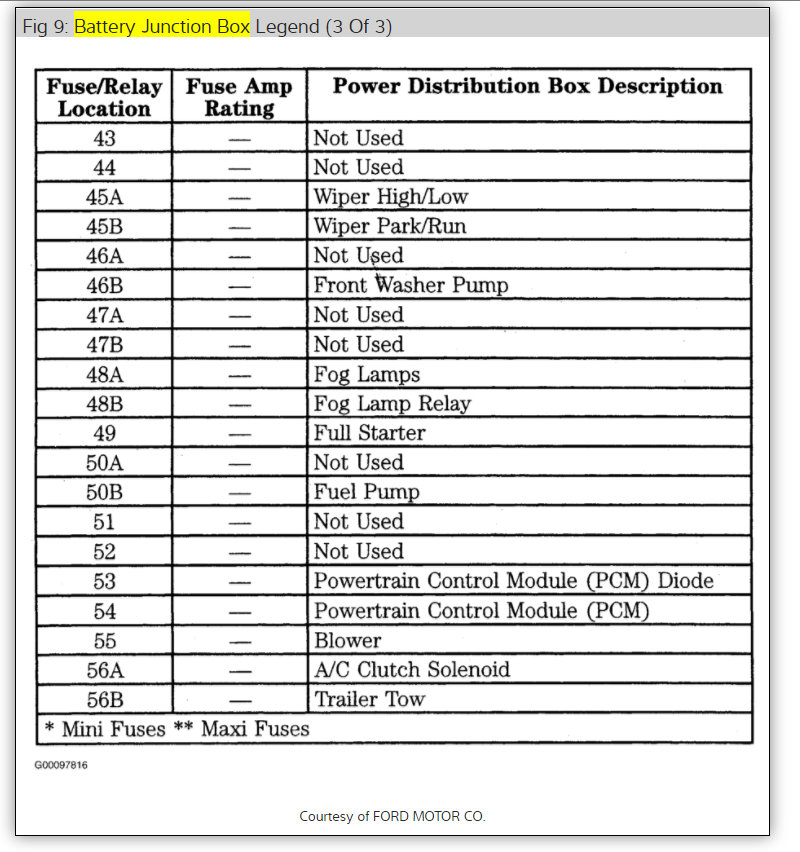

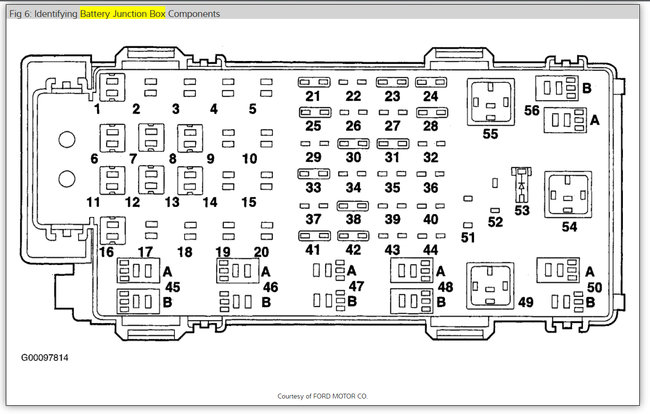

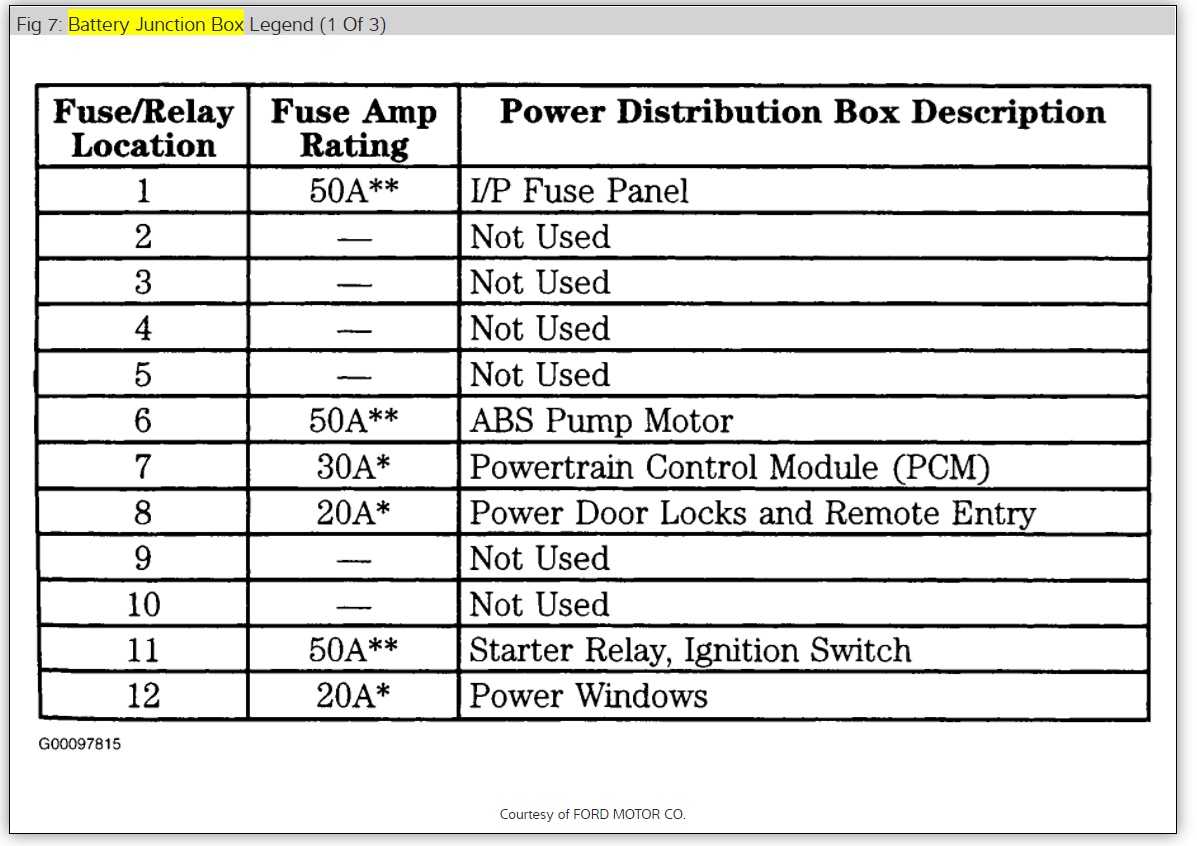

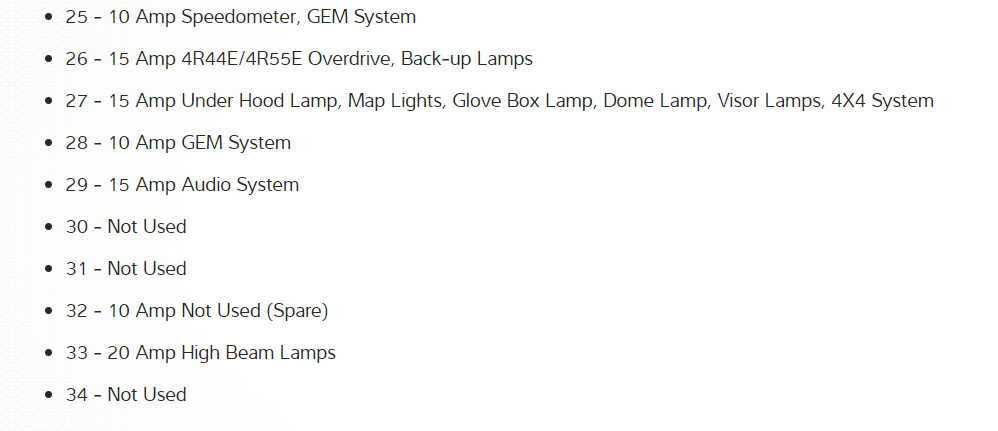

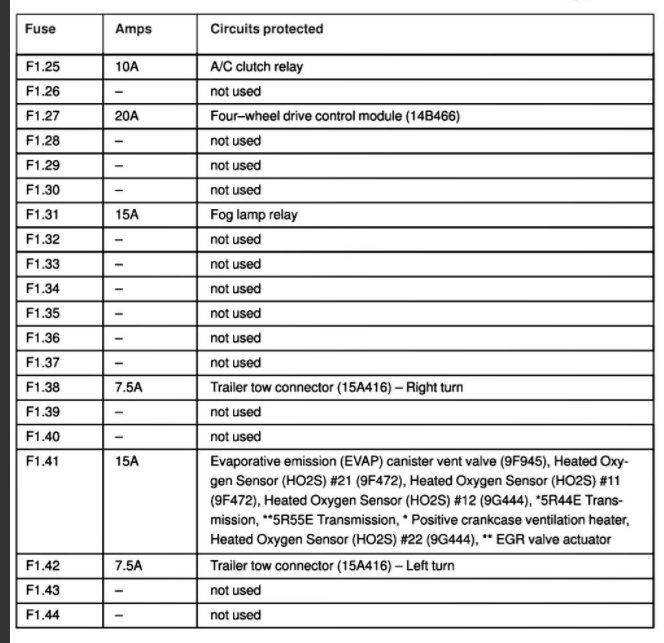

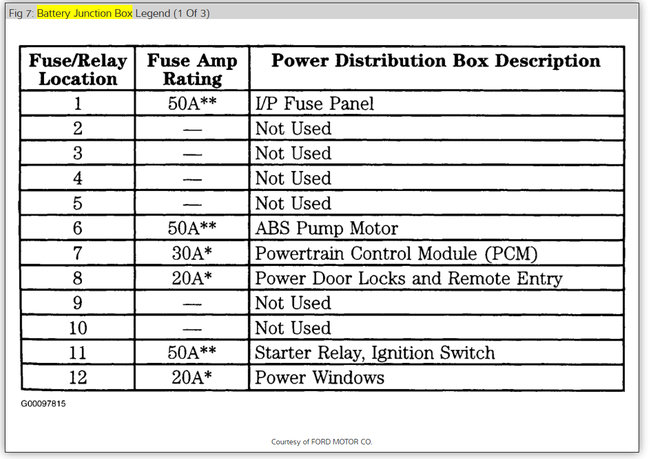

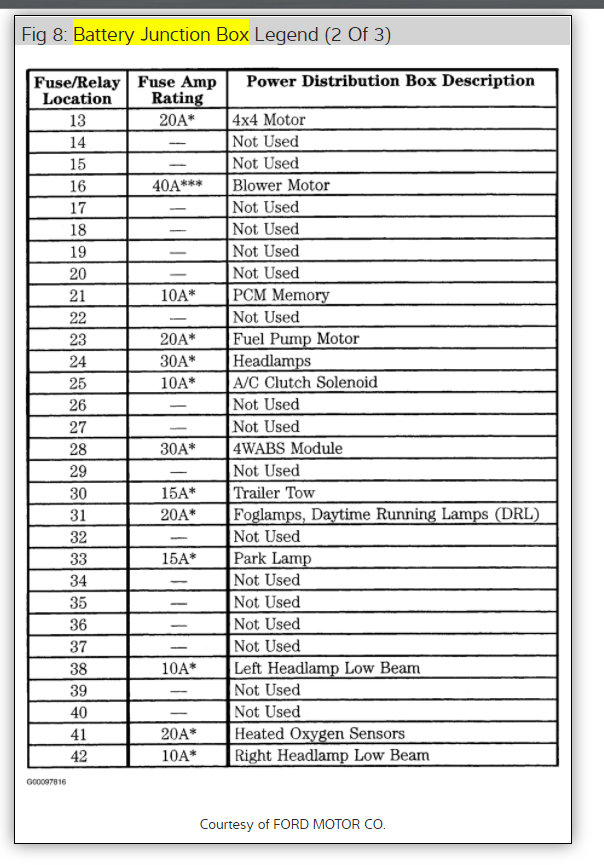

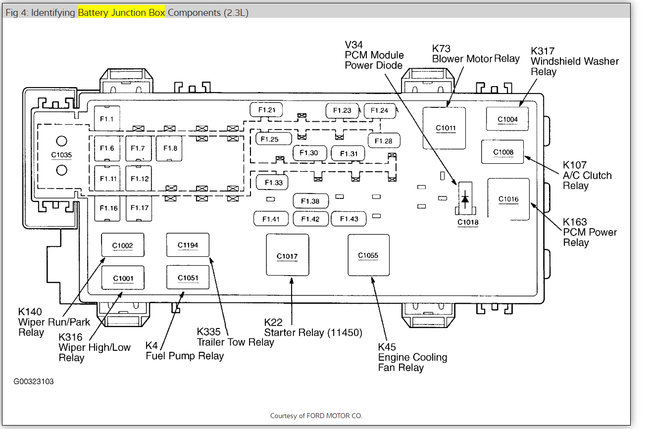

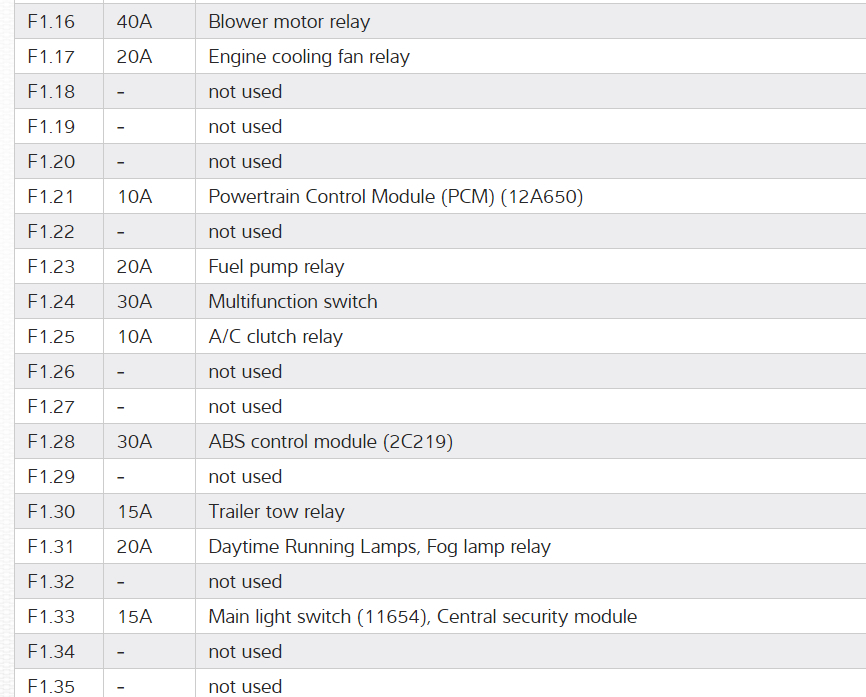

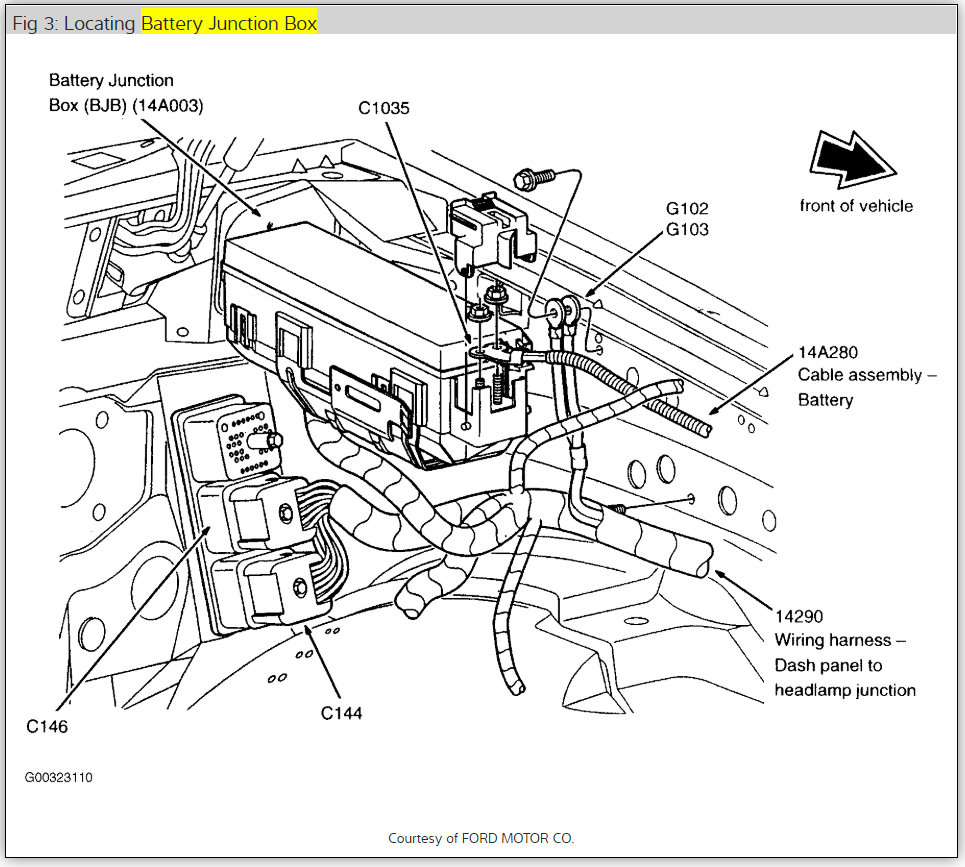

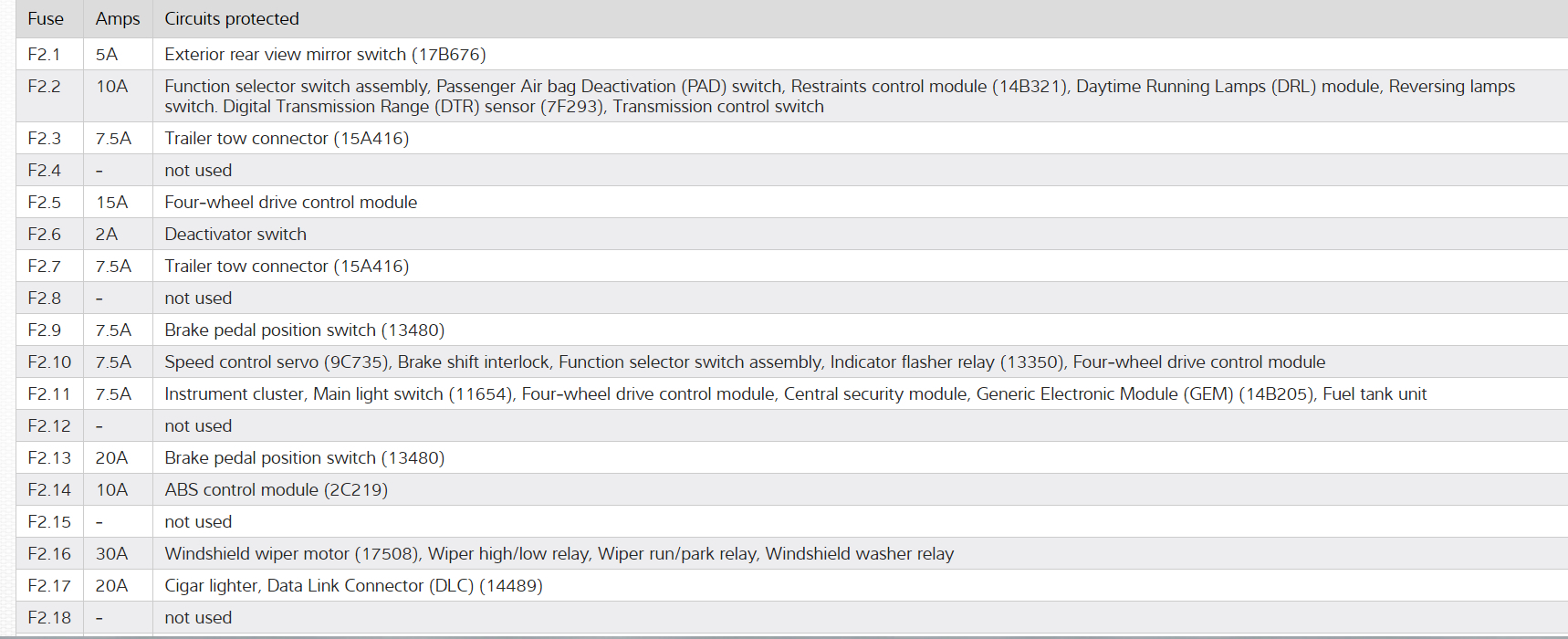

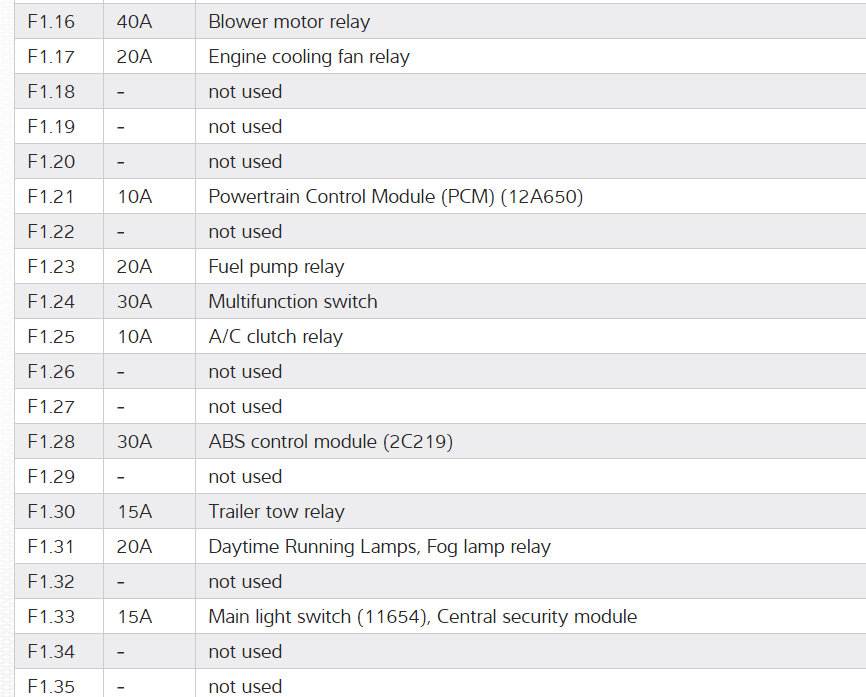

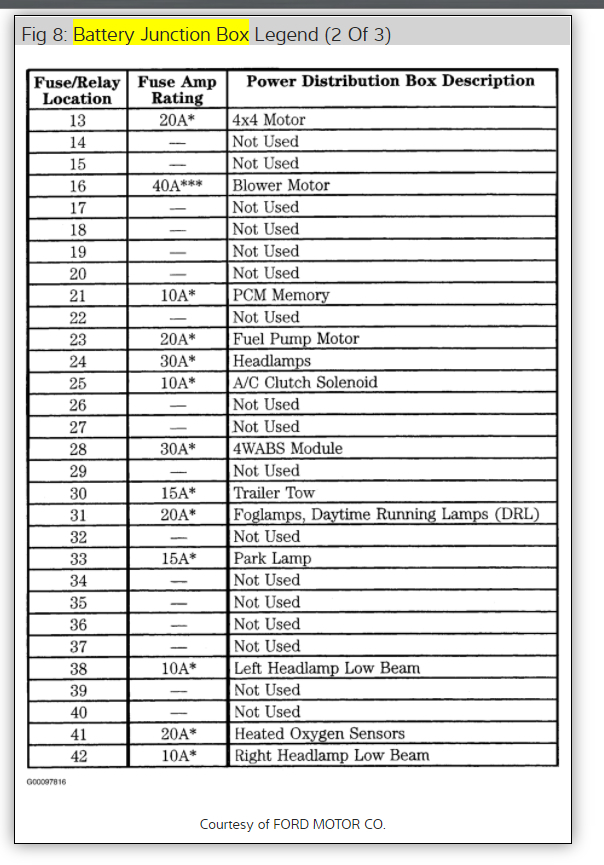

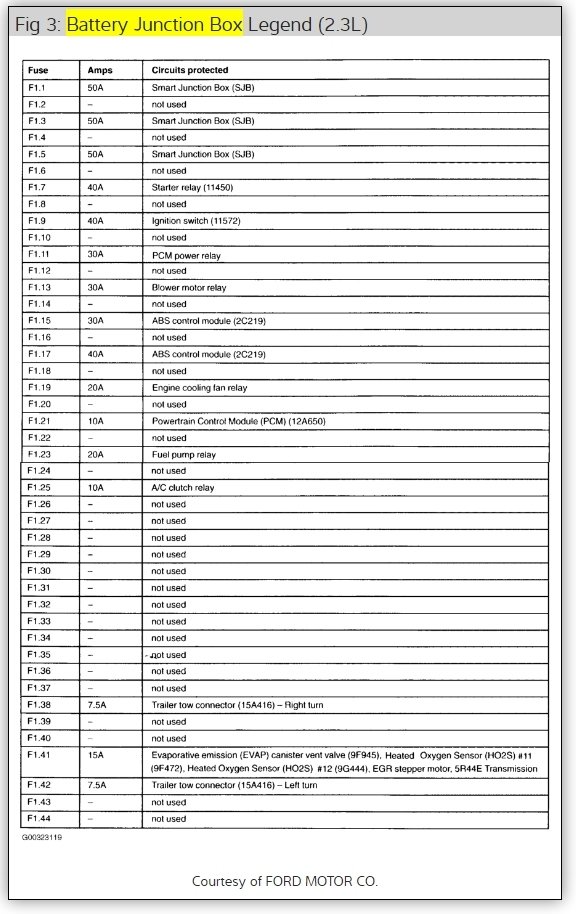

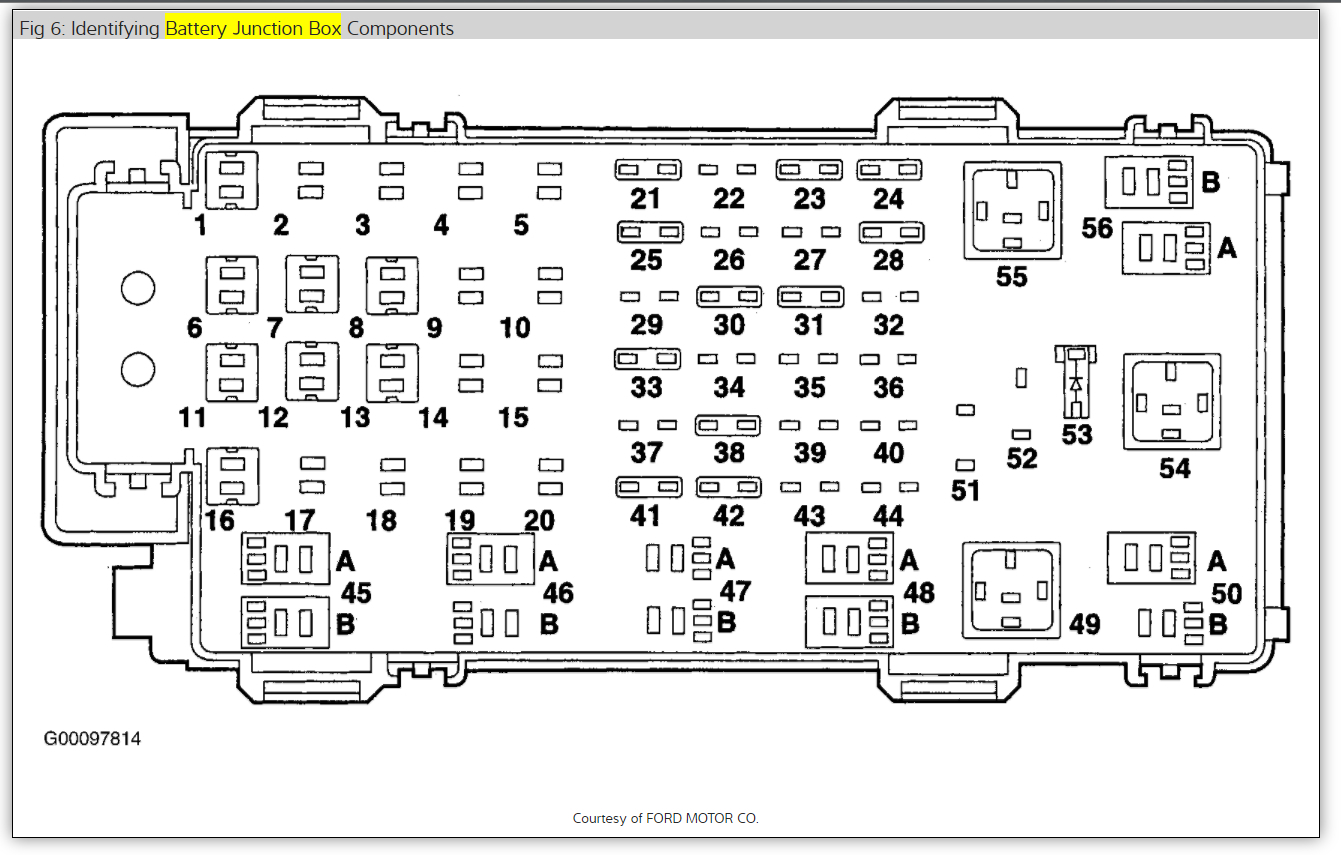

I attached the legend and pictures of both fuse boxes for you. Check out the diagrams (Below). Please let us know what happens. Let me know if you have any other questions.

Roy

I need to identify a fuse that was burned in my truck. I do not have any written information of my truck. This box is under the motor capo, near the battery. could anyone help?

Hello,

Here are two guides that will help you test the fuse and relay for your truck.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

and

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

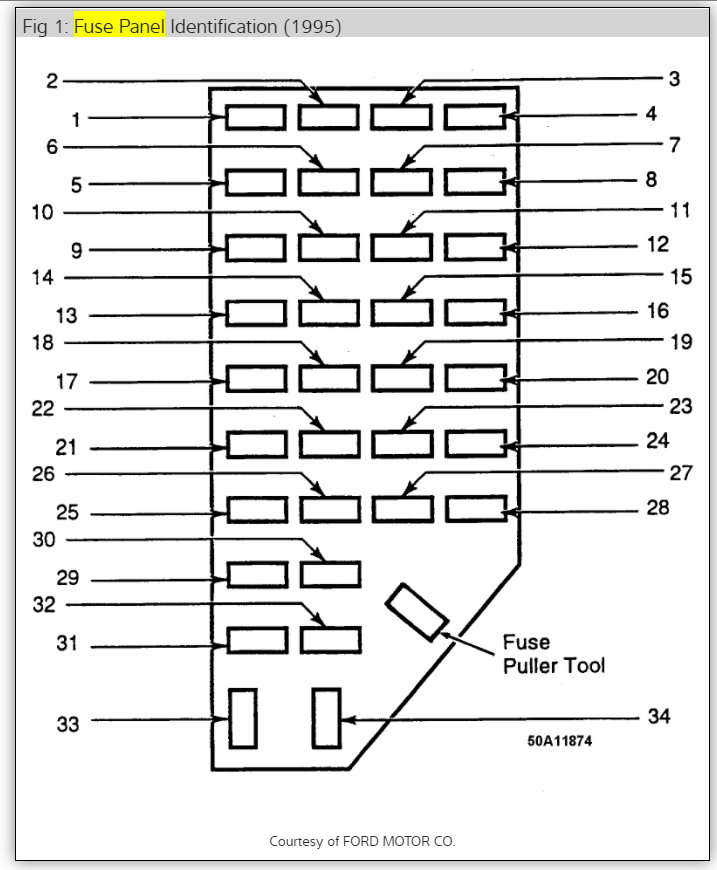

Check out the diagrams (Below) 1995 is the same

Please let us know if you need anything else to get the problem fixed.

Cheers

If I stand near the left tire, on top of the box I see relays in the middle fuses (mini)in bottom fuses ( big) one of it is 60 A capacity. My truck has the power distribution module at the left side.

Thanks for the diagrams worked great I saved this page in my favorites.

I do not have a manual for this truck that I bought used....can someone pls scan one or give me a link to the diagram for the fuse panel for this truck? I am needing to check the fan for the heater/defrost. Thanks so much for your promptness and help.

Hello,

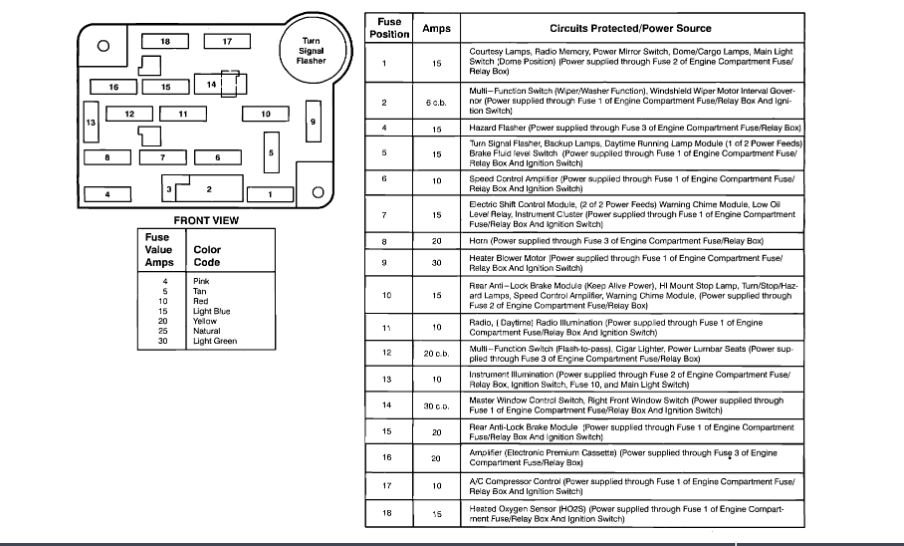

Here is the fuse panel (below) for your truck with a guide to help you check for power.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Seems like these should do it.... Thanks, again. :-)

I've repeatedly attempted to do a Google search for my fuse diagram on my truck and it simply does not pull up the one that I need. it pulls up every other year but mine. I've even looked on manuallib.com and it just gives the size fuse needed for each component but not the diagram. Why wont it just show me a picture with a legend? I am going crazy trying to find this on line. I don't have owners manual. Please help me! Am I doing something wrong? 1988 Ford Ranger 2.3 leader throttle body 2wd.

Hi BKM,

Looks like you only have one panel on the driverside under the dash?

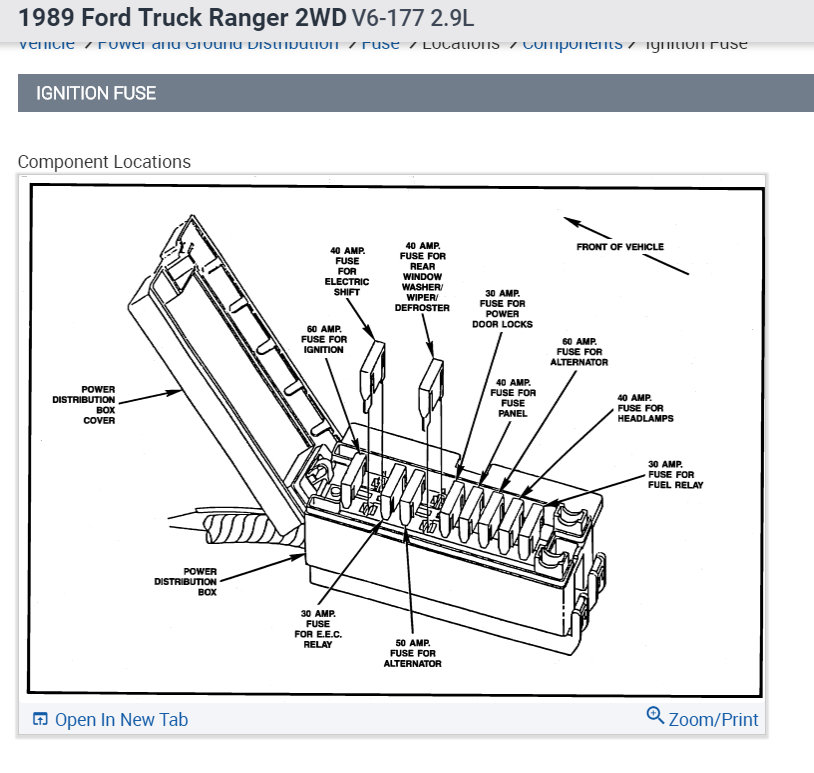

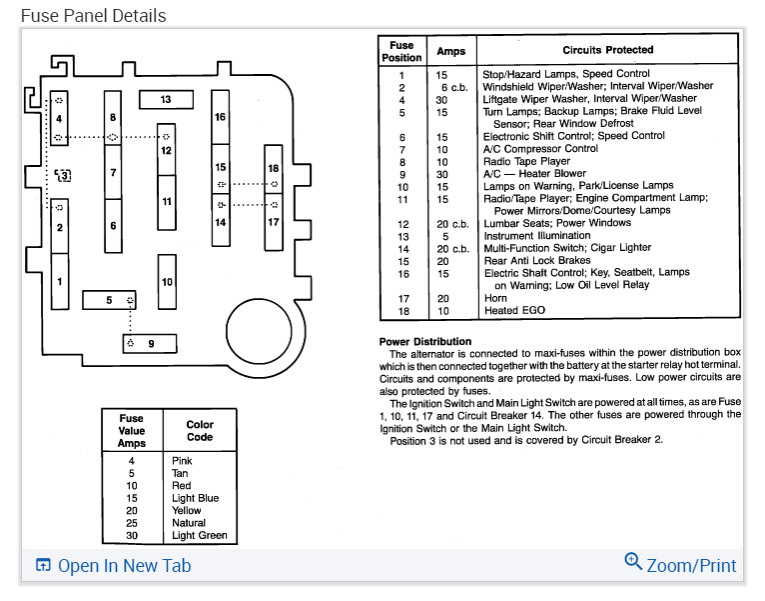

Here is the diagram for it. Let me know if this doesn't look right but it appears it is.

Thank you so much Kenny. This is the correct diagram. Having this fuse box diagram for my Ranger has been extremely helpful. You guys are awesome! I appreciate you at 2carpros.com. Sincerely, Brenda M. Southern Oregon Coast

Thank you so much. Please come back if you have other questions. Thanks for using 2CarPros.

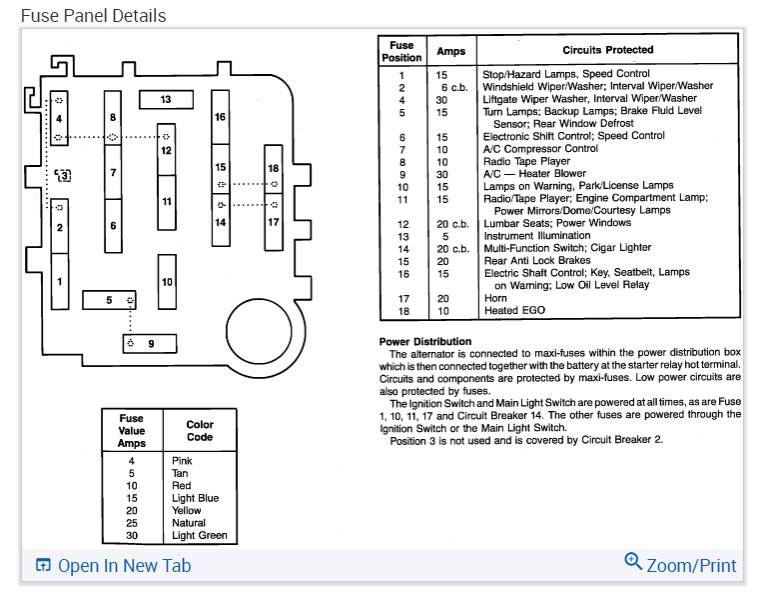

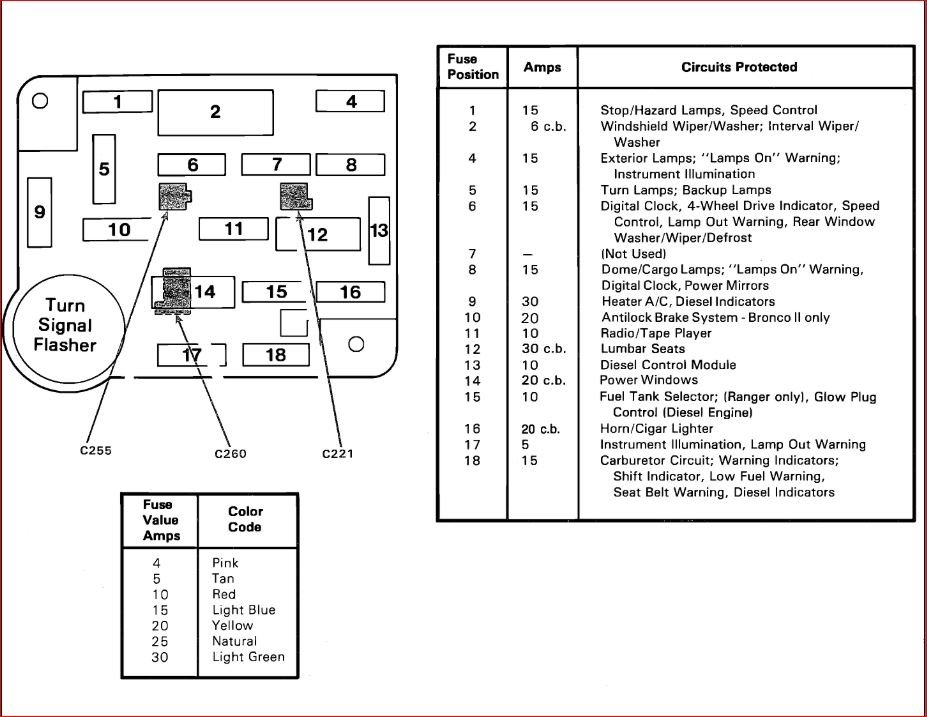

Where can I find a diagram for the fuse box for a 1989 Ford Ranger? I do not have an owner's manual.

Here you go have a nice day

brake light not working, changed bulb, still did not work. Changed fuses in fuse box because the blinkers quit working also. Need diagram to see if I put the right fuses in the correct location.

Fuse 1--15 amp is for stop lamps.
