Oil Sender Unit Location

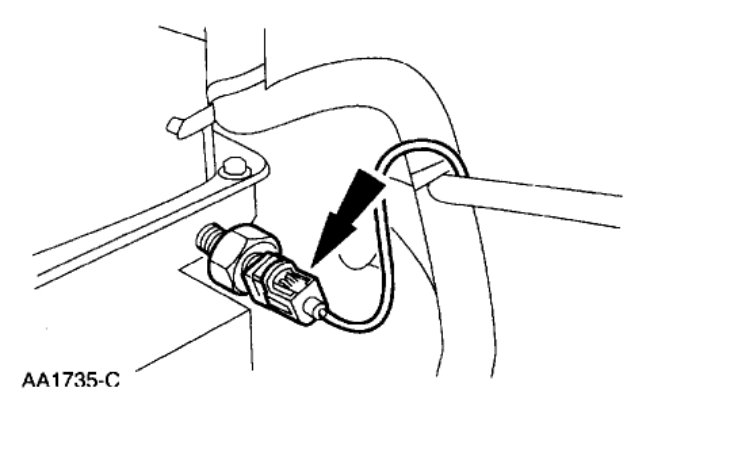

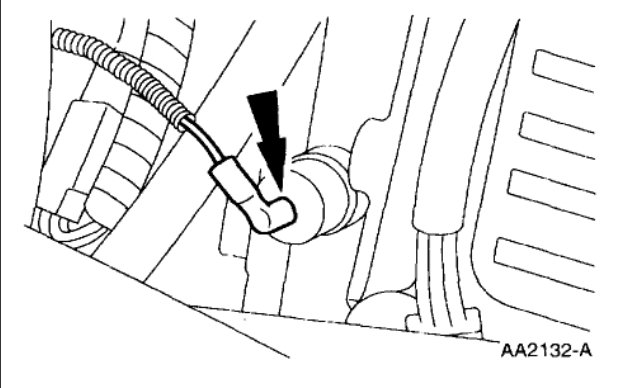

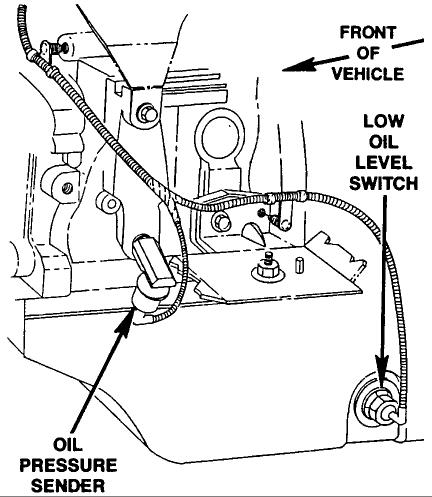

The oil pressure sender is near the oil filter. Here are some diagrams that will show you where the sender is on both 6 and 4 cylinder engines. (below)

Please let us know what happens.

Cheers, Ken

how do you replace a oil pressure sending unit,where is it located ? thanks

3.0L engine its located on right rear of engine

4.0L " " " " lower left front of engine.

Hi I have a 97 ranger splash and now when the truck warms up the oil pressure sensor goes to zero when I let my foot off of the gas but not all the time a couple of people have said that it maybe the oil pick up or the sensor what can I look for and do to test this. thanks

Find the oil pressure switch remove it and hook up a mechanical gauge -if normal replace the switch abnormal could be oil pump/engine bearings/etc-

where is the oil pressure sensor location

Its located on right rear of engine-see below

I need to know where the oil pressure switch is at on the truck listed above. also it's not in the front, where all the diagrams say it is. Also it's a manual transmission if that has anything to do with the location of the oil pressure switch.

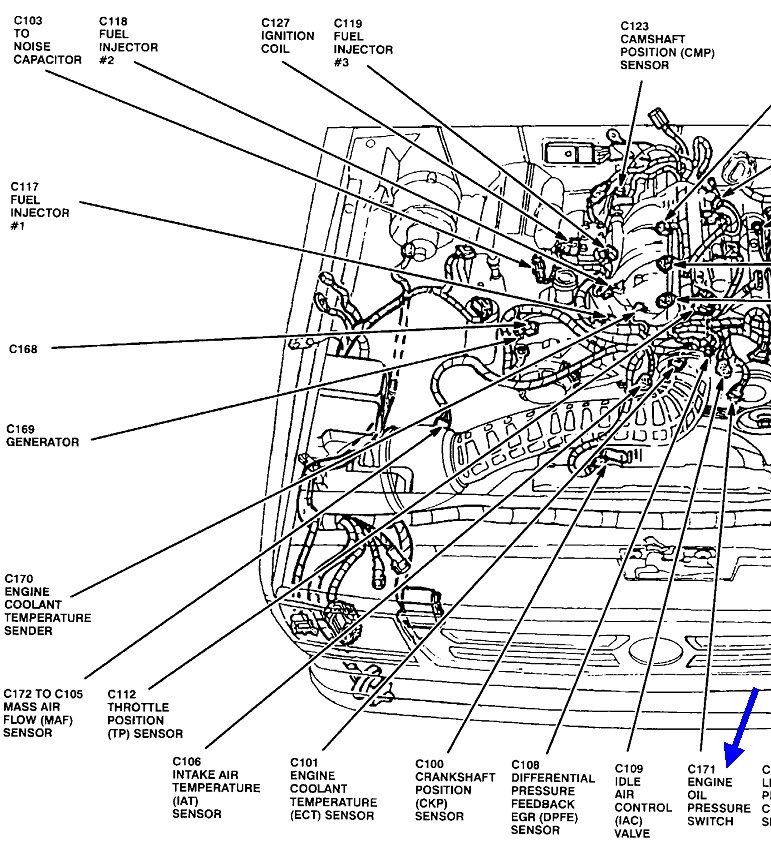

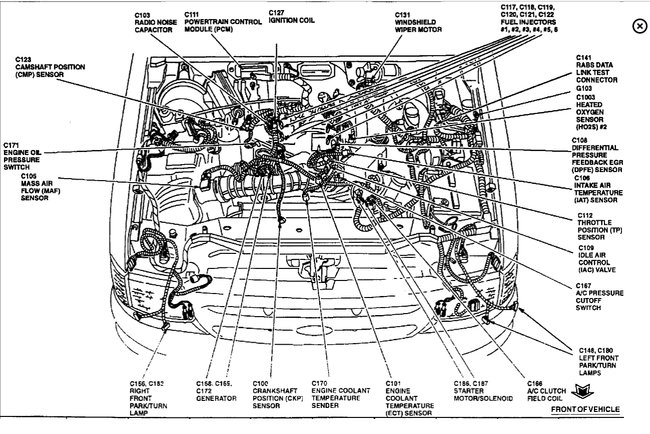

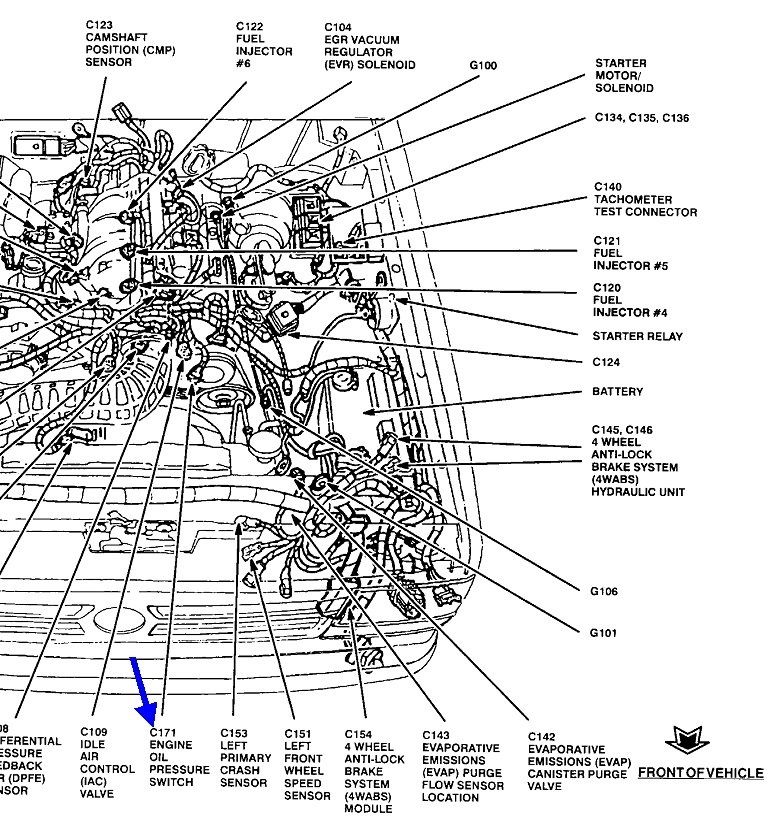

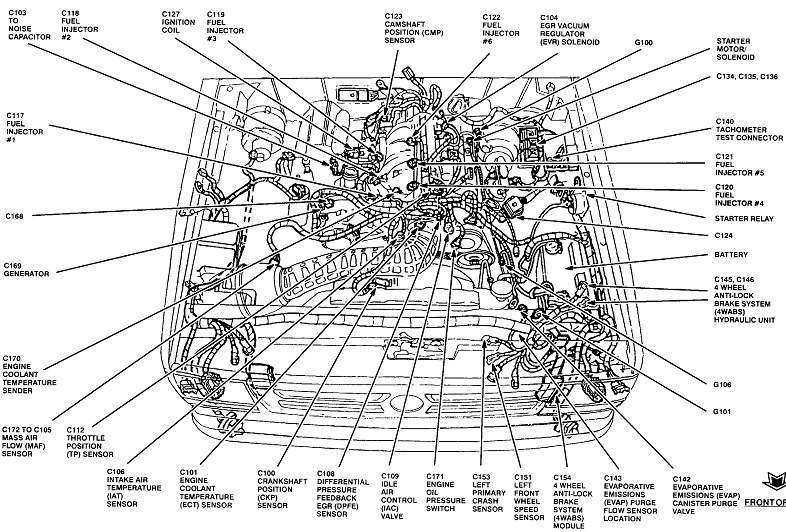

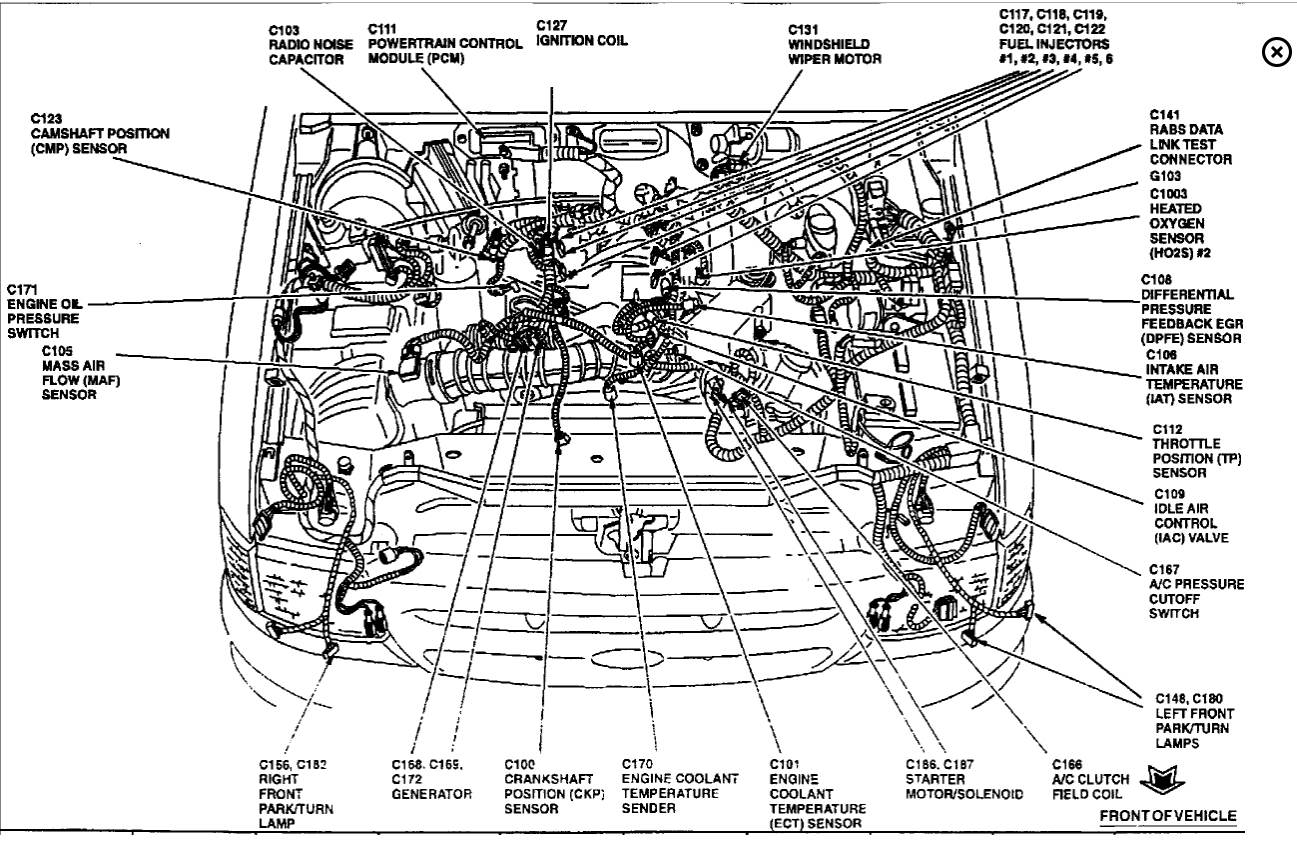

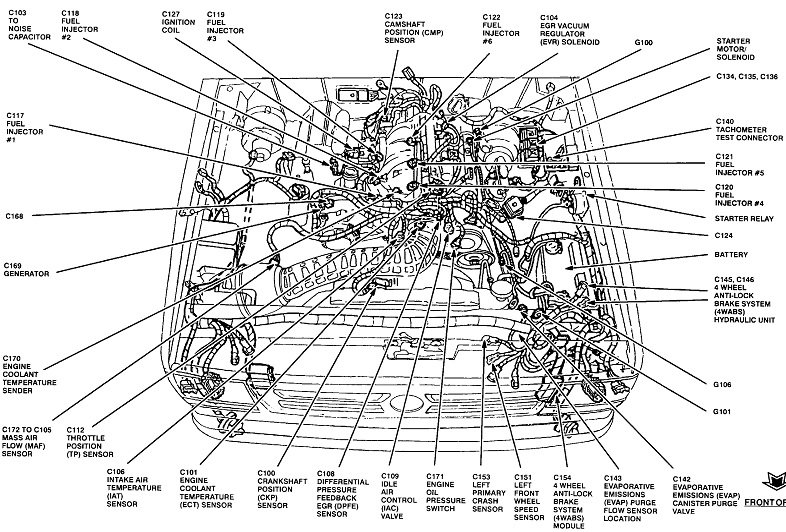

The blue arrows are pointing to it. The first and fourth drawings are the two parts of component layout under the hood. The second and third are just expanded views if the first drawing to make it easier to read.

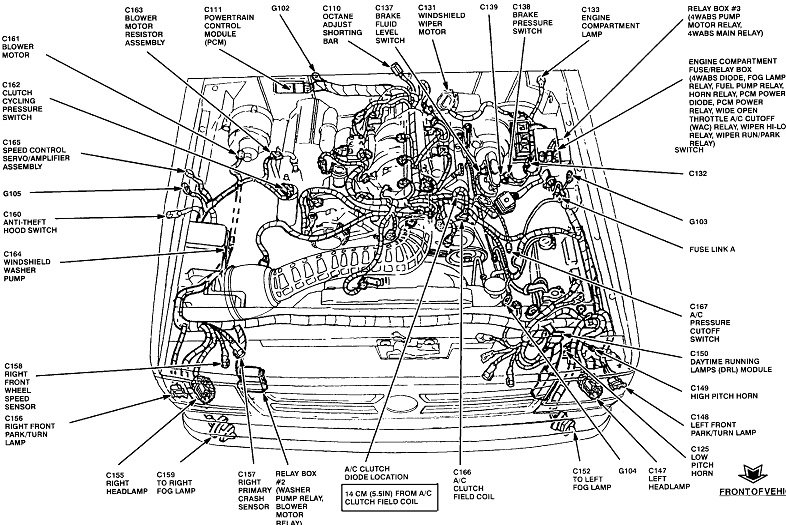

"On the fourth picture where is the oil pressure switch because I think that diagram is the right on but it doesn't label the oil pressure switch.".

The fourth diagram isn't involved with your request. I just included it so you would have everything available for your truck. The sending unit is shown on the first drawing, but it's hard to read. That's why I cut it in half so it could be expanded. That's the second and third drawings, and those are where I added the blue arrows at the bottom.

i have a oil light coming on intermittently would that be the sending unit? and if it is whre is it located at?

look in your owners manual and see if this light is telling you low oil pressure or low oil level

low oil pressure is the sending unit its about the size of your thumb normally located on one of the heads this needs to be monitered closely when the light comes on listen to the engine
if the engine starts clicking that is your oil pump going bad

low oil pressure is a float on the oil pan

i need help with changing oil sending unit i cant find it on the block

Oil pressure switch
3.0L on right rear of engine
4.0 L on lower left front of engine

My truck leaks oil pretty bad causing most of the underside to be covered in oil. I am having a hard time locating the engine oil pressure switch. Any help with this would be appreciated. The more detailed instructions as to its location the better. Thank you

Left side of the engine, near the oil pan.

Engine Mechanical problem
1987 Ford Ranger 4 cyl Two Wheel Drive Manual 211.00 miles

Where is the oil sending unit located? And would that spray oil on the engine & side wall?

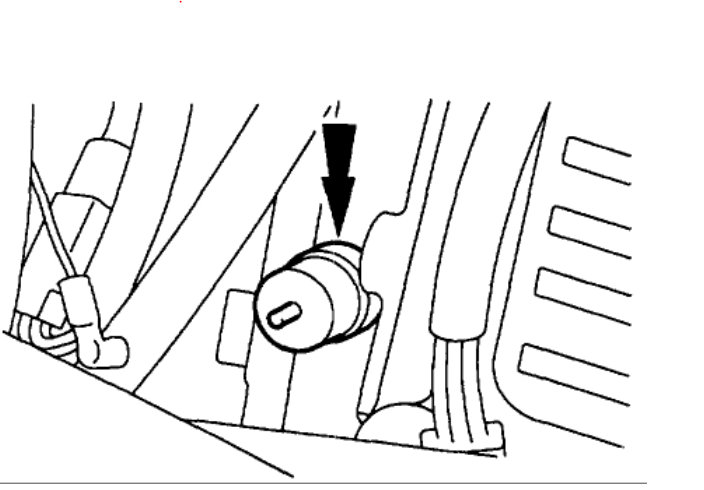

Here is location and yes 40+ psi can spray all over
