Fuse box layout

1999 FORD MUSTANG

JCAVAGRO

MEMBER
4 POSTS
FOLLOW

Both the cigarette lighter (dash) and the power outlet (console) do not work. Neither has voltage to the receptacle. Can someone send me the layout of the fuse box? It is under the dash and would take a contortionist to remove and examine them all.

Thanks,
John

Mar 16, 2009 at 4:06 PM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

Hey John,

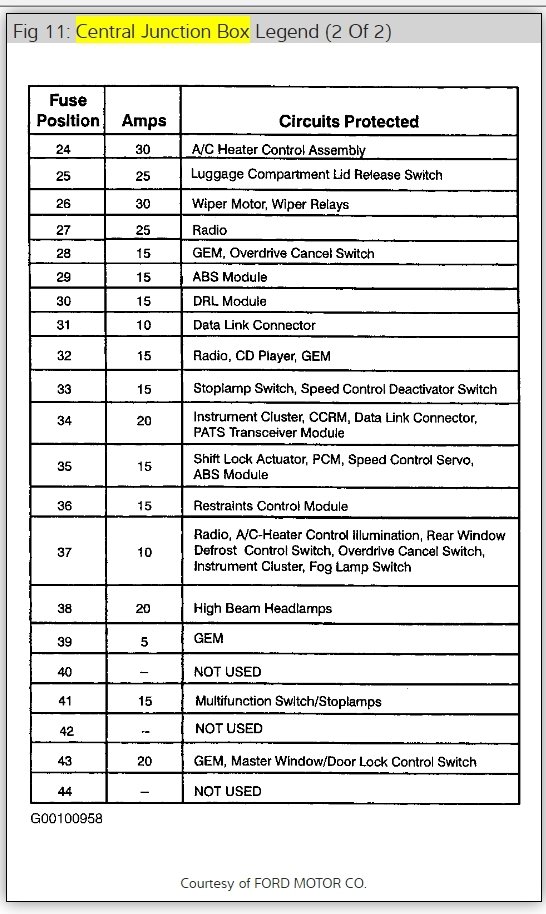

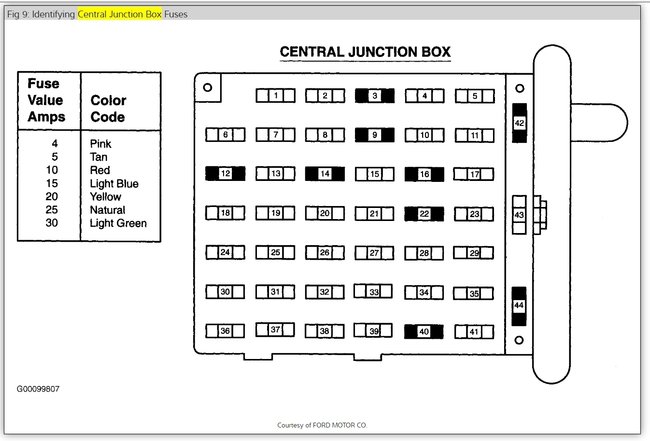

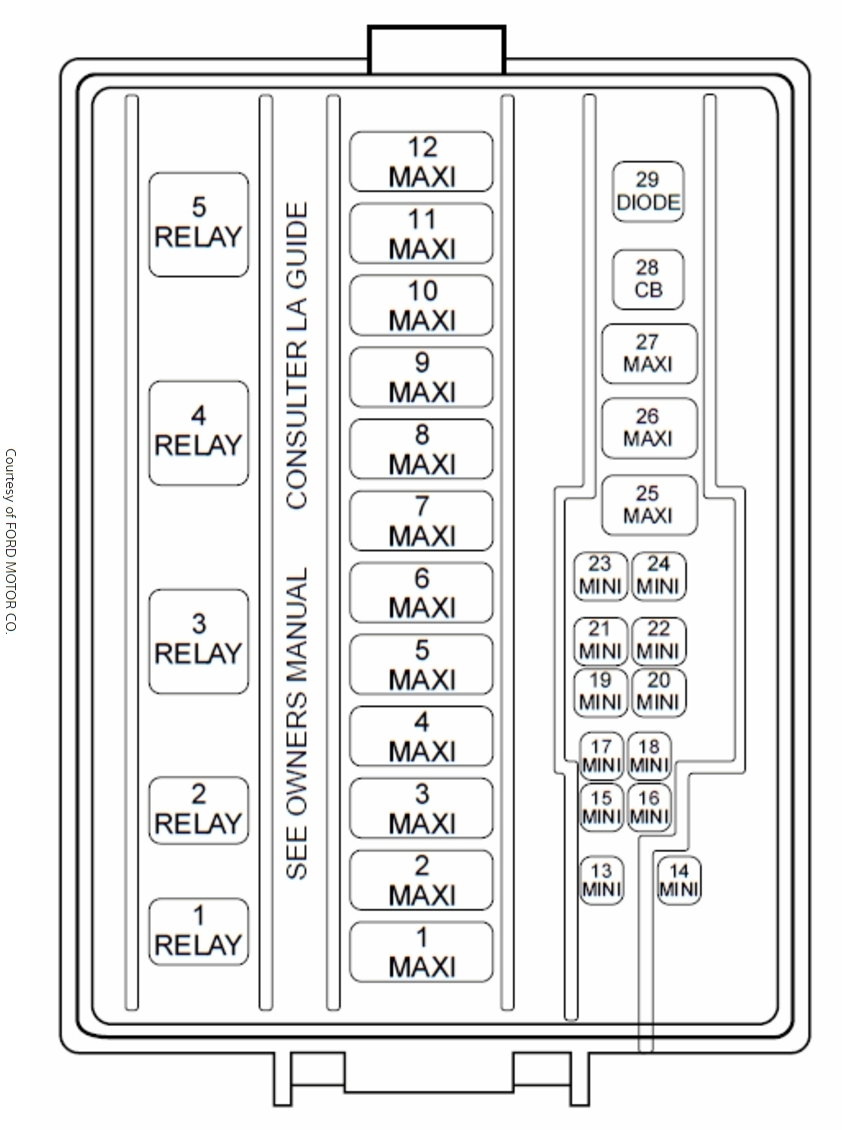

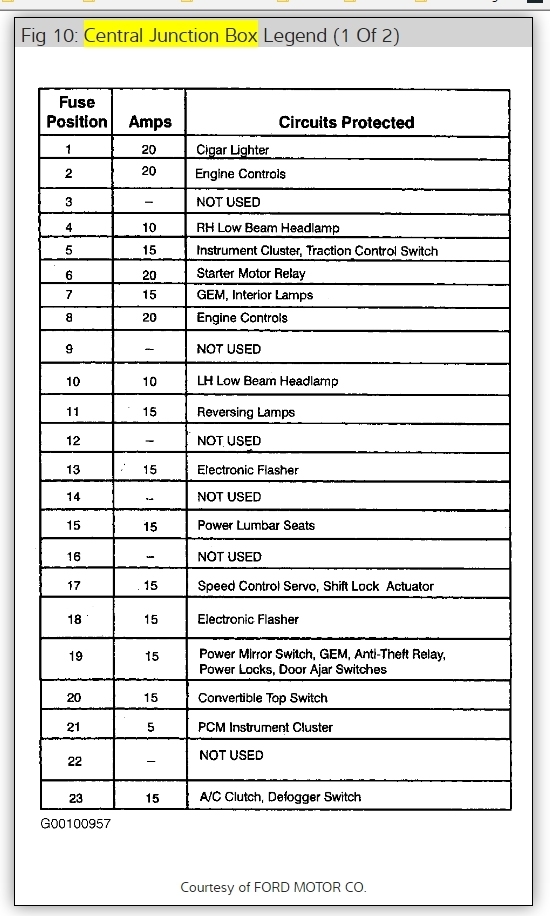

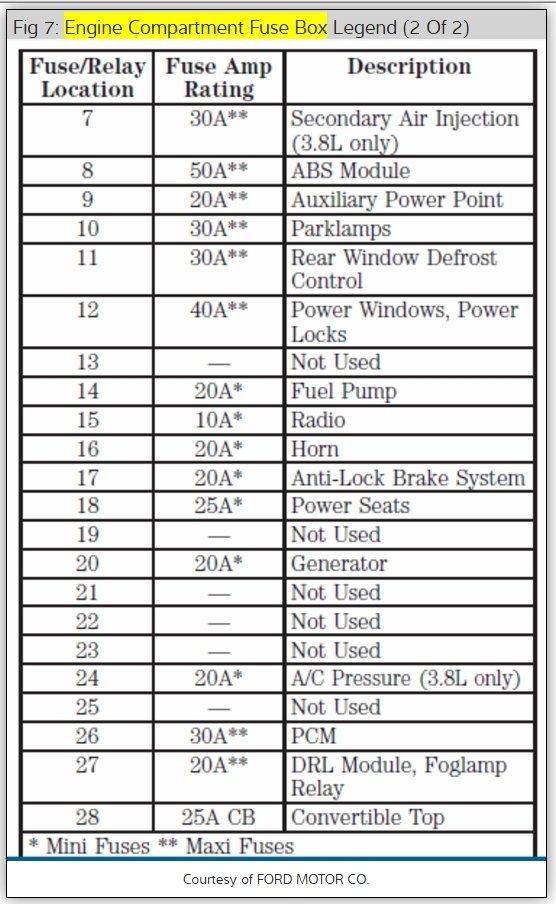

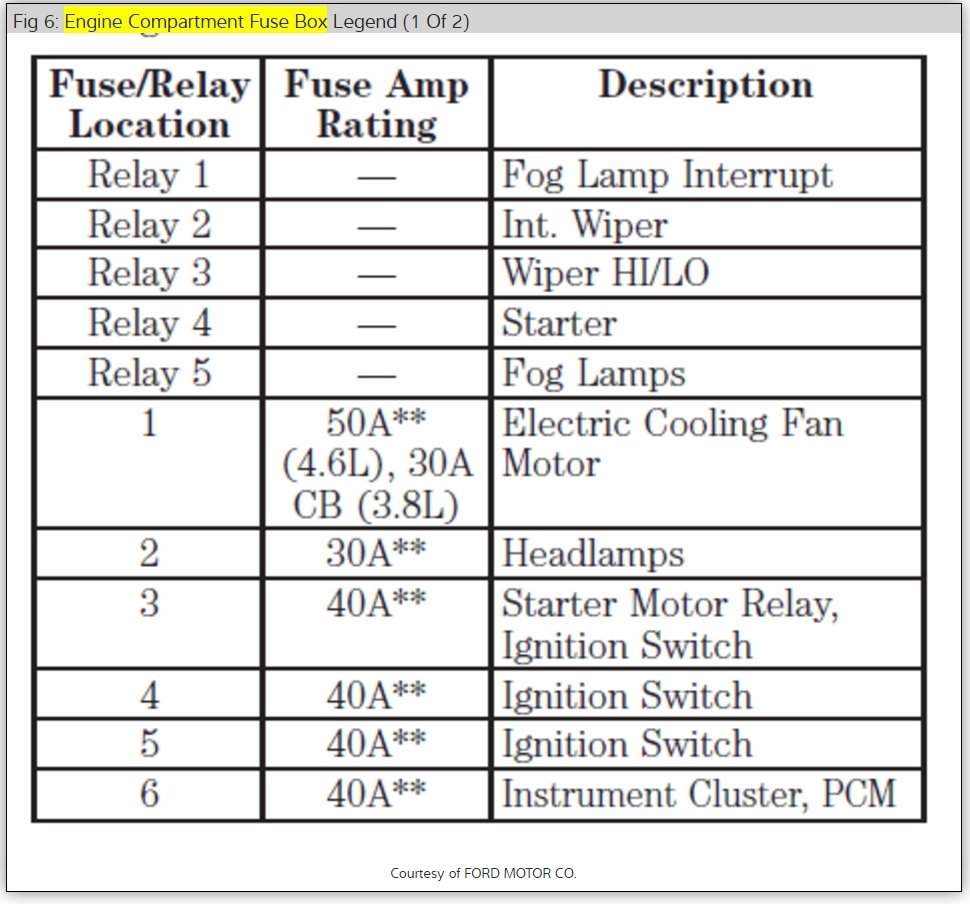

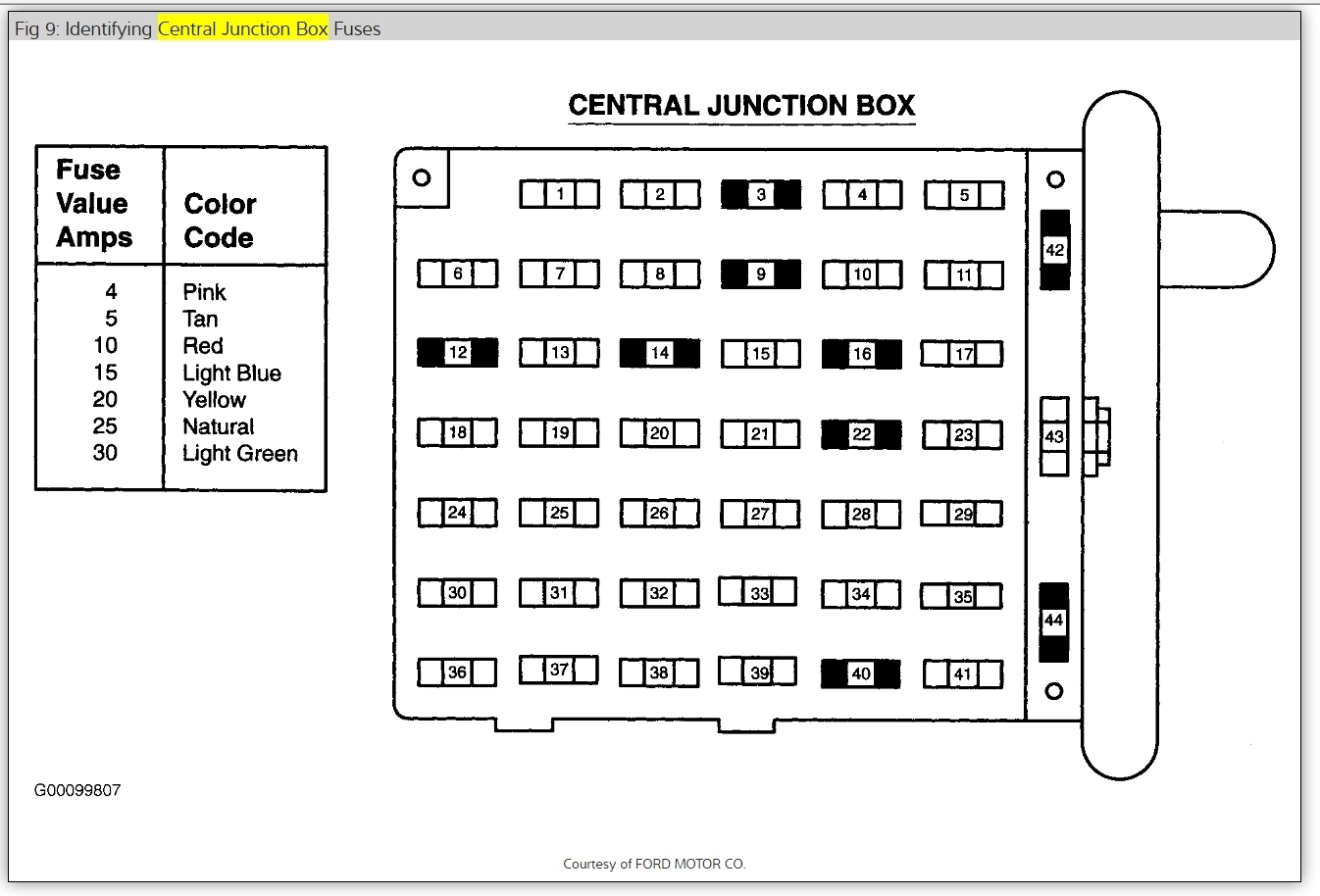

There are two fuse panels one under the hood and the other inside the car. Here are all of the images and legends for both.

Here is a guide to help you check them and the fuse panel diagrams are BELOW

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Please run some tests and get back to us so we can continue helping you.

Best, Ken

Images (Click to enlarge)

Dec 2, 2016 at 10:22 AM
