2005 Ford Freestar heater partially working

There are two sources of air available to the air distribution system:
outside air
recirculated air
Recirculated air is used when the electronic manual temperature control (EMTC) mode selector is set in MAX A/C or OFF, or if the RECIRC button is selected in any mode except DEFROST. If the vehicle is equipped with electronic automatic temperature control (EATC), recirculated air is used in OFF, and is available in all modes except DEFROST.
Air distribution within the vehicle is determined by the EMTC mode selections, or is controlled by the EATC system in the AUTO mode. The air distribution mode on EATC vehicles may be overridden by the driver if desired. Three airflow mode doors are used to direct airflow within the heater core and evaporator core housing and the plenum chamber (18471).
**********Vehicles equipped with dual-zone EMTC and EATC systems use a partitioned plenum chamber, and heater core and evaporator core housing assembly with two separate temperature blend doors. This allows for individual temperature settings to be selected for the RH and LH air outlets. The airflow mode doors are similar for EMTC and EATC systems, therefore the airflow mode for the RH and LH outlets will remain similar in all modes, regardless of the temperature(s) selected.**********

Air enters the passenger compartment from the:
instrument panel A/C registers.
heater outlet floor ducts.
windshield defroster duct.
side window demisters.
Passenger compartment air is exhausted from the vehicle through open windows or body air vents.

Pinpoint Test J: DTC B2266 or B2267: Temperature Blend Door Open/Short to Ground/Temperature Control Is Inoperative/Does Not Operate Correctly
Normal Operation
Under normal operation, to rotate the blend door actuator clockwise, the EMTC module or EATC module supplies voltage to the Blend door actuator motors through the door actuator feed A circuits, and supplies ground through the door actuator feed B circuits. To rotate the blend door actuator counterclockwise, the EMTC module or EATC module reverses the voltage and ground circuits.
The blend door actuator feedback resistors are supplied a ground from the EMTC module or EATC module by the blend door actuator return circuits and a 5-volt reference voltage on the blend door actuator reference circuits. The EMTC module or EATC module reads the voltage on the blend door actuator feedback circuits to determine the blend door actuator position by the position of the actuator feedback resistor wiper arm.
Door actuator feed A circuits
LH Blend - 245 (BN/LG)
RH Blend - 1069 (OG/LB)
Door actuator feed B circuits
LH Blend - 246 (VT)
RH Blend - 660 (YE/LG)
Door actuator return circuits
LH Blend - 438 (RD/WH)
RH Blend - 438 (RD/WH)
Door actuator reference circuits
LH Blend - 436 (RD/LG)
RH Blend - 436 (RD/LG)
Door actuator feedback circuits
LH Blend - 437 (YE/LG)
RH Blend - 435 (YE/LB)
Possible Causes
An open, short to voltage, ground or together in door actuator open, close, return, reference or feedback circuits.
Blend door actuator motor.
EATC module.
EMTC module.
Stuck or bound linkage or door.

I have opened the case and all of the drive gears seem to be intact. Is there a way to check the Blend door actuator electrical circuits or is it strictly remove and replace?

You would need the body codes to find the correct pinpoint test for that particular circuit.They are a common problem, usually you can see the motor spindle turn if it is working.

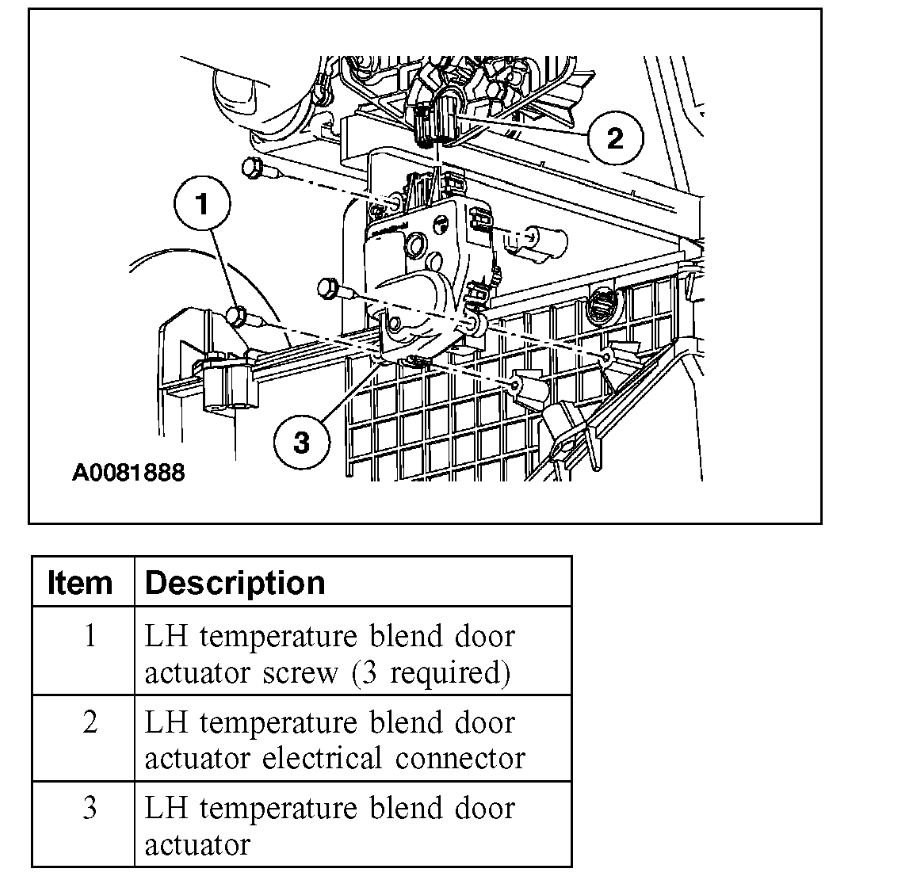

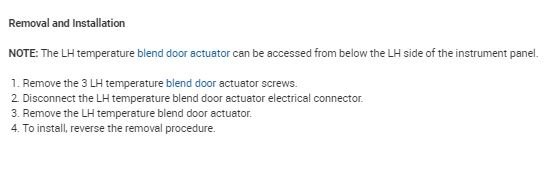

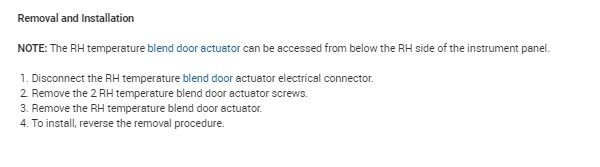

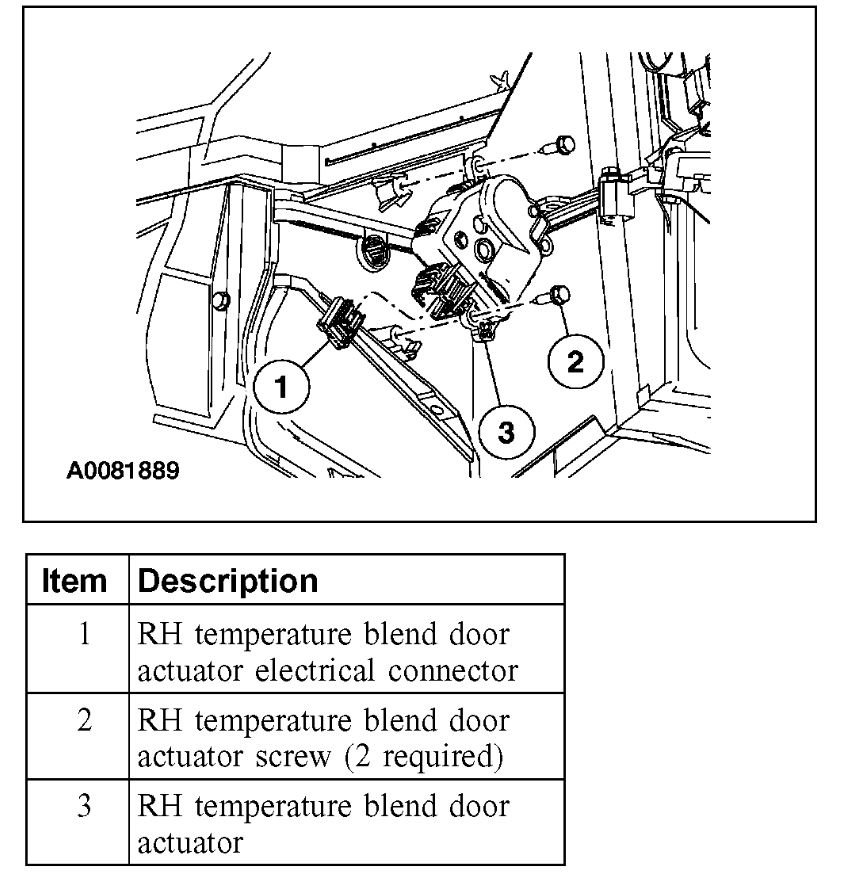

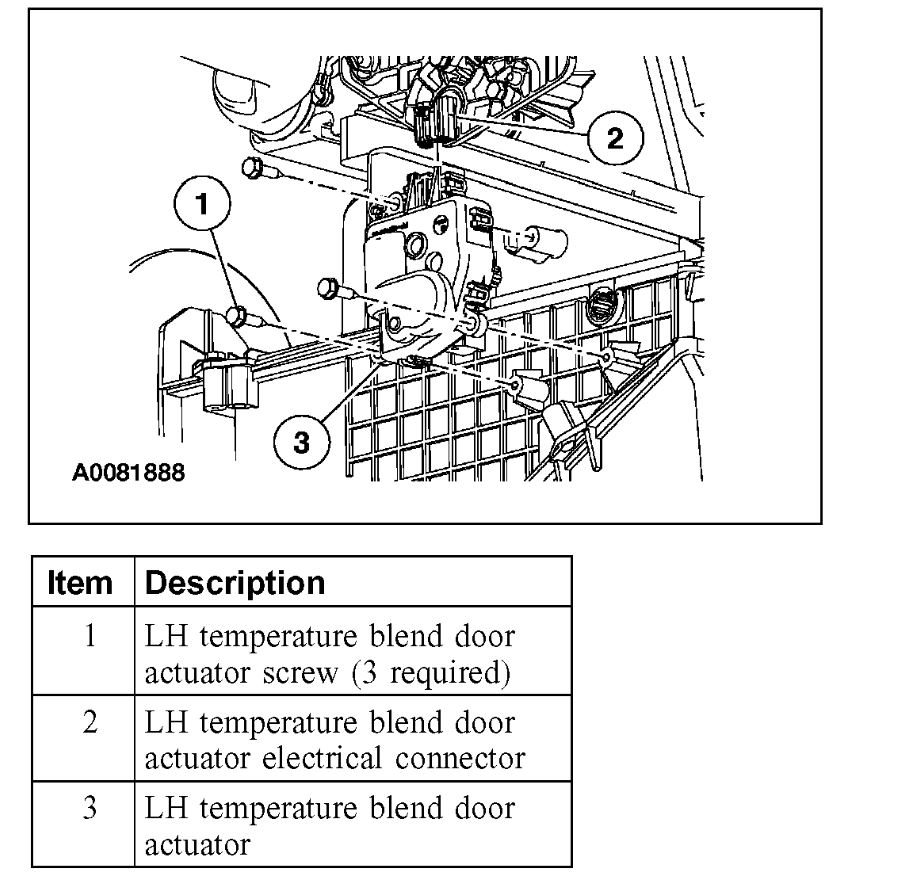

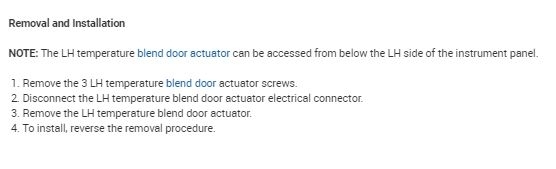

The instructions for replacement of both RH and LH are attached below

I think i know what it is but not to sure. Do not want to buy something if i do not have to. I think i need a blend door actuator. For the driver side. My problem is, it gets some what colder when you driver down the road. But when you stop it gets warm. If it is not the blend door actuator what is it, and how do you do it? Also, what is the part number? They have so many kinds in this van.

Hello,

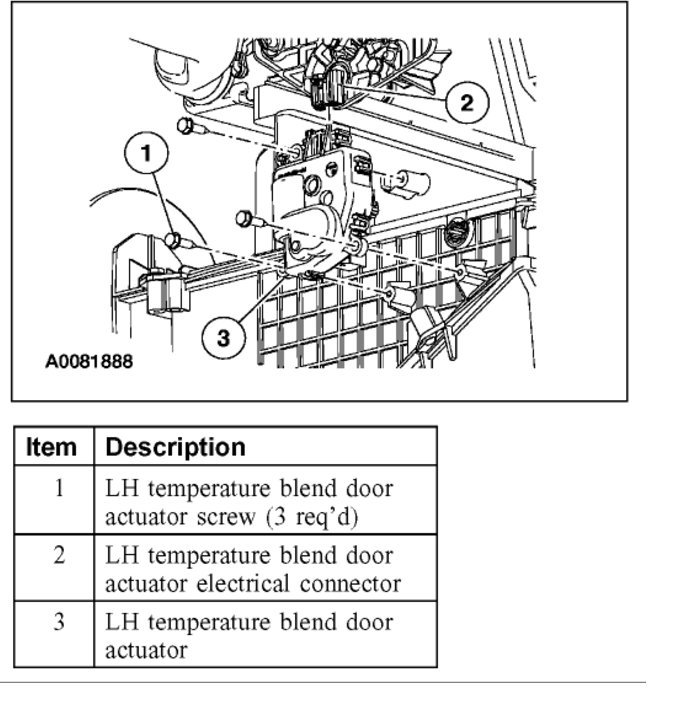

Yes you are right, it sounds like the blend door actuator is bad and and needs replacement. Here is a guide and some diagrams (below) of what you are in for when changing the actuator.

https://www.2carpros.com/articles/replace-blend-door-motor

Please let us know what happens.

Cheers, Ken

My air condition in my car blow cold on right but only warm on the left what the problem?

If you have dual climate control, check to make sure the blend air doors are working. They are near the heater core and are responsible for the air temp entering the vehicle. It sounds like one is stuck or has a bad actuator.

heat is working on passenger side vents only. All driver side vents (de-fog, front panel and floor) only blowing out cool air. Also, air on driver side vents (cool air) is blowing out harder than passenger side.

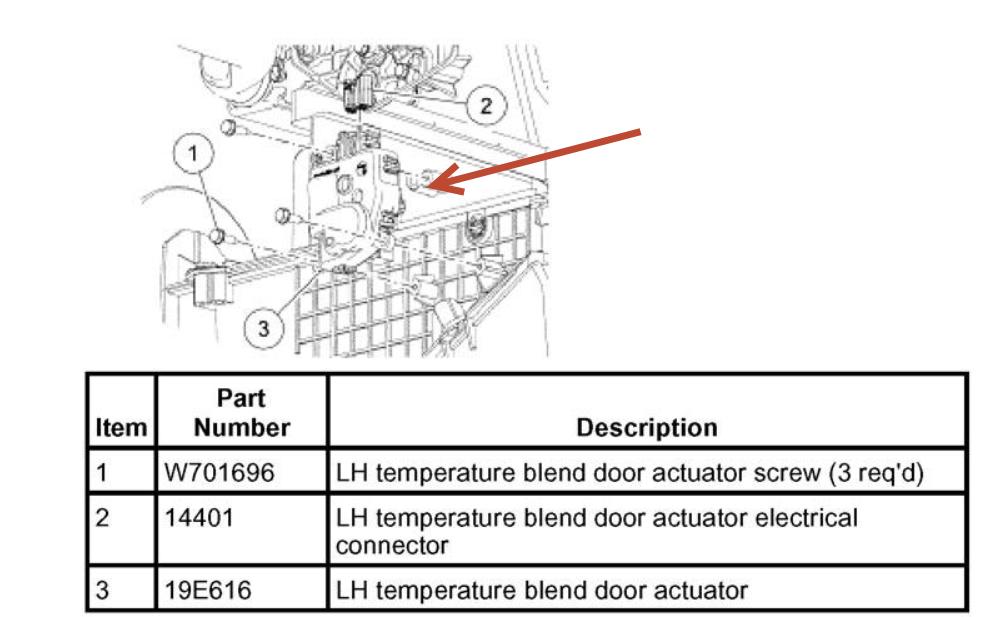

try pulling hvac fuse for 60 seconds with key on sometimes actuators reset otherwiwse see if actuator in pic is getting power and not working.

Thx,much appreciated

Are left and right heater blend door actuators identical, and if so what is the part number?

no, they are different.

you can call the dealer for the part numbers.

Roy
