Stereo wiring

Hello,

Here are the full radio wiring diagrams for each radio that came in that tuck and a guide to help you test the connections with a video of the radio being installed:

https://www.2carpros.com/articles/how-to-check-wiring

and

https://youtu.be/jF_sDSS0n7I

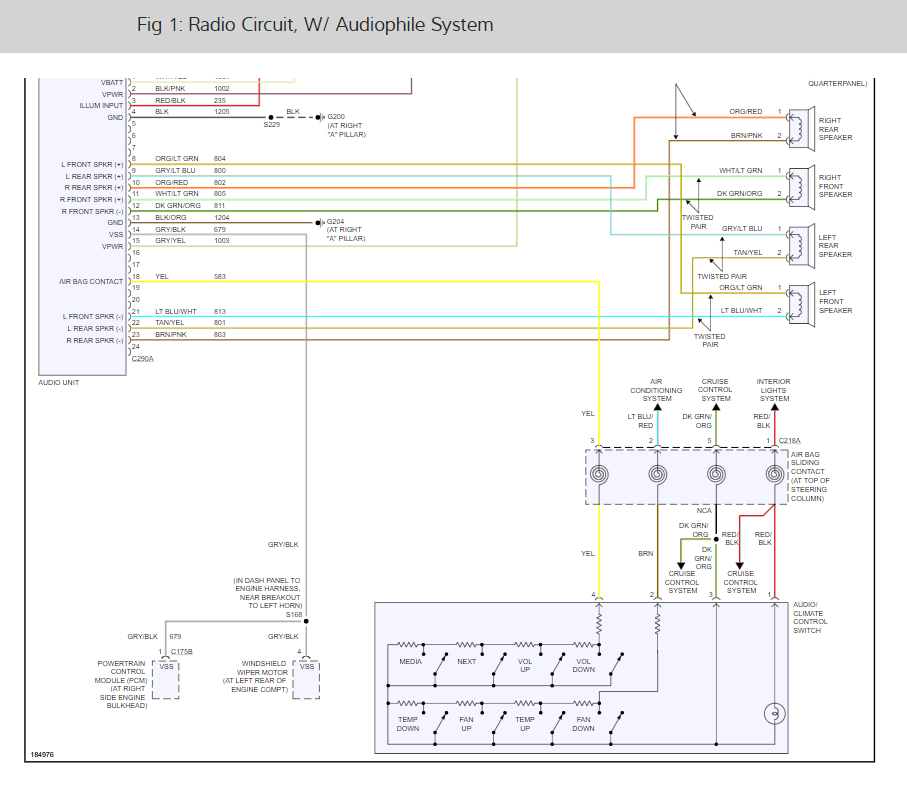

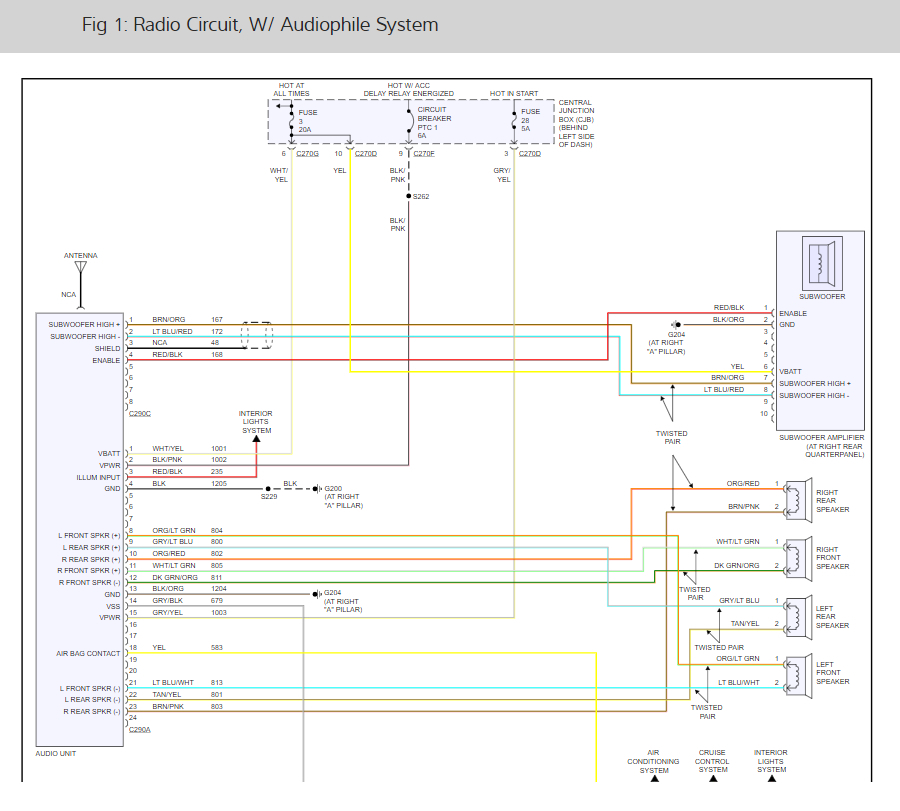

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Thanks. That is the best diagram I have seen yet, but I still cannot find that battery constant. I even tested the remaining wires with a multi-meter with the key out and still no luck. So I was wondering if I could use a bit of heavier wire straight from the positive side of the battery back through the firewall?

So you do not have that color wire? Has the stock radio wire harness been cut before or something?

They are all there, but I can only find twelve volts coming from the black with pink stripe wire with the key on.

Try hooking your yellow wire to the trucks cigar lighter. That should work. Your stock radio may not have been wired to remain on with key off.

Will I still have use of that lighter socket?

Yes, I could still check the the time on it and set the clock and my presets would remain.

Okay, just wondering because my truck does not work if I remove key.

Anyways, yes do not remove the wire from the lighter, just splice into it and the lighter will still work fine.

Thanks appreciate the help.

I have a 2001 F150 XLT super crew cab. Trying to find the ground wire for after market FM mp3 stereo. Diagram I found on line says the ground wire is black/light green but there are two wires that match the color. Do I wire both blacks for my ground wire on the radio?

Hey HENRY,

Yes, you can use either ground wire will work.

Please let us know happens so it will help others.

Best, Ken

The colors are black/purple, green/black, black, black/green, blue/dark blue.

Do you have the base radio or the premium sound radio?

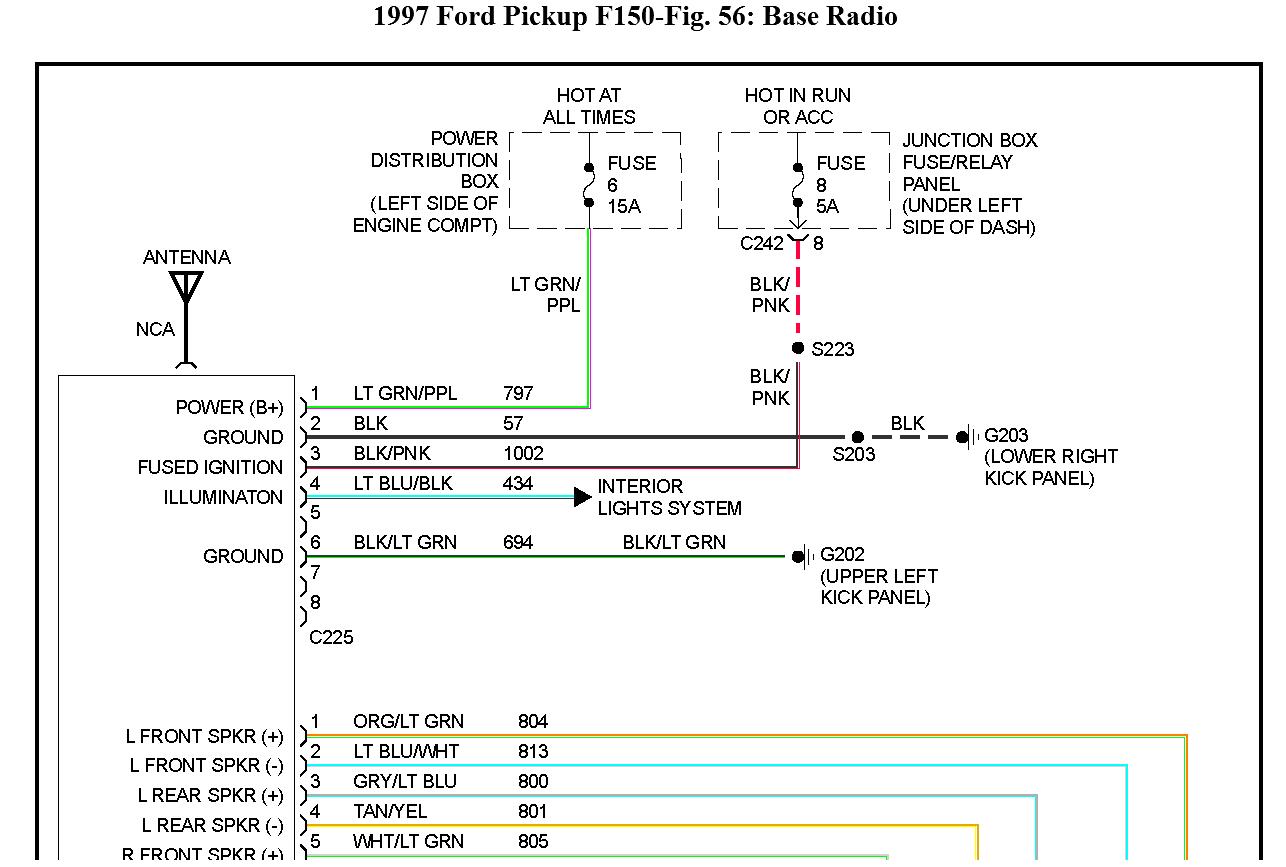

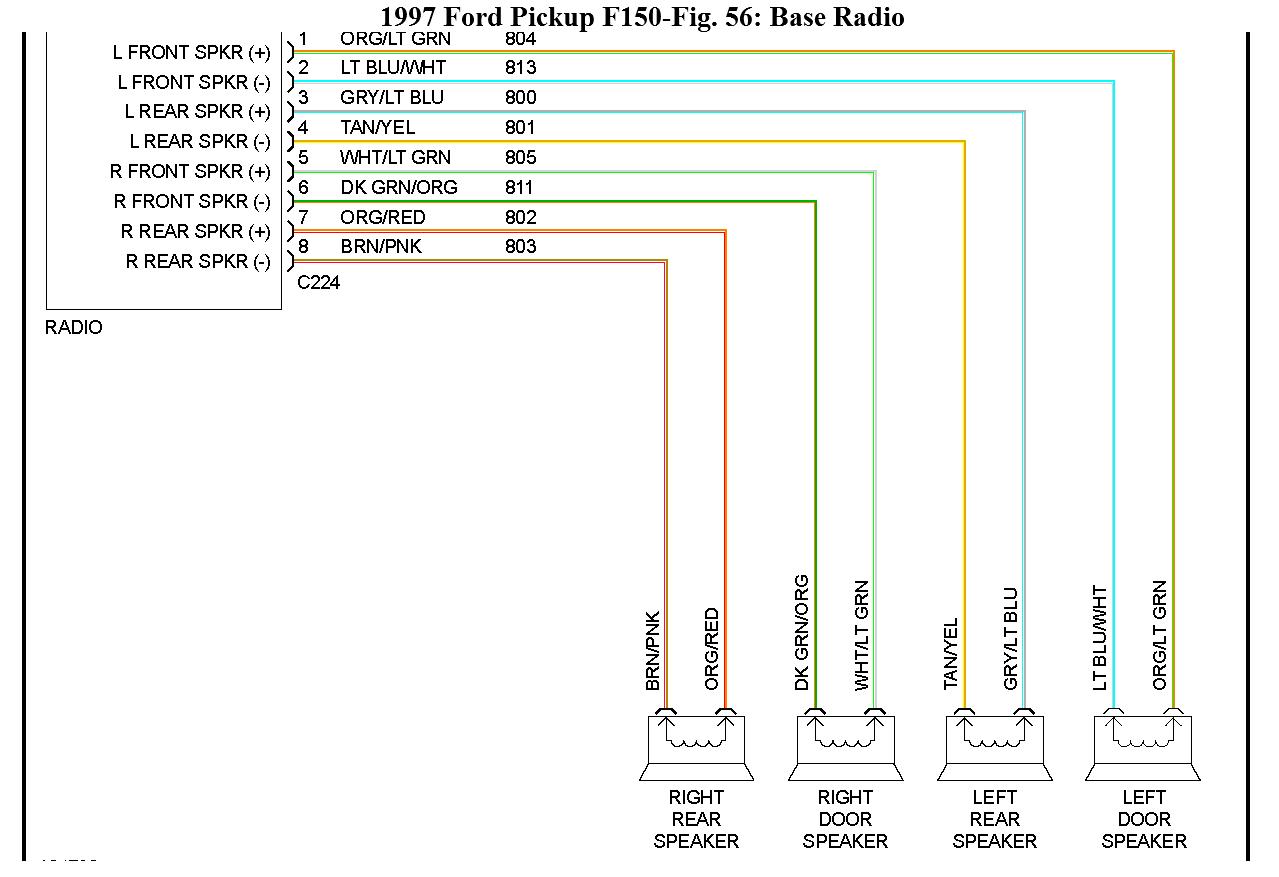

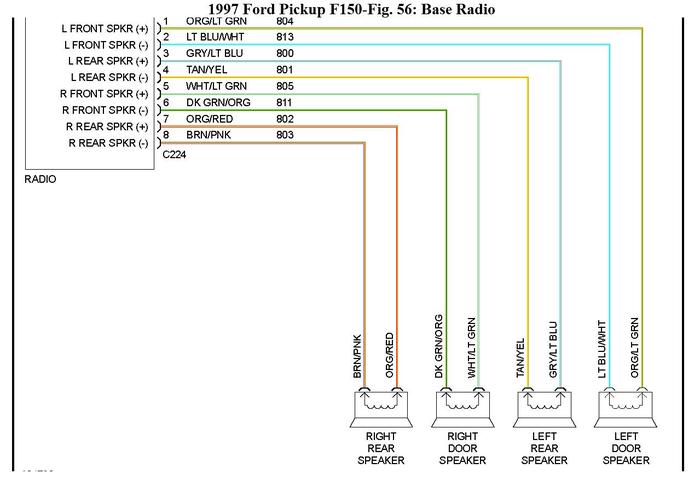

Here is a schematic of the radio circuit. I cannot seem to find some of the colors you have indicated.

what do you mean?

I think that is what I needed. Never mind the previous reply. Thanks!

How do I properly hook up my new CD player?

You go to the stereo supply store and buy the correct "plug and play" adapter cable. Do not hack up the wiring harness.

Installed a dual XDM6350 radio using wire harnesses. If I hook up the radio illumination wire (solid orange) to constant power the radio works if lights are off. If I hook the wire to switched power, it only works when lights are on, tried every combination I can think of but cannot seem to get constant power no matter what. Also, when orange is hooked to the constant, I have no dash lights. Any suggestions?

Hi Page13, Thank you for the donation. What is your original radio specs, base or premium (with amplifier)? From both types of radio wiring schematics, I am not able to find any solid orange wire. Do you have the wiring schematics for the new radio that you have installed?

Had my factory radio stolen from my truck. (Wire harness was cut.) Bought a FM mps3 deck to replace original. Question is wire diagram I found on line lists the ground wire as being black/light green. I see two wires with that color. do I take my black ground wire from the deck and connect it to the other two?

You do not need both wires. One is for the radio section and one is for the amplifier section. Both wires go to the same ground point on the truck. Either one will work for your ground wire.

Need the correct colors to install a aftermarket radio. Need amp turn on wire and both twelve volt wires please. Help sitting in the truck, at a loss.

15A Fused - Battery - light green with violet trace
5A Fused - Hot in run or accessories-black with pink trace.
5A Fused - Hot in start only - red with black trace.

Remote on. Was not in base models only up-level units with CD changer.
Light green with black trace.

Illumination wire - light blue with black trace.
