fuse 9 in power distribution box keeps blowing?

1995 FORD F-150
107,000 MILES • V8 • 4WD • AUTOMATIC
Avatar
SILENPRO
  • MEMBER
  • 2 POSTS
do you have a wiring diagram for power distribution box. a95 should have letters but my cover for the PDB has numbers. fuse 9 keeps blowing when i turn the key to ignition. what does fuse #9 power. thank you
Jan 31, 2008 at 10:02 AM
Advertisement
Avatar
98RANGERXLT
  • CERTIFIED EXPERT
  • 301 POSTS

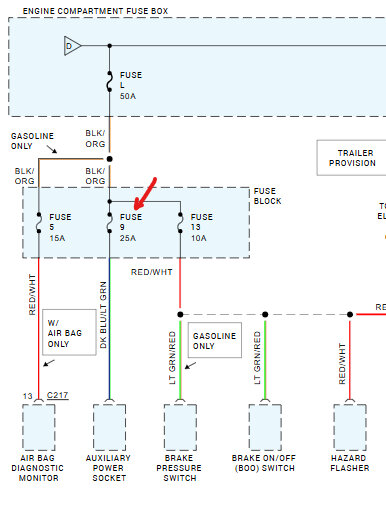

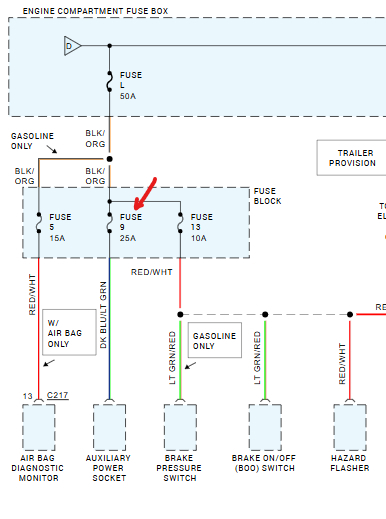

The #9 fuse just does the power point socket, please check out the wiring diagrams below to confirm. Check out the images (below). Please let us know what happens.
Image (Click to enlarge)
Attached Media
Feb 1, 2008 at 8:16 PM
Avatar
SILENPRO
  • MEMBER
  • 2 POSTS
[quote:5cf25a2253="Fordman16"]If you have the original owners manual it should tell you.[/quote:5cf25a2253]

i found the short, when i unplug the transmission plug the fuse stops blowing. the wiring is fine. the plug for the gear lelector is fine and also the speed sensor. it only blows when i plug the transmission plug.. could a valve body do this.
Feb 2, 2008 at 6:36 PM
Advertisement
Avatar
SILENPRO
  • MEMBER
  • 2 POSTS
i found the short, when i unplug the transmission plug the fuse stops blowing. the wiring is fine. the plug for the gear lelector is fine and also the speed sensor. it only blows when i plug the transmission plug.. could a valve body do this.
Feb 4, 2008 at 8:48 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
I don't think so, this fuse powers the cigarette lighter? Are you sure you have the right fuse #?
