Front and rear differential and transfer case and transmission fluid instructions needed

2016 CADILLAC ATS
39,000 MILES • 2.0L • 4 CYL • 4WD • AUTOMATIC
Avatar
SIRJR
  • MEMBER
  • 86 POSTS
I am preparing to change the front and rear differential and transfer case and transmission fluid. Would you be able to provide the instructions and pictures that will enable me to perform this correctly? Thank you.
May 9, 2021 at 8:44 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good evening,

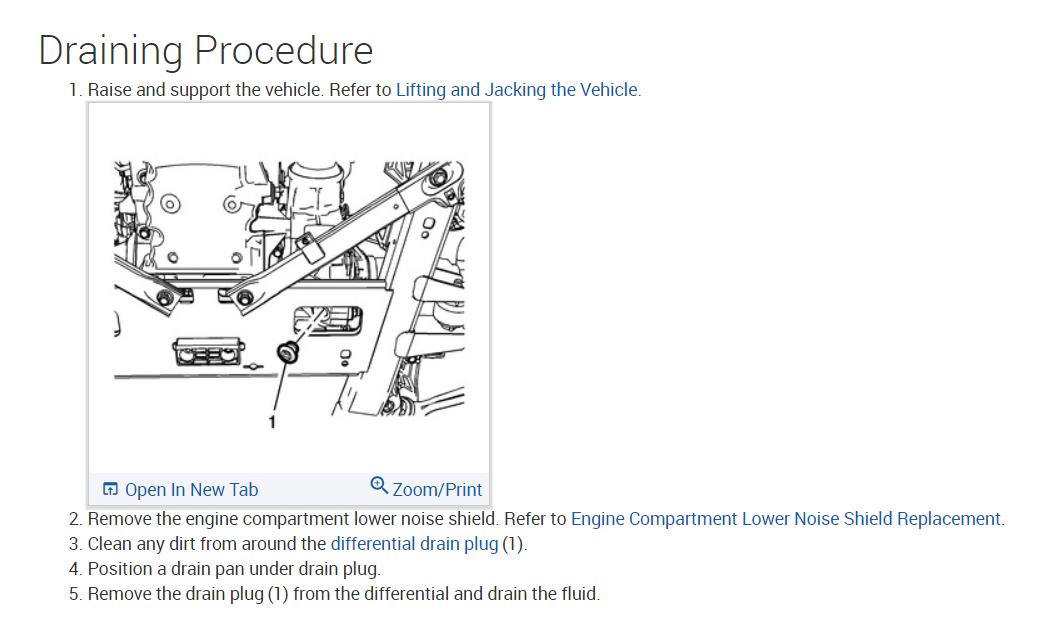

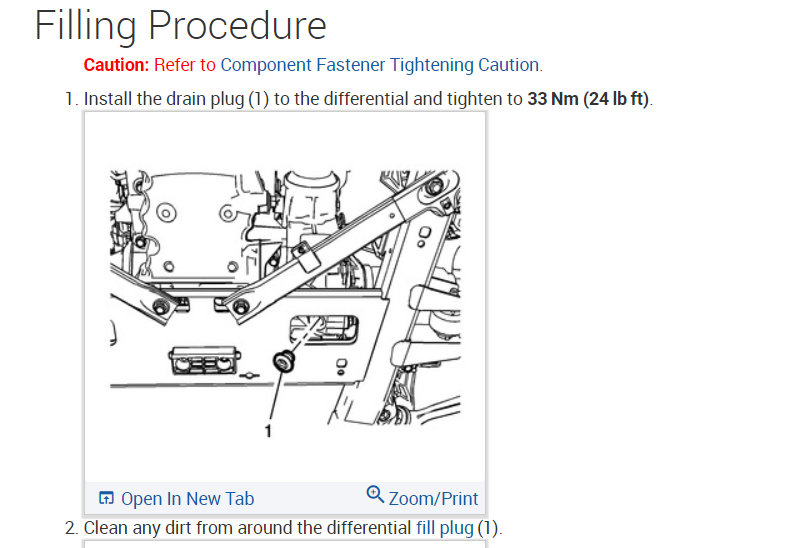

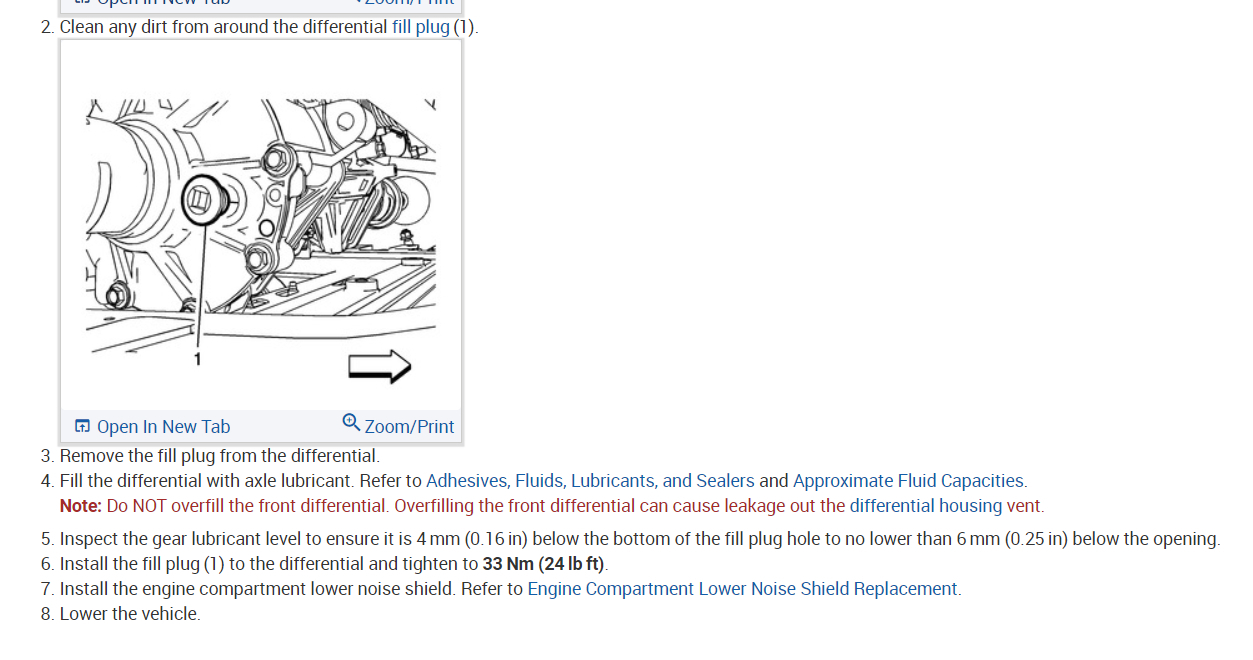

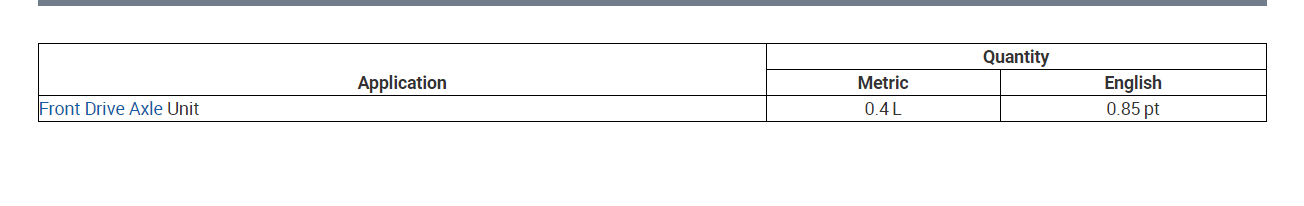

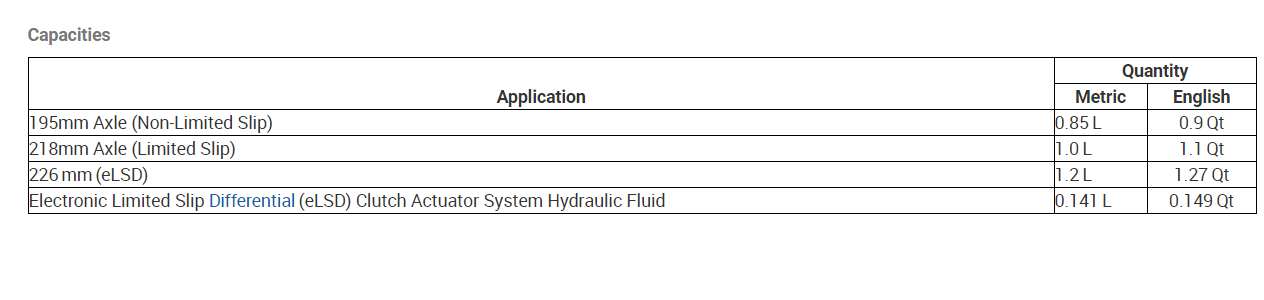

I attached procedures and pictures for you below. The front and rear differentials are the same.

https://www.2carpros.com/articles/differential-service

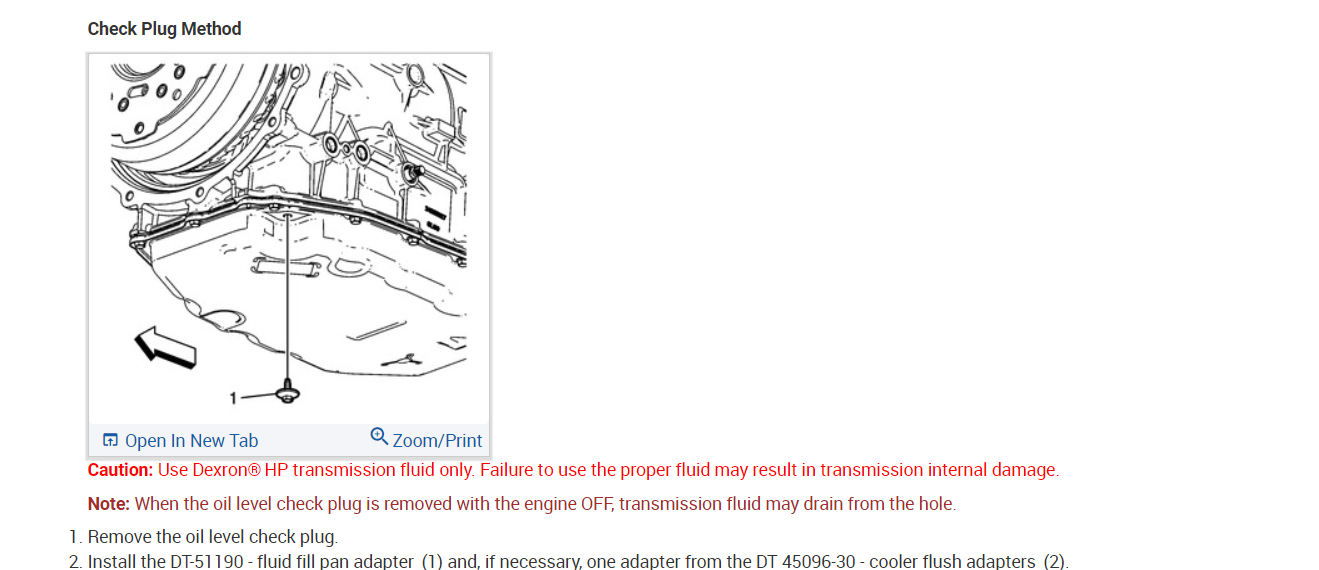

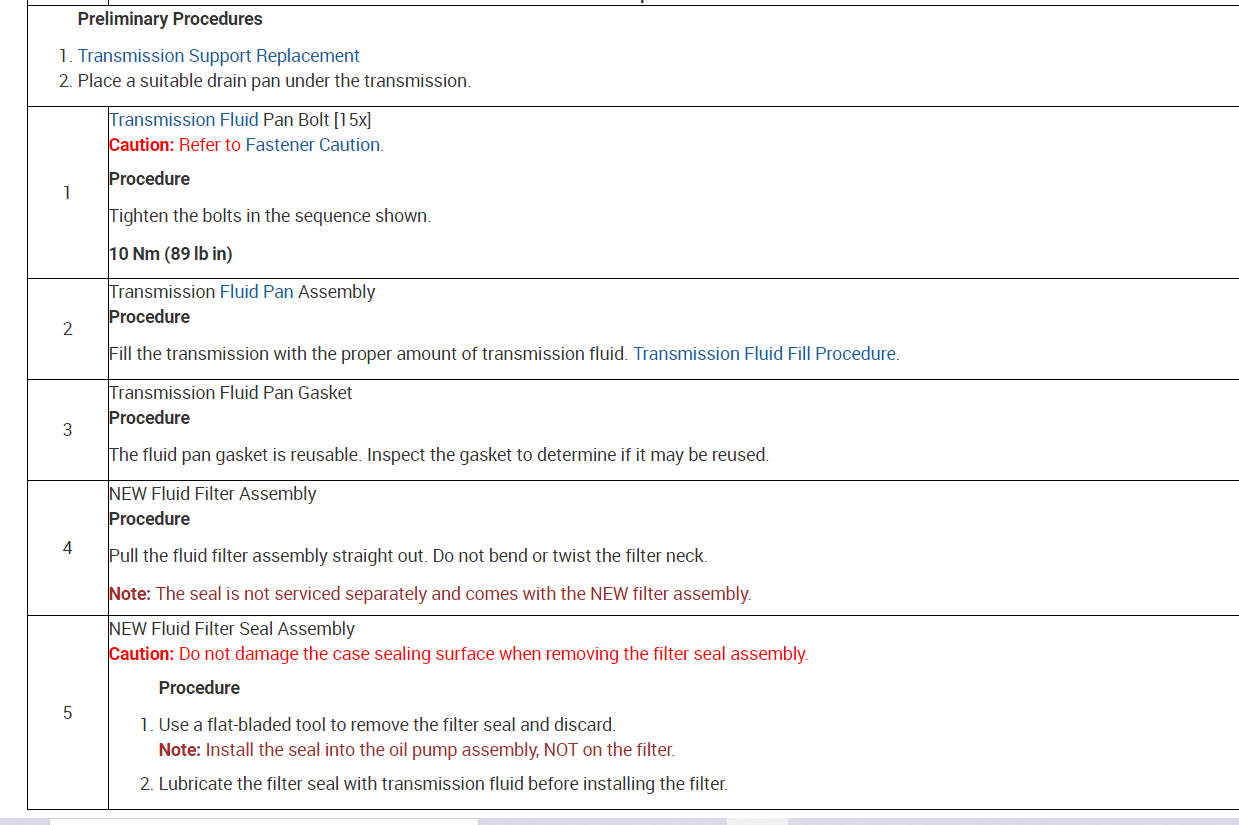

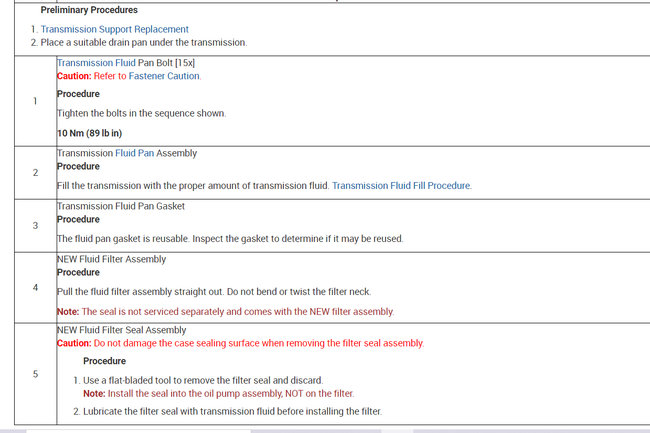

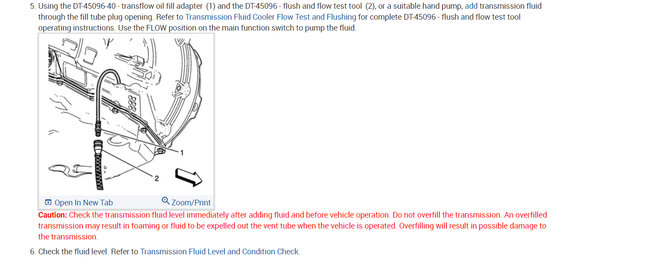

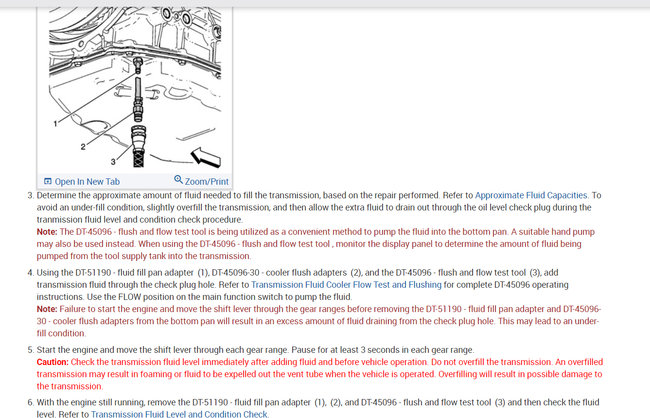

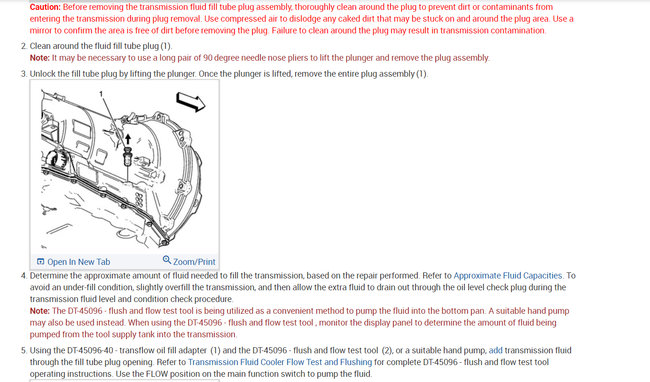

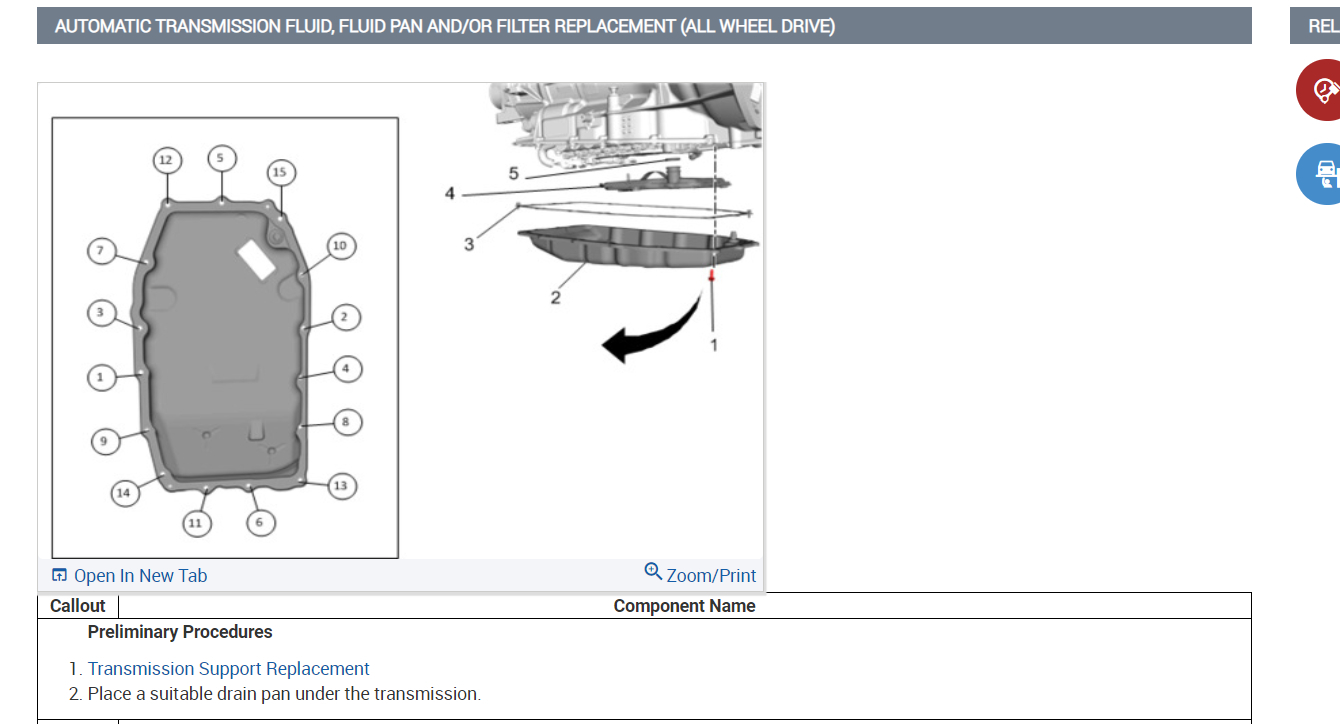

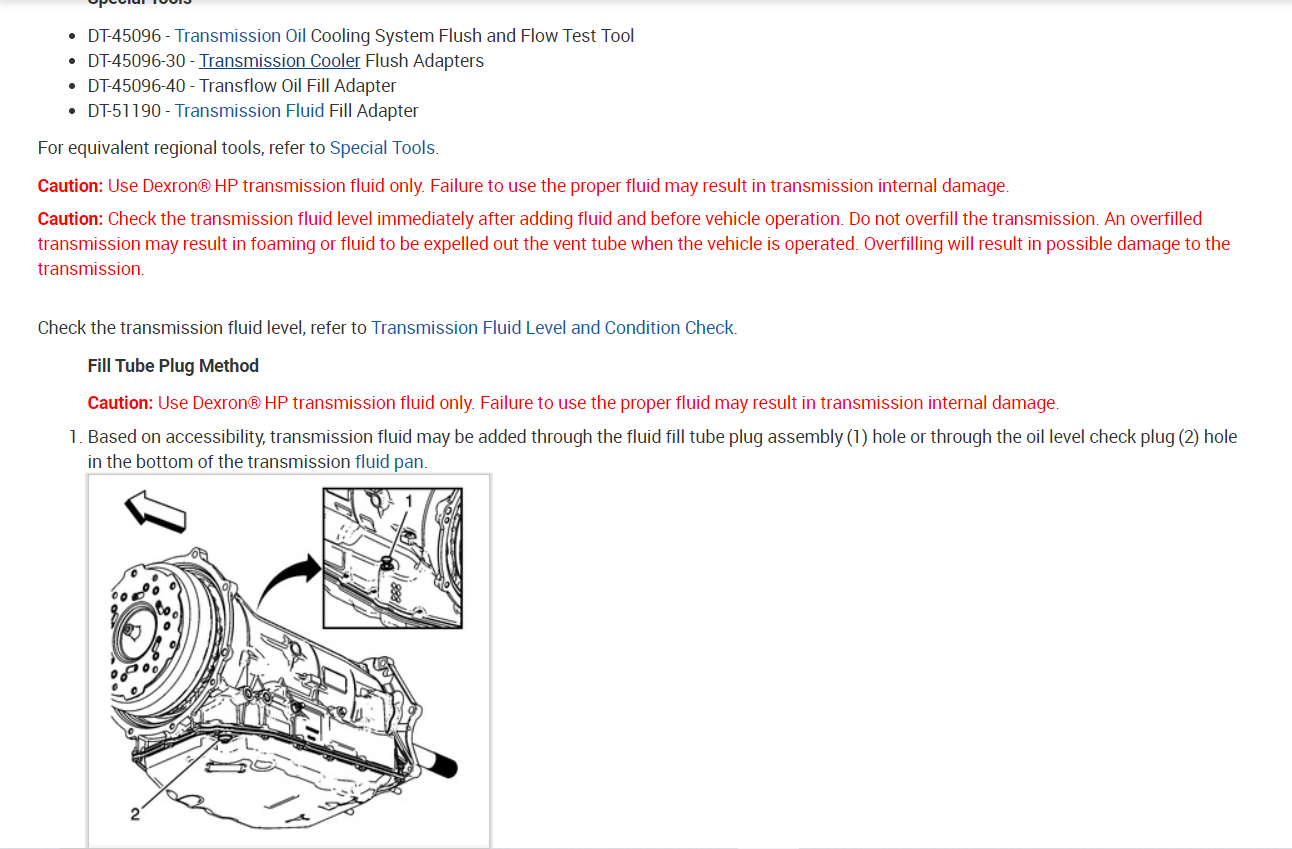

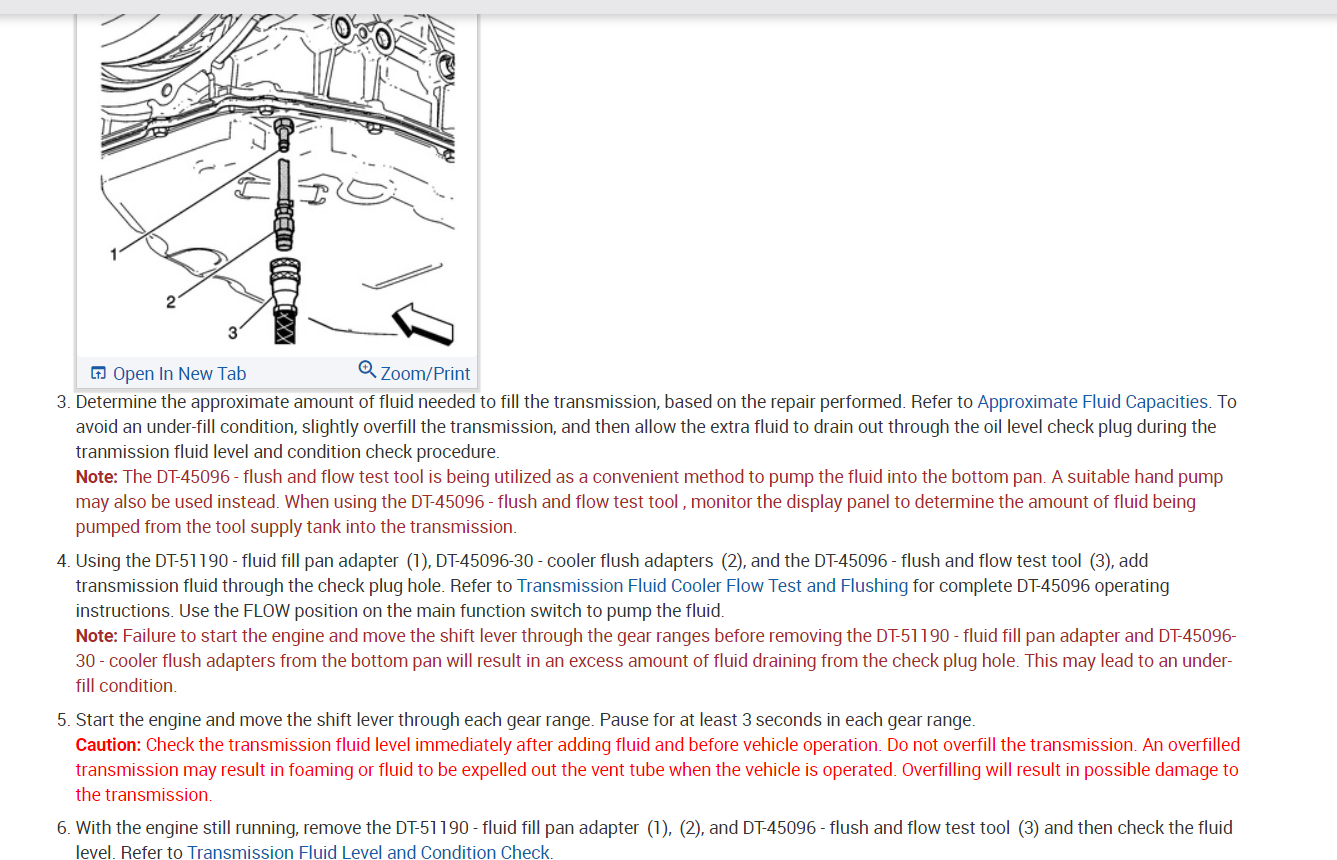

The transfer case and transmission are attached.

https://www.2carpros.com/articles/how-to-service-an-automatic-transmission

Roy
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
May 9, 2021 at 8:50 PM
Avatar
SIRJR
  • MEMBER
  • 86 POSTS

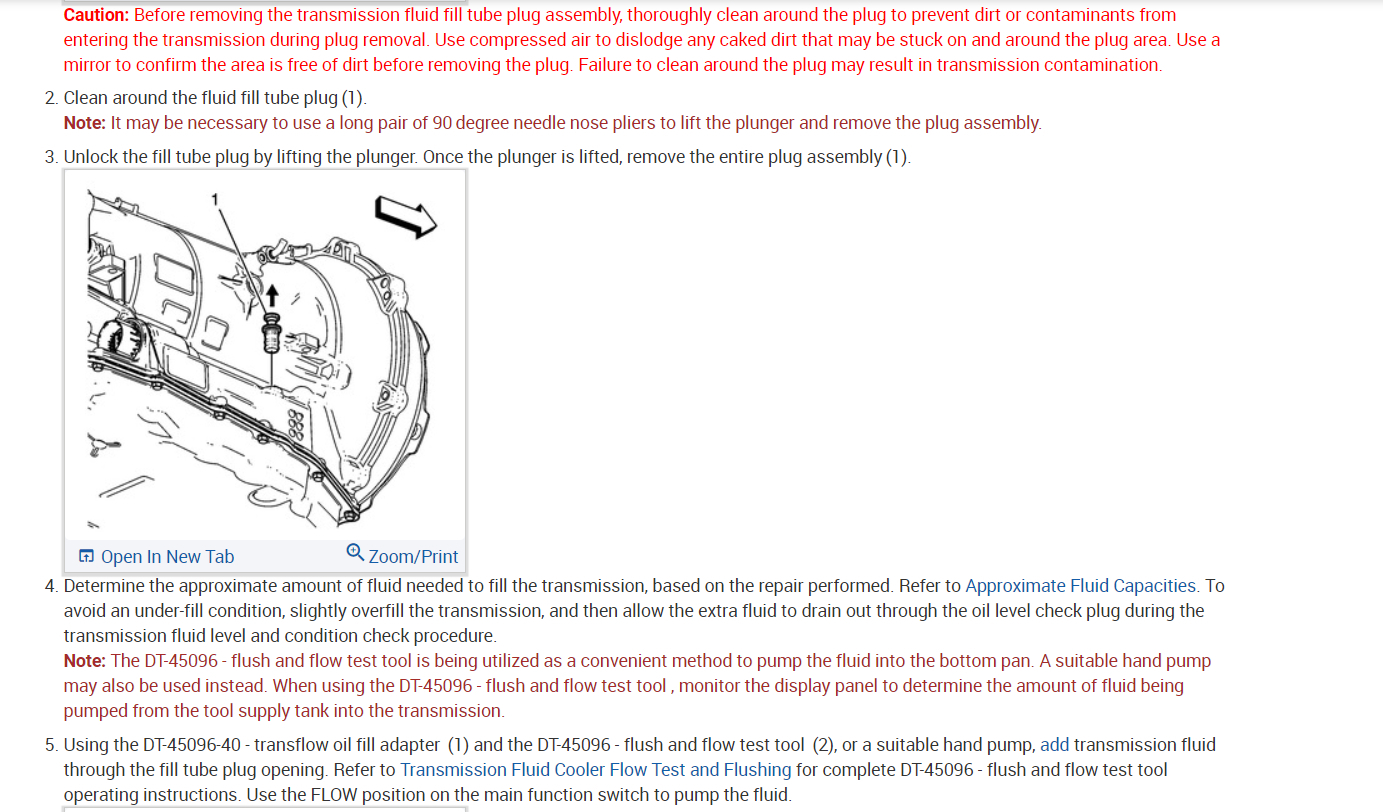

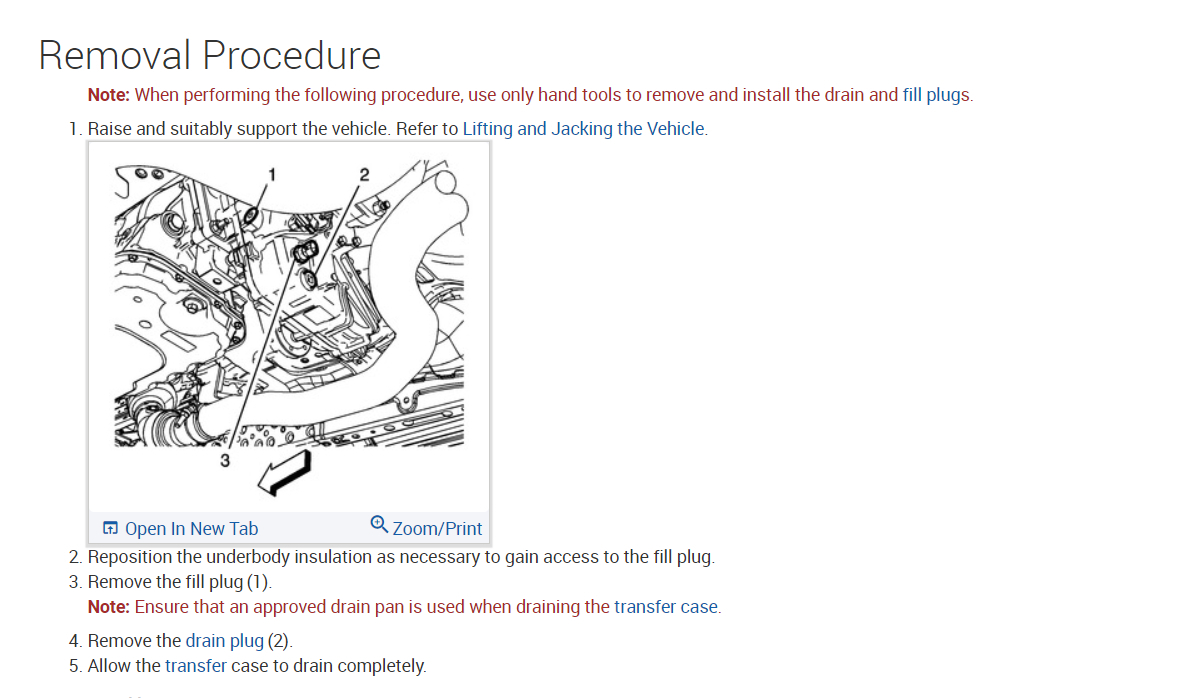

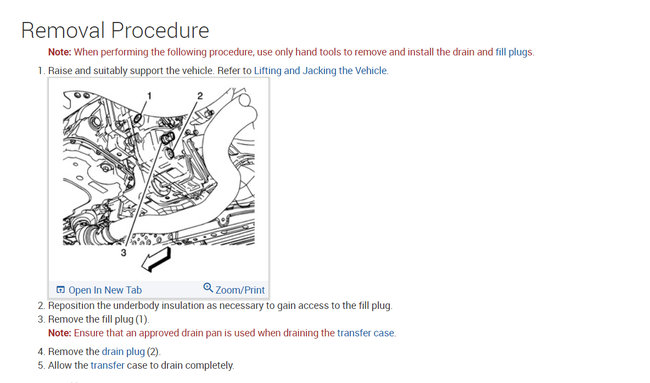

Thank you very much for all the detailed pictures. I have a question regarding the 7th picture of the transfer case. There is a #3; however, there is no mention of this in the diagram. Also, do you have the fill capacity of the transfer case? Thank you, Steve
May 10, 2021 at 5:48 AM
Advertisement
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Number 3 is a switch. You may or may not have this.

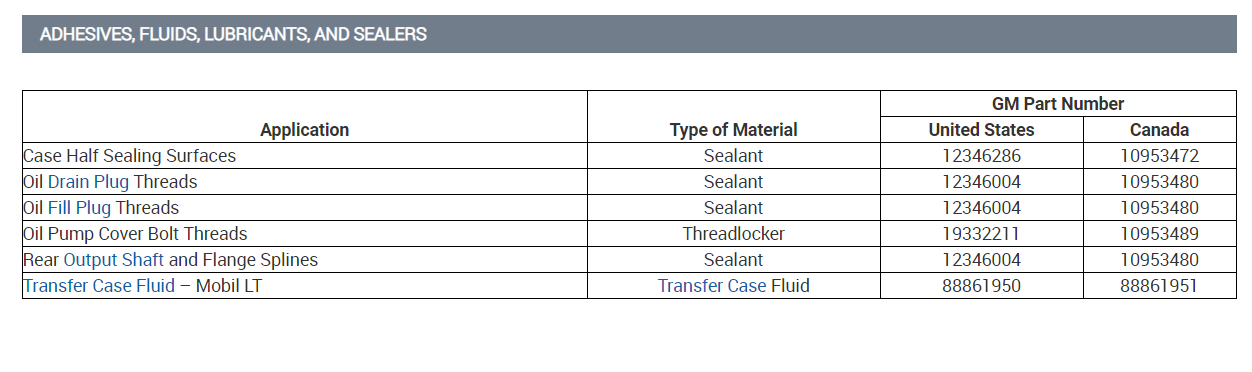

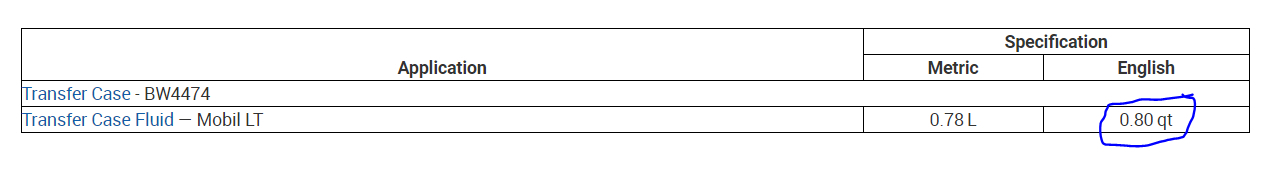

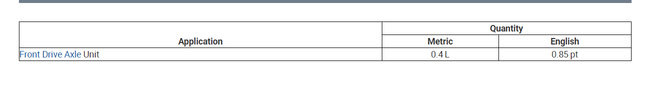

I attached the capacity for the transfer case below.

Roy
Image (Click to enlarge)
Attached Media
May 10, 2021 at 5:58 AM
Avatar
SIRJR
  • MEMBER
  • 86 POSTS
Thank you very much.
May 14, 2021 at 4:25 AM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
You are welcome.

Always glad to help.

Roy
