None of the wiring diagrams I’m finding contain the same color wires as the wiring I have in the truck. I just want to make certain I have it all correct.
My truck is the LT model with the basic Bose Radio/CD player. It does not have the screen with the Nav in it.
I’m upgrading the stereo in the truck with a new double-din head unit from Kenwood-DMX957XR. I will also be replacing the 6.5” Bose door speakers. The front will be replaced with the Alpine R-S65C.2 component speakers replacing both the tweeter in the pillars and the 6.5” speaker in the front doors. The rear speakers will be replaced with the Alpine R-S65.2 coaxial speakers.

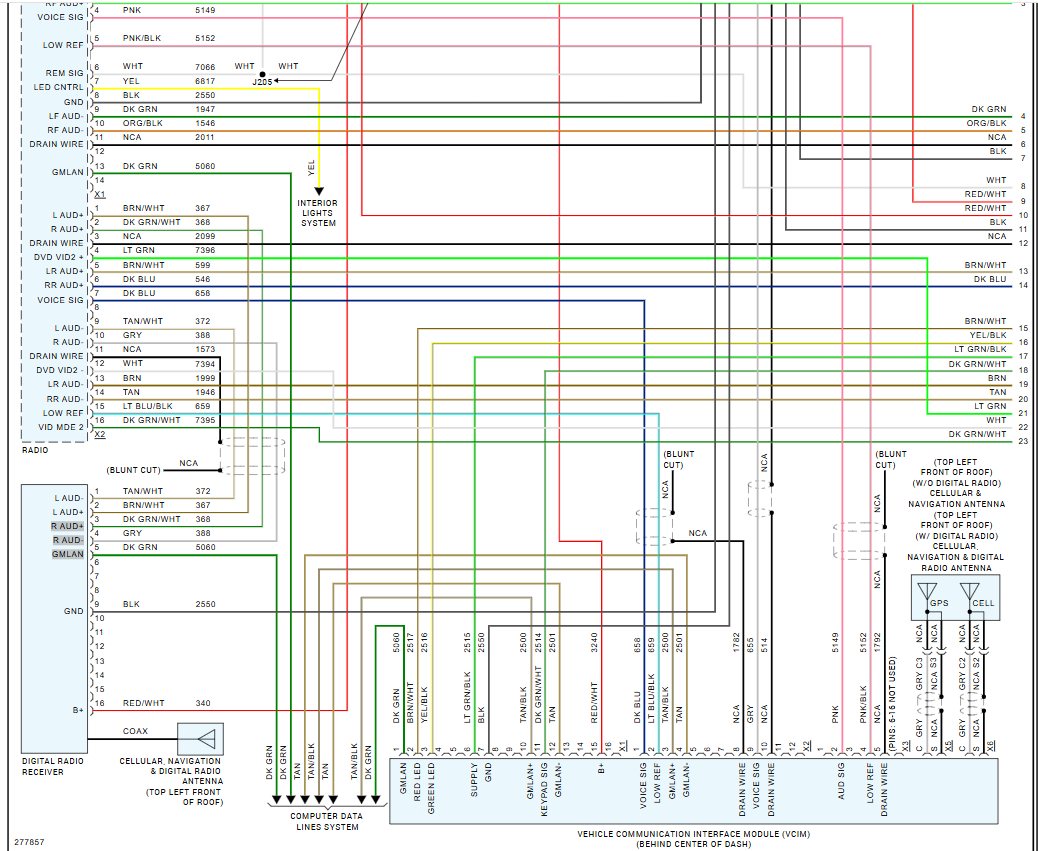

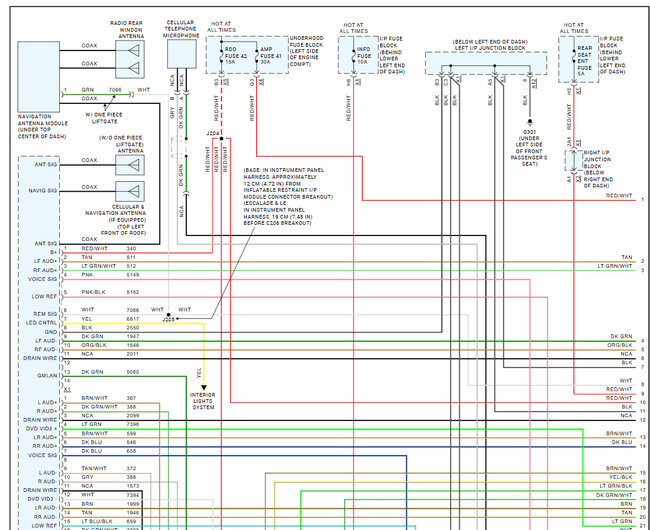

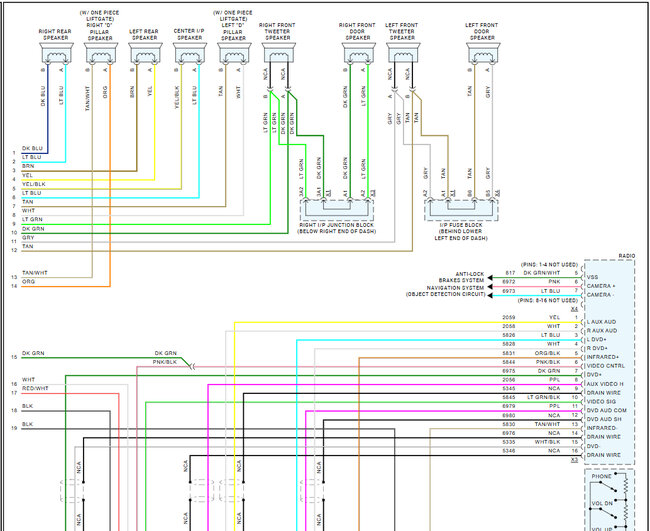

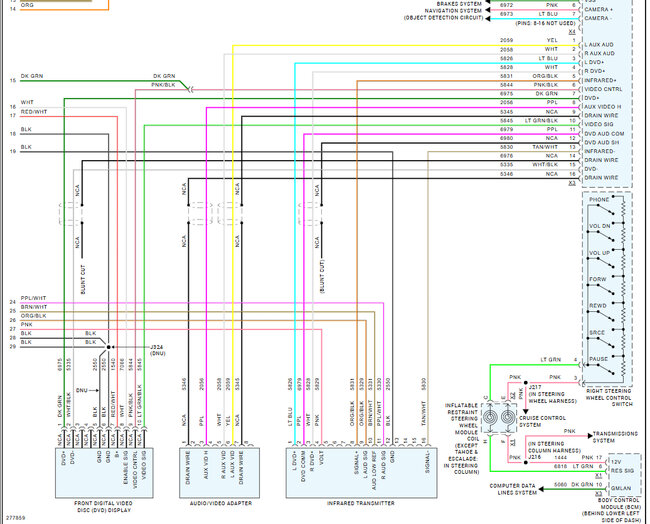

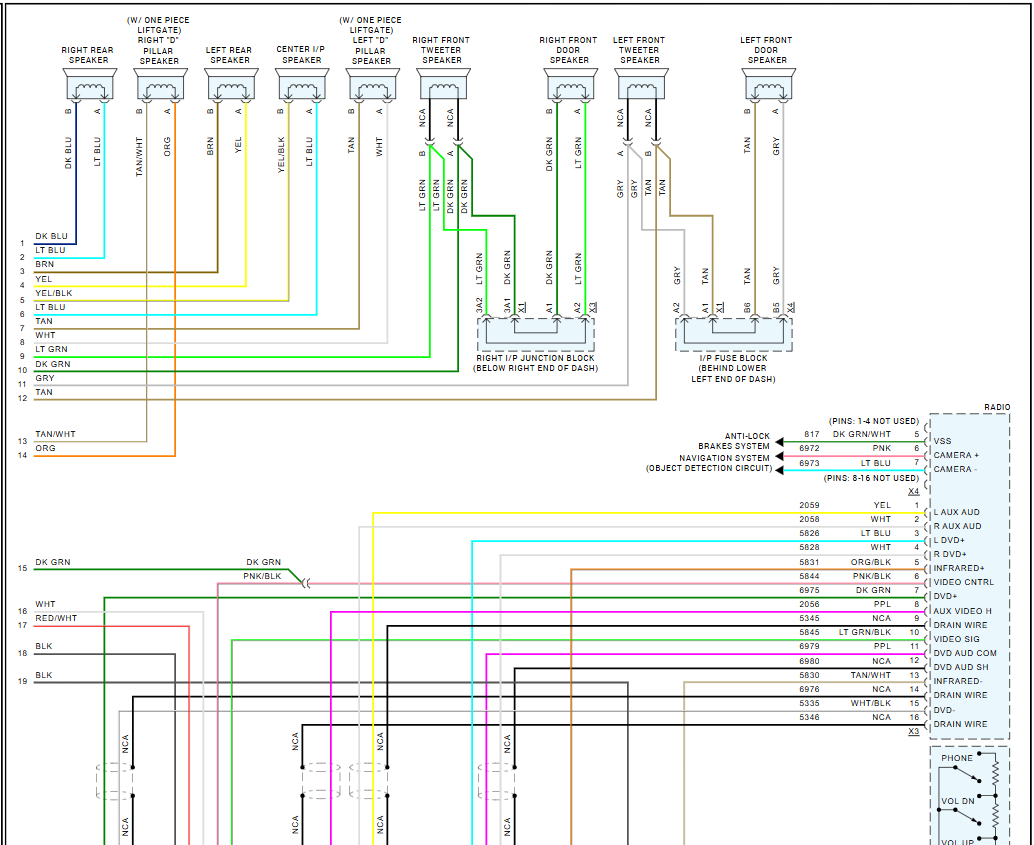

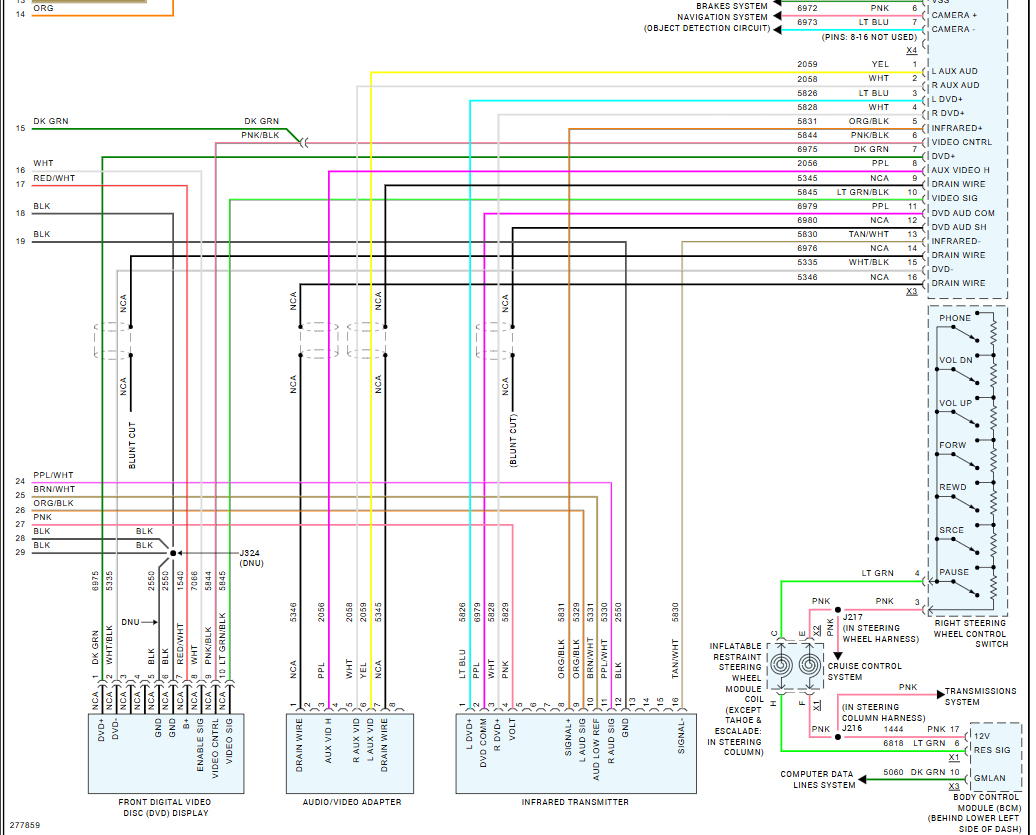

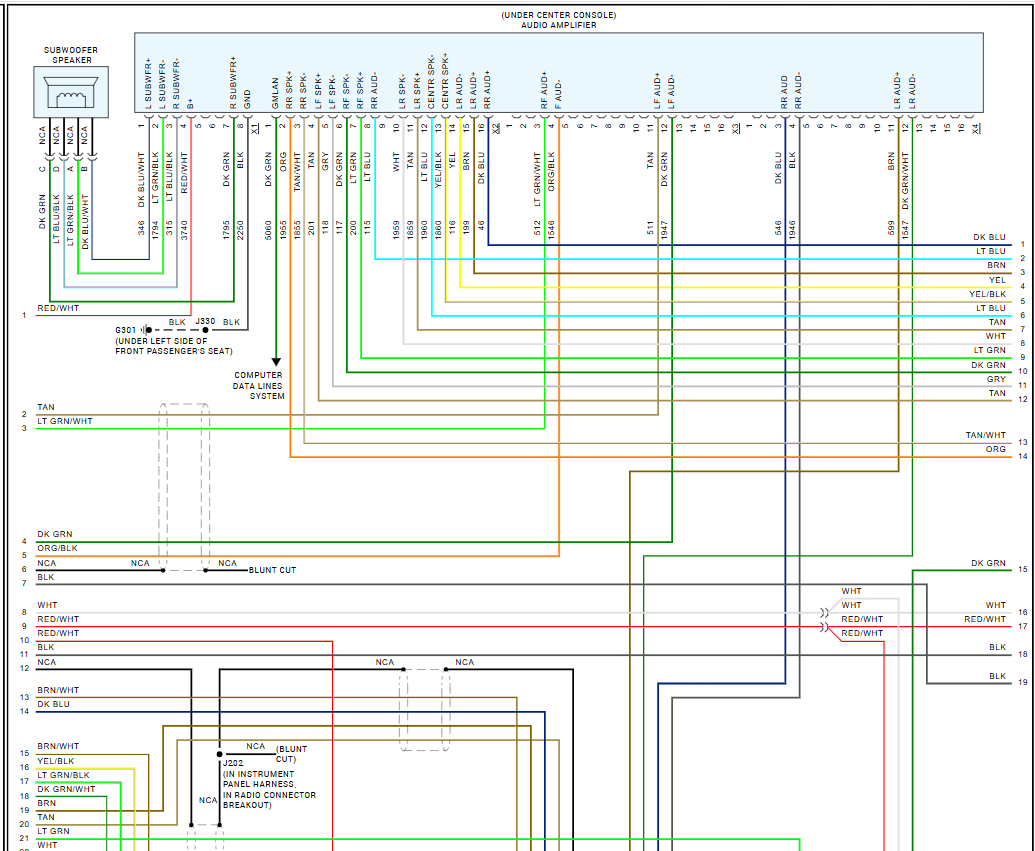

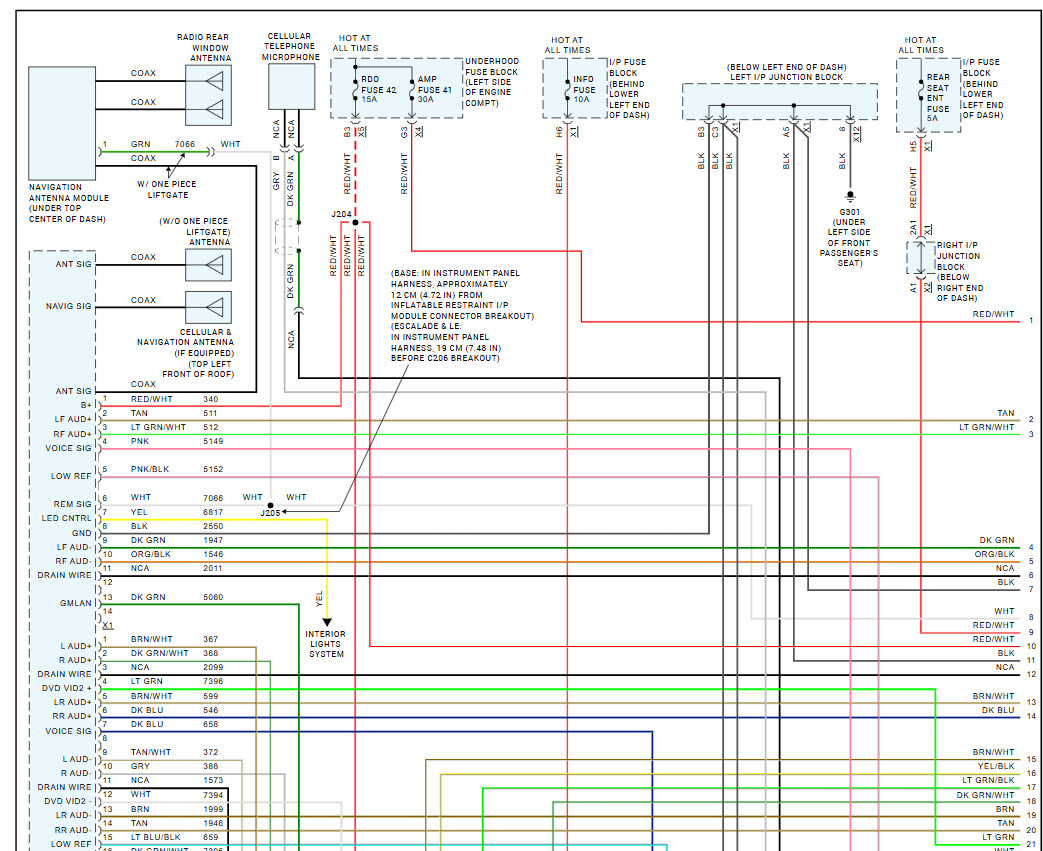

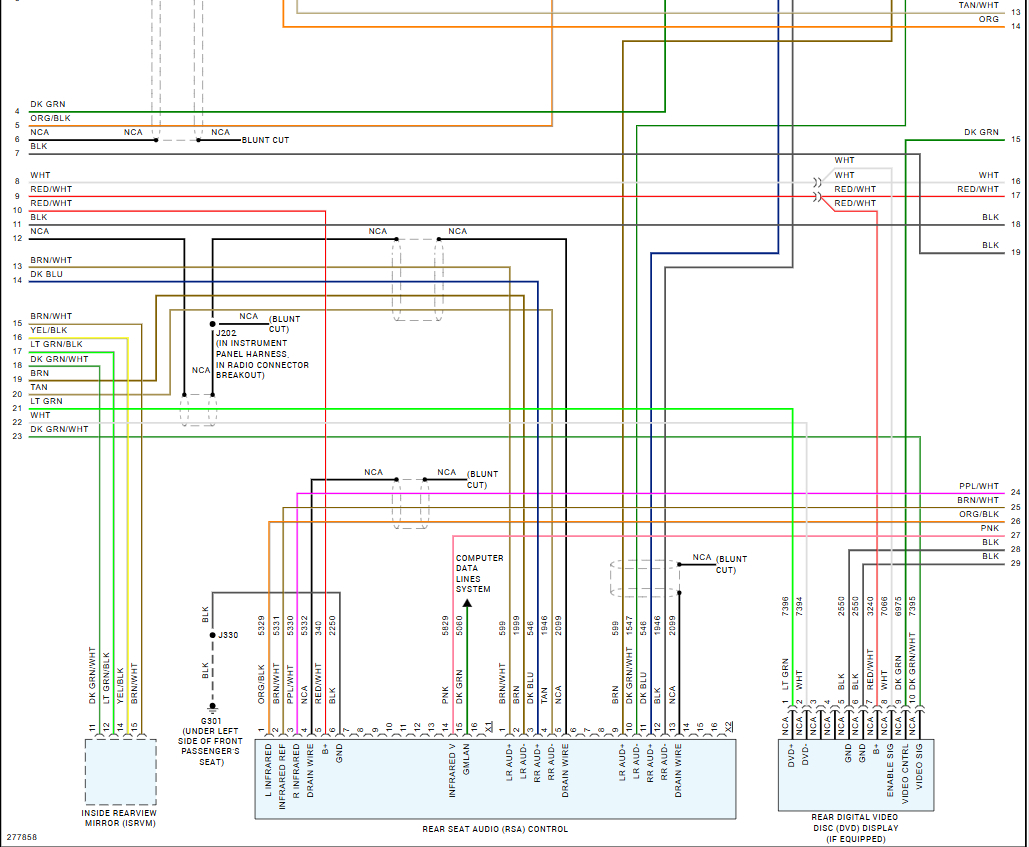

Thanks for any pictures and or diagrams you could provide.
My truck is the LT model with the basic Bose Radio/CD player. It does not have the screen with the Nav in it.
I’m upgrading the stereo in the truck with a new double-din head unit from Kenwood-DMX957XR. I will also be replacing the 6.5” Bose door speakers. The front will be replaced with the Alpine R-S65C.2 component speakers replacing both the tweeter in the pillars and the 6.5” speaker in the front doors. The rear speakers will be replaced with the Alpine R-S65.2 coaxial speakers.
Thanks for any pictures and or diagrams you could provide.
Feb 27, 2025 at 2:42 AM
