Can I get a diagram on how to hook up charcoal canister?

1989 JEEP WANGLER YJ
100,000 MILES • 2.5L • 4 CYL • 4WD • MANUAL
Avatar
MARTYCHAR67
  • MEMBER
  • 1 POST
diagram on how to hook up a charcoal canister?
Feb 13, 2023 at 12:50 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

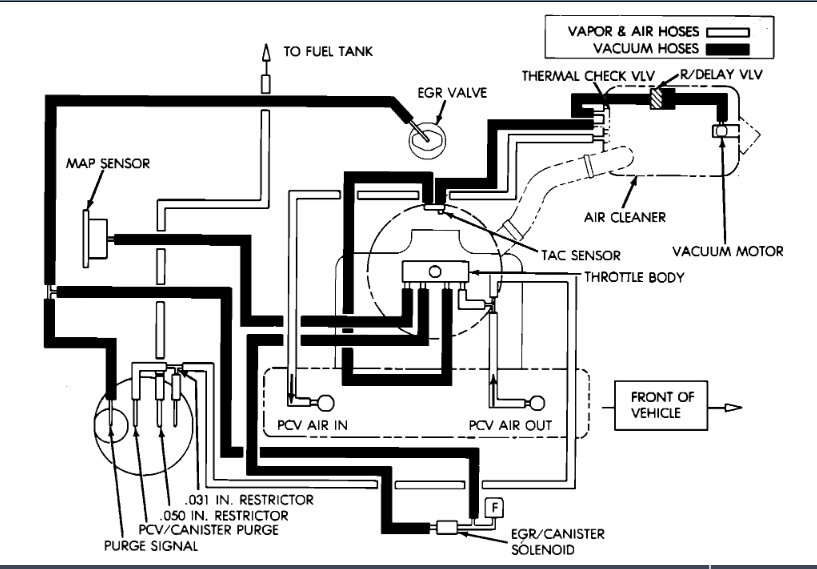

The only thing I have is a vacuum schematic. I attached it below. Take a look at it and let me know if it helps or if you have questions.

Take care,

Joe

See pic below.
Image (Click to enlarge)
Attached Media
Feb 13, 2023 at 4:41 PM
