EGR pipe assembly discontinued

Do any of these look right?

https://www.amazon.com/Recirculation-Replacement-Chevrolet-Oldsmobile-24508969/dp/B016PR1JQK

The Medic

Nope.

I found this!

https://www.ebay.com/p/NOS-GM-OEM-EGR-System-Tube-and-Valve-Assembly-10100090-F-1992-1993-V6-Chevy/654837495?iid=222678777974&_trkparms=aid%3D222007%26algo%3DSIC.MBE%26ao%3D2%26asc%3D50544%26meid%3Daba847eafaff4c1b91193f8e8f96481b%26pid%3D100011%26rk%3D3%26rkt%3D5%26sd%3D191633140698%26itm%3D222678777974&_trksid=p2047675.c100011.m1850

Found this too!

https://www.ebay.com/itm/Genuine-Tube-10051561/253512895753?epid=671281988&hash=item3b068bcd09:g:4AIAAOSwxwRatBDv

Whoa! Those are like one and a half times of what I paid for my Army Jeep!

I do not do the pricing, unless you can replicate something to take its place, you may still be able to find one in the salvage yard.

I spent about an hour surfing for another/ better deal. No luck elsewhere.

The Medic

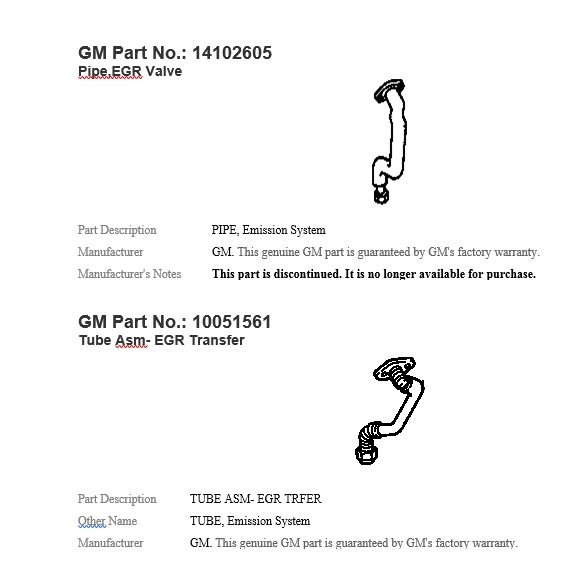

Part 10051561 does not fit my car.

Okay.

What about the one in the first link I posted?

The Medic

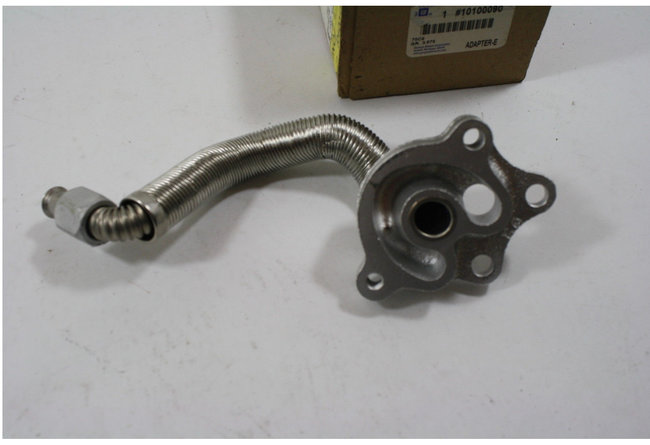

That would not fit because it has a different adapter end that connects to the EGR control valve. Here is a picture.

How about a picture of what you have?

The Medic

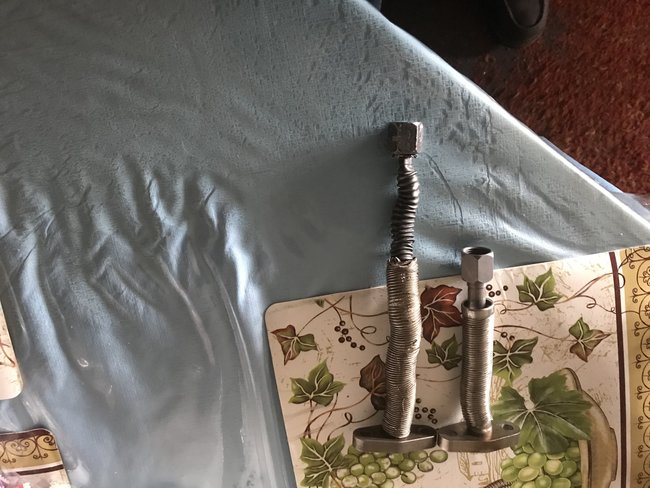

One on the right is wrong part I sent back. One on the left is the original I need that will fit with being the right length.

I apologize loaded the same pictures three times.

Good morning.

Try this place. Call them to confirm. Looks like the correct part you need.

Roy

https://www.corvetteparts4less.com/a/Chevrolet__/59805853__6397872/EMISSION-SYSTEM-EMISSION-COMPONENTS/CN87650.html

Called them yesterday. None of the dealerships all over the USA have the part or know anyone that has the part. It is a really hard to find part since a lot were sold.

Okay, sorry.

Did you ask them if anyone has NOS or new old stock? A lot of dealers have that but will not list the part as stocked.

Roy

Yep. Tried that too. And now people are telling me it will cost an arm and leg to have one made. I guess if I cannot find one my last route is finding one at the salvage yard.

Okay.

Here is a suggestion: Try to find a line with the bendable center like your. It may have a different end but you can use the bendable portion. Then get a line with the correct needs. Then you can have some one cut and weld the lines to make what you have. It will cost you two lines and someone to cut and weld but at least it will work.

Roy

Do you think it would save me a lot more money than having someone fabricate it? I mean I do not even have an idea what something like that to fabricate would cost.

About $200.00 to $250.00.

Roy

To fabricate a pipe or to do it the cheap way?

To fabricate the pipe to your specs with your ends of the line provided.

Looking at your pictures (way above).

The short one on the right.

Is it in the "relaxed accordion" state/ position.

Will it "stretch out" to be as long as the one on the left.

Thought maybe the correlations were stacked tight as with a bendable drinking straw.

The Medic

Yeah, I tried bending it but could not really extended it any further because I did not want to break it. I tried every position with the one that did not fit.

Answer above, "correlations" was supposed to be "corrugations".

Do the corrugations look like they are close together and they would stretch out to look like the original?

If they are close together and look like the would stretch on out.

My approach might be to drop two sacrificial bolts through the flange and then grab the bolts threads only, in a vise.

I would take a big crescent wrench and snug it up on the tube just below (and against) the nut on the other end of the tube.

If you could then pull it by the crescent wrench.

Maybe a slow pull, by cutting a block of wood to fit from the top of the vise and under the wrench might give you some "prying" leverage. If needed stack more goodies on to of the block of wood to continue the stretching process.

Just a thought, throwing some straws, I cannt see the actual problem from here!

Keep us updated.

The Medic
