After replacing the brakes they are stuck to the drum and dragging

2001 DODGE DAKOTA
150,000 MILES • 4.7L • V8 • 4WD • AUTOMATIC
Avatar
ADAM FINCH
  • MEMBER
  • 2 POSTS
I have replaced the shoes caliper hardware and the adjustment screw and now my brakes are stuck to the drum and dragging while I drive. i am stuck for answers.
May 12, 2019 at 9:20 AM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

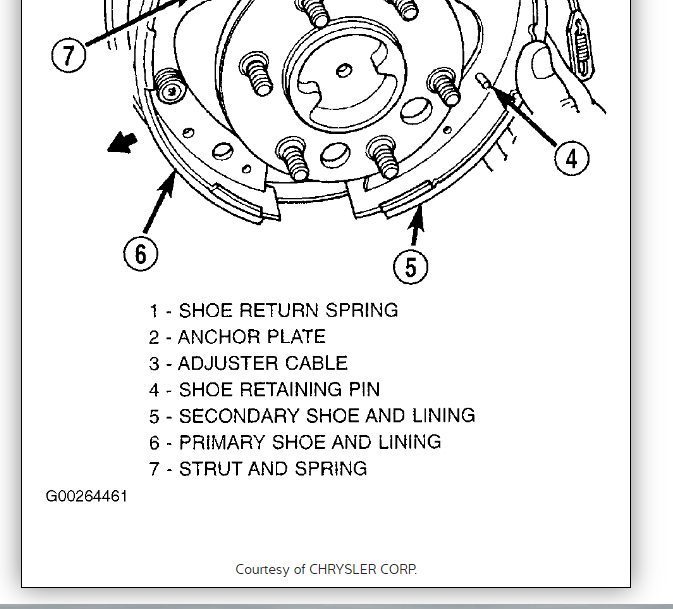

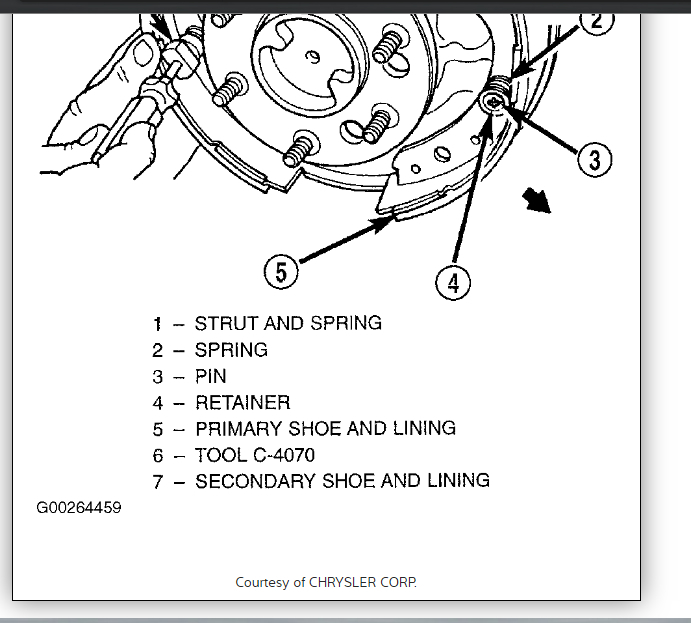

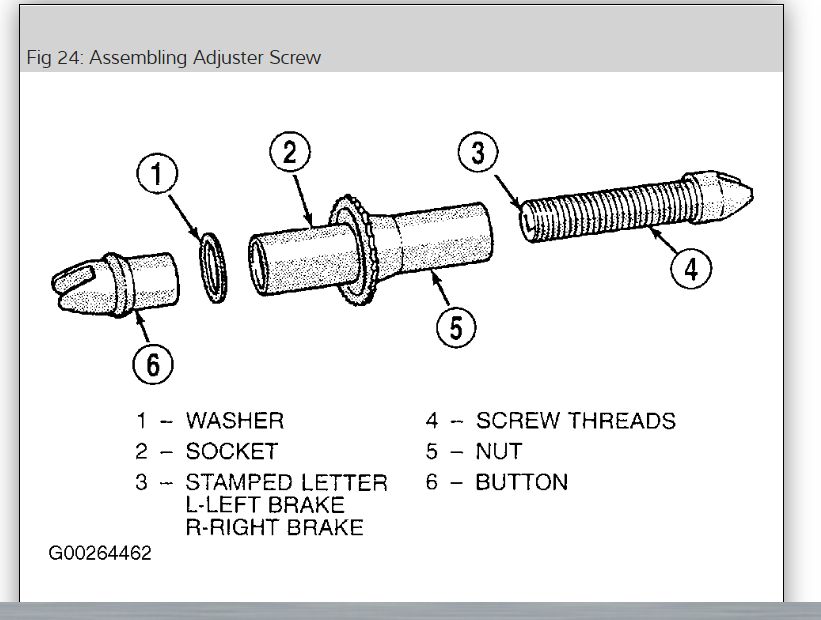

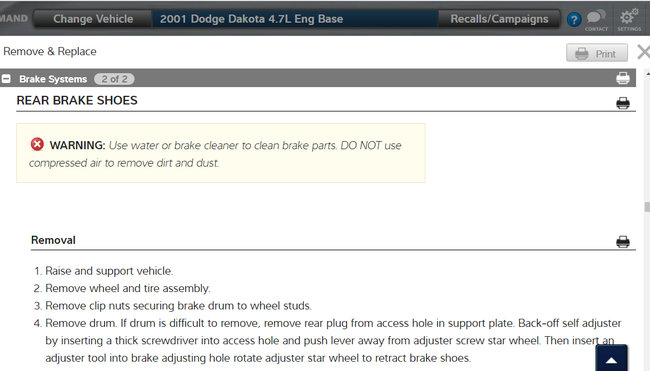

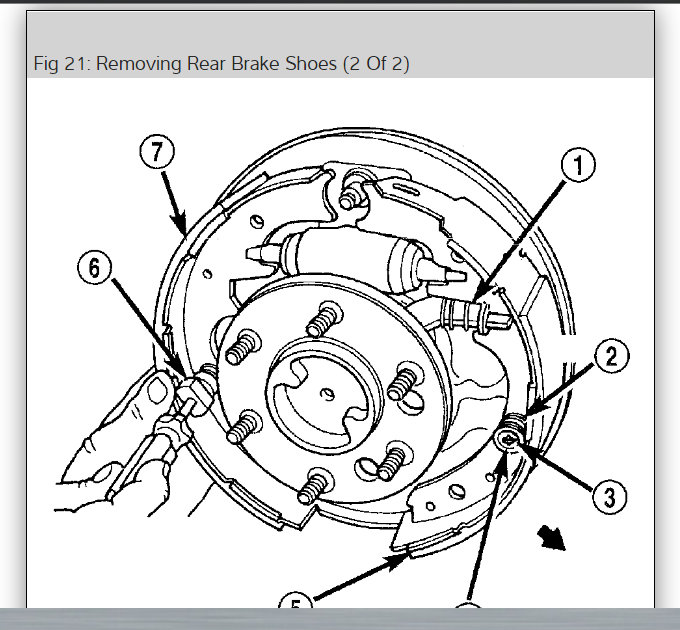

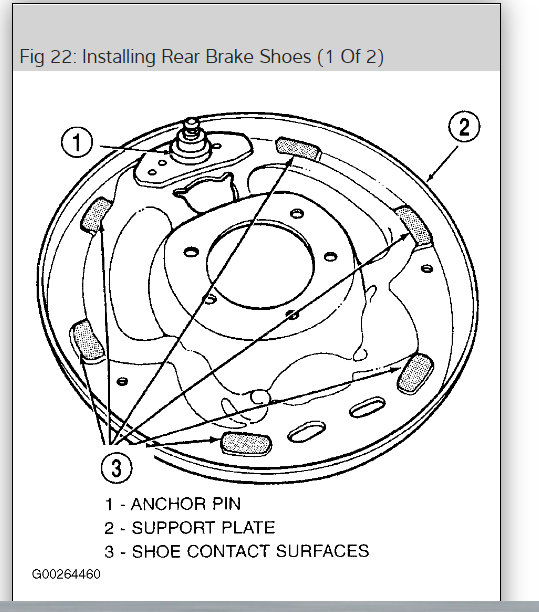

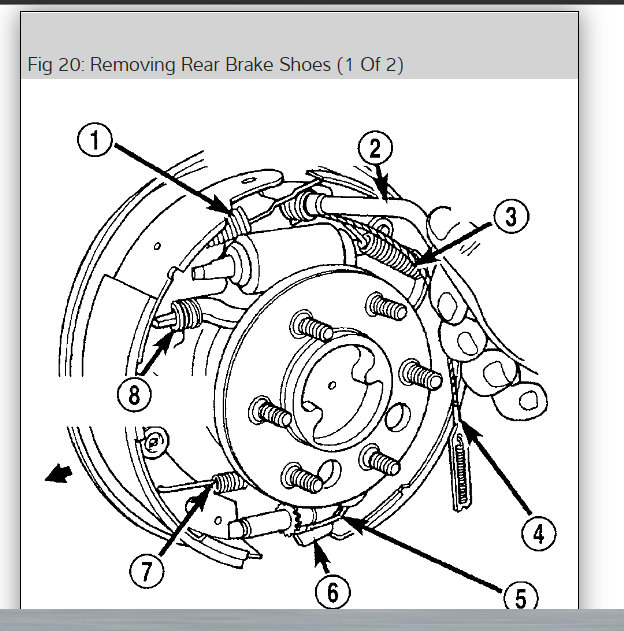

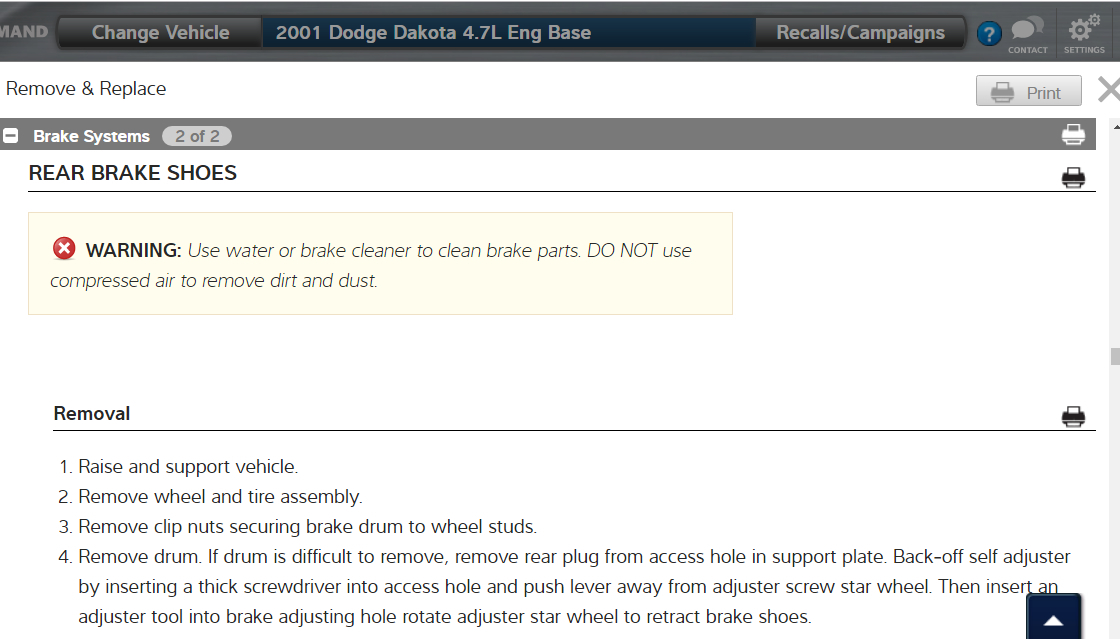

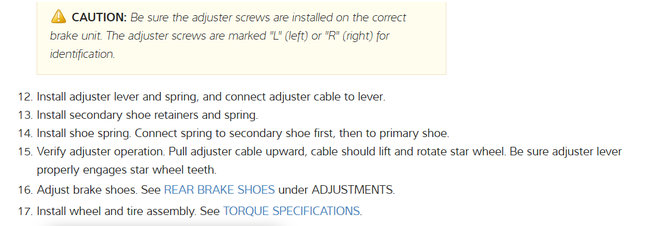

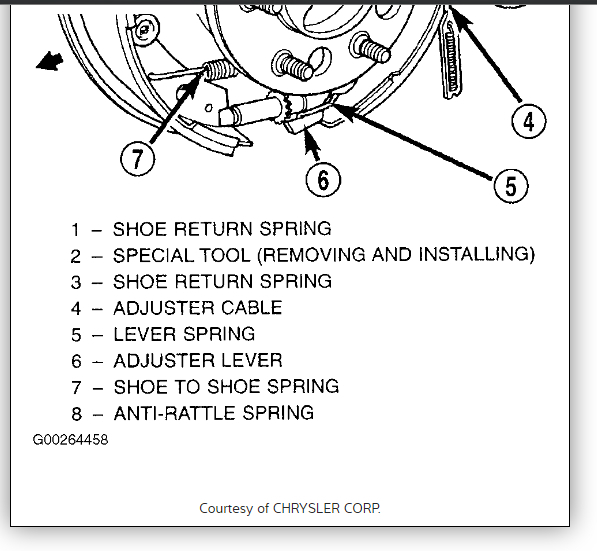

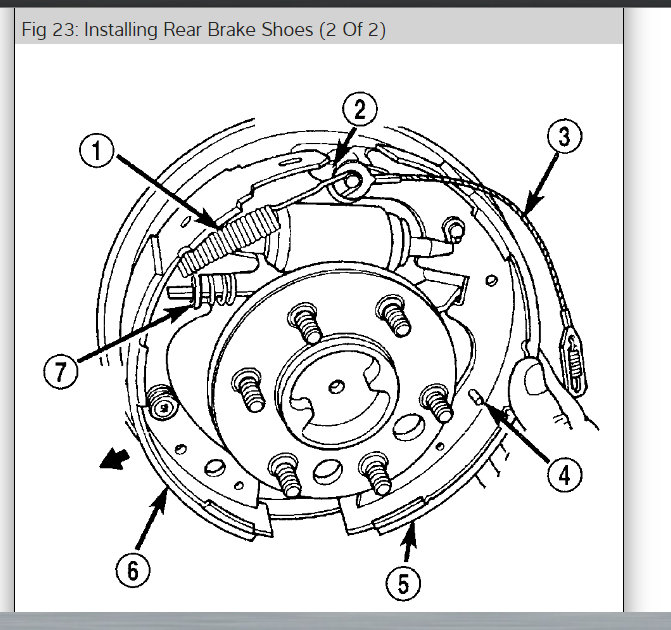

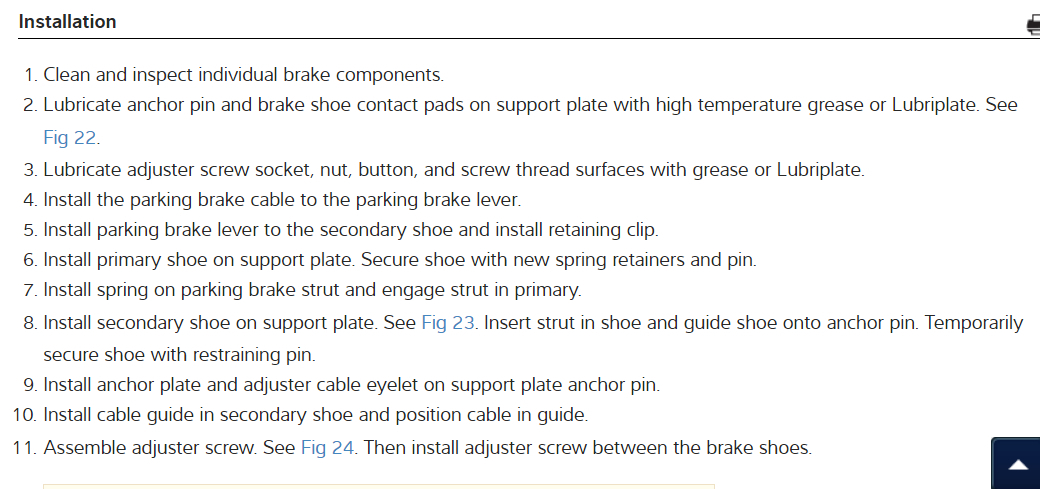

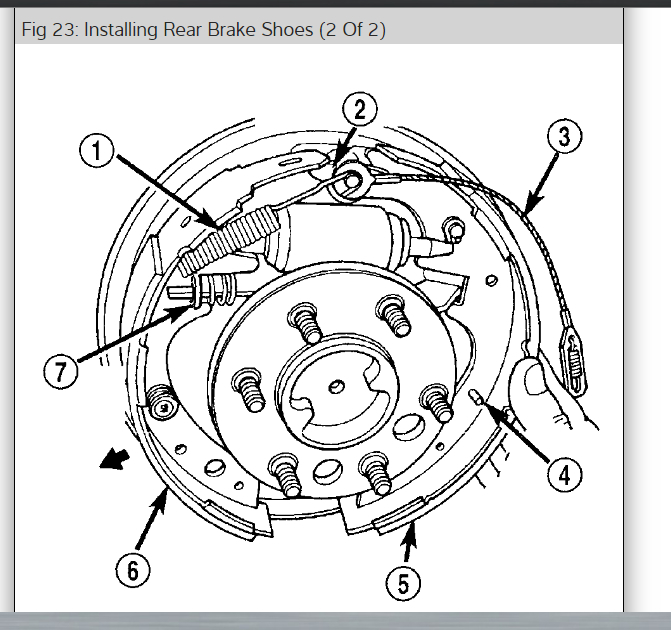

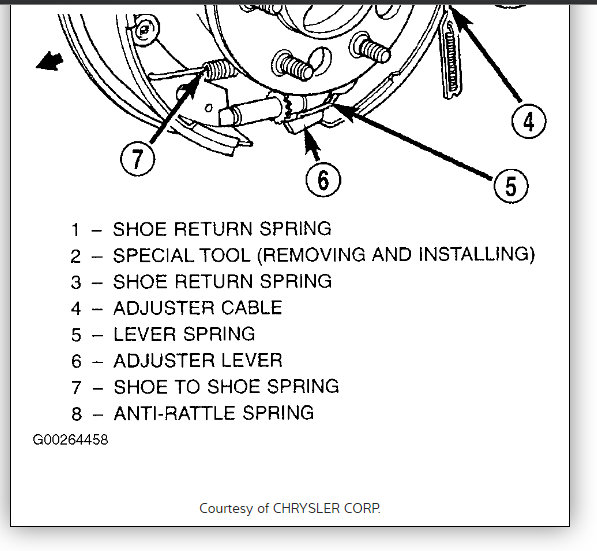

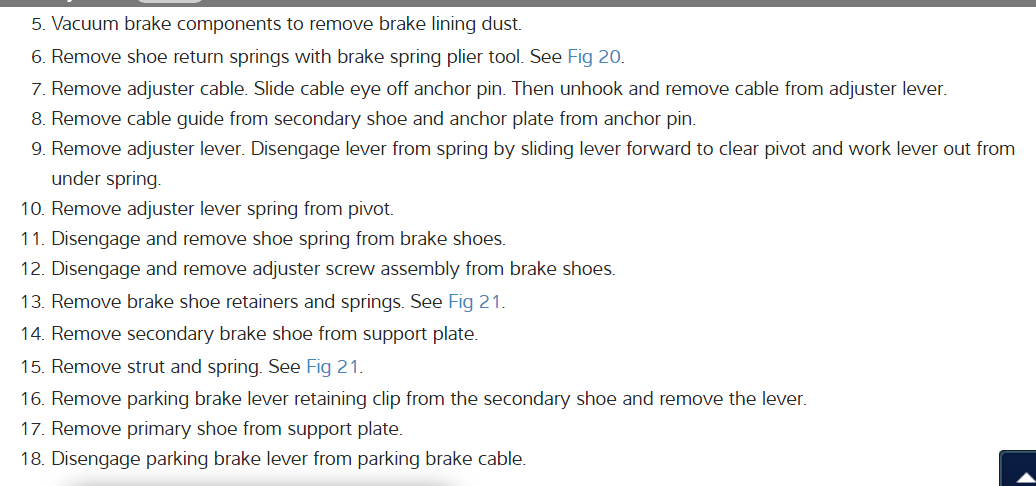

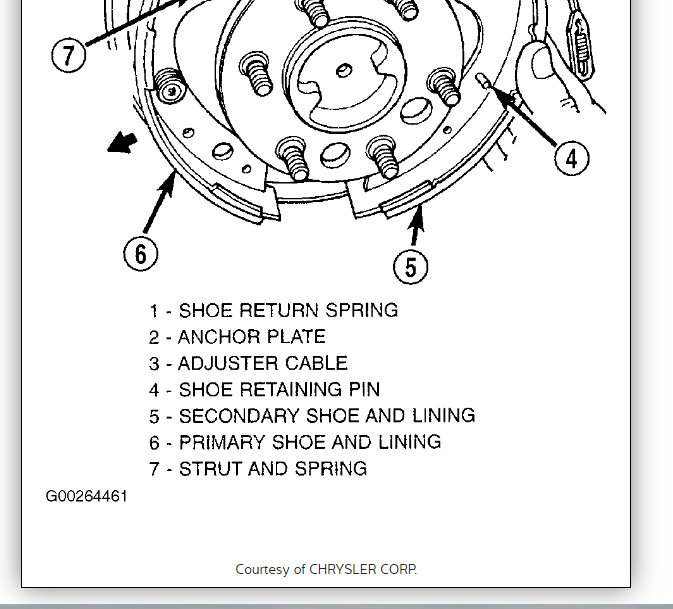

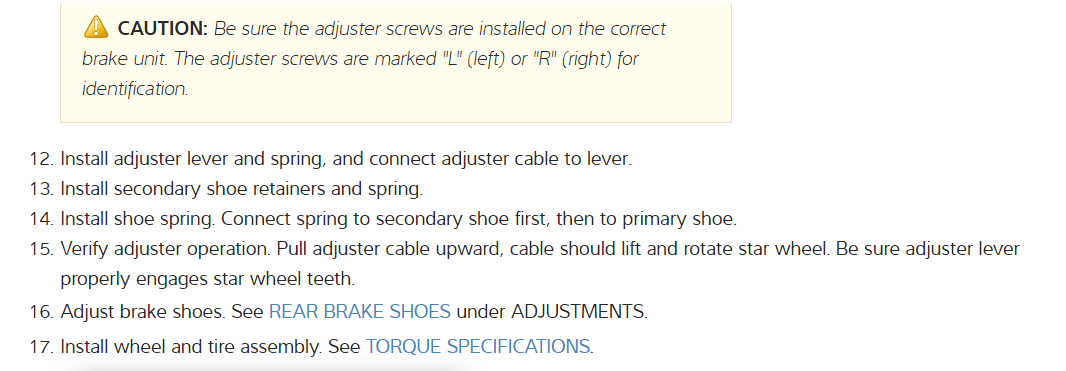

I have included the instructions from the factory on the removal and installation of the rear brake shoes on your vehicle in the diagrams down below. Please go through the guides below and get back to us with what you are able to find out.

Thanks,
Alex
2CarPros
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
May 12, 2019 at 10:37 AM
