Drive Belts Diagram needed?

2011 HYUNDAI SONATA HYBRID
130,000 MILES • 2.4L
Avatar
LBKILPATRICK
  • MEMBER
  • 1 POST
Need drive belt (Serpentine) routing diagram for the vehicle listed above.
Aug 23, 2024 at 3:03 AM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

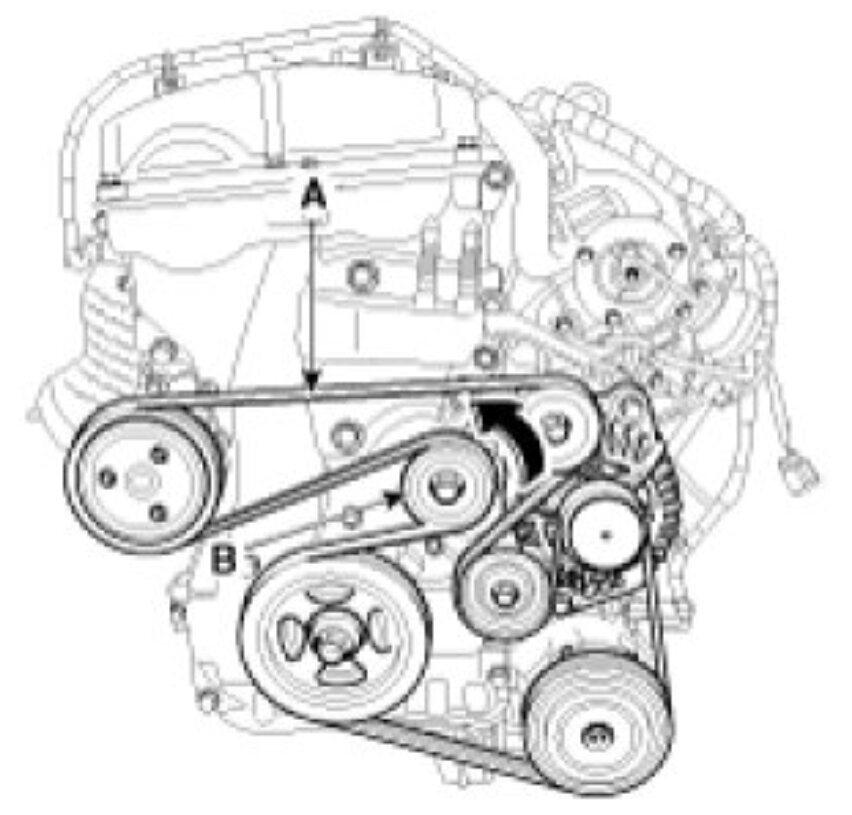

Sure, here is how the serpentine drive belt is installed. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Attached Media
Aug 23, 2024 at 7:55 AM
