drive belt diagram needed?

2010 VOLKSWAGEN ROUTAN
132,000 MILES • 3.8L • 6 CYL • 2WD • AUTOMATIC
Avatar
JOAFRAN
  • MEMBER
  • 1 POST
need diagram. Does the belt wrap twice around one of the pulleys?
May 5, 2023 at 7:00 AM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS

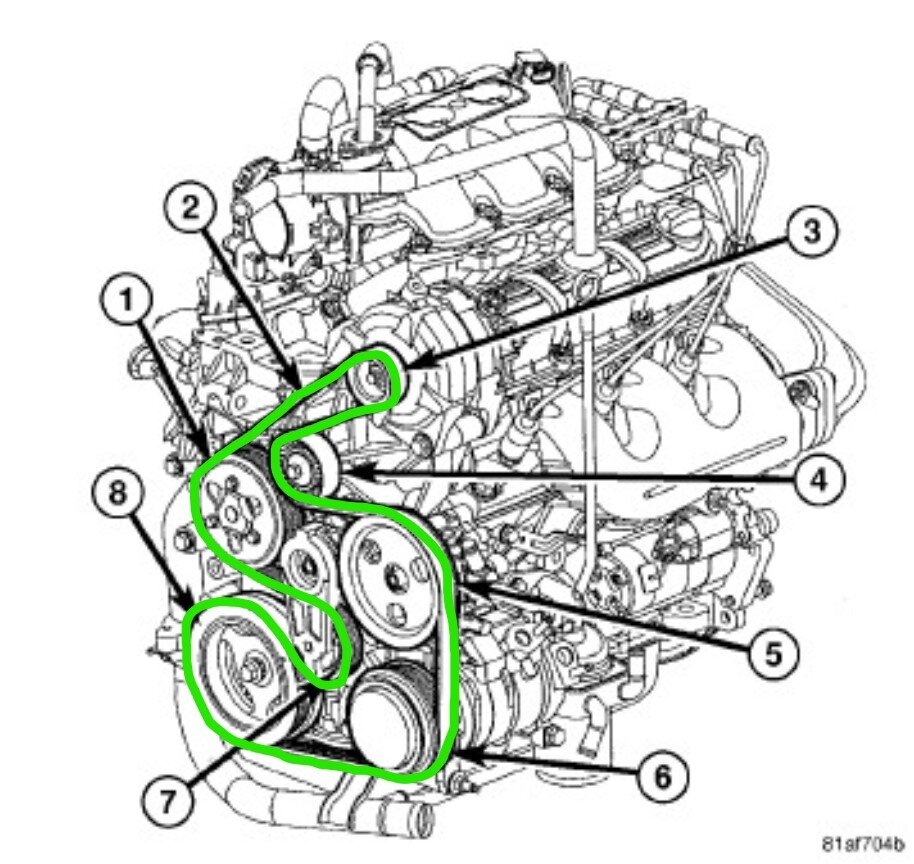

The belt route is a bit convoluted, but it doesn't wrap any of them twice. I highlighted it in the image because of that. Route the belt over all the pulleys except the crankshaft, then move the tensioner and put the belt onto the crankshaft pulley. Then put the plastic shroud back in place.
Image (Click to enlarge)
Attached Media
May 5, 2023 at 9:26 AM
Avatar
BEACHCOWBOY
  • MEMBER
  • 8 POSTS
Could someone tell me what the pulley number 8 is called?
Jul 5, 2024 at 11:09 AM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS
That is the crankshaft pulley. It mounts to the balancer/damper that goes on the crankshaft snout. It powers all the accessories.
Jul 5, 2024 at 12:37 PM
