Diagram of the ct5 serpentine belt?

2020 CADILLAC XT5
115,465 MILES • 3.6L • V6 • 4WD • AUTOMATIC
Avatar
JOHN W. WILKINSON
  • MEMBER
  • 3 POSTS
Looking for the layout of the Cadillac xt5 serpentine belt.
Mar 24, 2025 at 1:15 PM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS

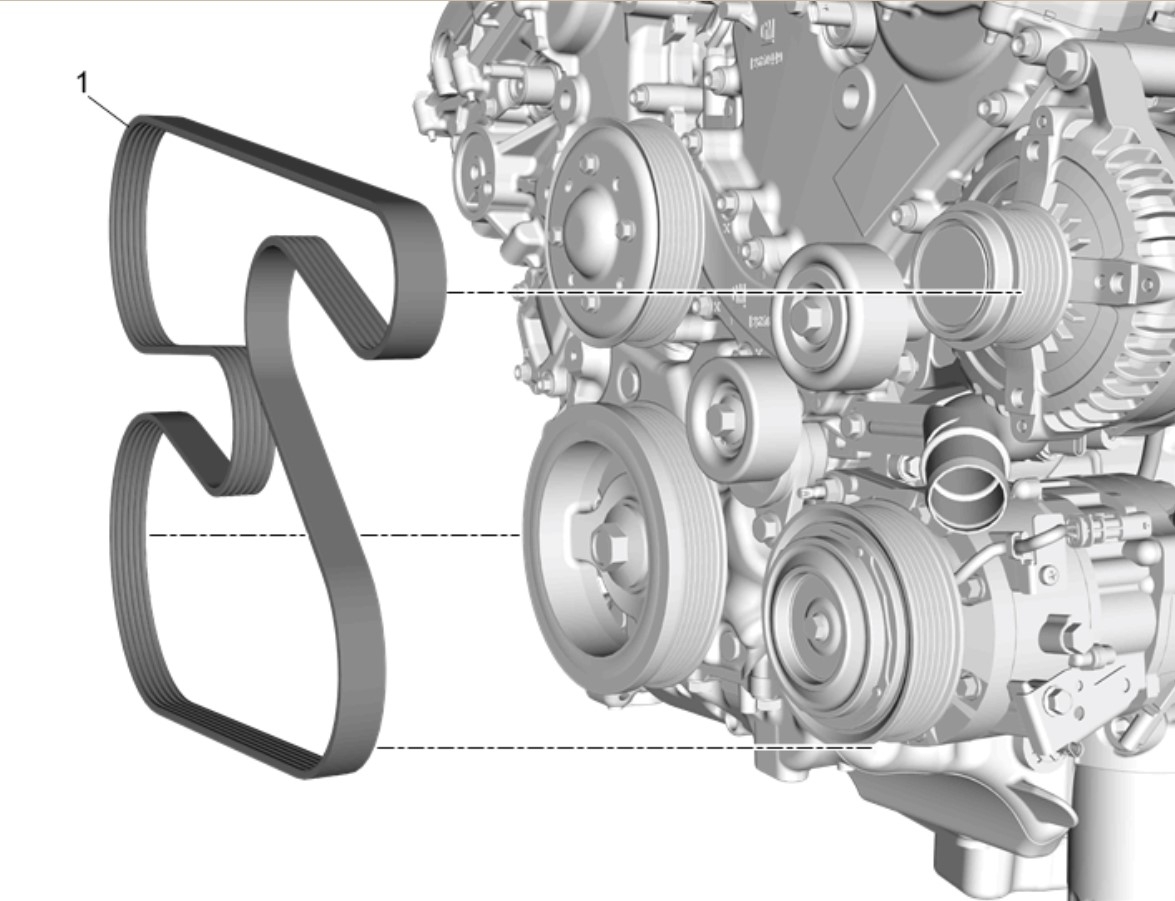

This is the 3.6 belt routing. https://www.2carpros.com/articles/replace-serpentine-belt
Image (Click to enlarge)
Attached Media
Mar 24, 2025 at 3:48 PM
