Can I get the vacuum hose diagram?

2002 JEEP GRAND CHEROKEE
300,000 MILES • 4.7L • V8 • AUTOMATIC
Avatar
CLPH@1985
  • MEMBER
  • 1 POST
I'm in desperate need for the vacuum hose diagram for my 2002 4.7L. Can't find one online anywhere.
Sep 25, 2024 at 9:06 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

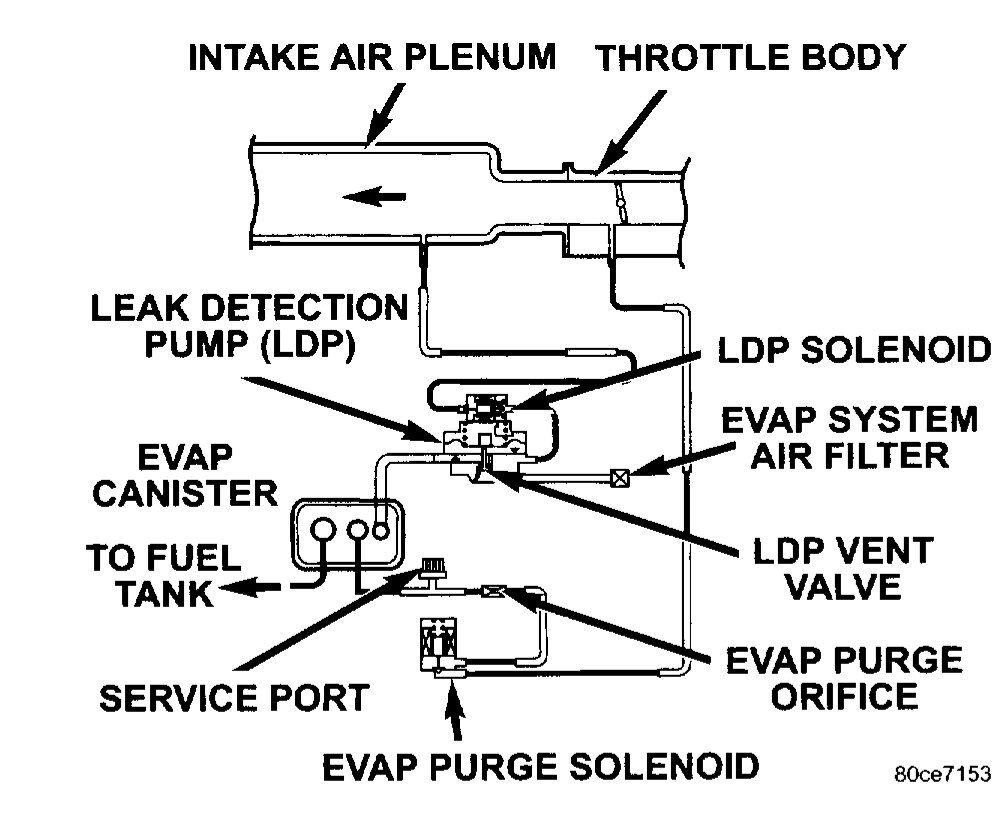

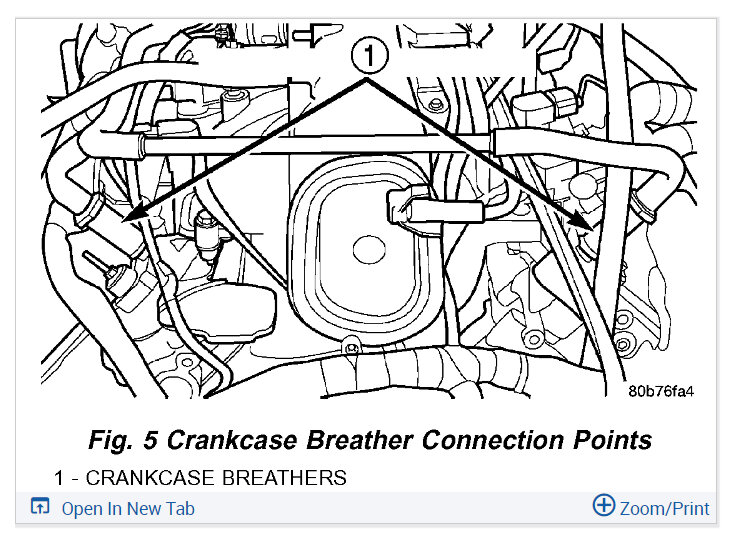

Yep, they are hard to come by the dealer does not release useful information on this, here is what we have. Sorry we were not more help. Check out the images (below). Let us know if you need anything else.
